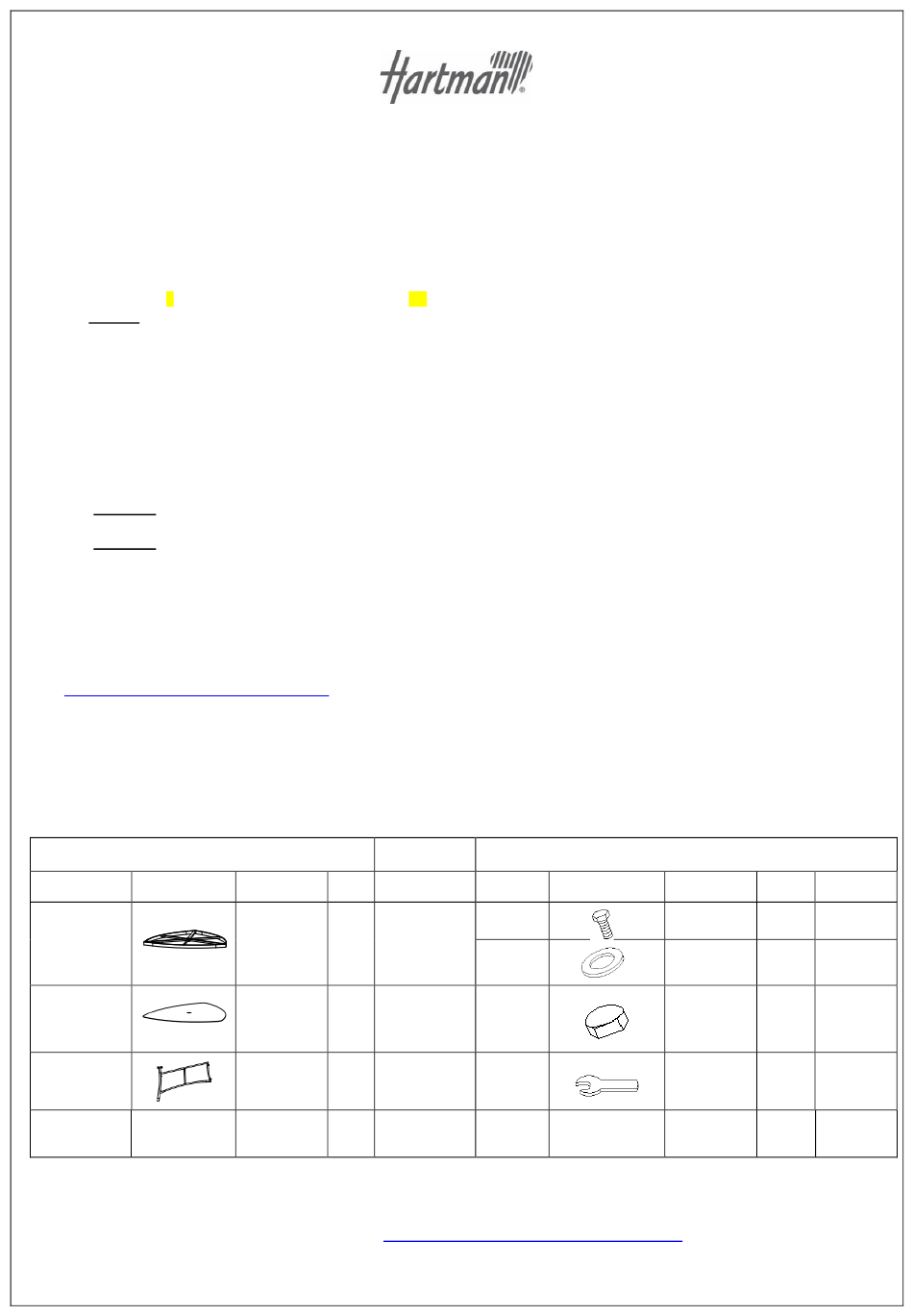

Hartman 68107150 Assembly Instructions

Langdale 160cm triangular table

Advertisement

PLEASE KEEP ME WITH YOUR PROOF OF PURCHASE FOR FUTURE REFERENCE

ATTENTION:

1.
Please read these instructions carefully before assembly
2.
Aluminium is a soft metal and over tightening may strip the thread or break the part
3.
DO NOT use power tools
4.
Please allow 30 minutes for assembly
5.
Although assembly only requires 1 person it is advised that a second person be present to help turn the table over and into position when
fully assembled.

ASSEMBLY STEPS:

1.
Turn the table top (A) upside down on a soft clean surface
2.
Place glass in safe place whilst assembling table
3.
LOOSELY attach leg panels (C) to table top (A) with bolts (D) and big flat washers (E) using spanner (G) DO NOT TIGHTEN THE
BOLTS AT THIS STAGE
4.
LOOSELY assemble 3 leg panels with bolts (D) and big flat washers (E) using spanner (G) DO NOT TIGHTEN THE BOLTS AT THIS
STAGE
5.
Tighten all bolts using spanner one by one being careful not to over tighten any as this will cause the thread to become damaged
6.
Place Nut Caps (F) on all visible bolts (D)
7.
Turn table top over and place in desired position
8.
Place glass (B) back on table and gently press down on suckers to ensure glass is secure
For more information regarding maintenance of your furniture please visit
https://www.hartmanuk.com/home
Component's

Parts List

Parts Picture
A
B
C
Should you have any queries about your furniture your first point of contact should be the retailer from whom
you purchased your product
ASSEMBLY INSTRUCTIONS
Langdale 160cm Triangular Table
(68107150)
Q'ty
Description
Part no
68107150A
Table Top
1
68107150B
Glass
1
68107150C
Leg panels
3
http://spares.hartmanuk.co.uk/purchase
Fixings
Parts list
Parts Picture
D
E
F
G
Q'ty
Description
Part no.
M6*25 bolts
18
1231162
Big Flat
18
1061162
washers
Nut cap
18
2100038
Spanner
1
2100041
