Hartman Vienna 69475002 Assembly Instructions Manual

PLEASE KEEP ME WITH YOUR PROOF OF PURCHASE FOR FUTURE REFERENCE
ASSEMBLY INSTRUCTIONS - Vienna Reclining Rectangular Casual Dining Set
ATTENTION:
1. Please read these instructions carefully before assembly
2. Aluminium is soft metal and over tightening may strip thread or break the part
3. DO NOT use power tools
4. Please allow 30 minutes for assembly.
5. Although assembly only requires 1 person it is advised that a second person be present to help turn the seat unit over and into position
when fully assembled
LEFT HAND SOFA ASSEMBLY STEPS:
1. Place part A, B and C on a soft clean surface and ready for assembly.
2. LOOSELY attach Left armrest (B) and Right leg frame (C) to the seating panel (A) with bolts (H), bolts (G) and small flat washers(J)
using Allen key (P) DO NOT TIGHTEN THE BOLTS AT THIS STAGE
3. LOOSELY attach front crossing bar (D) to assembled legs with bolts (G) and small flat washers (J) using Allen key (P) DO NOT
TIGHTEN THE BOLTS AT THIS STAGE
4. LOOSELY attach backrests (E) and (F) to seating part with bolts (K), locknut (M) and big flat washers (N) using spanner (O), bolts (H)
and small flat washers (J) using Allen key (P)
5. Fix both ends of the gas spring to the seating part and backrest with bolts (L), locknut (M) and big flat washers (N) using spanner (O)
6. Tighten all bolts using spanner (O) and Allen key (P) one by one being careful not to over tighten any as this will cause the thread to
become damaged
7. Turn assembled sofa over and place in desired position, then attach right backrest to right leg frame with bolt (I) and small flat washers
(J) using Allen key (P).
8. Assembling is complete then put all cushions on the seat
For more information regarding maintenance of your furniture please visit
http://www.hartmanuk.co.uk/after_care_videos.html

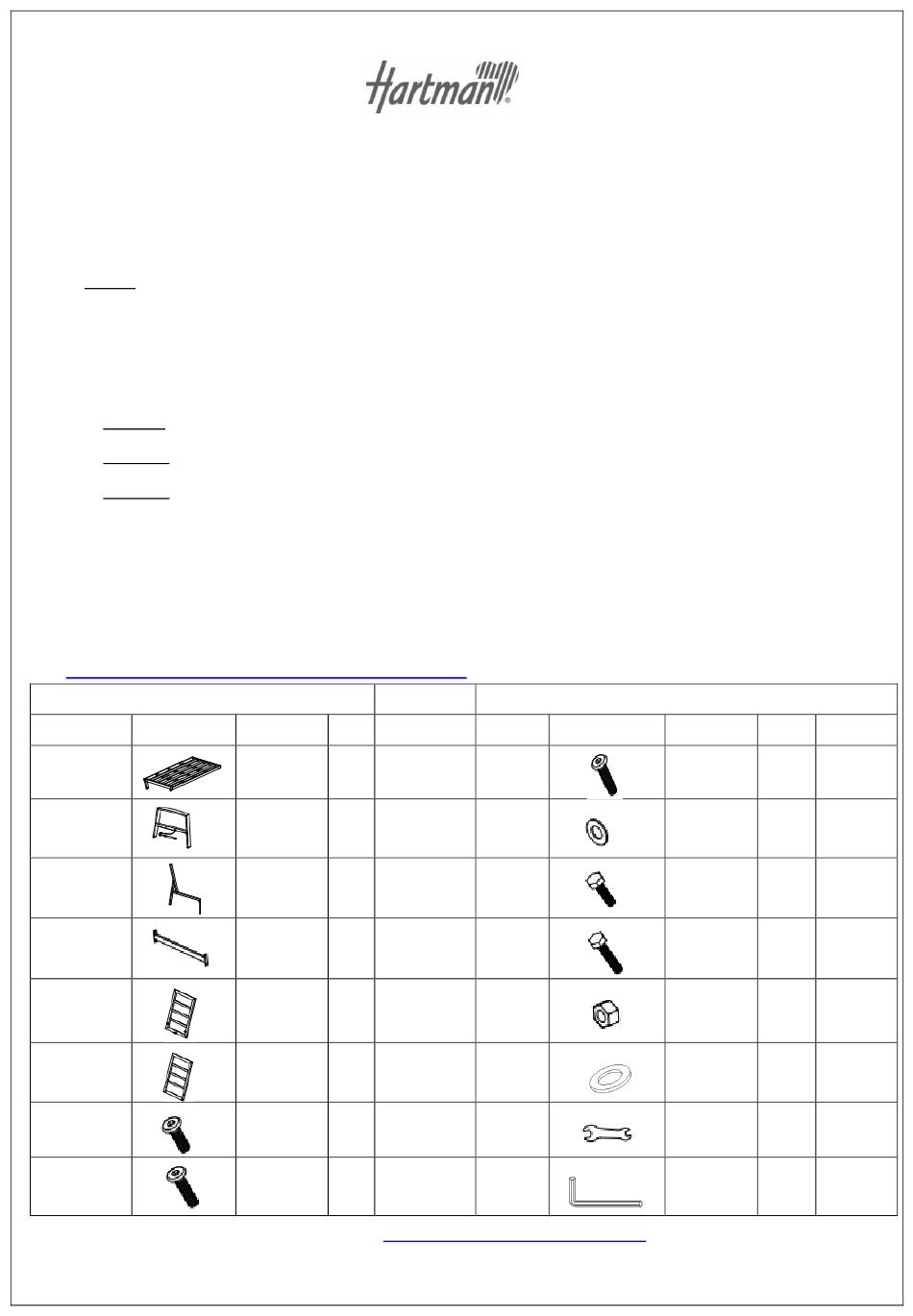

Component's
Parts List Parts Picture
A
B
C
D
E
F
G
H
For replacement or lost spare parts please go to
Should you have any queries about your furniture your first point of contact should be the retailer from whom
you purchased your product
69475002 / 68477002
Description Q'ty Part no
Seating 1 69475002A
Panel
LH armrest 1 69475002B
RH leg 1 69475002C
frame
69475002D
Front 1
crossing
bar
69475002E
Left 1
Backrest
69475002F
Right 1
Backrest
M6*20 bolts 6 1017162
M6*35 bolts 8 1111162
http://faq.hartmanuk.co.uk/spares/
Fixings
Parts list Parts Picture
I
J
K
L
M
N
O
P
Description Q'ty Part no.
M6*60 bolts 1 2100061
Small Flat 15 1241162
washers
M8*30 bolts 2 2100062
2100063
M8*50 bolts 2
Locknut 4 2002178
1061162
Big Flat 8
washers
2100049
Spanner 2
Allen key 1 2002191
