9.7.

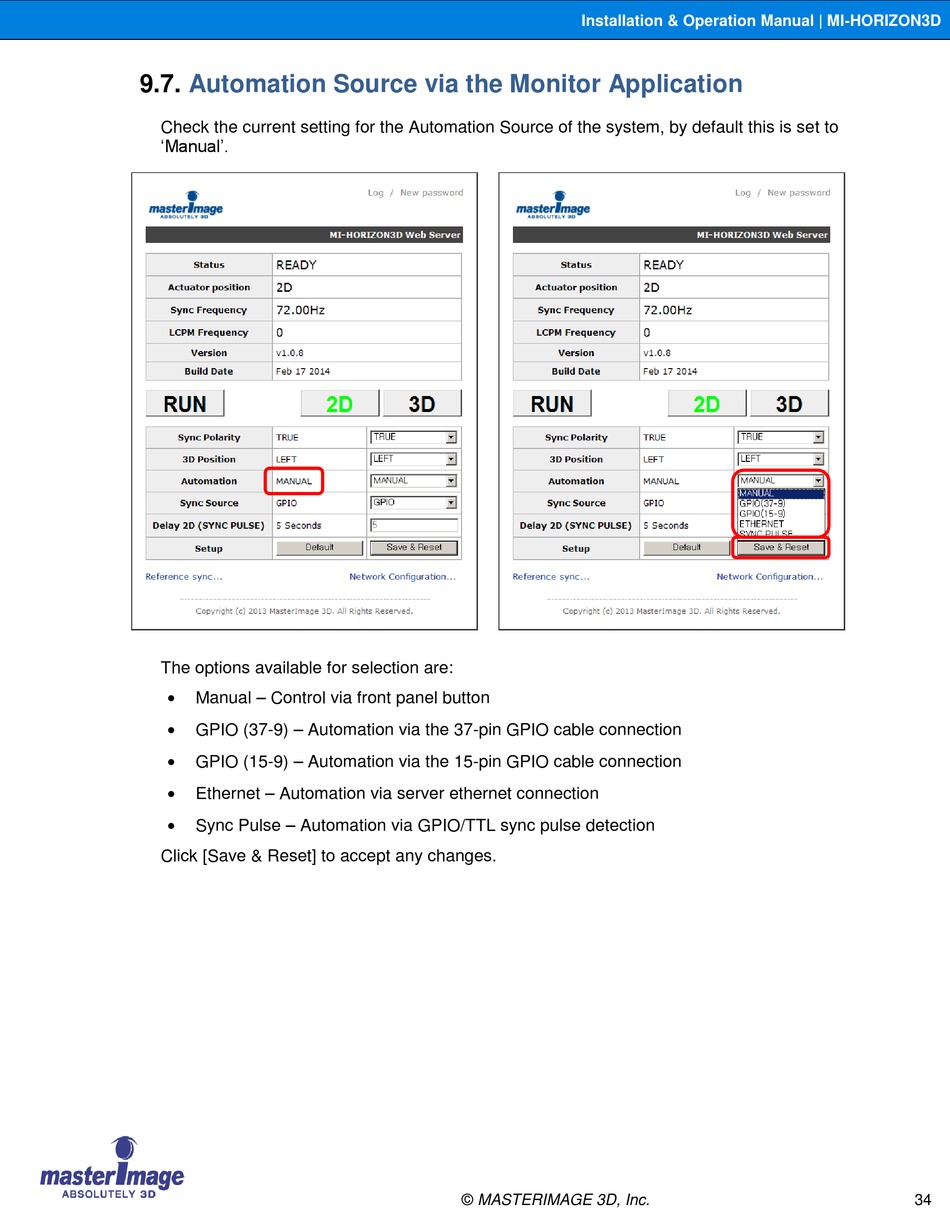

Automation Source via the Monitor Application

Check the current setting for the Automation Source of the system, by default this is set to
'Manual'.
The options available for selection are:

Manual – Control via front panel button

GPIO (37-9) – Automation via the 37-pin GPIO cable connection

GPIO (15-9) – Automation via the 15-pin GPIO cable connection

Ethernet – Automation via server ethernet connection

Sync Pulse – Automation via GPIO/TTL sync pulse detection
Click [Save & Reset] to accept any changes.
