6.1.3. Initial Height Adjustment

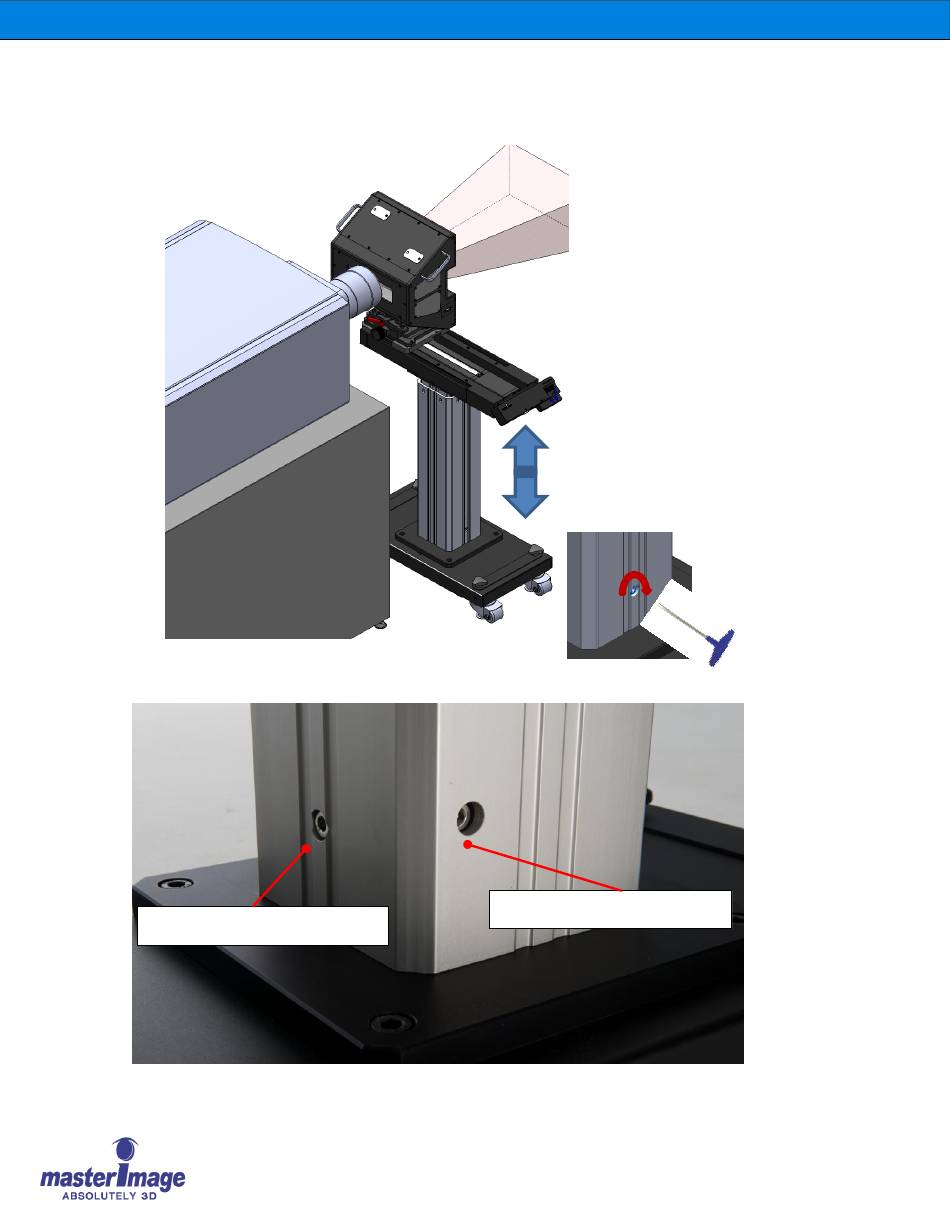

Adjust the height of the optical head so the
projected light beam coincides with the center of
the optical head entrance window.
Clockwise: UP
Counter-Clockwise: DOWN
ALLEN WRENCH (TYPE-T) 6mm
Front: Height Locking Screw.
Side: Height Adjustment Screw.
