9.4.2. 2D Position

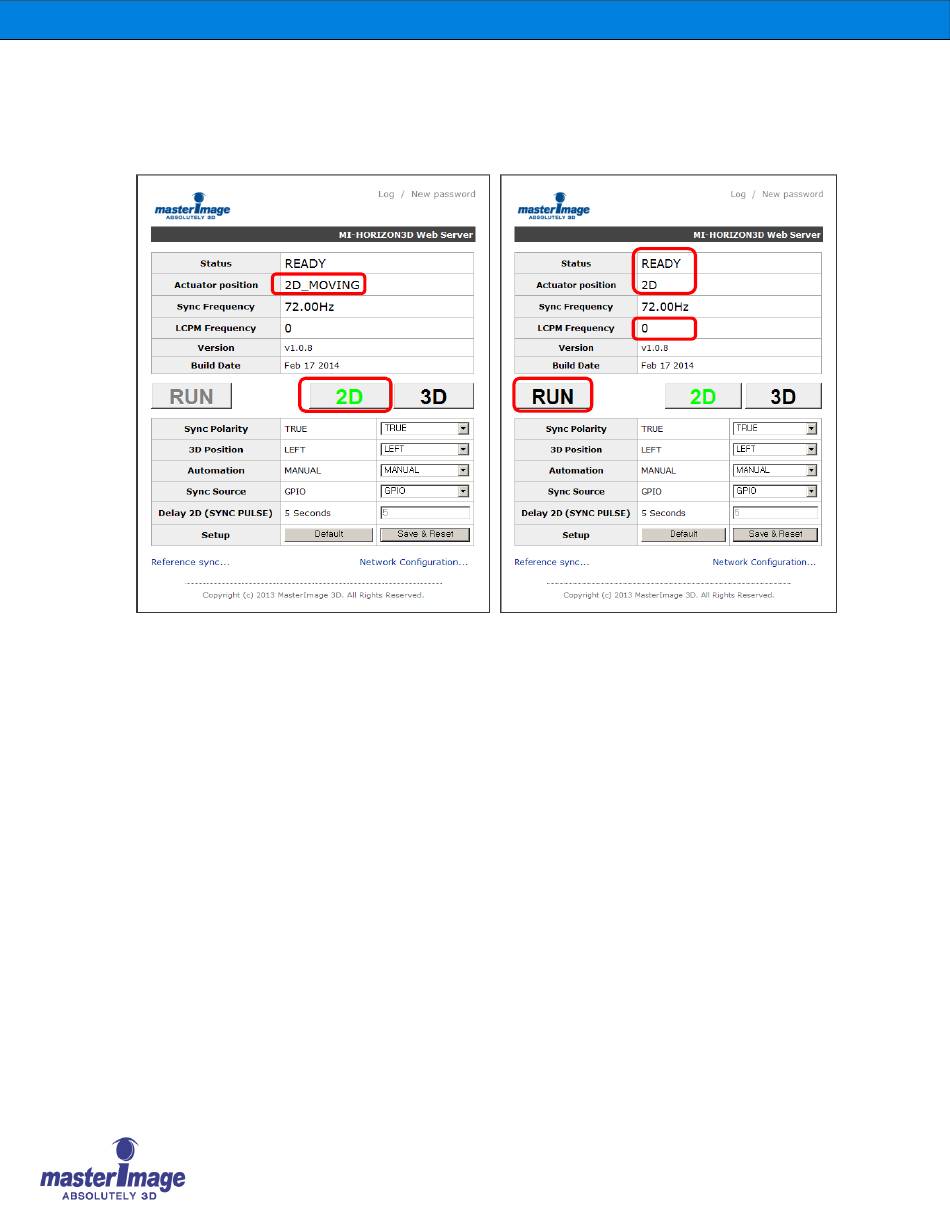

Click the [2D] button to move the actuator to the 2D position.
The color of the [3D] button will change from green to black.
The color of the [2D] button will change from black to green.
The color of the [RUN] button will change from green to black.
The indication under Status will change from 'Running' to 'Ready'.
Whilst the actuator is transitioning to the 2D position '2D_Moving' will be displayed, when the
2D position is reached this will change to '2D'.
The Liquid Crystal Panel operation will stop and the frequency will display as 0.
