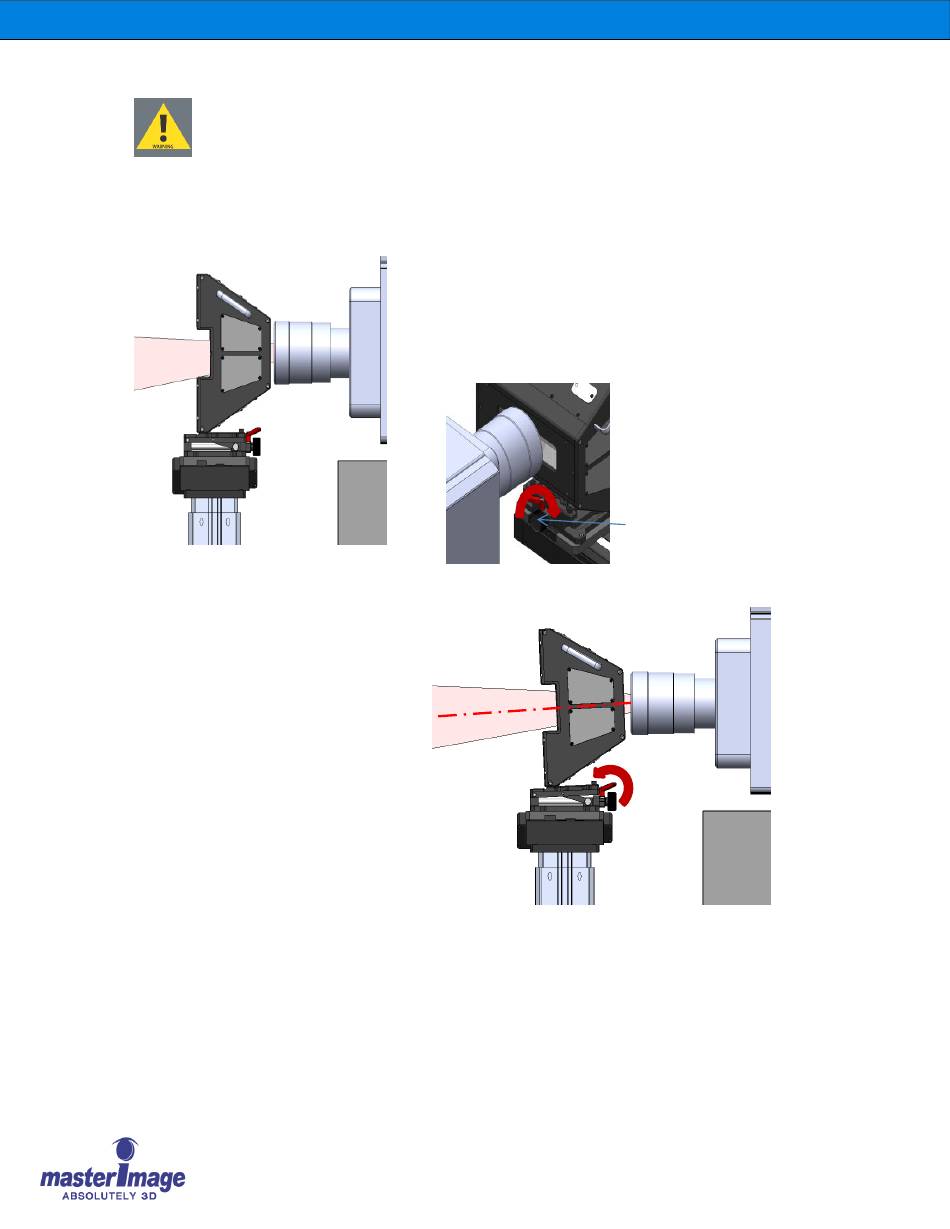

IMPORTANT The Optical Head Assembly must be installed perpendicular
to the light path exiting the lens. The angle of this light may not be the same
angle as the lens itself, so observe the light path from the side to make sure
the head is exactly perpendicular.
Adjust the tilt of the optical head so the
projected light beam is perpendicular.
Installation & Operation Manual | MI-HORIZON3D
TILT ADJUSTMENT
KNOB
TILT
© MASTERIMAGE 3D, Inc.
18
