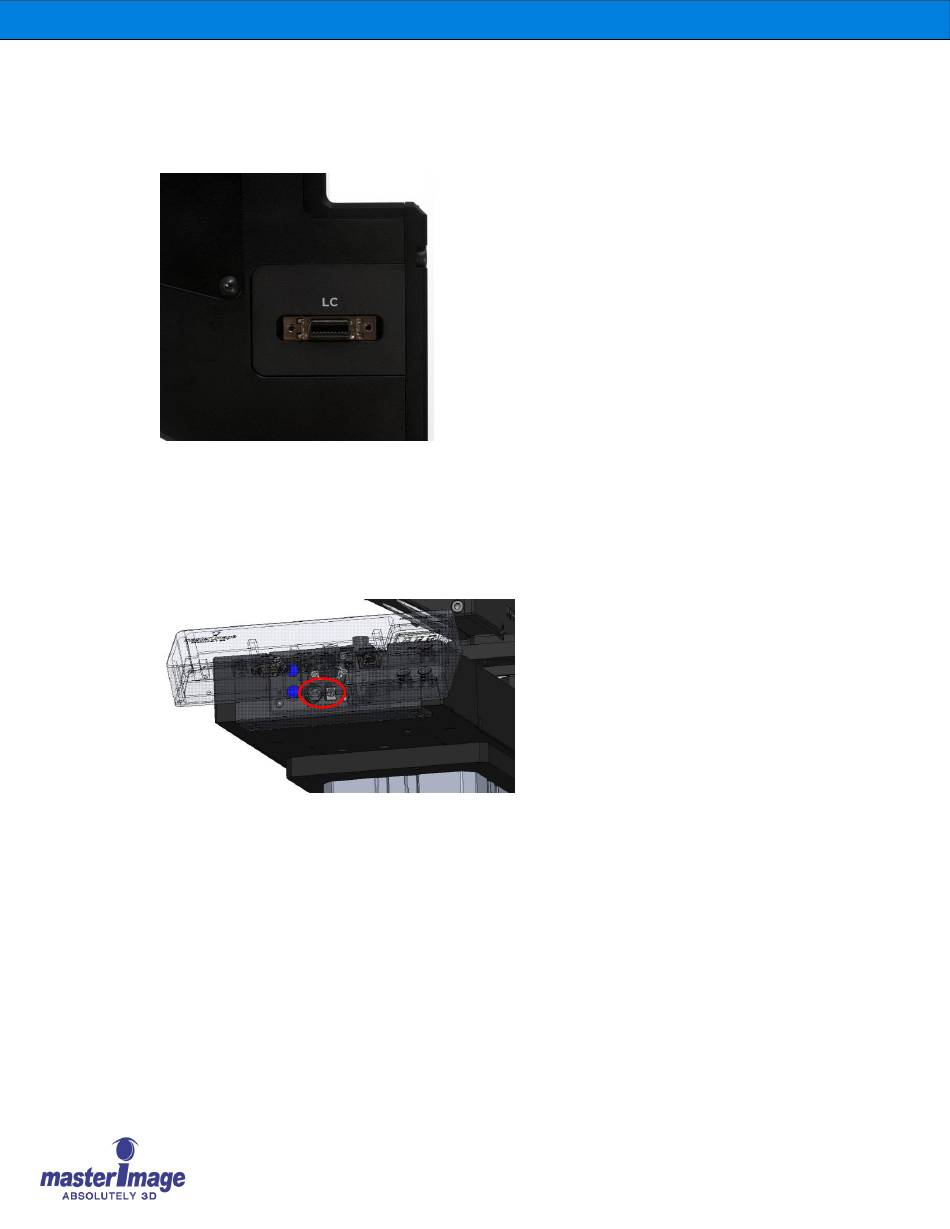

6.1.2. Cable Connections
1.
Attach the LC Connector from the Actuator assembly to the Optical Head Assembly.
LC Cable Connection
2.
Ensure the Actuator Cable is connected between the Control Box and Actuator and the LC
Cable is connected to the rear of the Control Box. Connect the 24v DC power cable to the
Actuator.
Actuator & Power Cable Connection
Installation & Operation Manual | MI-HORIZON3D
© MASTERIMAGE 3D, Inc.
16
