7. MI-HORIZON3D System Alignment & Configuration
7.1.
Upper Beam Alignment

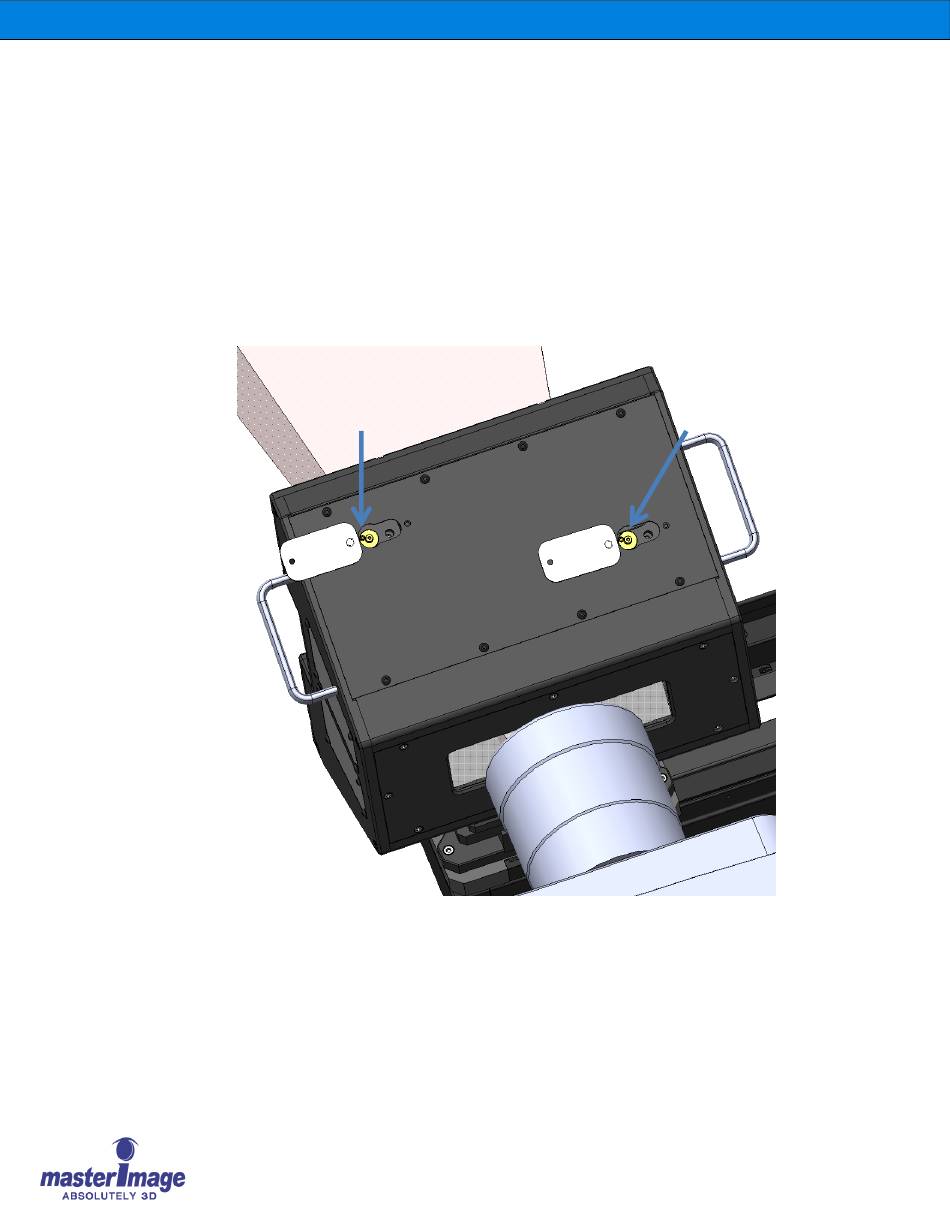

1, Open the two adjustment screw covers on the top side of the optical head assembly.
2, Load the standard cross-hair test pattern from the projector.
3, Using a 2mm or 5/64" hex key use the right hand screw to alter the horizontal image position
and the left hand screw for the vertical image position.
UPPER MIRROR PRISM
ADJUSTMENT SCREW
(VERTICAL)
CLOCKWISE: DOWN
COUNTER-CLOCKWISE: UP
Installation & Operation Manual | MI-HORIZON3D
© MASTERIMAGE 3D, Inc.
UPPER MIRROR PRISM
ADJUSTMENT SCREW
(HORIZONTAL)
CLOCKWISE: LEFT
COUNTER-CLOCKWISE: RIGHT
21
