6. System Setup
6.1.
Initial System Assembly

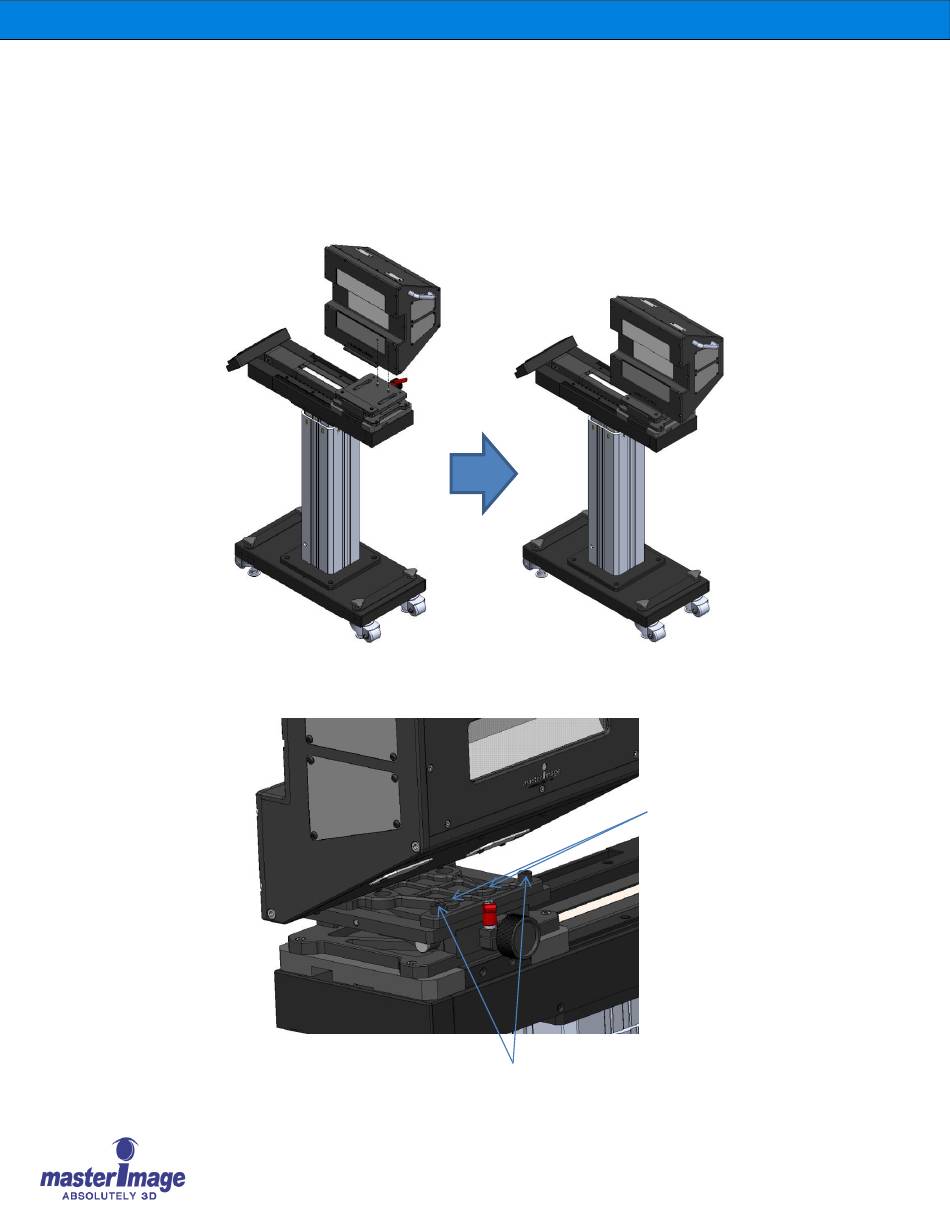

6.1.1. Attach Optical Head to Actuator
Insert the optical head assembly into the front section of the actuator tilt stage whilst aligning with the
two guide pins. Once located correctly secure with two hex screws provided.
Installation & Operation Manual | MI-HORIZON3D
HEX SOCKET HEAD CAP
SCREW M8x1.25x22L (x2)
© MASTERIMAGE 3D, Inc.
TWO
GUIDE HOLES
15
