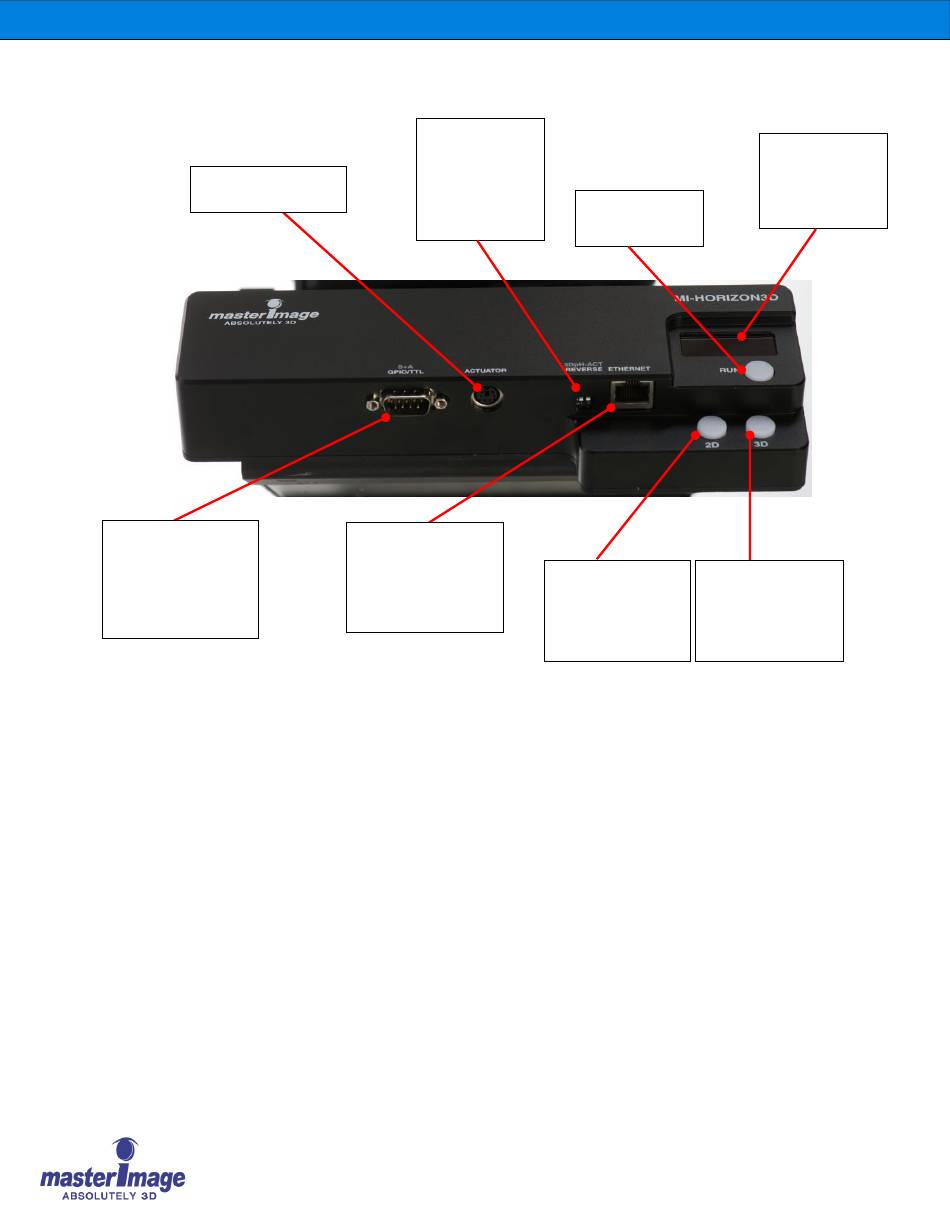

Control Box – Front Panel & Connections
5.4.
Actuator
Connector
GPIO/TTL
Connector
Used for
Automation and
Sync
Dip Switch:
Used to
reverse 3D
polarity &
actuator
position
Ethernet Port:
Used for
Automation and
Connection of
Monitor Program
© MASTERIMAGE 3D, Inc.
Installation & Operation Manual | MI-HORIZON3D
Run/Stop
Button
2D Button:
3D Button:
Used to move the
Used to move the
Optical Head
Optical Head
Assembly to the
Assembly to the
2D position
3D position
Operation LED:
Displays
Running Freq.
& Error Codes
14
