- Page 1 Quick Guide VK2-108VRDIR35V16e Quick Guide Please read this manual thoroughly before use, and keep it handy for future reference.
- Page 2 Quick Installation Guide VK2-1080VRDIR35V16e Quick User guide V1.0...

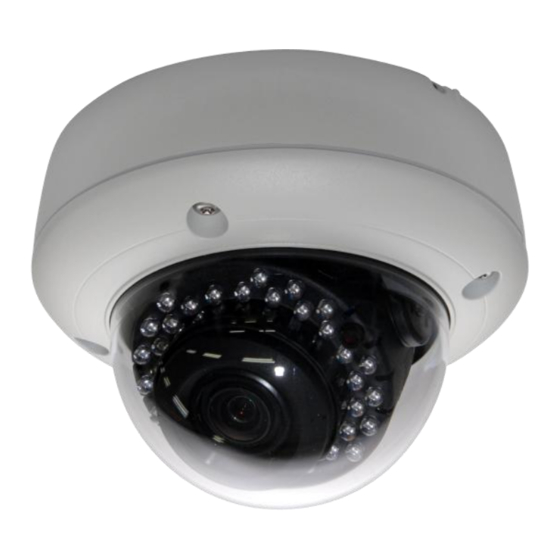

- Page 3 Quick Installation Guide 1. Description This manual applies to the VK2-1080VRDIR35V16e full HD Vandal resistant varifocal dome with IR illumination. • Installation Steps Follow these steps to install the VK2-1080VRDIR35V16e on your local network (LAN): 1. Check the package contents against the list below. 2.
- Page 4 Quick Installation Guide • Connection Cable Name Description Lens Allows wide area to be monitored Ethernet Cable Cable for Ethernet (POE) Power Cable Cable for Power source (DC 12V) Camera Dimension See the diagrams below for the exact dimension VK2-1080VRDIR35V16e Quick User guide V1.0...
-
Page 5: Installation
Quick Installation Guide 2. Installation 2.1 Connection 1. Make mounting holes and cable hole in the place (ceiling or wall) to which this dome camera is installed using the Drilling guide label. 2. To remove dome cover, turn the dome body counter clockwise until locations reach end travel and pull off. - Page 6 Quick Installation Guide 3. Attach the housing to the ceiling using suitable fasteners, M6x35 tapping screws supplied only use if they are suitable. Turn the housing to right direction about 16 degrees to lock in place. 4. the assembly of the dome body and liner is in reverse order of disassembly. Finally, lock dome body with locking screw(M3x5) from the accessory Kit.
-
Page 7: Network Connection And Ip Assignment
Quick Installation Guide 2.2 Network Connection and IP assignment The Network Camera supports the operation through the network. When a camera is first connected to the network it has no IP address. So, it is necessary to allocate an IP address to the device with the “Smart Manager”... -
Page 8: Operation
Quick Installation Guide 3. Operation The Network Camera can be used with Windows operating system and browsers. The recommended browsers are Internet Explorer, Safari, Firefox, Opera and Google Chrome with Windows. 3.1 Access from a browser Start a browser (Internet Explorer). Enter the IP address or host name of the Network Camera in the Location/Address field of your browser. -
Page 9: Setting The Admin Password Over A Secure Connection
Quick Installation Guide 3.3 Setting the admin password over a secure connection To gain access to the product, the password for the default administrator user must be set. This is done in the “Admin Password” dialog, which is displayed when the network camera is accessed for the setup at the first time. -
Page 10: Network Camera Setup
Quick Installation Guide Control toolbar The live viewer toolbar is available in the web browser page only. It displays the following buttons: The Stop button stops the video stream being played. Pressing the key again toggles the start and stop. The Start button connects to the network camera or start playing a video stream. -
Page 11: Resetting To The Factory Default Settings
Quick Installation Guide 3.6 Resetting to the factory default settings To reset the Network Camera to the original factory settings, go to the Setup>System> Maintenance web page (described in User’s Manual, “3.5.5 System > Maintenance”) or use the Reset button on the network camera, as described below Reset Button •... - Page 12 Quick Installation Guide Printed in Korea VK2-1080VRDIR35V16e Quick User guide V1.0...
