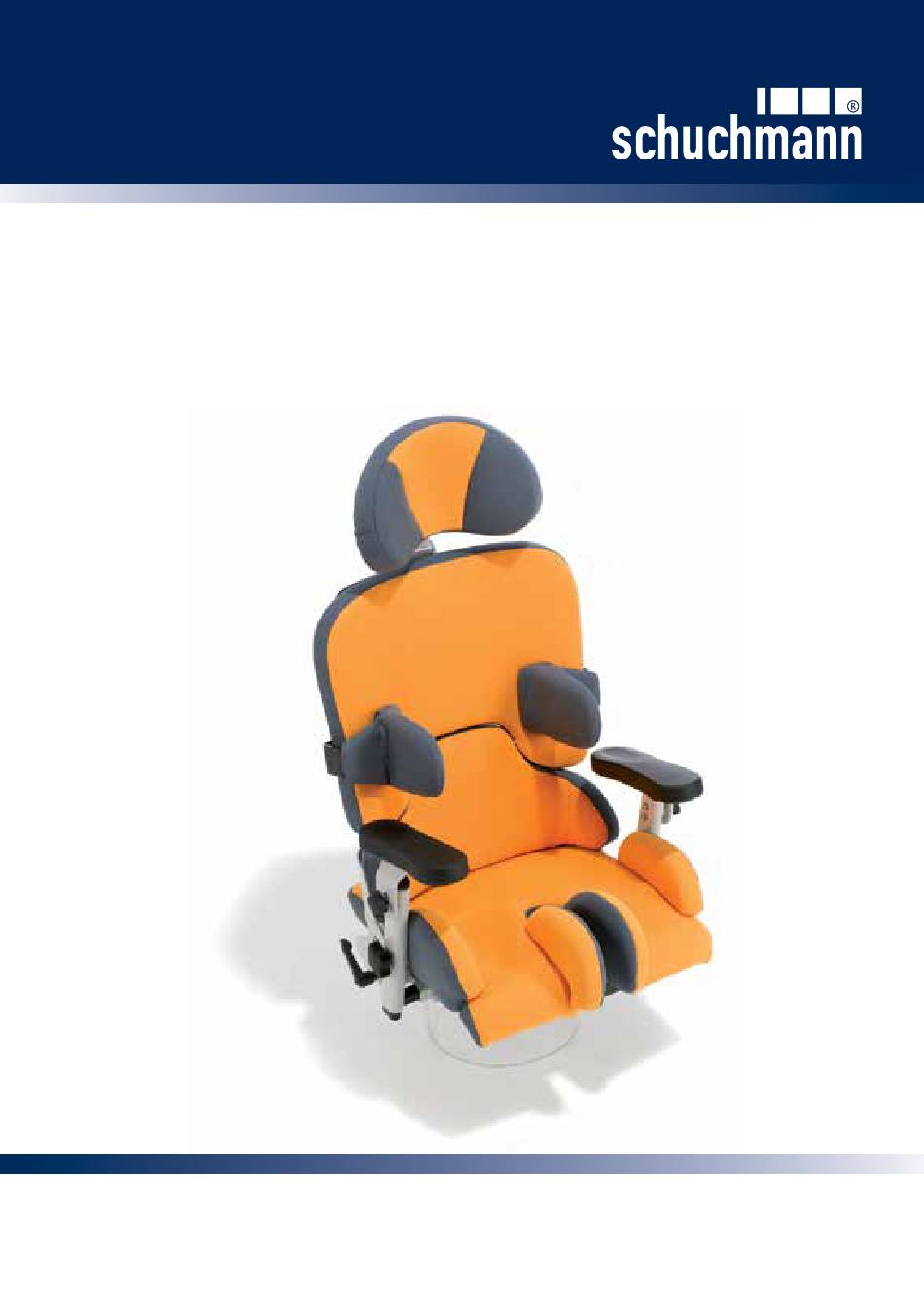

  • Page 1 SOFIE the versatile seat unit that grows with the child Instructions for use...
  • Page 2 Please note that guidelines and representations in these Instructions for use may deviate from your product due to differing equipment. We reserve the right to make technical modifications. Important information! Ensure that these Instructions for use remain with the product. Your Schuchmann Team...

  • Page 3: Table Of Contents

    Contents Page 1. Preparation of the seat unit for use Transport......................... 2 Safety measures prior to use.................. 2 Safe disposal of the packaging material..............2 Location of the instructions..................2 2. Product description Material information....................3 Areas of application, use according to the intended purpose......... 3 Use not in accordance with the intended purpose / warning guidelines....

  • Page 4: Preparation Of The Seat Unit For Use

    1. Preparation of the seat unit for use 1.1 Transport On receiving the product, please check it for completeness, lack of faults and check it for any transport damage. Inspect the goods in the presence of your forwarder Should transport damage have occurred, please cause an inventory (determination of the faults) to be made in the presence of the forwarder.

  • Page 5: Product Description

    The covers consist to 100% of polyester. 2.2 Application areas, use according to the intended purpose The seat unit SOFIE has been designed for children and teenagers who are unable to sit or stand independently, but whose limited torso posture does not continuously require sitting in a seat pan.

  • Page 6: Equipment For Basic Model

    2.4 Equipment for basic model • Incl. armrests with adjustable height, width and angle • Incl. standard seat pad with cover • Adjustment options: back angle, back height, seat depth, seat width • Adaptable to all standard exterior and interior chassis 2.5 List of accessories •...

  • Page 7: Settings

    3. Settings 3.1 Seat depth After loosening the cylinder head screws on both sides of the seat unit with a hexagonal wrench, the seat surface can be moved continuously for- wards or backwards. After each adjustment, please retigh- ten all screw connections! 3.2 Back inclination The back can be adjusted to the correct angle after loosening of the clamping lever (A) on the...

  • Page 8: Armrests

    3.5 Adapter / adaptation to the seat depth Using our adapter systems, it is possible to adapt the seat unit SOFIE to all standard sub-frames for indoor and outdoor use. After loosening the 4 countersunk head screws...

  • Page 9: Accessories

    4. Accessories 4.1 Headrest The headrest can be adjusted in height, depth and angle. In order to do this, please loosen the 2 cylinder head screws with a hexagonal wrench and bring the headrest into the required position. 4.2 Removable back The removable back can be operated on the back of the therapy chair.

  • Page 10: Thorax Pelotte Pads

    4.3 Thorax pelotte pads The thorax pelotte pads are individually adjustab- le in height and width. In order to do this, please loosen the 2 pan head screws (A) with a hexago- nal wrench and bring the thorax pelotte pad into the required position.

  • Page 11: Abducting Leg Guides

    4.6 Abducting leg guides The abducting leg guides permit the medically necessary abduction of the thighs and the com- pensation of a seat depth difference. In order to adjust the leg guides, please loosen the pan head screws with hexagonal wrench (A) below the seat pad, and bring the leg guides into...

  • Page 12: Therapy Table

    4.8 Therapy table The therapy table can be adjusted in height and depth. Height adjustment takes place via adjust- ment of the arm rests (see Point 3.4). For adjust- ment of the depth, loosen the wing screw (A) and bring the therapy table into the required position. In order to fold the therapy table to the side, for example when the child gets in or out, loosen the wing screws (A+B), swivel the table upwards and...

  • Page 13: Repairs And Cleaning

    The foot angle can be continuously adjusted both on the foot bench and the footrests. To do this, screw the pan head screws with a hexagonal wrench (A) in or out. Counter the nuts after each foot angle adjustment! The footrest height can be continuously adjusted both on the foot bench and the footrests.

  • Page 14: Technical Data

    6. Technical data Dimensions - basic model Sofie Size 0 Sofie Size 1 Sofie Size 2 Seat depth 15 - 25 cm 21 - 30 cm 30 - 42 cm Seat width 16 - 26 cm 20 - 30 cm 28 - 38 cm Back height with short back...

  • Page 15: Identification

    Fax: +49 (0) 54 05 / 909 - 109 declares on their sole responsibility that the product named below is classi- fied as product class 1 "SOFIE" - the versatile seat unit that grows with the child Art. No.: 17 00 100 (Size 0) 17 01 100 (Size 1)

  • Page 16: Serial Number / Date Of Manufacture

    · info@schuchmann-reha.de · Fon +49 (0) 5405 / 909 - 0 8.3 Product version The SOFIE seat system is available in three sizes and can be supplemented through a diverse range of accessories (see Point 4). 8.4 Issue of the document Instructions for use SOFIE - Change status B;...
