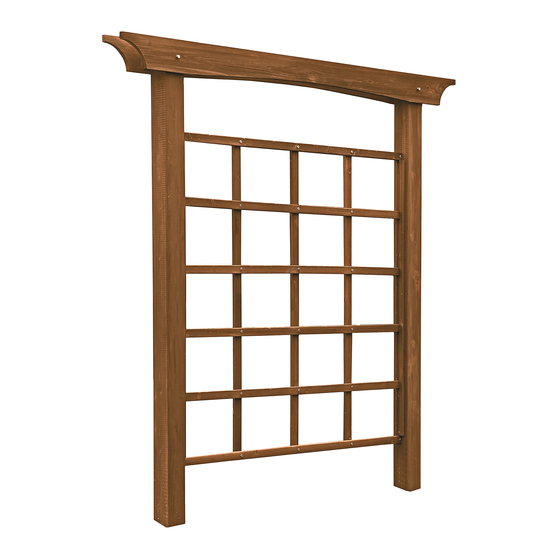

- Page 1 ASSEMBLY GUIDE Heartwood Trellis VA68899 VER 1.24 06/01/2020...
- Page 2 GETTING STARTED First off, allow us to say thank you for the investment you have made in our fine wood trellis. This wood trellis is designed to be assembled and installed ideally by two people with basic carpentry knowledge and tools. Do not attempt alone, especially during the installation stage.
-
Page 3: Table Of Contents
IN THIS GUIDE MATERIALS OVERVIEW MATERIALS BREAKDOWN ATTACHING VERTICAL SUPPORTS ONTO POSTS SCREW SUPPORT BEAMS HALF WAY ONTO POSTS SCREW TOP RAIL FULLY INTO PLACE SLIDE ALL HORIZONTAL SPINDLES UP VERTICAL SUPPORTS SCREW BOTTOM RAIL FULLY INTO PLACE ATTACH THREE VERTICAL SPINDLES TO THE TOP AND BOTTOM RAILS ALIGN HOLES ON HORIZONTAL SPINDLES WITH VERTICAL... -
Page 4: Materials Overview
MATERIALS OVERVIEW 1. 12035 - Post (x2) 3 3/4” x 3 3/4” x 81 1/2” (9.50cm x 9.50cm x 207.01cm) 2. 12036 - Vertical Support (x2) 3/4” x 2 1/4” x 56 1/2” (1.90cm x 5.70cm x 143.50cm) 3. 12037 - Vertical Spindle (x3) 3/4”... -
Page 5: Materials Breakdown
MATERIALS BREAK DOWN 80021 - MOUNTING 12035 - POST POST (X2) (X2) 12036 - VERTICAL SUPPORT (X2) 80022 - POUND 12037 - CAP(X2) VERTICAL SPINDLE (X3) 12040 - HORIZONTAL SPINDLE (X4) 12041 - TOP AND BOTTOM SUPPORT ALLEN KEY (X2) (X2) 12038 - BEAM (X2) -
Page 6: Attaching Vertical Supports
Step 1 ATTACHING VERTICAL SUPPORTS TO CENTRE OF POSTS When installing the verticle supports, make sure the front of each verticle support is facing each other! 1 1/4” (3.18CM) - X12 10 1/4 (26cm) VER 1.24 06/01/2020... -
Page 7: Screw Support Beams Half Way
Step 2 SCREW SUPPORT BEAMS HALF WAY ONTO POST (X2) (X4) 6” (15CM) (X2) VER 1.24 06/01/2020... -
Page 8: Screw Top Rail Fully Into Place
Step 3 SCREW TOP RAIL FULLY INTO PLACE 1 3/4” (4.5CM) (X2) 12041 (X1) VER 1.24 06/01/2020... -
Page 9: Slide All Horizontal Spindles Up Vertical Supports
Step 4 SLIDE ALL HORIZONTAL SPINDLES UP VERTICAL SUPPORTS Your spindles will be loose, dont worry. They will be screwed in place in a later step! 12040 (X4) VER 1.24 06/01/2020... -
Page 10: Screw Bottom Rail Fully Into
Step 5 SCREW BOTTOM RAIL FULLY INTO PLACE 1 3/4” (4.5CM) (X2) 12041 (X1) VER 1.24 06/01/2020... -
Page 11: Attach Three Vertical Spindles To The Top And Bottom Rails
Step 6 ATTACH THREE VERTICAL SPINDLES TO THE TOP AND BOTTOM RAILS 1” (3CM) X6 12037 (X3) VER 1.24 06/01/2020... -
Page 12: Align Holes On Horizontal
Step 7 ALIGN HOLES ON HORIZONTAL SPINDLES WITH VERTICAL SPINDLES You may stand the trellis up for this step 1” (3CM) X12 VER 1.24 06/01/2020... -
Page 13: Installing Mounting Posts
Step 8A INSTALLING MOUNTING POSTS INTO GROUND With your trellis fully assembled and laying flat on the ground. Put each of your mounting posts at the end of each trellis post, positioned in the middle. This is crucial that your installing your trellis on flat ground and both mounting posts are equally in the middle of each post. -
Page 14: Installing Mounting Posts
Step 8B INSTALLING MOUNTING POSTS INTO GROUND When in position with your pound caps on the posts, hammer each post 18” (45.72cm) into the ground. Remove your pound caps. POUND CAP MOUNTING POST 18” 18” (45.72 CM) (45.72 CM) MOUNTING POST 18”... -
Page 15: Guide Trellis Onto Mounting
Step 7 GUIDE TRELLIS ONTO MOUNTING POSTS Make sure to have a helper for this step VER 1.24 06/01/2020... - Page 16 We’re here for you. If you have any questions at all, don’t hesitate to contact us. NORTH AMERICA TOLL FREE 1-800-282-9346 UNITED KINGDOM (44) 2038 687160 Visit our website to chat with a support technician. WWW.NEWENGLANDARBORS.COM WWW.NEWENGLANDARBORS.CO.UK VER 1.24 06/01/2020...
