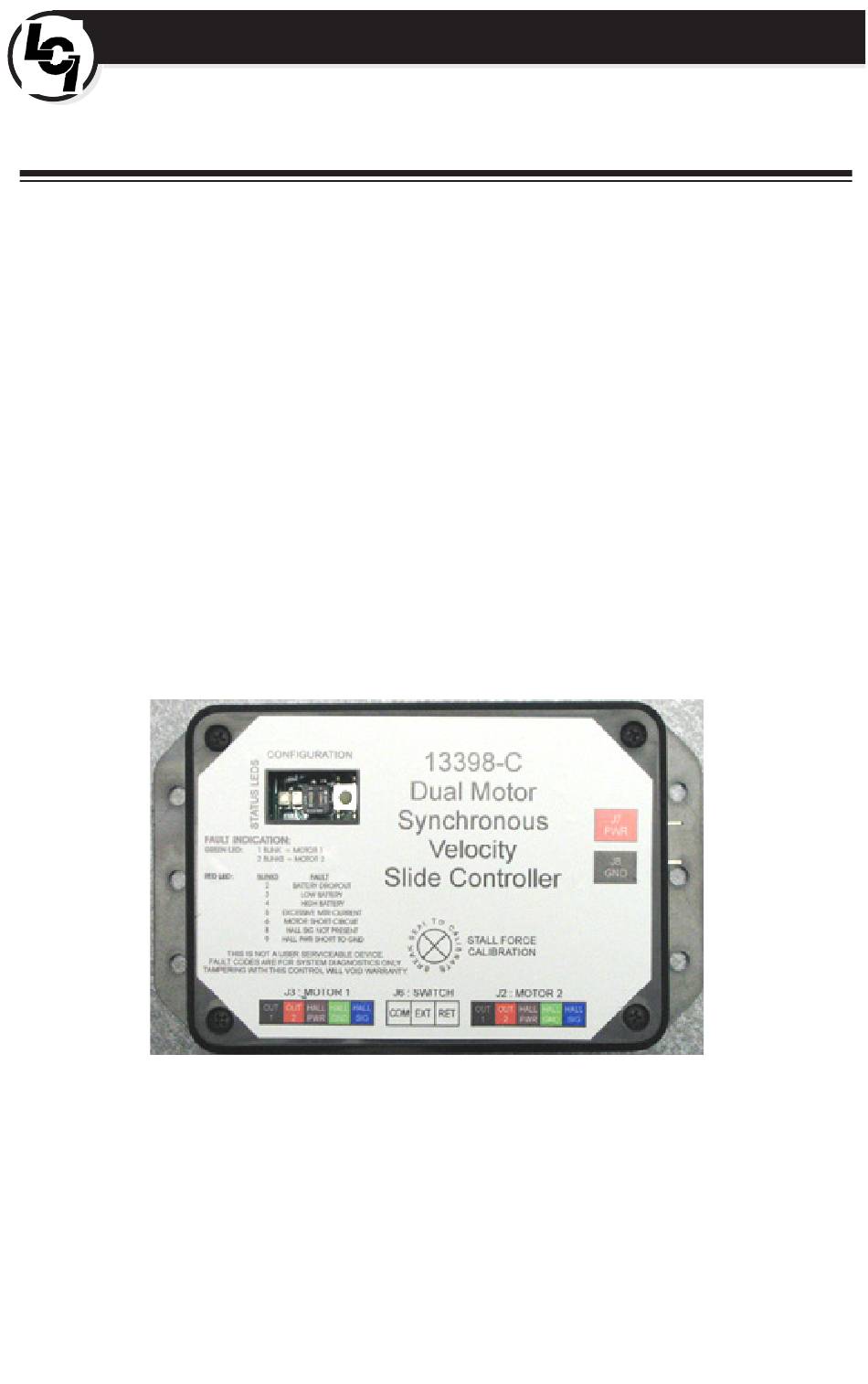

Lippert Components 13398-C Owner's Manual

LIPPERTCOMPONENTS, INC.

Error codes

During operation when an error occurs the board will use the led's to indicate where the problem
exists.
For motor specific faults the green led will blink 1 time for motor 1, and 2 times for motor 2. The red
led will blink from 2 to 9 times depending on the error code.
The error codes are as follows:
2 Battery drop out: Battery capacity low enough to drop below 6 volts while running
3 Low battery: Voltage below 8 volts at start of cycle
4 High battery: Voltage greater than 18 volts
5 Excessive motor current: High amperage, also indicated by 1 side of slide continually stalling.
6 Motor short circuit: Motor or wiring to motor has shorted out.
8 Hall signal not present: Encoder is not providing a signal. Usually a wiring problem.
9 Hall power short to ground: Power to encoder has been shorted to ground. Usually a wiring
problem.
When an error code is present, the board needs to be re-set. Energizing the extend/retract switch
resets the board. Energize the extend/retract switch again for normal operation.
DO NOT MOVE THE RV UNLESS THE MOTORS ARE PLUGGED IN!
