Ecom -AK Operation Manual page 6

Display
Use the setting key to recall the data step by step:

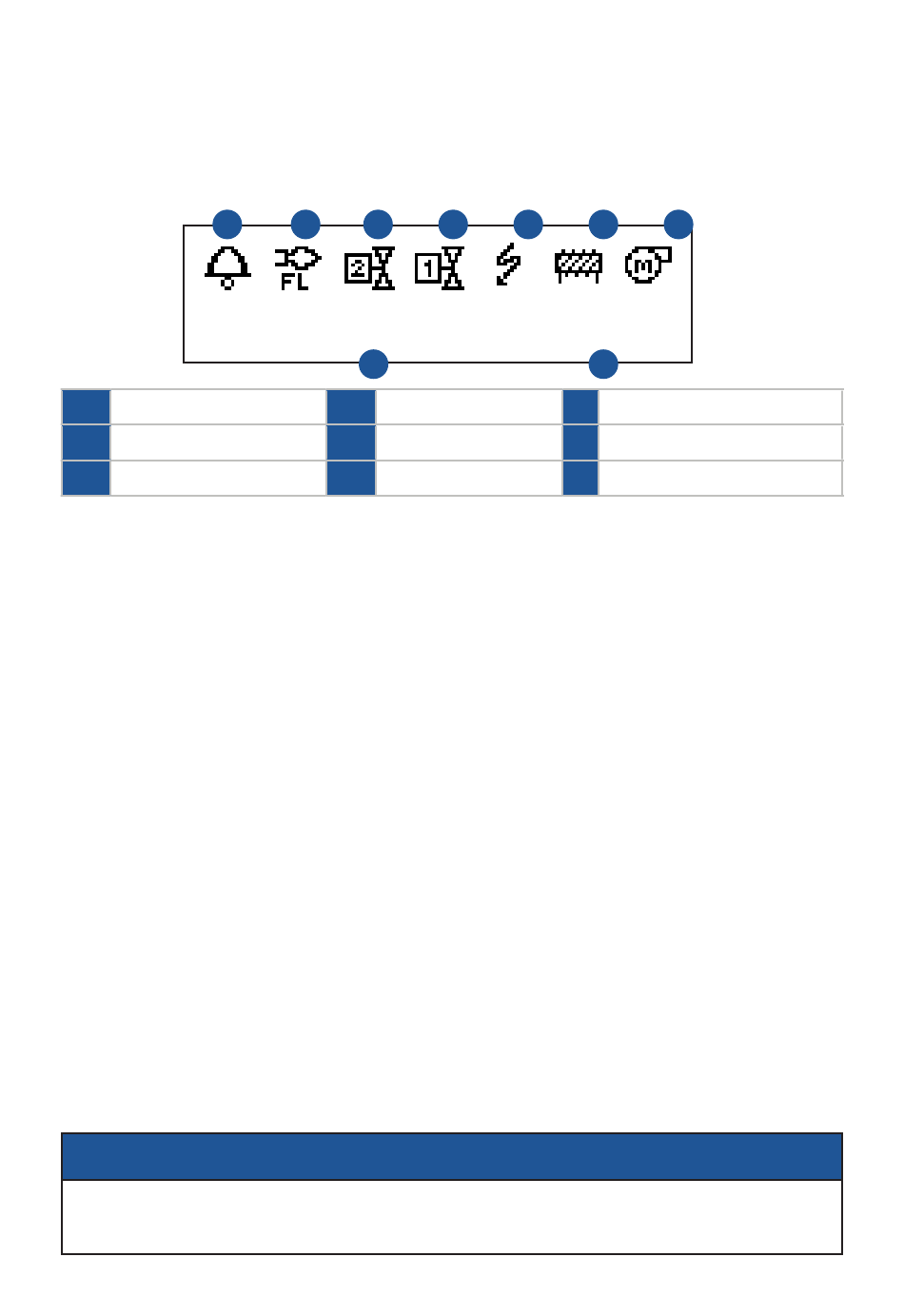

1. Operating Status of the Burner
1 Error
2 Flame identified
3 Valve 2
2. Flame Signal
• current flame signal - minimum signal
3. Reserve safety time
• Difference between flame detection and end of safety time - Satronic
automatic units only
4. Error
• Satronic: Display of the current and the last 2 errors.
• Siemens: Display of the current and last 5 faults, with number of
5. Statistics
• Satronic:
• Siemens: Total number of burner starts, number of burner starts
6. Control Times of the Automat
NOTICE
The type and scope of the data vary according to the type and soft-
ware version of the automatic burner control unit.
6
1 2 3
* 2.3µA
9
4
5
6
Fault description, flame signal with operation-voltage at
fault, time of fault shut-down are displayed in 3-second
intervals.
burner starts when the fault occurred.
Display Total number of faults, number of „extraneous
light" faults, number of „no flame after safety time" faults,
number of „flame failure" faults, total number of burner
starts, number of burner starts since resetting the service
counter.
since resetting the service counter.
4 5
231V
Valve 1
Ignition
Oil Preheater
6 7
8
7 Engine
8 Operating Voltage
9 Flame Signal
