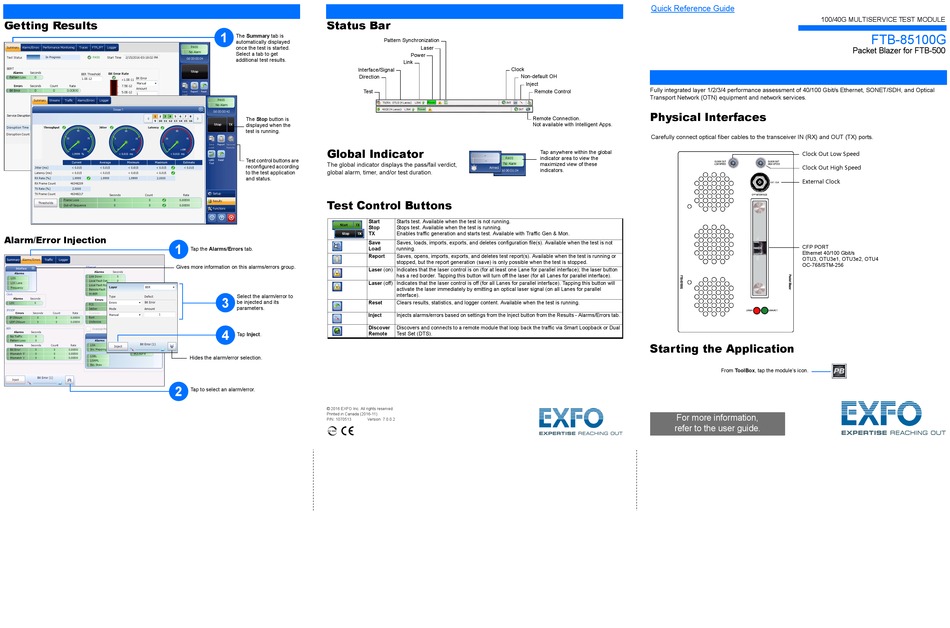

EXFO FTB-85100G Quick Reference Manual

Getting Results
Alarm/Error Injection
1
Gives more information on this alarms/errors group.
2
Status Bar
1
The Summary tab is
automatically displayed
once the test is started.
Select a tab to get
additional test results.
Interface/Signal
Direction
Test
The Stop button is
displayed when the
test is running.
Global Indicator
Test control buttons are
The global indicator displays the pass/fail verdict,
reconfigured according
global alarm, timer, and/or test duration.
to the test application
and status.
Test Control Buttons
Start
Stop
TX
Save
Tap the Alarms/Errors tab. Load
Report
Laser (on) Indicates that the laser control is on (for at least one Lane for parallel interface); the laser button
Laser (off) Indicates that the laser control is off (for all Lanes for parallel interface). Tapping this button will
Select the alarm/error to
3
be injected and its Reset
parameters.
Inject
Discover
4
Remote
Tap Inject.
Hides the alarm/error selection.
Tap to select an alarm/error.
© 2016 EXFO Inc. All rights reserved.
Printed in Canada (2016-11)
P/N: 1070513 Version: 7.0.0.2

Pattern Synchronization
Laser
Power
Link
Clock
Non-default OH
Inject
Remote Control
Remote Connection.
Not available with Intelligent Apps.
Tap anywhere within the global
indicator area to view the
maximized view of these
indicators.
Starts test. Available when the test is not running.
Stops test. Available when the test is running.
Enables traffic generation and starts test. Available with Traffic Gen & Mon.
Saves, loads, imports, exports, and deletes configuration file(s). Available when the test is not
running.
Saves, opens, imports, exports, and deletes test report(s). Available when the test is running or
stopped, but the report generation (save) is only possible when the test is stopped.
has a red border. Tapping this button will turn off the laser (for all Lanes for parallel interface).
activate the laser immediately by emitting an optical laser signal (on all Lanes for parallel
interface).
Clears results, statistics, and logger content. Available when the test is running.
Injects alarms/errors based on settings from the Inject button from the Results - Alarms/Errors tab.
Discovers and connects to a remote module that loop back the traffic via Smart Loopback or Dual
Test Set (DTS).
Quick Reference Guide
100/40G MULTISERVICE TEST MODULE
Fully integrated layer 1/2/3/4 performance assessment of 40/100 Gbit/s Ethernet, SONET/SDH, and Optical
Transport Network (OTN) equipment and network services.
Physical Interfaces
Carefully connect optical fiber cables to the transceiver IN (RX) and OUT (TX) ports.
Clock Out Low Speed
Clock Out High Speed
External Clock
CFP PORT
Ethernet 40/100 Gbit/s
OTU3, OTU3e1, OTU3e2, OTU4
OC-768/STM-256
Starting the Application
From ToolBox, tap the module's icon.
For more information,
refer to the user guide.
FTB-85100G
Packet Blazer for FTB-500
