Table of Contents

Advertisement

Quick Links

Download this manual
User Guide

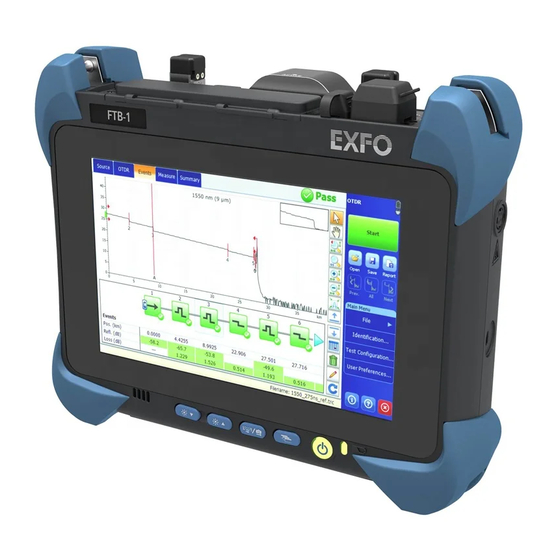

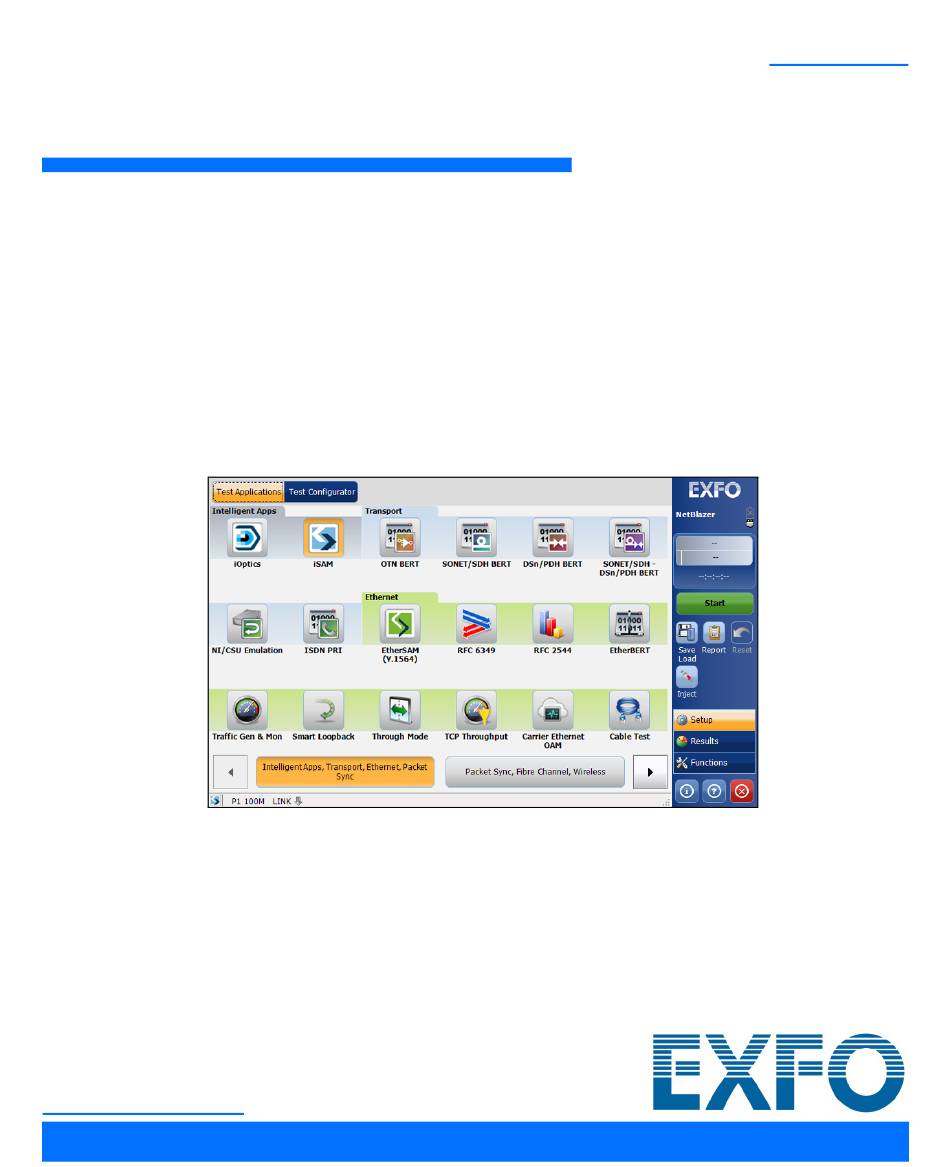

HIGH SPEED PORTABLE FIELD TESTER
FTB-700/800/900 Series
NetBlazer (including FTBx-88000 Series)
www.EXFO.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FTB-700 Series and is the answer not in the manual?

Questions and answers

Related Manuals for EXFO FTB-700 Series

Summary of Contents for EXFO FTB-700 Series

  • Page 1 User Guide HIGH SPEED PORTABLE FIELD TESTER FTB-700/800/900 Series NetBlazer (including FTBx-88000 Series) www.EXFO.com...
  • Page 2 EXFO Inc. (EXFO). Information provided by EXFO is believed to be accurate and reliable. However, no responsibility is assumed by EXFO for its use nor for any infringements of patents or other rights of third parties that may result from its use.
  • Page 3 Contents Regulatory Information ......................xi 1 Introducing the High Speed Portable Field Tester ........1 Features ..........................1 Technical Specifications ......................2 Conventions ..........................3 2 Safety Information ..................5 Additional Laser Safety Information ..................7 Installation Instruction Warnings ....................8 3 Getting Started ..................11 Inserting and Removing FTBx Test Modules .................11 Inserting and Removing Transceiver System ................12 Turning On the Unit ......................15...
  • Page 4 5 Graphical User Interface Overview ............29 Main Application Window ....................29 Main Window ........................29 Navigation Buttons .......................29 Status Bar ..........................30 Title Bar ..........................32 Global Indicator ........................33 Test Control .........................35 Test Menu ..........................35 Application Buttons ......................36 Zoomed-In/Zoomed-Out Views .....................40 Arrow Buttons ........................40 Keyboard Usage ........................41 6 Test Setup - Test Applications ..............45 iOptics ..........................46...
  • Page 5 7 Selecting and Starting a Test ..............89 Intelligent Apps ........................89 Transport Test Applications ....................93 Ethernet Test Applications ....................95 Sync Test Applications ......................97 Fibre Channel Test Application .....................99 Wireless Test Application ....................101 8 Test Setup - Test Configurator, Timer, and System ......103 Test Configurator Overview ....................108 Modify Structure Button ....................115 Signal Auto-Detect ......................139...
  • Page 6 RFC 2544 - Global ......................284 RFC 2544 - Subtests ......................287 RFC 6349 ...........................296 S-OAM and MPLS-TP OAM ....................299 Services - Global ........................309 Services - L2CP ........................312 Services - Profile .........................313 Signal ..........................320 Signal Configuration ......................326 Signal - Signal Configuration (DSn/PDH) ................327 Signal - Signal Configuration (OTN) ...................335 Signal - Signal Configuration (SONET/SDH) ................339 Smart Loopback .........................343...
  • Page 7 PTP Stats ..........................433 Quality Level (1588 PTP) ....................435 Quality Level (SyncE) ......................437 S-OAM and MPLS-TP OAM ....................439 Service Configuration - Burst .....................444 Service Configuration - L2CP ....................445 Service Configuration - Ramp ....................447 Service Performance ......................449 Streams - Frame Loss / Out-of-Sequence ................451 Streams - Jitter ........................451 Streams - Latency ......................452 Streams - Throughput / Customer Frame Throughput ............453...
  • Page 8 10 Test Functions ..................545 <rate> Advanced - <transceiver> Control ...............548 <rate> Advanced - Lanes Mapping & Skew ..............552 APS ............................557 BFD (Bidirectional Forwarding Detection) ................560 Client Offset ........................562 FDL - Bit-Oriented Message ....................565 FDL - Performance Report Message ...................569 FEAC ..........................572 Filters ..........................576 GMP ..........................580 OH BERT...
  • Page 9 15 Warranty ....................685 General Information ......................685 Liability ..........................686 Exclusions ...........................687 Certification ........................687 Service and Repairs ......................688 EXFO Service Centers Worldwide ..................689 A Specifications ................... 691 B Glossary ....................695 Acronym List ........................695 10G Ethernet Client ......................711 1588 PTP ..........................714 CPRI ...........................720...
  • Page 10 C Alarms/Errors .....................777 Group of Alarms/Errors .......................777 BER .............................779 Clock ...........................780 CPRI ............................781 DS1 .............................782 DS3 .............................782 E1 ............................784 E2/E3/E4 ..........................785 Ethernet ..........................786 Ethernet - PCS ........................789 Ethernet - PCS Lanes ......................790 FEC (OTN) ..........................792 Fibre Channel (including RS-FEC) ..................792 GFP (Generic Framing Procedure) ..................794 GMP ..........................799 Interface ..........................799...
  • Page 11 European Declaration of Conformity The full text of the EU declaration of conformity is available at the following Internet address: www.exfo.com/en/resources/legal-documentation. Laser Your instrument is a Class 1 laser product in compliance with standards IEC 60825-1: 2007/2014 and 21 CFR 1040.10, except for...
  • Page 13 Introducing the High Speed Portable Field Tester Turnkey field-test solution for deploying, validating, and troubleshooting networks up to 100G. Features Model 870v2 880v2 Features 720Gv2 870Q 880Q 890NGE 88260 730Gv2 88200NGE 8870 8880 Intelligent iOptics Apps. iSAM Transport OTN BERT OTN-SONET/SDH BERT SONET/SDH BERT DSn/PDH BERT...
  • Page 14 88200NGE 8870 8880 Packet Sync 1588 PTP SyncE Wander Fibre Channel FC BERT Wireless CPRI/OBSAI BERT eCPRI BERT OTDR and iOLM OTDR iOLM Technical Specifications To obtain this product’s technical specifications, visit the EXFO Web site at www.exfo.com. FTB-700/800/900 Series...
  • Page 15 Introducing the High Speed Portable Field Tester Conventions Conventions Before using the product described in this guide, you should understand the following conventions: ARNING Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. Do not proceed unless you understand and meet the required conditions.
  • Page 17 ARNING Use only accessories designed for your unit and approved by EXFO. For a complete list of accessories available for your unit, refer to its technical specifications or contact EXFO.
  • Page 18 Safety Information MPORTANT Refer to the documentation provided by the manufacturers of any accessories used with your EXFO product. It may contain environmental and/or operating conditions limiting their use. MPORTANT When you see the following symbol on your unit , make sure that you refer to the instructions provided in your user documentation.
  • Page 19 Safety Information Additional Laser Safety Information Additional Laser Safety Information This product employs Class 1 Laser transceivers. ARNING When the LASER LED is on or flashing, the module is transmitting an optical signal on the transceiver ports. Note: Refer to the OTDR, iOLM, and FTB-1v2 Pro user guides for additional test equipment safety information and ratings.
  • Page 20 All wiring and installation must be in accordance with local building and electrical codes acceptable to the authorities in the countries where the equipment is installed and used. ARNING Use only accessories designed for your unit and approved by EXFO. FTB-700/800/900 Series...
  • Page 21 Safety Information Installation Instruction Warnings AUTION Electrostatic Discharge (ESD) Sensitive Equipment: Plug-in modules can be damaged by static electrical discharge. To minimize the risk of damage, dissipate static electricity by touching a grounded unpainted metal object before removing, inserting, or handling the module. ...
  • Page 23 Getting Started If the module has been purchased at the same time as the FTB-1v2 Pro, the module is pre-installed with the appropriate software version. If the NetBlazer application is not already installed, refer to the FTB-1v2 Pro User Guide for more information on how to install the application. Inserting and Removing FTBx Test Modules For FTB-1v2 Pro platform equipped with a single or dual carrier (1- or 2-slot modular back) it is possible to insert/remove modules.
  • Page 24 Getting Started Inserting and Removing Transceiver System Inserting and Removing Transceiver System AUTION There is no need to turn off your unit before inserting or removing transceiver systems. However, inserting/removing transceiver systems without following the instructions provided in this user documentation could result in the following consequences, depending on the operation underway when the transceiver systems are inserted/removed: unexpected behavior of the test applications,...
  • Page 25 Getting Started Inserting and Removing Transceiver System 3. Remove the transceiver system from its packaging: 3a. Pull the battery insulator tab to activate the battery. 3b. Turn the retaining screw counterclockwise until it is loose. 3c. Hold the transceiver system by Screw the handle and/or the retaining screw (NOT by the connectors)
  • Page 26 Getting Started Inserting and Removing Transceiver System 4c. Push the transceiver system all the way to the back of the receptacle by pressing firmly on Screw the left edge of the transceiver system until it is fully inserted. Press on 4d.
  • Page 27 Getting Started Turning On the Unit Turning On the Unit Turn on the FTB-1v2 Pro. Refer to the FTB-1v2 Pro user guide for more information. Starting the Module Application The module can be configured and controlled by starting the application(s) as described in the following table: Module Application...
  • Page 28 Getting Started Starting the Module Application Module Application Comment 88200NGE NetBlazer Dual Carrier: One instance of either the NetBlazer or any other module application per platform. High-Power Dual Carrier: One instance of the NetBlazer application per module. 88260 NetBlazer Dual Carrier: One instance of either the NetBlazer, iORF, OpticalRF or any iORF other module application per platform.
  • Page 29 AUTION To prevent exceeding the maximum input/output power level, please refer to this product’s technical specifications at www.exfo.com. FTB-870v2, FTB-870Q, and FTBx-8870 Modules The FTB-870Q module is divided into two parts labelled A and B respectively providing twice the amount of ports and capabilities than the FTB-870v2 module.
  • Page 30 Physical Interfaces and LEDs FTB-880v2, FTB-880Q, FTB-720Gv2, FTB-730Gv2, and FTBx-8880 Modules FTB-880v2, FTB-880Q, FTB-720Gv2, FTB-730Gv2, and FTBx-8880 Modules The FTB-880Q module provides twice the amount of ports and capabilities than the FTB-880v2 module. The FTB-880Q is divided into two parts labelled A and B respectively.
  • Page 31 Physical Interfaces and LEDs FTB-890, FTB-890NGE, and FTBx-88200NGE Modules FTB-890, FTB-890NGE, and FTBx-88200NGE Modules Note: FTB-890 and FTB-890NGE are shown below as examples for connector location purposes. SFP+ CFP4 QSFP REF OUT EXT LCK DUPLEX LINK/ACT LASER LINK/RX RJ45 SFP+ SFP+ RJ48C BANTAM...
  • Page 32 Physical Interfaces and LEDs FTB-890, FTB-890NGE, and FTBx-88200NGE Modules FTBx-88260 and Transceiver Systems Note: The FTBx-88260 module with TA-SFP28 transceiver systems are shown below as examples for connector location purposes. FTBx-88260 Port A Port B TA-SFP28 Port A1 Port A2 Port B1 Port B2 1.
  • Page 33 Physical Interfaces and LEDs FTB-890, FTB-890NGE, and FTBx-88200NGE Modules TA-SFP28  Port 1 : SFP28 Port 2 : SFP28 1. Laser radiation emitted from this port when LASER LED is on. TA-QSFP28  Port 1 : QSFP28 Port 2 : QSFP28 1.
  • Page 34 Physical Interfaces and LEDs Port Availability per Module Port Availability per Module The following table shows the list of available ports as well as a description and signals supported for each module. For 88260 module see 88260 and Transceiver Systems on page 24. 880v2 880Q 870v2...
  • Page 35 Physical Interfaces and LEDs Port Availability per Module 880v2 880Q 870v2 Port 720Gv2 Description and supported signal(s) 870Q 890NGE (100G) Labelled 730Gv2 8870 88200NGE 890NGE (10G) 8880 SFP+ P1 Ethernet 100/1000 Mbit/s, 10 Gbit/s optical eCPRI 10 Gbit/s CPRI 1.2, 2.4, 3.1, 4.9, 6.1, 9.8, 10.1 Gbit/s OBSAI 1.5, 3.1, 6.1 Gbit/s Fibre Channel 1X/2X/4X/8X/10X OC-1/STM-0, OC-3/STM-1, OC-12/STM-4,...
  • Page 36 Physical Interfaces and LEDs Port Availability per Module 88260 and Transceiver Systems The following table shows the list of transceiver system supported on each port of the FTBx-88260 module. Port Labelled Description Supported Transceiver System Transceiver system left port TA-SFP28, TA-QSFP28, TA-CFP4, TA-Sync Transceiver system right port TA-SFP28, TA-QSFP28, TA-CFP4, TA-Sync The following table shows the list of port as well as a description and the...
  • Page 37 Physical Interfaces and LEDs Port Availability per Module Transceiver Port Description Supported Signal(s) System Labelled TA-SYNC EXT CLK EXT CLK (SMB) IN: 2 MHz OUT: 2 MHz 1 PPS 1PPS (SMB) IN: 1PPS ANTENNA ANTENNA (SMA) GNSS IN: Antenna for GNSS receiver The ports are listed/referred as follows in the GUI: Port, FTBx-88260‘s port (A or B), transceiver system port (1 or 2), and connector type;...
  • Page 38 Before inserting an optical module into the interface receptacle, inspect the receptacle to make sure nothing is inside. ARNING Use only EXFO supported transceivers. Refer to www.exfo.com for the list of supported transceivers. Using non-supported transceivers can affect the performance and accuracy of the test.
  • Page 39 AUTION When using speech over ISDN (ISDN PRI test application), use only the headset supplied by EXFO to ensure adequate protection. A headset connected to the headset port can be used with the ISDN PRI test application to talk and listen when calls are made and received.
  • Page 40 Physical Interfaces and LEDs LEDs LEDs LASER red LED is on when the module is emitting an optical laser  signal. LINK/RX green LED is on when the link is up, off when the link is down,  and flashing when frames are transmitted and/or received. DUPLEX green LED is on for Full Duplex mode, off for Half Duplex ...
  • Page 41 Graphical User Interface Overview This chapter describes the NetBlazer graphical user interface. Main Application Window The following main application window is displayed when the NetBlazer application is started. Title Bar Global Indicator Main Window Test Control Test Menu Navigation Buttons Application Status Bar Buttons...
  • Page 42 Graphical User Interface Overview Status Bar Status Bar The status bar displays the following information. Icon Description Test Application and/or text Test icon Icon representing the active test application. P1, P2 Port identification number: Port x A1, A2, B1, Port identification number composed of the port of the FTBx-88260 module (A or B) and the transceiver system port (1 or 2) [Lx] On 88260, indicates the Lane number when using a QSFP28 multilane...
  • Page 43 Connection not established between two testing units in Dual Test Set Ethernet (DTS), EXFO|Worx Interop, or in Loop Up mode. Remote unit is busy (locked) in EXFO|Worx Interop operation mode. Ethernet Loopback Tool enabled on the port unused by the main test Ethernet application.
  • Page 44 Graphical User Interface Overview Title Bar Icon Description Test Application and/or text Clock synchronization signal clock. The clock icon is followed by the Transport clock mode: INT for Internal, EXT for External, RCV for Recovered, Ethernet GNSS for Internal GNSS. AUTO is displayed for dual port test when a Fibre Channel different clock is used on each port.
  • Page 45 Graphical User Interface Overview Global Indicator Global Indicator The global indicator area displays the global pass/fail verdict, global alarm, and the test duration. Global indicator area Global Verdict Current Global Alarm History Test Timer Timer The global indicator area can be maximized for distant viewing. Tap anywhere within the global indicator area to display a maximized view.
  • Page 46 Graphical User Interface Overview Global Indicator Global Verdict Reports the global test verdict status when supported by the test application and enabled (when applicable). Verdict Description PASS is displayed with a green background when all result values meet the configured threshold PASS criteria.
  • Page 47 Graphical User Interface Overview Test Control Test Timer The test timer without the timer icon indicates the time elapsed since the beginning of the test. No timer action is active. The test timer format is “day hour:minute:second”. Timer The timer icon with Armed indicates that a start time is active. The timer icon with the Test Timer indicates that a duration and/or a stop time is active.
  • Page 48 Graphical User Interface Overview Application Buttons Application Buttons Help (?) displays the help information related to the content of the  active main window. It is also possible to navigate through the remainder of the help information. Exit (x) closes the application. ...
  • Page 49 Graphical User Interface Overview Application Buttons Software Option Description 50GE Ethernet 50G 52 Mbit/s (SONET/SDH) 622M 622 Mbit/s (SONET/SDH) 9953M 9.953 Gbit/s (SONET/SDH) ADV-FILTERS Advanced filtering CABLE_TEST Cable Test Application CPRI CPRI 2.4576 Gbit/s and 3.072 Gbit/s CPRI-1.2G CPRI 1.2288 Gbit/s CPRI-4.9G CPRI 4.9152 Gbit/s CPRI-6.1G...
  • Page 50 Graphical User Interface Overview Application Buttons Software Option Description ETH-CAPTURE Ethernet Frame Capture ETH-OAM Carrier Ethernet OAM test application ETH-THRU Through Mode Test Application FC-1X Fibre Channel 1X FC-2X Fibre Channel 2X FC-4X Fibre Channel 4X FC-8X Fibre Channel 8X FC-10X Fibre Channel 10X FC-16X...
  • Page 51 Radio Frequency Power Alarming Mask RFC6349 RFC 6349 test application (up to 10GE) RFC6349_40-100GE RFC 6349 test application (40/100GE) RFC6349-EXFOWorx EXFO|Worx Interop Operation Mode Synchronous Digital Hierarchy SONET Synchronous Optical Network Tandem Connection Monitoring STS/AU and VT/TU (SONET/SDH) TCP-THPUT TCP Throughput Test Application...
  • Page 52 Graphical User Interface Overview Zoomed-In/Zoomed-Out Views Zoomed-In/Zoomed-Out Views Some configuration and result blocks give access to zoomed views allowing more detailed configurations/results. The block title contains the magnifier (+) icon when a zoomed view is available. To zoom-in, tap the magnifier (+) icon or anywhere on the block. To zoom-out, tap on the magnifier (-) icon or anywhere on the block title.
  • Page 53 Graphical User Interface Overview Keyboard Usage Keyboard Usage The GUI pops up different keyboards to modify data. Following are the usual keyboard keys: Left arrow moves the cursor one position to the left.  Right arrow moves the cursor one position to the right. ...
  • Page 54 Graphical User Interface Overview Keyboard Usage For multiplexing keyboard, tap on all mapped signals that have to be added/removed to/from the test path. A mapped signal with an orange background color is part of the test path. A mapped signal with a gray background color is not part of the test path.
  • Page 55 Graphical User Interface Overview Keyboard Usage The Trace message keyboard allows entering alphanumerical characters (ITU T.50) required for Trace fields. Tap the Control Characters button to access these characters. ITU T.50 Characters b7 to b1 Character Description b7 to b1 Character Description 000 0000 Null...
  • Page 57 Test Setup - Test Applications The NetBlazer offers the following test applications. Available on 880v2/ 880Q 870v2 Type Application Page 720Gv2 870Q 890NGE (100G) 88260 730Gv2 8870 88200NGE 890NGE (10G) 8880 Intelligent iOptics Apps iSAM Transport OTN BERT SONET/SDH BERT OTN-SONET/SDH BERT DSn/PDH BERT SONET/SDH - DSn/PDH BERT...
  • Page 58 Bidirectional (single fiber) transceivers are not supported since the iOptics test requires a loopback. Typical iOptics test applications:  EXFO Unit For a QSFP28 AOC (Active Optical Cable) EXFO Unit QSFP Ports EXFO Unit...
  • Page 59 The Dual Test Set test allows bi-directional testing between two compatible units providing independent results for each test direction. The results from local-to-remote and remote-to-local are available on the local testing unit. Typical iSAM test applications:  EXFO Unit EXFO Unit Manual or Network Remote under test...
  • Page 60 OTN BERT OTN BERT Allows OTN (framed and unframed), OTN multiplexing, and EoOTN traffic generation with specific test pattern for Bit Error Rate analysis. Typical OTN BERT test applications:  EXFO Unit Network under test Testing Unit DUT Loopback EXFO Unit...
  • Page 61 Test Setup - Test Applications OTN BERT NetBlazer...
  • Page 62 Test Setup - Test Applications OTN BERT OTU4 for 88200NGE/890/890NGE  OTU4 for 88260  FTB-700/800/900 Series...
  • Page 63 Allows the validation of the SONET/SDH embedded in OTN transport protocol by performing a BERT test to check the traffic or payload stability over a network facility. Typical OTN-SONET/SDH BERT test applications:  EXFO Unit Network under test Testing Unit DUT Loopback...
  • Page 64 Test Setup - Test Applications OTN-SONET/SDH BERT Path/Mapping  The OTN-SONET/SDH BERT test application offers the following path/mapping structures depending on the module, inserted transceiver, and enabled options. For OTN-SONET BERT: up to OTU4 for 88200NGE/890/890NGE, up to OTU3 for 88260, and up to OTU2 for the other modules. FTB-700/800/900 Series...
  • Page 65 Test Setup - Test Applications OTN-SONET/SDH BERT For OTN-SDH BERT: up to OTU4 for 88200NGE/890/890NGE, up to OTU3 for 88260, and up to OTU2 for the other modules. NetBlazer...
  • Page 66 Allows the validation of the SONET or SDH transport protocol by performing a BERT test to check the traffic or payload stability over a network facility. Typical SONET/SDH BERT test applications:  EXFO Unit Network under test Testing Unit DUT Loopback...
  • Page 67 Test Setup - Test Applications SONET/SDH BERT Path/Mapping  The SONET/SDH BERT test application offers the following path/mapping structures depending on the inserted transceiver, and enabled options. For SONET BERT NetBlazer...
  • Page 68 Test Setup - Test Applications SONET/SDH BERT For SDH BERT FTB-700/800/900 Series...
  • Page 69 Allows validation of the DSn or PDH transport protocol by performing a BERT test to check the traffic or payload stability over a network facility. Typical DSn/PDH BERT test applications:  EXFO Unit Network under test Testing Unit DUT Loopback...
  • Page 70 Test Setup - Test Applications DSn/PDH BERT Path/Mapping  The DSn/PDH BERT test application offers the following path/mapping structures depending on model and enabled options. For DSn: Note: It is possible to enable DS0/E0 from Signal - Signal Configuration (DSn/PDH) on page 327.
  • Page 71 Allows validation of the DSn or PDH embedded in SONET or SDH transport protocol by performing a BERT test to check the traffic or payload stability over a network facility. Typical SONET/SDH - DSn/PDH BERT test applications:  EXFO Unit Network under test Testing Unit DUT Loopback...
  • Page 72 Test Setup - Test Applications SONET/SDH - DSn/PDH BERT Path/Mapping  The SONET/SDH - DSn/PDH BERT test application offers the following path/mapping structures depending on the model and enabled options. For SONET: FTB-700/800/900 Series...
  • Page 73 Test Setup - Test Applications SONET/SDH - DSn/PDH BERT For SDH: NetBlazer...
  • Page 74 Test Setup - Test Applications NI/CSU Emulation NI/CSU Emulation Allows DS1 testing in NI/CSU (Network Interface/Customer Service Unit) emulation mode. Typical NI/CSU Emulation test applications: EXFO Unit Network under test Test Head NI/CSU Emulation EXFO Unit EXFO Unit DSn/PDH BERT...
  • Page 75 23 DS1 or 30 E1 PRI channels. Once connected, the user can perform a channel-by-channel BERT, or talk and listen via a headset. Typical ISDN PRI test applications: EXFO Unit Network under test Testing Unit...
  • Page 76 Test Setup - Test Applications EtherSAM (Y.1564) EtherSAM (Y.1564) EtherSAM can simulate all types of services that will run on the network and simultaneously qualify all key SLA parameters for each of these services. Moreover, it validates the QoS mechanisms provisioned in the network to prioritize the different service types, resulting in more accurate validation and much faster deployment and troubleshooting.
  • Page 77 Test Setup - Test Applications EtherSAM (Y.1564) Typical EtherSAM (Y.1564) test applications:  EXFO Unit EXFO Unit Network under test Testing Unit Loopback Unit EXFO Unit EXFO Unit Network under test Testing Unit Remote Unit EXFO Unit Network under test Testing Unit Supported Interfaces/Rates: 10M to 10G LAN/WAN, 40G and 100G.
  • Page 78 Test Setup - Test Applications RFC 2544 RFC 2544 RFC 2544 allows Ethernet Throughput, Back-to-Back, Frame Loss, and Latency performance testing in accordance with RFC 2544 specifications. The RFC 2544 test, in single port configuration, has to be executed in conjunction with a remote unit.
  • Page 79 Test Setup - Test Applications RFC 2544 Typical RFC 2544 testapplications:  EXFO Unit EXFO Unit Network under test Testing Unit Loopback Unit EXFO Unit EXFO Unit Network under test Testing Unit Remote Unit EXFO Unit Network under test Testing Unit Supported Interfaces/Rates: 10M to 100G.
  • Page 80 TCP traffic. The RFC 6349 test has to be executed in conjunction with a remote compatible unit in RFC 6349 Dual Test Set or EXFO|Worx Interop operation mode allowing bidirectional testing. The test provides independent results for each test direction. The results from local-to-remote and remote-to-local are available on the local testing unit.
  • Page 81 EtherBERT Allows Ethernet Layer 1 up to Layer 4 and Unframed Layer 1 traffic generation with specific test pattern for Bit Error Rate analysis. Typical EtherBERT test applications:  EXFO Unit EXFO Unit Network under test Testing Unit Loopback Unit...
  • Page 82 Test Setup - Test Applications EtherBERT EXFO Unit EXFO Unit Network under test Testing Unit Testing Units EXFO Unit EXFO Unit Network under test Testing Unit Loopback Units Supported Interfaces/Rates: 10M to 100G. Dual Port topology is  available for rates up to 100G.
  • Page 83 Test Setup - Test Applications Traffic Gen & Mon Traffic Gen & Mon Allows Ethernet traffic generation and analysis of up to 16 streams. Typical Traffic Gen & Mon test applications:  EXFO Unit EXFO Unit Network under test Testing Unit Loopback Unit...
  • Page 84 Test Setup - Test Applications Traffic Gen & Mon EXFO Unit EXFO Unit Network under test Testing Unit Testing Units EXFO Unit EXFO Unit Network under test Testing Unit Loopback Units Supported Interfaces/Rates: 10M to 100G. Dual Port topology is only ...
  • Page 85 The Smart Loopback test can be created locally (refer to Ethernet Test Applications on page 95) or remotely using either an EXFO unit (refer to Discover Remote Button on page 646) or a Third-Party device (see Third-Party Remote Loopback on page 74).
  • Page 86 This feature is used for unidirectional testing, where the test stream is transmitted from the third party device to a remote EXFO device. The looped back test stream is received and analyzed by the third-party device.
  • Page 87 Typical Through Mode test application:  EXFO Unit Network Ethernet Testing Unit Network Ethernet in Through Mode Supported Interfaces/Rates: 10M to 10GE LAN and 100GE;...
  • Page 88 TCP Throughput and windows size statistics will be gathered throughout the test. Typical TCP Throughput test application:  EXFO Unit EXFO Unit Network under test Local Testing Unit Remote Unit Supported Interfaces/Rates: 10M to 1G.
  • Page 89 (Y.1731/MEF). Connectivity Fault Management provides the capability for detecting,  verifying, and isolating connectivity failure (Y.1731/802.1ag/MEF). Typical Ethernet OAM and MPLS TP OAM test applications:  EXFO Unit Peer MEP Local MEP EXFO Unit EXFO Unit Local MEP Smart Loopback with S-OAM Responder enabled.
  • Page 90 Link OAM The Link OAM test validates the Link OAM protocol capabilities and the Ethernet link connection of a remote equipment. Typical Link OAM test application:  EXFO Unit NID/Switch Testing Equipment Supported Interfaces/Rates: 10M to 10G LAN/WAN.  FTB-700/800/900 Series...
  • Page 91 Test Setup - Test Applications Cable Test Cable Test The cable test application is used to diagnose un-shielded twisted pairs (UTP) cables (up to Category 6e/Class E). The optional PoE test verifies that the Power Sourcing Equipment (PSE) is capable to deliver appropriate power to the Powered Device (PD).
  • Page 92 Test Setup - Test Applications Cable Test Typical Cable Test applications:  EXFO Unit UTP cable Testing Unit Far end equipment EXFO Unit UTP cable Unplugged cable Testing Unit Supported Interfaces/Rates: 10M to 1000M Electrical.  FTB-700/800/900 Series...
  • Page 93 The 1588 PTP (Precision Time Protocol) test application handles the 1588 PTP communication with the Grand Master (GM) clock, collects statistics related to packets, and monitors the clock Quality Level. Typical 1588 PTP test application:  EXFO Unit Grand Master Clock Source Network under test Testing Unit GM Clock Supported Interfaces/Rates: 10M to 10G LAN.
  • Page 94 SyncE The Synchronous Ethernet (SyncE) test application provides elementary test primitives to interactively validate the clock management functions of a SyncE capable network equipment. Typical SyncE test applications:  EXFO Unit Network under test Testing Unit Network Equipment EXFO Unit...
  • Page 95 Time Error is defined as the difference between the time reported by a clock signal under test and the time reported by a reference clock. Typical Wander test applications:  EXFO Unit Network under test Testing Unit Supported Interfaces/Rates: 100/1000M Electrical, 10GE LAN, ...
  • Page 96 FC-2 layer allowing BER testing for link integrity measurements, latency, buffer-to-buffer credit measurements for optimization as well as login capabilities. Typical Fibre Channel BERT test applications:  EXFO Unit Network under test Testing Unit DUT Loopback...
  • Page 97 Test Setup - Test Applications CPRI/OBSAI BERT CPRI/OBSAI BERT The CPRI/OBSAI BERT test application offers the capability to test the fronthaul and dark fiber for Unframed rates and Framed L2 protocol, round trip delay, and Service Disruption Time measurements. The Common Public Radio Interface (CPRI) is an industry cooperation aimed at defining a publicly available specification for the key internal interface of radio base stations between the Radio Equipment Control (REC) and the Radio Equipment (RE).
  • Page 98 Test Setup - Test Applications CPRI/OBSAI BERT Typical CPRI/OBSAI BERT test applications:  EXFO Unit EXFO Unit Unframed, Network Framed L2 under test Testing Unit Testing Unit EXFO Unit Unframed Network under test Testing Unit Physical Loopback RRH or EXFO Unit...
  • Page 99 Throughput. It also supports a configurable test pattern when an unframed signal is used to determine the presence of Bit Error or Pattern Loss on a fiber link used to carry eCPRI signals. Typical eCPRI BERT test applications:  EXFO Unit EXFO Unit Unframed, Network Framed L2...
  • Page 100 Test Setup - Test Applications eCPRI BERT EXFO Unit EXFO Unit Framed L2 Network under test Testing Unit Testing Units EXFO Unit Framed L2 Network under test Testing Unit Supported Interfaces/Rates: 10 and 25 Gbit/s.  FTB-700/800/900 Series...
  • Page 101 Selecting and Starting a Test A test can be created either by selecting the test from the Test Applications tab or by loading a previously saved configuration (refer to Save/Load Button on page 670 for more information). Intelligent Apps iOptics To select, configure, and start iOptics: 1.
  • Page 102 Selecting and Starting a Test Intelligent Apps 4. Ensure the laser is ON and tap the Start button from the right navigation bar to start the test (refer to Start/Stop|TX Button on page 674). The Summary result page will be automatically displayed when the test is started.
  • Page 103 Selecting and Starting a Test Intelligent Apps iSAM To select, configure, and start iSAM: 1. From the test menu, tap Setup. 2. From the Test Applications tab, under Intelligent Apps, tap the iSAM icon. 3. From the Test Configurator tab configure the interface structure and its parameters.
  • Page 104 Selecting and Starting a Test Intelligent Apps 3b. From the Network block, either select the basic test parameters or click on More for all settings (refer to Network Details (iSAM) on page 270). The total bandwidth and the estimated test duration are displayed.
  • Page 105 Selecting and Starting a Test Transport Test Applications Transport Test Applications To select, configure, and start a Transport test: 1. From the test menu, tap Setup. 2. From the Test Applications tab, under Transport, tap a test icon. 3. From the Test Configurator tab configure the signal structure and its parameters.
  • Page 106 Selecting and Starting a Test Transport Test Applications 3e. Tap the test block to configure the specific test settings (refer to page 103). Not available with NI/CSU Emulation test application. 3f. Tap the clock block to configure the clock synchronization (refer to Clock on page 166).
  • Page 107 Selecting and Starting a Test Ethernet Test Applications Ethernet Test Applications To select, configure, and start an Ethernet test: 1. From the test menu, tap Setup. 2. From the Test Applications tab, under Ethernet, tap a test icon. 3. From the Test Configurator tab configure the interface structure and its parameters.
  • Page 108 Selecting and Starting a Test Ethernet Test Applications 3d. Tap the protocol block to configure the frame structure and its parameters (refer to page 105). For RFC 2544, EtherBERT, and Traffic Gen & Mon in Dual Port topology, there is a protocol block for each port.
  • Page 109 Selecting and Starting a Test Sync Test Applications Sync Test Applications To select, configure, and start a Sync test: 1. From the test menu, tap Setup. 2. From the Test Applications tab, under Sync, tap a test icon. 3. From the Test Configurator tab configure the interface structure and its parameters.
  • Page 110 Selecting and Starting a Test Sync Test Applications 4. Tap the Timer tab to automatically start and/or stop the test at a given time or for a specific duration (refer to Timer on page 367). Not supported with Wander test application. 5.
  • Page 111 Selecting and Starting a Test Fibre Channel Test Application Fibre Channel Test Application To select, configure, and start a Fibre Channel test: 1. From the test menu, tap Setup. 2. From the Test Applications tab, under Fibre Channel, tap the FC BERT test icon.
  • Page 112 Selecting and Starting a Test Fibre Channel Test Application 3d. Tap the test block to configure the specific test settings (refer to page 180). 3e. Tap the clock block to configure the clock synchronization (refer to Clock on page 166). 4.
  • Page 113 Selecting and Starting a Test Wireless Test Application Wireless Test Application To select, configure, and start a Wireless test: 1. From the test menu, tap Setup. 2. From the Test Applications tab, under Wireless, tap a test icon. 3. From the Test Configurator tab configure the interface structure and its parameters.
  • Page 114 Selecting and Starting a Test Wireless Test Application 3d. For eCPRI BERT framed test, tap the protocol block to configure the frame structure and its parameters (refer to page 107). For Dual Port topology, there is a protocol block for each port. 3e.
  • Page 115 Test Setup - Test Configurator, Timer, and System The Setup menu offers the following structure: Test Configurator for Intelligent Apps test application.  Test Application Block Subtab or Pop Up Page iOptics Device Under Test Device Under Test Details Test Sequence iSAM Local Local Details...
  • Page 116 Test Setup - Test Configurator, Timer, and System Test Configurator for Transport test applications.  Test Application Block Subtab or Pop Up Page Button Modify Structure Signal Auto-Detect Interface CFP/QSFP/SFP Frequency FTFL/PT Labels Signal TA-... Traces <--- Protocol GFP-F/GFP-T Labels Signal Traces Test...

  • Page 117: Table Of Contents

    Test Setup - Test Configurator, Timer, and System Test Configurator for Ethernet test applications.  Test Application Block Subtab or Pop Up Page Button Modify Structure Interface CFP/QSFP/SFP Frequency Interface Network TA-... Protocol MAC/IP/UDP Services - Global Services - L2CP Services - Profile Streams - Global Streams - Profile...
  • Page 118 Test Setup - Test Configurator, Timer, and System Test Configurator for Sync test applications.  Test Application Block Subtab or Pop Up Page 1588 PTP SyncE Wander Button Modify Structure Interface Interface Network TA-... Test 1588 PTP SyncE Wander External External Reference Reference No configuration available.
  • Page 119 Test Setup - Test Configurator, Timer, and System Test Configurator for Wireless test application.  Test Application Block Subtab or Pop Up Page CPRI/OBSAI BERT eCPRI BERT Button Modify Structure Interface Interface Network TA-... Protocol eCPRI Flow - MAC eCPRI Flow - Profile Test BERT <---...
  • Page 120 Test Setup - Test Configurator, Timer, and System Test Configurator Overview Test Configurator Overview The Test Configurator tab displays the interconnected blocks composing the test structure. Each block of the test structure gives an overview of its configuration/status. Availability of each block depends on the selected test application and its structure.
  • Page 121 Test Setup - Test Configurator, Timer, and System Test Configurator Overview iSAM: Network Block Remote Operation Mode Local Block Remote Block The block arrangement represents the network under test. From any block, either select the basic parameters or click on More for all settings.
  • Page 122 Test Setup - Test Configurator, Timer, and System Test Configurator Overview Transport Test Applications:  Topology Modify Structure Test Application Port and Interface Block Transceiver System Protocol Block Status Physical Test Block Interface Port Arrows Physical Clock Port Clock Block Ethernet Test Applications: ...
  • Page 123 Test Setup - Test Configurator, Timer, and System Test Configurator Overview Sync Test Applications:  Modify Structure Test Application Interface Block Test Block Physical Interface Port Arrows Physical External External Reference Reference Port Block Fibre Channel Test Application:  Modify Structure Test Application Interface Block Protocol Block...
  • Page 124 Valid transceiver matching the selected interface/rate. This icon is not displayed here, it is only displayed for the Physical Interface Port. Using a non-EXFO supported transceiver may report that the transceiver is valid but the device may not operate as intended.
  • Page 125 Test Setup - Test Configurator, Timer, and System Test Configurator Overview Physical Interface Port indicates the physical interface port. For  Dual Port topology, there is a physical interface for each port. The status icon for a physical CFP4/QSFP interface is displayed as described in Port Status above.
  • Page 126 Test Setup - Test Configurator, Timer, and System Test Configurator Overview Protocol Block displays an overview of either the frame structure  and its parameters for Ethernet test applications or the embedded signal for Transport test applications. This block is not present for all tests.
  • Page 127 Test Setup - Test Configurator, Timer, and System Modify Structure Button Modify Structure Button From the Test menu, tap Setup, Test Configurator, and the Modify Structure button. For Transport Test Applications TX/RX allows the configuration of the following parameters for either TX/RX, RX and RX2, TX, or RX depending on the selected topology.
  • Page 128 Test Setup - Test Configurator, Timer, and System Modify Structure Button Test Interface/Rate E1 [2.048 Mbit/s] E3 [34.368 Mbit/s] E4 [139.264 Mbit/s] NI/CSU Emulation ISDN PRI DS1 [1.544 Mbit/s] Connector allows the selection of the module’s port. For decoupled  topology on 88260, TX and RX connectors are forced on the same transceiver system.
  • Page 129 Test Setup - Test Configurator, Timer, and System Modify Structure Button Connector 720Gv2/730Gv2 870v2/870Q Interface/Rate 880v2/880Q 890NGE (100G) 88260 890NGE (10G) 88200NGE 8870/8880 STS-3e [155.520 Mbit/s] STS-1e [51.840 Mbit/s] STM-1e [155.520 Mbit/s] STM-0e [51.840 Mbit/s] DS1 [1.544 Mbit/s] Bantam RJ48C E1 [2.048 Mbit/s] Bantam RJ48C...
  • Page 130 Test Setup - Test Configurator, Timer, and System Modify Structure Button 4 Unframed Physical Lanes: Independent test pattern in each  physical lane. Available with: OTU3 (4 Lanes) [43.018 Gbit/s], OTU3e1 (4 Lanes) [44.571 Gbit/s], OTU3e2 (4 Lanes) [44.583 Gbit/s], and OTU4 (4 Lanes) [111.81 Gbit/s] FTB-700/800/900 Series...
  • Page 131 Test Setup - Test Configurator, Timer, and System Modify Structure Button 20 Unframed Logical Lanes: Independent test pattern in each  logical lane. Available with OTU4 (4 Lanes) [111.81 Gbit/s]. For 88200NGE/890/890NGE: NetBlazer...
  • Page 132 Test Setup - Test Configurator, Timer, and System Modify Structure Button For 88260: OTN Multiplexing - Config Mux button allows the selection of the  OTN test mapping including the selection of the payload type (PT20 or PT21) when applicable. Refer to OTN BERT on page 48 and OTN-SONET/SDH BERT on page 51 for supported path/mapping.
  • Page 133 Test Setup - Test Configurator, Timer, and System Modify Structure Button Interface/Rate OTN Multiplexing OTU2 [10.709 Gbit/s] ODU2 ODU2/ODU1 ODU2/ODU1/ODU0 ODU2/ODU0 ODU2/ODUflex OTU1e [11.049 Gbit/s] ODU1e OTU2e [11.096 Gbit/s] ODU2e OTU1f [11.270 Gbit/s] ODU1f OTU2f [11.318 Gbit/s] ODU2f OTU3 (4 Lanes) [43.018 Gbit/s] ODU3 ODU3/ODU2 ODU3/ODU2/ODU1...
  • Page 134 Test Setup - Test Configurator, Timer, and System Modify Structure Button Embedded SONET/SDH, only available with OTN-SONET/SDH BERT  test application, allows the selection of the embedded SONET/SDH signal. OTN Multiplexing Embedded SONET/SDH ODU4/ODU3 OC-768, STM-256 ODU3 ODU4/ODU3/ODU2 OC-192, STM-64 ODU4/ODU2 ODU3/ODU2 ODU2...
  • Page 135 Test Setup - Test Configurator, Timer, and System Modify Structure Button SONET/SDH Multiplexing - Config Mux button allows the selection of  SONET/SDH multiplexing. Available with OTN-SONET/SDH BERT and SONET/SDH BERT test applications. Interface/Rate or Embedded SONET/SDH Multiplexing SONET/SDH OC-768 STS-768c, STS-192c, STS-48c, STS-12c, STS-3c, STS-1 STM-256 AU-4-256c, AU-4-64c, AU-4-16c, AU-4-4c, AU-4, AU-3...
  • Page 136 Test Setup - Test Configurator, Timer, and System Modify Structure Button DSn/PDH Multiplexing, available with SONET/SDH - DSn/PDH BERT  and DSn/PDH BERT test applications, allows the selection of the DSn/PDH multiplexing. Interface/Rate DSn/PDH Multiplexing None (default), DS1, E1 None None (default), E3, E3/E2/E1 None (default), E2/E1 None...
  • Page 137 Test Setup - Test Configurator, Timer, and System Modify Structure Button Topology allows the selection of the network test topology.  Coupled (TX=RX) uses the same settings for both the TX and RX  signals. Decoupled (TX≠RX) uses independent settings for TX and RX ...
  • Page 138 Test Setup - Test Configurator, Timer, and System Modify Structure Button Through Intrusive loops the RX signal to the TX port with TX  overwrite capabilities. Only available with OTN rates. Dual RX uses two DS1 or DS3 signals at the same time. Both RX ...
  • Page 139 Test Setup - Test Configurator, Timer, and System Modify Structure Button For Ethernet Test Applications Note: For Dual Port topology each port is configurable individually. Interface/Rate choices depend on the selected test and the rates  available on the module. For Dual Port, both ports must be either 10GE and less, 25GE, or 40/100GE.
  • Page 140 Test Setup - Test Configurator, Timer, and System Modify Structure Button PHY Type allows selecting the transceiver PHY type:  For 100GE (4 Lanes) CFP4/QSFP: LR4/ER4 (default), SR4, CWDM4, CLR4, AOC, or Other. The PHY type when set to any except LR4/ER4, allows enabling RS-FEC (see page 217);...
  • Page 141 Test Setup - Test Configurator, Timer, and System Modify Structure Button Framing, available for EtherBERT test application, allows the selection  of the test framing type; otherwise the framing is set to Framed Layer 2. See Network on page 265 for more information on frame format. The framing is not configurable and set to Framed Layer 2 for 40GE/100GE dual port topology.
  • Page 142 Test Setup - Test Configurator, Timer, and System Modify Structure Button Unframed (Interop) is only available with optical interface up  to 25GE: For Seed A and Seed B, available with 10G LAN and 25G, the pattern is generated by the PCS scrambler from a specific seed. The pattern is not encoded.
  • Page 143 Test Setup - Test Configurator, Timer, and System Modify Structure Button 4 Unframed XLAUI: Independent infinite length test pattern in  each XLAUI lane (no blocks). Available with 40GE (4 Lanes). 4 Unframed CAUI-4: Independent infinite length test pattern in ...
  • Page 144 Test Setup - Test Configurator, Timer, and System Modify Structure Button Loopback Mode  Note: Only available for Smart Loopback Ethernet test application. Transparent (Pseudo-Physical) check box when selected (cleared by default) determines that the Smart Loopback operates as a physical loopback by transmitting all received frames unaltered and without discrimination.
  • Page 145 Test Setup - Test Configurator, Timer, and System Modify Structure Button For Sync Test Applications Interface/Rate: Select the desired interface rate. Choices depend on  the selected test and the rates available on the module. Test Interface/Rate 1588 PTP 10GE LAN SyncE 1GE Optical 100M Optical...
  • Page 146 Test Setup - Test Configurator, Timer, and System Modify Structure Button Connector: Allows the selection of the module’s port available for the  selected interface/rate. Connector 720Gv2/730Gv2 870v2/870Q Interface/Rate 880v2/880Q 890NGE (100G) 88260 890NGE (10G) 88200NGE 8870 8880 10GE LAN Port 1 - SFP+ Port 1 - SFP+ Port A1/A2/B1/B2 - SFP28...
  • Page 147 Test Setup - Test Configurator, Timer, and System Modify Structure Button For Fibre Channel Test Application Interface/Rate choices depend on the rates available on the module.  Connector 720Gv2/730Gv2 870v2/870Q Interface/Rate 880v2/880Q 890NGE (100G) 88260 890NGE (10G) 88200NGE 8870 8880 Port 1 - SFP+ Port 1 - SFP+ Port A1/A2/B1/B2 -...
  • Page 148 Test Setup - Test Configurator, Timer, and System Modify Structure Button For Wireless Test Application Note: For Dual Port topology each port is configurable individually. However for eCPRI, both port interface/rate are coupled and in addition for 88260 they are forced on the same transceiver system. Interface/Rate allows the selection of the interface rate.
  • Page 149 Test Setup - Test Configurator, Timer, and System Modify Structure Button Framing  For CPRI/OBSAI: Framed L2 (default) is mainly used to validate connectivity with  the base station (REC) or remote radio head (RE) over the fiber interface. Unframed is mainly used to validate the continuity of the dark fiber ...
  • Page 150 Test Setup - Test Configurator, Timer, and System Modify Structure Button Emulation Mode is available with CPRI/OBSAI Framed L2  Base Station (default) is used to validate the connectivity with the  RRH. For CPRI, it initiates the start-up sequence and provides synchronization with the RRH.
  • Page 151 Test Setup - Test Configurator, Timer, and System Signal Auto-Detect Signal Auto-Detect The Signal Auto-Detect allows the detection of the DS1/DS3 interface Line Coding (DS1), Framing, and Test Pattern. Signal Auto-Detect is only available: with DS1 and DS3 interfaces.  when the test is stopped.
  • Page 152 Test Setup - Test Configurator, Timer, and System 1588 PTP 1588 PTP From the Test menu, tap Setup, Test Configurator, and the 1588 PTP test block. Note: Refer to Status Bar on page 30 for PTP link status. Profile  ITU G.8265.1 (default), also called Telecom Profile, is for ...
  • Page 153 Test Setup - Test Configurator, Timer, and System 1588 PTP is the IP address of the Grand Master Clock used by GM IP Address  the 1588 PTP function to communicate with it. Quick Ping button allows testing if the Grand Master IP address can ...
  • Page 154 Test Setup - Test Configurator, Timer, and System 1588 PTP Reliability allows the selection of the reliability level:  Normal (default) or High. Monetary Cost allows the selection of the monetary cost level:  Normal (default) or Low. Reserved Bit allows the selection of the reserved bit value: ...
  • Page 155 Test Setup - Test Configurator, Timer, and System 1588 PTP button is used to initiate the Grand Master Connection Connect  process. This process is also automatically initiated when starting the test if not already initiated. The process automatically ends when stopping the test.
  • Page 156 Test Setup - Test Configurator, Timer, and System 1588 PTP Service Duration (only available with Unicast mode)  Lease Duration is not configurable and is set to 300 seconds  which determines the Lease Duration used between the 1588 PTP function and the Grand Master clock.
  • Page 157 Test Setup - Test Configurator, Timer, and System 1588 PTP For both G.8265.1 and G.8275.1: Clock Class reports the description and code of the Grand Master  Clock Class. Code Description 0-5, 8-12, 15-51, 53-57, 59-67, 123-132, 171-186, 188-192, 194-215, Reserved 233-247, 249-254 Sync to primary reference...
  • Page 158 Test Setup - Test Configurator, Timer, and System 1588 PTP Alarm Timeout/Threshold Note: The following parameters are also used to declare the Pass/Fail verdict. Receipt Timeout defines the threshold used to declare a Loss  Announce or Loss Sync message alarm: 2 to 255 messages (default is 3 messages).
  • Page 159 Test Setup - Test Configurator, Timer, and System 1588 PTP Pass/Fail Verdict Pass/Fail Verdict check box when selected (default) enables the use of the pass/fail verdict. The global pass/fail verdict is based on the following criteria: alarms (Link Down, Loss Sync, Loss Announce, Unusable (G.8265.1), and/or QL Mismatch (when QL Mismatch Monitoring is enabled)), or the test is automatically aborted (service request denied, session canceled, or no reply for G.8265.1;...
  • Page 160 Test Setup - Test Configurator, Timer, and System BERT and Unframed BERT BERT and Unframed BERT Note: Available with Pattern client. From the Test menu, tap Setup, Test Configurator, and tap on the BERT or Unframed BERT block. Pattern The icon next to the Pattern label indicates the status of the received pattern signal.
  • Page 161 Test Setup - Test Configurator, Timer, and System BERT and Unframed BERT TX Pattern/RX Pattern sets respectively the TX and RX test pattern.  40/100G Interfaces: Test Framing Pattern PRBS9, PRBS15, PRBS20, PRBS23, PRBS31 (default), Null Client, and OTN BERT Framed User Pattern.
  • Page 162 For example, the pattern 1100 will be sent as 0011. Patterns PRBS15, PRBS23, and PRBS31 are defined inverted as per ITU standard and EXFO uses inverted patterns for Transport test applications. Not available when pattern is Multi-Pattern. All Lanes check box is available with an unframed test with parallel ...
  • Page 163 Test Setup - Test Configurator, Timer, and System BERT and Unframed BERT Bit Error Pass/Fail Verdict enables or disables the bit-error-rate pass/fail verdict  by selecting either Bit Error Count, Bit Error Rate (default), or Disabled. BER Threshold allows entering the maximum bit error count/rate ...
  • Page 164 Test Setup - Test Configurator, Timer, and System BERT and Unframed BERT Defect allows choosing on which layer and defect the service  disruption time test will be performed. Choices depend on the selected test path. Layer Defect Interface OTN/SONET/SDH: LOS DSn: LOS, BPV, EXZ PDH: LOS, CV Section/RS...
  • Page 165 Test Setup - Test Configurator, Timer, and System BERT and Unframed BERT No Defect Time (ms) represents the period without any defects before  stopping SDT measurement: 0.005 ms to 2000 ms (default is 300 ms). Disruption Monitoring check box when selected (disabled by ...
  • Page 166 Test Setup - Test Configurator, Timer, and System BERT and Unframed BERT Multi-Pattern Configuration Note: Only available for DSN/PDH BERT test application with DS1 signal (DS0 disabled) and when the pattern is Multi-Pattern. This feature allows sending each pattern for a specific duration, sequentially and continuously.
  • Page 167 Test Setup - Test Configurator, Timer, and System BERT and Unframed BERT (CPRI/OBSAI) BERT and Unframed BERT (CPRI/OBSAI) From the Test menu, tap Setup, Test Configurator and tap on the BERT or Unframed BERT block. Restore < Test Application > Defaults Reverts the current test application to its default factory settings.
  • Page 168 Test Setup - Test Configurator, Timer, and System BERT and Unframed BERT (CPRI/OBSAI) Bit Error Pass/Fail Verdict enables and sets the bit error rate/count threshold  prior to run the test. This allows for a simple pass/fail verdict, leaving no room for misinterpretation of the test results. To enable the pass/fail verdict, select either Bit Error Count or Bit Error Rate (default is Disabled).
  • Page 169 Test Setup - Test Configurator, Timer, and System BERT and Unframed BERT (CPRI/OBSAI) Service Disruption For a framed test, presence of any defect (see the next table) triggers the service disruption measurement. If a measurement exceeds the Test Period of 5 minutes, a service disruption equal to the Test Period is recorded.
  • Page 170 Test Setup - Test Configurator, Timer, and System BERT and Unframed BERT (CPRI/OBSAI) Pass/Fail Verdict allows enabling and configuring the SDT Threshold.  SDT Threshold allows configuring the acceptable maximum service  disruption time before failing the test: 0.001 to 299999.999 ms (default is 50 ms).
  • Page 171 Test Setup - Test Configurator, Timer, and System BERT and Unframed BERT (eCPRI) BERT and Unframed BERT (eCPRI) From the Test menu, tap Setup, Test Configurator and tap on the BERT or Unframed BERT block. Pattern Coupled RX to TX check box, when selected (default), couples both ...
  • Page 172 Test Setup - Test Configurator, Timer, and System BERT and Unframed BERT (eCPRI) Service Disruption Note: Not available when No Pattern Analysis (Live) check box is selected. The absence of traffic exceeding the configured No Traffic Time triggers the service disruption measurement. The service disruption event is closed when valid Ethernet frames are received for at least the Debounce Time without any No Traffic alarm.
  • Page 173 Test Setup - Test Configurator, Timer, and System BERT and Unframed BERT (eCPRI) Note: Clearing the Disruption Monitoring check box or stopping the test, stops the measurement without clearing the results. Starting the test while the Disruption Monitoring check box is selected resets the results. Pass/Fail Verdict allows enabling and configuring the SDT Threshold.
  • Page 174 Test Setup - Test Configurator, Timer, and System Cable Test Cable Test From the Test menu, tap Setup, Test Configurator, and the test block. Global Options Wiring Standard is the pin-to-pair assignment corresponding to the  UTP cable used: T568A (default) or T568B. Length Unit is the unit used for cable length and distance to fault ...
  • Page 175 Test Setup - Test Configurator, Timer, and System Cable Test Power Class, available when PoE is enabled, selects the power class of  the simulated powered device: Power Class Power Device Class 0 (13.0W) - (default) Type 1 Class 1 (3.8W) Class 2 (6.5W) Class 3 (13.0W) Class 4 (25.5W)
  • Page 176 Test Setup - Test Configurator, Timer, and System CFP/QSFP/SFP CFP/QSFP/SFP This tab gives hardware information related to the inserted transceiver module. From the Test menu, tap Setup, Test Configurator, tap on the interface block or on the Local block for iSAM, and on the CFP/QSFP/SFP tab. Parameters The following parameters are retrieved from the transceiver: QSFP+...
  • Page 177 Test Setup - Test Configurator, Timer, and System CFP/QSFP/SFP QSFP+ Parameter CFP4 SFP+ QSFP28 SFP28 WDM Type CLEI Code Also displays (Tunable) for transceivers having the tunable capability. Displays respectively the current and the maximum temperature recorded. For iOptics this information is available on the Summary (iOptics) page (refer to Temperature on page 491).
  • Page 178 Test Setup - Test Configurator, Timer, and System Clock Clock Allows the configuration of the clock synchronization. From the Test menu, tap Setup, Test Configurator, and tap on the clock block. Note: A TA-Sync transceiver system is required on the 88260 module when using an external clock input or when generating an external clock out.
  • Page 179 Test Setup - Test Configurator, Timer, and System Clock Note: For CPRI/OBSAI Base Station single port topology, the clock is configurable to Internal or External; for CPRI/OBSAI Remote Radio Head, the clock is fixed to Recovered; for CPRI dual port topology, the clock block is not displayed and the clock mode is automatically set to Internal for the Base Station and Recovered for the Remote Radio Head.
  • Page 180 Test Setup - Test Configurator, Timer, and System Clock Connector either indicates the connector type used for the clock or  allows the selection of Bantam or RJ48C when the BNC connector is used by the test application. The module connector blue LED used for Ext Clock In is flashing.
  • Page 181 Test Setup - Test Configurator, Timer, and System Clock Line Coding allows the selection of the interface line coding.  For DS1: AMI and B8ZS (default). For E1: AMI and HDB3 (default). Framing: Allows the selection of the interface framing. ...
  • Page 182 Test Setup - Test Configurator, Timer, and System Clock Ext Clock Out Note: Available when the Clock Mode is set to Internal, or Recovered. Not available on 870v2/870Q/8870. Allows setting the clock that will be generated. Interface Type allows the selection of the clock interface: None ...
  • Page 183 Test Setup - Test Configurator, Timer, and System Clock REF OUT Note: Available with 890, 890NGE (100G), 88200NGE, and 88260. Source, available with CFP4 and QSFP28 transceivers, allows selecting the source clock that will be used for transmission (TX) on the REF OUT port: TX MCLK (default for CFP4), Internal 1/8, Internal 1/40, Internal 1/160 (default for QSFP28).
  • Page 184 Test Setup - Test Configurator, Timer, and System Clock Clock Out indicates the status of the clock generated on the REF OUT port as follows: Green: a valid clock is generated.  Red: the clock is either not available (--) then not generated, or not ...
  • Page 185 Test Setup - Test Configurator, Timer, and System Device Under Test (iOptics) Device Under Test (iOptics) From the Test menu, tap Setup, and Test Configurator. Transceiver selection: Tap on a transceiver icon to select the  interface/port. The selected transceiver is highlighted with an amber contour.
  • Page 186 Test Setup - Test Configurator, Timer, and System Device Under Test (iOptics) Note: For 88260 module inserting or removing a transceiver system triggers the transceiver system detection process resulting that the default port is selected and results are cleared. Tunable: For transceivers having tunable capability, (Tunable) is ...
  • Page 187 Test Setup - Test Configurator, Timer, and System Device Under Test (iOptics) Modify button beside Wavelength, available with tunable transceivers when the TunableOptics software option is enabled, is used to configure the transceiver wavelength. Wavelength (nm) indicates the actual wavelength value selected. ...
  • Page 188 Test Setup - Test Configurator, Timer, and System eCPRI Flow - Profile eCPRI Flow - Profile From the Test menu, tap Setup, Test Configurator, the protocol block, and the Profile tab. Traffic Shaping Frame Size (Bytes)  The frame size is programmable from 64 to 16000. The minimum frame size will be adjusted according to the frame structure and components selected.
  • Page 189 Test Setup - Test Configurator, Timer, and System eCPRI Flow - Profile QoS Measurements Note: For Dual Port topology in One-Way P<m>  P<n>, these settings are coupled. Latency/Jitter check box, when selected (default), allows latency/jitter  configuration and monitoring. Measurement Mode: ...
  • Page 190 Test Setup - Test Configurator, Timer, and System eCPRI Flow - Profile Measurement Role determines whether the eCPRI node acts as  the Sender (default) or the Receiver. Remote Status indicates whether a configuration mismatch exist between each end based on the one-way delay messages that are exchanged: Remote Sender Receiver...
  • Page 191 Test Setup - Test Configurator, Timer, and System eCPRI Flow - Profile QoS Thresholds Note: For Dual Port topology in One-Way P<m>  P<n>, these enable/disable settings are coupled. Global Pass/Fail Verdict check box when selected (default) allows  enabling and configuring each metrics individually, otherwise all pass/fail verdicts are disabled.
  • Page 192 Test Setup - Test Configurator, Timer, and System EtherBERT and Unframed BERT EtherBERT and Unframed BERT From the Test menu, tap Setup, Test Configurator and tap on the EtherBERT or Unframed BERT block. LINK Note: Available with OTN BERT test application with Ethernet client (EoOTN). A green/red arrow is used to indicate the status of the link at the PCS level: A green arrow indicates that the link is up.
  • Page 193 1 and every 1 for 0. For example, the pattern 1100 will be sent as 0011. Patterns PRBS15, PRBS23, and PRBS31 are defined inverted as per ITU standard but EXFO uses non-inverted patterns for Ethernet test applications and EoOTN.
  • Page 194 Test Setup - Test Configurator, Timer, and System EtherBERT and Unframed BERT When the All Lanes check box is cleared, for an unframed test, the following pattern settings are available for each lane. TX Pattern/RX Pattern: Select the test pattern from the list (see ...
  • Page 195 Test Setup - Test Configurator, Timer, and System EtherBERT and Unframed BERT For a Framed, Unframed, or Unframed with Sync test, the service disruption event is closed when valid Ethernet frames are received for at least the Debounce Time without any No Traffic alarm. Reaching the Test Period or stopping the test also closes the SDT event.
  • Page 196 Test Setup - Test Configurator, Timer, and System EtherBERT and Unframed BERT Shaping TX Rate allows the selection of the transmission rate in percentage of  utilization (100 percent by default), Mbit/s, Gbit/s, Frame/s, or IFG. For Ethernet, the maximum percentage is 105 percent depending on the frame size selected.
  • Page 197 Mode:  Note: For 88200NGE and 890 modules, only Round-Trip Latency is supported. Round-Trip Latency measurement provides the total delay measurement for both directions on a specific port. EXFO Unit Single Port Network Topology under test One-Way P<m>  P<n> provides the delay measurement of each direction independently between two separate ports of a single module.
  • Page 198 Test Setup - Test Configurator, Timer, and System EtherBERT and Unframed BERT Ethernet Frame Frame Size (Bytes) allows entering the frame size for Ethernet test  applications. The range is from 48 to 16000 Fixed (default)  The following table lists each component that may affect the minimum frame size values.
  • Page 199 Test Setup - Test Configurator, Timer, and System EtherBERT and Unframed BERT EMIX button is available when EMIX frame size is selected. The  EMIX frame sequence is repeated continuously. Quantity allows selecting 2 to 8 frame size values. EMIX Frame Sizes allows setting the EMIX frame sizes. The minimum frame size value is adjusted according to the frame structure and components selected as shown in the above table.
  • Page 200 Test Setup - Test Configurator, Timer, and System EtherSAM - Burst EtherSAM - Burst Note: The Burst settings are only available for configuration when the Burst Test check box is selected (see page 190). From the Test menu, tap Setup, Test Configurator, tap on the test block, and on the Burst tab.
  • Page 201 Test Setup - Test Configurator, Timer, and System EtherSAM - Burst Parameters Number of Burst Sequence is the number of times, 1 to 100 (default  is 2), the burst sequence will be repeated for the CBS and EBS tests. Refill Delay Ratio (%) is the percentage of time required to refill the ...
  • Page 202 Test Setup - Test Configurator, Timer, and System EtherSAM - Global EtherSAM - Global From the Test menu, tap Setup, Test Configurator, tap on the test block, and on the Global tab. Dual Test Set Dual Test Set (DTS) check box when selected (cleared by default) ...
  • Page 203 Test Setup - Test Configurator, Timer, and System EtherSAM - Global Subtests Service Configuration Test verifies if the network configuration is  correct for each service before starting a long term test (Service Performance Test). To test the network configuration, an L2CP Handling test, a ramp test, and/or a burst test is/are executed for each configured service.
  • Page 204 Test Setup - Test Configurator, Timer, and System EtherSAM - Global Ramp Test check box when selected (default):  In the first stage of the test, when CIR check box is selected (see SLA Parameters on page 318), the throughput is increased incrementally in steps until the CIR level is reached.
  • Page 205 Test Setup - Test Configurator, Timer, and System EtherSAM - Global Burst Test check box when selected (cleared by default) verifies  that the expected burst size can be transmitted at maximum burst rate with minimal loss. CBS (Committed Burst Size) check box when selected (see SLA Parameters on page 318), verifies the performance of a committed burst size at CIR’s average TX rate.
  • Page 206 Test Setup - Test Configurator, Timer, and System EtherSAM - Global Global Options Per Direction Configuration check box when selected (default)  specifies that the values can be configured independently for each direction (local to remote and remote to local) for Dual Test Set or for each port direction for Dual Port;...
  • Page 207 Test Setup - Test Configurator, Timer, and System EtherSAM - L2CP EtherSAM - L2CP From the Test menu, tap Setup, Test Configurator, tap on the test block, and on the L2CP tab. Frame Rate Defines the rate of L2CP frames to be transmitted: 1 frame/s or 10 frame/s (default).
  • Page 208 Test Setup - Test Configurator, Timer, and System EtherSAM - L2CP Destination MAC Address: For predefined L2CP frames allows  selecting the Destination MAC Address for frames having more than one allowed MAC Addresses. For user defined allows selecting the Destination MAC Address from 01-80-C2-00-00-00 (default) to 01-80-C2-FF-FF-FF for User (01-80-C2) and from 01-00-0C-00-00-00 (default) to 01-00-0C-FF-FF-FF for User (01-00-0C).
  • Page 209 Test Setup - Test Configurator, Timer, and System EtherSAM - L2CP Predefined L2CP frame parameters: Allowed Frame EtherType (DSAP + Size Type Destination Format Subtype SSAP + (bytes) MAC Address Control) LACP Ethernet II 0x8809 01-80-C2-00-00-00 (Link Aggregation Control 01-80-C2-00-00-02 0x01 Protocol) 01-80-C2-00-00-03...
  • Page 210 Test Setup - Test Configurator, Timer, and System EtherSAM - L2CP Allowed Frame EtherType (DSAP + Size Type Destination Format Subtype SSAP + (bytes) MAC Address Control) MAC-PAUSE Ethernet II 0x8808 01-80-C2-00-00-01 (802.3 MAC Control - 0x0001 PAUSE) MAC-PFC Ethernet II 0x8808 01-80-C2-00-00-01 (802.3 MAC Control - 0x0101...
  • Page 211 Test Setup - Test Configurator, Timer, and System EtherSAM - L2CP Allowed Frame EtherType (DSAP + Size Type Destination Format Subtype SSAP + (bytes) MAC Address Control) 0xFEFE03 01-80-C2-00-00-2E (Shortest Path Bridge) 01-80-C2-00-00-2F MMRP Ethernet II 0x88F6 01-80-C2-00-00-20 (Multiple MAC Registration Protocol) MVRP Ethernet II 0x88F5...
  • Page 212 Test Setup - Test Configurator, Timer, and System EtherSAM - L2CP Allowed Frame EtherType (DSAP + Size Type Destination Format Subtype SSAP + (bytes) MAC Address Control) STP-ULFAST 0x424203 01-00-0C-CD-CD-CD (Spanning Tree Protocol - Uplink Fast) VLAN-BRDSTP 0x424203 01-00-0C-CD-CD-CE (VLAN Bridge Spanning Tree) SNAP 0x0003...
  • Page 213 Test Setup - Test Configurator, Timer, and System EtherSAM - Ramp EtherSAM - Ramp Note: The Ramp tab is only available for configuration when the Ramp Test check box is selected (see page 190). From the Test menu, tap Setup, Test Configurator, tap on the test block, and on the Ramp tab.
  • Page 214 Test Setup - Test Configurator, Timer, and System EtherSAM - Ramp Delete Step Allows deleting a step from the ramp. Select the step from the list and tap on Delete. Defaults Reverts the ramp configuration to its default factory settings. FTB-700/800/900 Series...
  • Page 215 Test Setup - Test Configurator, Timer, and System External Reference External Reference Allows the configuration of the external reference signal. Available with Wander test application. From the Test menu, tap Setup, Test Configurator, and tap on the External Reference block. Reference Mode is set to External Reference.
  • Page 216 Test Setup - Test Configurator, Timer, and System FC BERT FC BERT From the Test menu, tap Setup, Test Configurator and tap on the FC BERT block. Pattern Coupled RX to TX check box, when selected (default), couples both  the TX and RX signal with the same test pattern.
  • Page 217 Test Setup - Test Configurator, Timer, and System FC BERT BER Threshold allows entering the threshold Count or Rate value that  will be used to declare the pass/fail verdict. For Count, enter the maximum bit error count allowed before declaring a fail verdict: 0 (default) to 999999.
  • Page 218 Test Setup - Test Configurator, Timer, and System Fibre Channel Fibre Channel From the Test menu, tap Setup, Test Configurator, and the Fibre Channel block. World Wide Name (WWN) The following WWN settings are only available when the Login - Enable check box is selected (see page 207).
  • Page 219 Test Setup - Test Configurator, Timer, and System Fibre Channel Login After a link is established, it is possible to login to the Fibre Channel Network to send and receive data between a local and remote fibre channel port. Enable check box when selected (default) allows pressing the Login ...
  • Page 220 Test Setup - Test Configurator, Timer, and System Fibre Channel Fabric Status indicates the status of the Fabric switching network. The  status is not available when the discovered topology is Point-to-Point. Logged-in indicates that the login process has completed ...
  • Page 221 Test Setup - Test Configurator, Timer, and System Frequency Frequency Note: The Frequency tab is only available for parallel interfaces. From the Test menu, tap Setup, Test Configurator, tap on the interface block, and on the Frequency tab. TX Frequency TX Frequency (GHz) indicates the frequency (actual frequency + ...
  • Page 222 Test Setup - Test Configurator, Timer, and System Frequency Step Size (ppm), available with Fixed frequency, allows setting the increment/decrement value (from 0.1 to either 50 or 120 depending on the test configuration) that will be used when changing the frequency offset with the “+”...
  • Page 223 Test Setup - Test Configurator, Timer, and System Frequency Max. Negative Offset (ppm) indicates the maximum negative  frequency offset between the standard rate specification and the rate from the received signal. Max. Positive Offset (ppm) indicates the maximum positive ...
  • Page 224 Test Setup - Test Configurator, Timer, and System FTFL/PT FTFL/PT From the Test menu, tap Setup, Test Configurator, tap on the signal block, and on the FTFL/PT tab. ODUx Buttons Tap on an ODUx button to select the multiplexed level. FTFL Allows the configuration of the Forward and Backward ODU Fault Type Fault Location (FTFL) to be generated.
  • Page 225 Test Setup - Test Configurator, Timer, and System FTFL/PT Operator Identifier allows editing the Operator Identifier to be  generated (bytes 1 to 9 for forward, bytes 129 to 137 for backward; 9 characters allowed). By default no Operator Identifier is defined. Operator Specific allows editing the Operator Specific to be ...
  • Page 226 Test Setup - Test Configurator, Timer, and System FTFL/PT Payload type Hex Code 1234 5678 GFP mapping 0000 0101 Virtual Concatenation Signal 0000 0110 PCS Codeword Transparent Ethernet 0000 0111 FC-1200 into ODU2e 0000 1000 GFP mapping into extended OPU2 0000 1001 OC-3/STM-1 into ODU0...
  • Page 227 Test Setup - Test Configurator, Timer, and System FTFL/PT Payload type Hex Code 1234 5678 ODU Multiplex with ODTUjk 0010 0000 ODU Multiplex with ODTUk.ts/ODTUjk 0010 0001 ODU multiplex with ODTUCn.ts 0010 0010 25GBASE-R mapping into OPUflex 0011 0000 200GBASE-R mapping into OPUflex 0011 0001 400GBASE-R mapping into OPUflex...
  • Page 228 Test Setup - Test Configurator, Timer, and System GFP-F/GFP-T GFP-F/GFP-T Note: Only available with Ethernet 1GbE, 10GbE, or Ethernet (flex/GFP-F) client. From the Test menu, tap Setup, Test Configurator, and tap on the GFP-F/GFP-T block. Note: Refer to Generic Framing Procedure (GFP) on page 744 for more information on Client Data and Client Management frames.
  • Page 229 Test Setup - Test Configurator, Timer, and System Interface Interface From the Test menu, tap Setup, Test Configurator, the interface block, and the Interface tab. LINK An arrow is used to indicate the port link status (at the PCS level for parallel interfaces): link up (green arrow), error or link down (red arrow), or awaiting incoming data to provide a status (gray arrow).
  • Page 230 Test Setup - Test Configurator, Timer, and System Interface Thresholds is available when FEC Degraded SER is enabled and allows setting the threshold values used to raise and clear the Local Degraded SER Detected alarm. The alarm is raised when the number of symbol errors is higher than the Activate Threshold (Symbols) defined.
  • Page 231 Test Setup - Test Configurator, Timer, and System Interface For EtherBERT test application: Remote Fault Emulation check box when selected, generates Remote  Fault ordered sets when a Link Fault is received. Only available with EtherBERT on 890, 890 (100G), 8870, 8880, and 88200NGE modules, 10GE (all framing at the exception of Seed A/B and PRBS31 Unscrambled), and 40GE/100GE (Framed Layer 2 and up).
  • Page 232 Test Setup - Test Configurator, Timer, and System Interface Speed, available with 10/100/1000M Electrical interface, allows the  selection of the interface rate: 10M, 100M, 1GE, or Auto . The negotiated speed will be displayed next to the Speed field selection. The 10M speed is not available with SyncE test application.
  • Page 233 Test Setup - Test Configurator, Timer, and System Interface For Fibre Channel test application: PSP (Link Protocol) (Primitive Sequence Protocol) check box when  selected (default) allows link management by activating the port. For CPRI Unframed test application: Scrambling check box when selected (default) enables the scrambler. ...
  • Page 234 Test Setup - Test Configurator, Timer, and System Interface C&M Channel defines the kind of channel that will be used by the  startup sequence for negotiation. Only Disabled is available when Vendor is set to Ericsson. Auto (default): Overhead byte #Z.66.0 can use any of the HDLC ...
  • Page 235 Test Setup - Test Configurator, Timer, and System Interface Rate (Mbit/s) is available with HDLC and Ethernet C&M Channel.  For HDLC: Allows the selection of the HDLC bit rate. Choices depend on the selected CPRI interface rate. HDLC Proprietary is used to exercise a case where the Base Station is aware in advance of the HDLC rate to use.
  • Page 236 Test Setup - Test Configurator, Timer, and System Interface For OBSAI Framed L2 test application: Sync indicates the RX State Machine status: green for FRAME_SYNC,  gray for pending, or red for other states. The TX and RX State Machines are also displayed.
  • Page 237 Test Setup - Test Configurator, Timer, and System Interface RP3 Address (OBSAI Framed L2) Source identifies the source node of RP3 messages: 0000 to 1FFF;  default is 1234. The RP3 address 1FFF corresponds to the empty message address that is dropped according to the standard. Target identifies the peer node that is receiving the RP3 messages: ...
  • Page 238  up to 15 bytes (a CRC-7 byte will be added in front for a total of 16 bytes). Default is EXFO 10GigE. Note: J0 and J1 values should be 7-bit T.50 suitable characters. The Padding drop list from the message keyboard allows selecting Null or Space to fill up the J0 Trace and J1 Trace up to15-byte value.
  • Page 239 Test Setup - Test Configurator, Timer, and System Interface Physical Interface For parallel interfaces, the following information is displayed for each optical lane. Optical Lane indicates the optical lane number.  Optical Interface Optical Lane Number 40GE (4 Lanes) [41.25 Gbit/s] 0 through 3 100GE (4 Lanes) [103.125 Gbit/s] Laser indicates the status of the laser: ON with the laser pictogram...
  • Page 240 Test Setup - Test Configurator, Timer, and System Interface Laser ON/OFF button, available with parallel interfaces, is used to  activate the laser control per optical lane or for all lanes. Not available with 50GE. Optical lane numbers are from 0 to 3. All Lanes check box, when selected, applies the change(s) to all ...
  • Page 241 Test Setup - Test Configurator, Timer, and System Interface Modify Wavelength button, available with tunable transceivers when  the TunableOptics software option is enabled, is used to configure the transceiver wavelength. Wavelength (nm) indicates the actual wavelength value selected.  Use the scroll box and/or the -/+ buttons to select the wavelength.
  • Page 242 Test Setup - Test Configurator, Timer, and System Interface TX Frequency Note: The following TX Frequency information applies to serial interface only, refer to TX Frequency on page 209 for parallel interfaces. Not available when using an active copper SFP. TX Frequency (GHz) indicates the frequency (actual frequency + ...
  • Page 243 Test Setup - Test Configurator, Timer, and System Interface RX Frequency Note: The following RX Frequency information applies to serial interface only, refer to RX Frequency on page 210 for parallel interfaces. Not available when using an active copper SFP. Frequency (GHz) indicates the frequency of the input signal.
  • Page 244 Test Setup - Test Configurator, Timer, and System ISDN PRI - Call Management ISDN PRI - Call Management From the Test menu, tap Setup, Test Configurator, the test block, and the Call Management tab. Call Origination Settings Channel Identification  The channel buttons allow the selection of a channel for call ...
  • Page 245 Test Setup - Test Configurator, Timer, and System ISDN PRI - Call Management Interface/ Switch Type Numbering Types for ... Numbering Plan Rate ISDN Unknown Private Telephony National ISDN Unknown International, Subscriber National, Local Nortel DMS-100/250 Unknown International, Subscriber National, AT&T 4ESS/5ESS Subscriber Euro VN6...
  • Page 246 Test Setup - Test Configurator, Timer, and System ISDN PRI - Call Management Call  Type selects the service type: 3.1 kHz, Speech (default), or Data.  Rate is only configurable for Data type: 56K or 64K (default). The  rate is set 64K for 3.1 kHz and Speech types as well as for Euro Q.SIG switch type.
  • Page 247 Test Setup - Test Configurator, Timer, and System ISDN PRI - Call Management Call Establishment/Termination Pass/Fail Verdict Call Establishment/Termination Pass/Fail Verdict check box when  selected (cleared by default) enables call establishment and termination pass/fail verdict for each channel and globally for the test. No verdict is provided on the D-Channel.
  • Page 248 Test Setup - Test Configurator, Timer, and System ISDN PRI - Call Management Call/Hang-Up and Hang-Up All buttons are available depending on the status of the call. Call initiates a call on the selected channel.  Hang-Up terminates a call on the selected channel. ...
  • Page 249 Test Setup - Test Configurator, Timer, and System ISDN PRI - ISDN Settings ISDN PRI - ISDN Settings From the Test menu, tap Setup, Test Configurator, the test block, and the ISDN Settings tab. D-Channel Channel indicates the channel selected to establish the ISDN signalling ...
  • Page 250 Test Setup - Test Configurator, Timer, and System ISDN PRI - ISDN Settings Threshold allows entering the threshold value that will be used to  declare the pass/fail verdict. For Count, enter the maximum bit error count allowed before declaring a fail verdict: 0 (default) to 999999. For Rate, enter the maximum bit error rate allowed before declaring a fail verdict: 1.0E-14 to 1.9E-01 (default is 1.0E-12).
  • Page 251 Test Setup - Test Configurator, Timer, and System Labels Labels For SONET/SDH BERT: From the Test menu, tap Setup, Test Configurator, the interface block, and on the Labels tab. For OTN-SONET/SDH BERT: From the Test menu, tap Setup, Test Configurator, the protocol block, and on the Labels tab. Note: Selecting a Label byte to be generated will automatically update the corresponding OH byte.
  • Page 252 Test Setup - Test Configurator, Timer, and System Labels VT/TU Path (V5): The V5 byte is allocated to indicate the content of the  VT/TU path, including the status of the mapped payloads. Generated: Select the V5 byte from the list. Selecting a V5 byte value will automatically update the OH V5 selection and vice versa.
  • Page 253 Test Setup - Test Configurator, Timer, and System Link OAM Link OAM From the test menu, tap Setup, Test Configurator, and the Link-OAM (802.3) test block. OAM Mode Allows the selection of the OAM mode: Active (default) initiates the OAM discovery and send OAMPDU ...
  • Page 254 Test Setup - Test Configurator, Timer, and System Link OAM OAM Discovery Status Local reports the local OAM discovery status as follows:  Status Description Evaluating OAM discovery is started. Stable OAM discovery is completed. Local OAM is satisfied with the remote OAM settings.
  • Page 255 Test Setup - Test Configurator, Timer, and System Local Details (iSAM) Local Details (iSAM) From the Test menu, tap Setup, Test Configurator, and the More button from the Local block. LINK An arrow is used to indicate the status of the test link (at the PCS level ...
  • Page 256 Test Setup - Test Configurator, Timer, and System Local Details (iSAM) Interface/Rate or Port choices depend on the rates available on the  module. 100GE (4 Lanes) [103.125 Gbit/s] 40GE (4 Lanes) [41.25 Gbit/s] 10GE LAN 1GE Optical 100M Optical 10/100/1000M Electrical For 890, 890NGE (100G), and 88200NGE, only possible when using an active copper SFP.
  • Page 257 Test Setup - Test Configurator, Timer, and System Local Details (iSAM) Connector allows the selection of the module’s port.  Connector 720Gv2/730Gv2 870v2/870Q Interface/Rate 880v2/880Q 890NGE (100G) 88260 890NGE (10G) 88200NGE 8870/8880 100GE (4 Lanes) Port 1- CFP4 Port A1/A2/B1/B2 - CFP4 [103.125 Gbit/s] Port 2 - QSFP Port A1/A2/B1/B2 - QSFP28...
  • Page 258 Test Setup - Test Configurator, Timer, and System Local Details (iSAM) Note: Full Duplex is used and there is no Flow Control (pause frames received are ignored). Lasers OFF at Start-Up allows automatically turning off all lasers  when starting the module or when switching from one test application of the same group (Ethernet or Transport) to another.
  • Page 259 Test Setup - Test Configurator, Timer, and System Local Details (iSAM) VLAN ID/Priority check box when selected, cleared by default,  enables C-VLAN with VLAN Ethernet type of 8100 and allows setting both VLAN ID and priority. VLAN ID choices are 0 through 4095; default is 2; refer to VLAN ID and Priority on page 775 for more information.
  • Page 260 Test Setup - Test Configurator, Timer, and System MAC/IP/UDP MAC/IP/UDP Note: Only available with Framed Layer 2 (see Framing from the Modify Frame Structure). From the Test menu, tap Setup, Test Configurator, and... For RFC 2544 and EtherBERT, tap on the protocol block. ...
  • Page 261 Test Setup - Test Configurator, Timer, and System MAC/IP/UDP Modify Frame Structure Allows modifying the structure of the frame. Global Option  S-OAM check box when selected enables EtherSAM over service  OAM at Layer 2 on all services. The EtherSAM uses LBM and LBR messages of the S-OAM protocol to perform the test.
  • Page 262 Test Setup - Test Configurator, Timer, and System MAC/IP/UDP PBB-TE: Provider Backbone Bridges with Traffic Engineering encapsulation. IP Version allows selecting IPv4 (default) or IPv6 that will be used  for both the interface and all streams/services. Framing  Note: The framing for EtherSAM in a NAT environment is limited to Ethernet II, IPv4, and UDP.
  • Page 263 Test Setup - Test Configurator, Timer, and System MAC/IP/UDP MPLS: The MPLS Label check box, when selected (cleared by  default), enables 1 or 2 MPLS labels allowing management and test frames to be transmitted and received. Only available with EtherSAM and Traffic Gen &...
  • Page 264 Test Setup - Test Configurator, Timer, and System MAC/IP/UDP EoE VLAN  Note: Only available when the EoE VLAN is enabled; refer to Modify Frame Structure on page 249. VLAN ID choices are 0 to 4095 (default is 2); refer to VLAN ID and ...
  • Page 265 Test Setup - Test Configurator, Timer, and System MAC/IP/UDP PBB-TE Note: Available when PBB-TE is selected as the Provider Encapsulation (see Modify Frame Structure on page 249). Source B-MAC Address indicates and allows changing (when the  Factory Default check box is cleared) the default source Backbone MAC address: 00:03:01:xx:xx:xx.
  • Page 266 Test Setup - Test Configurator, Timer, and System MAC/IP/UDP Source MAC Address indicates the default and unique Media Access  Control (MAC) address given to the Ethernet port; editable when using Provider Encapsulation. Destination MAC Address: Enter the destination MAC address for the ...
  • Page 267 Test Setup - Test Configurator, Timer, and System MAC/IP/UDP Note: Depending on the Layer Mode (available with EtherSAM), some EtherType require to set the configuration parameters through the Modify Frame Structure pop-up instead of configuring its value from this field; in this case a pop-up message is displayed indicating the reason.
  • Page 268 Test Setup - Test Configurator, Timer, and System MAC/IP/UDP VLAN Note: VLAN is only available when the VLAN Tag is enabled; refer to Modify Frame Structure on page 249. For each VLAN tag enabled (C-VLAN/S-VLAN/E-VLAN) the following parameters are configurable. VLAN ID choices are 0 through 4095;...
  • Page 269 Test Setup - Test Configurator, Timer, and System MAC/IP/UDP MPLS Note: MPLS is only available when the MPLS Label is enabled; refer to Modify Frame Structure on page 249. Label allows the selection of the MPLS TX labels: 0 to 1048575 (default ...
  • Page 270 Test Setup - Test Configurator, Timer, and System MAC/IP/UDP For IPv4 the following configuration parameters are available. Automatic IP (DHCP) check box, when selected (cleared by default),  allows obtaining an IP address dynamically from a DHCP (Dynamic Host Configuration Protocol) server. Source IP Address allows entering the source IP address for the ...
  • Page 271 Test Setup - Test Configurator, Timer, and System MAC/IP/UDP Global IPv6 Address (GUA) is used to communicate with on-link  neighbors and for global communication with hosts outside the subnet. Mode  None disables the Global IPv6 Address and the Default Gateway Address.
  • Page 272 Test Setup - Test Configurator, Timer, and System MAC/IP/UDP Prefix Mask, available with Static mode, allows specifying a prefix  that defines the subnet. The accepted range is 0000:0000:0000:0000:0000:0000:0000:0000 to FFFF:FFFF:FFFF:FFFF:0000:0000:0000:0000. For example: Global Address: 2001:0DB8:0001:0002:02AA:00FF:FE11:1111 Prefix Mask: FFFF:FFFF:FFFF:0000:0000:0000:0000:0000 Corresponding Prefix: 2001:0DB8:0001. Default Gateway allows the configuration of the default gateway ...
  • Page 273 Test Setup - Test Configurator, Timer, and System MAC/IP/UDP The following configuration parameters are available for both IPv4 and IPv6 unless otherwise specified. Quick Ping button automatically starts the quick Ping utility for the  stream destination IP address and provides either a successful or failed result.
  • Page 274 Test Setup - Test Configurator, Timer, and System MAC/IP/UDP TTL (IPv4) or HOP Limit TTL (IPv6) sets the Time To Live value: 1 to  255 (default is 128). Flow Label (IPv6) is a number used to identify a series of related ...
  • Page 275 Test Setup - Test Configurator, Timer, and System MAC/IP/UDP Reliability allows the selection of the reliability level:  Normal (default) or High. Monetary Cost allows the selection of the monetary cost level:  Normal (default) or Low. Reserved Bit allows the selection of the reserved bit value: ...
  • Page 276 Test Setup - Test Configurator, Timer, and System MAC/IP/UDP Allows the selection of the source and destination TCP port number. Source Port is configurable from 0 to 65535; the default is 49184.  Destination Port is configurable from 0 to 65535; the default is ...

  • Page 277: Network

    Test Setup - Test Configurator, Timer, and System Network Network From the test menu tap Setup, Test Configurator, the interface block, and the Network tab. Note: For Through Mode test application, the Network tab is only available for the Primary Port but the configured parameters apply to both ports. MAC Address indicates and allows changing, when the Factory ...
  • Page 278 Test Setup - Test Configurator, Timer, and System Network : Enter the IP address of the port. The default setting is IP Address  10.10.x.y, where x and y are respectively the two least significant bytes of the port default MAC address. Subnet Mask : Enter the Subnet Mask.
  • Page 279 Test Setup - Test Configurator, Timer, and System Network Global IPv6 Address (GUA) is used to communicate with on-link  neighbors and for global communication with hosts outside the subnet. Mode  None disables the Global IPv6 Address and the Default Gateway Address.
  • Page 280 Test Setup - Test Configurator, Timer, and System Network Prefix Mask, available with Static mode, allows specifying a prefix  that defines the subnet. The accepted range is 0000:0000:0000:0000:0000:0000:0000:0000 to FFFF:FFFF:FFFF:FFFF:0000:0000:0000:0000. For example: Global Address: 2001:0DB8:0001:0002:02AA:00FF:FE11:1111 Prefix Mask: FFFF:FFFF:FFFF:0000:0000:0000:0000:0000 Corresponding Prefix: 2001:0DB8:0001. Default Gateway allows the configuration of the default gateway ...
  • Page 281 Test Setup - Test Configurator, Timer, and System Network VLAN VLAN Tag check box, when selected (cleared by default), enables and allows setting up to 3 stacked VLANs. For each VLAN tag enabled, C-VLAN / S-VLAN / E-VLAN, the following parameters are configurable.
  • Page 282 Test Setup - Test Configurator, Timer, and System Network Details (iSAM) Network Details (iSAM) Either select the Layer parameter, the number of services, for each service the profile and CIR settings, or click on More for all settings. The total bandwidth (when the Performance Test is enabled) and the estimated test duration are also displayed.
  • Page 283 Test Setup - Test Configurator, Timer, and System Network Details (iSAM) Configuration Test check box when selected (default) verifies if the  network configuration is correct for each service before starting a long term test (Performance Test). Set the Configuration Test duration in seconds per step enabled (CIR and CIR+EIR): 5 seconds (default) to 60 seconds.
  • Page 284 Test Setup - Test Configurator, Timer, and System Network Details (iSAM) Services Allows the selection of the number of services: 1 (default) to 4. The following parameters are configurable individually for each service: Profile  Two profiles are defined by default as well as User Profile. Profiles are user definable and up to 25 profiles can be predefined (see Customizable Profiles on page 277).
  • Page 285 Test Setup - Test Configurator, Timer, and System Network Details (iSAM) Note: At least one check box (CIR or CIR+EIR) has to be selected. Thus, clearing the CIR check box while CIR+EIR check box is cleared, will automatically select the CIR+EIR check box and vice versa. Note: For Dual Test Set, the CIR and CIR+EIR values are the same (Symmetric) for both L->R and R->L directions.
  • Page 286 Test Setup - Test Configurator, Timer, and System Network Details (iSAM) Frame Size  Type Frame Size (bytes) Fixed (default) (default) to 16000 EMIX to 16000 The minimum value is adjusted according to the frame structure and components selected as shown in the following table. The maximum frame size is limited to 10000 for 10/100/1000Mbps electrical interface.
  • Page 287 Test Setup - Test Configurator, Timer, and System Network Details (iSAM) Classification  Allows the selection of the value for the selected classification: Classification Value VLAN ID 0 through 4095 (default is 2). Refer to VLAN ID and Priority on page 775. VLAN Priority 0 (default) to 7.
  • Page 288 Test Setup - Test Configurator, Timer, and System Network Details (iSAM) Performance Criteria  The following performance criteria are available by default: Name ≤ FD (ms) ≤ IFDV (ms) ≤ FLR (%) MEF Metro High 0.01 MEF Metro Med 0.01 MEF Metro Low Disabled MEF Regional High...
  • Page 289 As previously mentioned, 2 profiles are available by default and up to 25 profiles can be predefined by editing the profile’s text file (iSAMProfilesTemplate.ini) using a text editor like Notepad. The file is located under ProgramData\EXFO\ProtocolProducts\ Example of profile’s text file: [Priority] Frame Type = EMIX...
  • Page 290 Test Setup - Test Configurator, Timer, and System Network Details (iSAM) Each profile entry has the following parameters. Profile Name: 1 to 16 characters. All ASCII characters from 32 to 126  decimal are supported. Frame Type: Enter Fixed or EMIX. When the frame type is missing ...
  • Page 291 As previously mentioned, factory performance criteria are available and up to 25 performance criteria can be defined by editing the performance criteria text file (iSAMPerformanceCriteriaTemplate.ini) using a text editor like Notepad. The file is located under ProgramData\EXFO\ProtocolProducts\ Example of performance criteria’s text file: [MEF Metro High] FD = 10 IFDV = 3 FLR = 0.01...
  • Page 292 Test Setup - Test Configurator, Timer, and System Remote Details (iSAM) Remote Details (iSAM) The remote block automatically scans the remote modules for DTS and Remote Loopback modes and allows the selection of the remote module that is used to loop back the traffic via Smart Loopback or EtherSAM in Dual Test Set (DTS) mode for simultaneous bidirectional results.
  • Page 293 Test Setup - Test Configurator, Timer, and System Remote Details (iSAM) Preferred check box when selected indicates that this module is  part of the preferred module’s list. Preferred remote modules will be considered first during the automatic connection process as follows: Priority Preferred or not...
  • Page 294 Test Setup - Test Configurator, Timer, and System Remote Details (iSAM) For Remote Loopback Operation Mode Loop-Up button establishes the connection with the selected remote  module and sets the remote module into Smart Loopback test application. Following a successful loop-up, the IP address of the remote module will be used as the destination IP address for the test.
  • Page 295 Test Setup - Test Configurator, Timer, and System Remote Details (iSAM) For Manual Loopback Operation Mode MAC, available with layer L2, allows entering the destination MAC  address of the remote. IP, available with L3/L4, allows entering the destination IP address of ...
  • Page 296 Test Setup - Test Configurator, Timer, and System RFC 2544 - Global RFC 2544 - Global From the Test menu, tap Setup, Test Configurator, tap on the RFC 2544 block, and on the Global tab. Dual Test Set Dual Test Set (DTS) check box when selected (cleared by default) ...
  • Page 297 Test Setup - Test Configurator, Timer, and System RFC 2544 - Global Coupled is available with Bidirectional flow direction. When the  Coupled check box is: Cleared, the decision to increase or decrease the TX Rate of the  next iteration is taken independently per direction. Selected, the decision to increase or decrease the TX Rate of the ...
  • Page 298 Test Setup - Test Configurator, Timer, and System RFC 2544 - Global Frame Size (Bytes): For RFC 2544 distribution, gives predefined frame  size distribution values. For User Defined distribution, enter the frame size values. Distribution Frame Size RFC 2544 ,128, 256, 512, 1024, 1280, and 1518 User Defined to 16000...
  • Page 299 Test Setup - Test Configurator, Timer, and System RFC 2544 - Subtests RFC 2544 - Subtests From the Test menu, tap Setup, Test Configurator, tap on the RFC 2544 block. and on the Subtests tab. Allows the configuration of each enabled subtest. Throughput The objective of this test is to find the throughput of the device under test for which there is no frame loss.
  • Page 300 Test Setup - Test Configurator, Timer, and System RFC 2544 - Subtests Max. Rate is the maximum rate the test should begin with, in terms of  a percentage of the line rate (%), Mbit/s, or Gbit/s. For Dual Test Set Max.
  • Page 301 Test Setup - Test Configurator, Timer, and System RFC 2544 - Subtests Accuracy is the accuracy measurement in percentage of the line rate  (%), Mbit/s, or in Gbit/s. The accuracy is not based on the configured Maximum Rate but on the Ethernet line rate: Max.
  • Page 302 Test Setup - Test Configurator, Timer, and System RFC 2544 - Subtests Back-to-Back The objective of this test is to find the maximum number of frames that can be sent at maximum throughput without frame loss. A burst of frames (Burst Time) is sent with minimum inter-frame gaps to the device under test and the number of forwarded frames is counted.
  • Page 303 Test Setup - Test Configurator, Timer, and System RFC 2544 - Subtests Frame Loss Configuration The objective of this test is to find the percentage of frames that are lost due to lack of resources. Starting at the specified maximum rate (Max. Rate), the test is performed for a specific frame size and for the specified duration (Trial Duration).
  • Page 304 Test Setup - Test Configurator, Timer, and System RFC 2544 - Subtests Latency Configuration The objective of the test is to measure the time required for the frame to go through the device under test and return back to source. Starting by sending a stream of frames for the predefined duration (Trial Duration) and throughput (Max.
  • Page 305 Test Setup - Test Configurator, Timer, and System RFC 2544 - Subtests Measurement Mode, available with Dual Test Set, allows the selection  of the latency measurement mode for rates 10M to10GE: Round-Trip (default) or One-Way. For other rates, the measurement mode is set to Round-Trip.
  • Page 306 Test Setup - Test Configurator, Timer, and System RFC 2544 - Subtests Thresholds Button Note: For Dual Test Set, thresholds are configurable for Local to Remote and Remote to Local directions at the exception of Round-Trip Latency Threshold for which the value is unique. For Dual Port topology, thresholds are configurable for both port directions.
  • Page 307 Test Setup - Test Configurator, Timer, and System RFC 2544 - Subtests Frame Loss Threshold (%) sets the threshold value of frame loss for  all frame sizes when applicable. Latency Threshold / Round-Trip Latency Threshold sets the  threshold value as the maximum delay for all frame sizes when applicable.
  • Page 308 1- for UDP/TCP port 62819 to allow DTS communication. 2- for the defined TCP port (see TCP Port on page 297). EXFO|Worx Interop Disconnected Verifier not detected (not reachable, invalid IP, or invalid TCP port). Ready or Verifier detected, either running (remote unit locked) or ready to Running perform a test.
  • Page 309 Test Setup - Test Configurator, Timer, and System RFC 6349 Remote IP Address, available with EXFO|Worx Interop, is either the  remote IP address of the verifier or the WAN IP address when the verifier is behind a NAT router.
  • Page 310 Test Setup - Test Configurator, Timer, and System RFC 6349 The Local-to-Remote and Remote-to-Local define respectively the BDP boost factor for each direction: 0.1 to 10.0 (default is 1.0). Max MTU (bytes) determines the Maximum Transfer Unit (MTU) to  use when the client is generating TCP traffic toward the server: from 1080 to 1500 bytes (default).
  • Page 311 Test Setup - Test Configurator, Timer, and System S-OAM and MPLS-TP OAM S-OAM and MPLS-TP OAM From the test menu, tap Setup, Test Configurator, and the S-OAM (Y.1731/802.1ag/MEF) or MPLS-TP OAM (G.8113.1) test block. OAM Mode Allows the selection of the OAM mode. OAM Type OAM Mode S-OAM...
  • Page 312 Test Setup - Test Configurator, Timer, and System S-OAM and MPLS-TP OAM S-OAM and MPLS-TP OAM Responder S-OAM Responder or MPLS-TP OAM Responder check box when selected (default) allows responding to LBM, LTM, DMM, LMM, and SLM valid messages (test running or not). LTM and SLM are only available with Ethernet OAM.
  • Page 313 Test Setup - Test Configurator, Timer, and System S-OAM and MPLS-TP OAM Pass/Fail Verdict Pass/Fail Verdict check box when selected (default) enables the use of the pass/fail verdict. A global fail verdict is declared when any of the following condition is met: Link Down alarm, Loss Continuity alarm, or any fail verdict for Frame Delay, Frame Loss, Synthetic Loss (Only applicable to Ethernet OAM), Frame Delay Failure, Frame Loss Failure, Synthetic Loss Failure (Only applicable to Ethernet OAM), Loopback Failure, or Test...
  • Page 314 MA Name (Short MA Name) is a Maintenance Association Name  text field set to EXFO MA Name by default. The length of the MA Name field is from 1 to either 44 bytes minus the Domain ID field length when Domain ID is present or 45 bytes when not present.
  • Page 315 Test Setup - Test Configurator, Timer, and System S-OAM and MPLS-TP OAM MEG Level (Y.1731, MEF, and G.8113.1) is the Maintenance Entity  Group Level configurable from 0 to 7 (default). MD Level (802.1ag) is the Maintenance Domain Level and is ...
  • Page 316 Test Setup - Test Configurator, Timer, and System S-OAM and MPLS-TP OAM Drop Eligible, available with S-OAM Mode or when VLAN is enabled  (see VLAN on page 269), is set to No (no frames will be dropped when congestion occurs) and is not configurable. Period determines the transmission period of the CCM frame: 3.33 ms, ...
  • Page 317 Test Setup - Test Configurator, Timer, and System S-OAM and MPLS-TP OAM Test Function Note: Test Function parameters are not configurable when the TX Enable check box is selected. Function allows the selection of the test function to be performed. ...
  • Page 318 Test Setup - Test Configurator, Timer, and System S-OAM and MPLS-TP OAM Requesting MEP ID TLV (G.8113.1) check box when selected (default)  determines if the Requesting MEP ID TLV is present in the LBM frame. The Requesting MEP ID TLV check box is cleared and not selectable when the Continuous check box is selected.
  • Page 319 Test Setup - Test Configurator, Timer, and System S-OAM and MPLS-TP OAM Frame Size allows entering the frame size. The frame size range for  Ethernet II frame format is as follows: S-OAM Mode: 64 to 1518 . The minimum frame size is adjusted ...
  • Page 320 Test Setup - Test Configurator, Timer, and System S-OAM and MPLS-TP OAM Parameter Number of bytes to be added Apply to Label 2 4 bytes G.8113.1 18 bytes for Data TLV Type Continuous 21 bytes for Test TLV Type Requesting MEP ID TLV 56 bytes Note: Sending traffic with frame size >1518 in switched network may result in losing all frames.

  • Page 321: Services - Global X

    Test Setup - Test Configurator, Timer, and System Services - Global Services - Global From the Test menu, tap Setup, Test Configurator, tap on the services block, the Global tab, and on the General button. General Button The following parameters are displayed and configurable per service. Check boxes: ...
  • Page 322 Test Setup - Test Configurator, Timer, and System Services - Global Frame Size indicates the frame size of each service. Tap on the Frame  Size button to modify the frame size of each service. Framing indicates the framing of each service. Tap on the Framing ...
  • Page 323 Test Setup - Test Configurator, Timer, and System Services - Global Total TX Rate Note: Only available when the Service Performance Test check box is selected (see EtherSAM - Global on page 190). For Dual Test Set, the total TX rates are displayed for both Local and Remote directions.

  • Page 324: Services - L2Cp X

    Test Setup - Test Configurator, Timer, and System Services - L2CP Services - L2CP The EtherSAM test application supports the configuration of up to 10 different services individually. All parameters are configurable per service. From the Test menu, tap Setup, Test Configurator, tap on the services block, and on the L2CP tab.

  • Page 325: Services - Profile X

    Test Setup - Test Configurator, Timer, and System Services - Profile Services - Profile The EtherSAM test application supports the configuration of up to 10 different services individually. All parameters are configurable per service. From the Test menu, tap Setup, Test Configurator, tap on the services block, and on the Profile tab.
  • Page 326 Test Setup - Test Configurator, Timer, and System Services - Profile Total TX Rate Note: Only available when the Service Performance Test check box is selected (see EtherSAM - Global on page 190). Indicates the total transmit rate of all services enabled for transmission. Unit selection is available from the SLA Parameters on page 318.
  • Page 327 Test Setup - Test Configurator, Timer, and System Services - Profile Note: The CIR value will be calculated on the basis of the selected service profile and the value entered in the Number of Calls or Number of Channels field. Frame Size (Bytes) indicates the frame size for Voice and Video ...
  • Page 328 Test Setup - Test Configurator, Timer, and System Services - Profile The following table lists each component that may affect the minimum frame size value. Component Description VLAN 4 bytes per VLAN (up to 2 VLAN) MPLS 4 bytes per label (up to two labels) 8 bytes 20 bytes Ethernet Header...
  • Page 329 Test Setup - Test Configurator, Timer, and System Services - Profile Test Parameters Note: Unit selection is available from the SLA Parameters on page 318. For Dual Test Set, parameters are configurable for both local (L) and remote (R) directions. For Dual Port topology, parameters are configurable for both port directions.
  • Page 330 Test Setup - Test Configurator, Timer, and System Services - Profile SLA Parameters The Service-Level Agreement (SLA) parameters allow enabling and defining the pass/fail verdict thresholds for the service. For Dual Test Set, parameters are configurable for both local (L) and remote (R) directions at the exception of Max Round-Trip Latency for which the value is unique.
  • Page 331 Test Setup - Test Configurator, Timer, and System Services - Profile CBS check box when selected (default) sets the maximum committed  burst size to which services’ frames will be sent and be CIR-compliant (default is 12144 bytes). The CBS minimum and maximum values are affected by the CIR, Burst Max Rate, and Frame Size values.
  • Page 332 Test Setup - Test Configurator, Timer, and System Signal Signal From the Test menu, tap Setup, Test Configurator, the interface block, and the Signal tab. Physical Interface - Optical Note: For electrical interface, see Physical Interface - Electrical on page 322. Optical Lane indicates the optical lane number for parallel interfaces.
  • Page 333 Test Setup - Test Configurator, Timer, and System Signal indicates, when supported, the minimum Min RX Power (dBm)  received power level of the optical lane/laser in dBm. Max RX Power (dBm) indicates, when supported, the maximum  received power level of the optical lane/laser in dBm. Laser ON/OFF button is used for parallel interfaces to activate the laser ...
  • Page 334 Test Setup - Test Configurator, Timer, and System Signal Physical Interface - Electrical Note: The following settings are available with electrical signal and their availability depend on the signal itself and its mapping. For optical interface, see Physical Interface - Optical on page 320. LBO (Line Build Out): The LBO allows meeting the interface ...
  • Page 335 Test Setup - Test Configurator, Timer, and System Signal RX Termination  Signal Termination DS1/E1 Term , Mon, and Bridge. DS3/E3/E4/STS-1e/STM-0e/STS-3e/STM-1e Term , and Mon Default value. Power indicates the received signal level in dBdsx for DSn or dBm for ...
  • Page 336 Test Setup - Test Configurator, Timer, and System Signal Interface Frequency Offset Nominal Frequency ± 50 ppm 34368000 bit/s 44736000 bit/s STS-1e/STM-0e 51840000 bit/s 139264000 bit/s STS-3e/STM-1e 155520000 bit/s OC-1/STM-0 ± 50 ppm 51840000 bit/s OC-3/STM-1 155520000 bit/s OC-12/STM-4 622080000 bit/s OC-48/STM-16 2488320000 bit/s OC-192/STM-64...
  • Page 337 Test Setup - Test Configurator, Timer, and System Signal RX Frequency Note: The following RX Frequency information applies to serial interface only, refer to RX Frequency on page 210 for parallel interfaces. Frequency (GHz) indicates the frequency of the input signal. ...
  • Page 338 Test Setup - Test Configurator, Timer, and System Signal Configuration Signal Configuration For OTN, refer to Signal - Signal Configuration (OTN) on page 335 for  more information. For SONET/SDH, refer to Signal - Signal Configuration (SONET/SDH) on  page 339 for more information. For DSn/PDH, refer to Signal - Signal Configuration (DSn/PDH) on ...
  • Page 339 Test Setup - Test Configurator, Timer, and System Signal - Signal Configuration (DSn/PDH) Signal - Signal Configuration (DSn/PDH) For SONET/SDH - DSn/PDH BERT, from the test menu, tap Setup, Test Configurator, and the protocol block. Only Framing setting and the Loopback button are available.
  • Page 340 Test Setup - Test Configurator, Timer, and System Signal - Signal Configuration (DSn/PDH) Background For multiplex test case, allows the selection of the default timeslot background traffic: AIS (default) or All Zeros. The diagram above shows a test case defined with DSn/PDH traffic where the background traffic is also inserted for the unused timeslots in a test case data path.
  • Page 341 Test Setup - Test Configurator, Timer, and System Signal - Signal Configuration (DSn/PDH) Modify DS0/E0 Modify DS0/E0 button is only available when the DS0/E0 check box is selected. Note: For DS0, the framing structure has 24 timeslots. For E0, the framing structures PCM-30 and PCM30 CRC-4 have 30 channel timeslots (1 to 15 and 17 to 31) while PCM-31 and PCM-31 CRC-4 have 31 channel timeslots (1 to 31).
  • Page 342 Test Setup - Test Configurator, Timer, and System Signal - Signal Configuration (DSn/PDH) Note: Bit 8 is the Least-Significant Bit (LSB) and bit 1 is the Most-Significant Bit (MSB). Payload Content and Set All  Payload Content allows the selection of the payload content that will be applied to all TX timeslots when tapping the Set All button: Pattern, Idle, or Tone.
  • Page 343 Test Setup - Test Configurator, Timer, and System Signal - Signal Configuration (DSn/PDH)  Apply Channel TX to RX, available for decoupled test, allows applying the RX payload content based on the TX settings. None will be used when TX is set to either Idle or Tone. For E0 the timeslots 0 and 16 (PCM30 and PCM30 CRC4) are not configurable.
  • Page 344 Test Setup - Test Configurator, Timer, and System Signal - Signal Configuration (DSn/PDH) Command Loopback Type Loop-Up Loop-Down NIU FAC2 (11000/11100) 11000 11100 NIU FAC3 (100000/100) 100000 Loop-Up injects the selected loop up code. The loop code will be  generated continuously for a maximum of 10 seconds or until the loopback is confirmed.
  • Page 345 Test Setup - Test Configurator, Timer, and System Signal - Signal Configuration (DSn/PDH) DS1 Loopback - for NI/CSU Emulation Test The Loopback feature generates a code that is interpreted by the DUT. The DUT interprets the command and implements the loopback. Mode selects the loopback control Mode;...
  • Page 346 Test Setup - Test Configurator, Timer, and System Signal - Signal Configuration (DSn/PDH) Out-of-Band loop code Loop-UP Code Loop-Down Code Line 00001110 11111111 00111000 11111111 Payload 00010100 11111111 00110010 11111111 Reserved For Network Use 00010010 11111111 00100100 11111111 ISDN Line (NT2) 00101110 11111111 00100100 11111111 CI/CSU Line(NT1)
  • Page 347 Test Setup - Test Configurator, Timer, and System Signal - Signal Configuration (OTN) Signal - Signal Configuration (OTN) Note: The following signal configuration parameters are available from the interface block. From the Test menu, tap Setup, Test Configurator, the interface block, and on the Signal tab.
  • Page 348 Test Setup - Test Configurator, Timer, and System Signal - Signal Configuration (OTN) ODU3, ODU3e1, ODU3e2, ODU2, ODU2f, ODU1f, ODU2e, ODU1e,  ODU1, ODU0, or ODUflex. OPU Tributary Port, available for each OPU level of a mapped  signal, indicates the OPU tributary port used for the test. Tap the Modify Trib Slots/Port button to change the OPU tributary port.
  • Page 349 Test Setup - Test Configurator, Timer, and System Signal - Signal Configuration (OTN) Modify Tributary Slots/Port  The payload type 20 or 21 is indicated for each mapped OPU level. For... Mapped into... Tributary slot selection ODU3 OPU4 ODU2e OPU4 ODU1e ODU2 OPU4...
  • Page 350 Test Setup - Test Configurator, Timer, and System Signal - Signal Configuration (OTN) Tributary Port, configurable when the Fixed Structure check box  is cleared, allows selecting the Tributary Port number that will be associated to the selected tributary slots. When the Fixed Structure check box is selected, the Tributary Port is automatically assigned to either the selected slot number or for OPU3 to the first slot number in the column.
  • Page 351 Test Setup - Test Configurator, Timer, and System Signal - Signal Configuration (SONET/SDH) Signal - Signal Configuration (SONET/SDH) For OTN-SONET/SDH BERT, from the Test menu, tap Setup, Test Configurator, the protocol block, and the Signal tab. For SONET/SDH BERT, from the Test menu, tap Setup, Test Configurator, the interface block, and the Signal tab.
  • Page 352 Test Setup - Test Configurator, Timer, and System Signal - Signal Configuration (SONET/SDH) REI-L/MS-REI Computation Method (OC-192/STM-64 only): Allows  selecting the default method used to calculate the REI-L/MS-REI error for OC-192 and STM-64 signals. Choices are M1 Only and both M0 and M1.
  • Page 353 Test Setup - Test Configurator, Timer, and System Signal - Signal Configuration (SONET/SDH) STS/AU Path (SONET/SDH HOP): The following diagram shows a test case data path that is terminated right after SONET/SDH high order path. High order background traffic is automatically adapted to the rate (STS-1, AU-3, or AU-4) signal level for the paths that are not defined in the test case.
  • Page 354 Test Setup - Test Configurator, Timer, and System Signal - Signal Configuration (SONET/SDH) VT/TU Path (SONET/SDH LOP) The following diagram shows a test case data path that is terminated at the SONET/SDH low order path. The remaining STS-1 or AU-3 timeslot not involved in the test case are filled with background traffic of STS-1 or AU-3 level depending on the interface being SONET or SDH.
  • Page 355 Test Setup - Test Configurator, Timer, and System Smart Loopback Smart Loopback Note: The Smart Loopback block is only displayed when the Transparent (Pseudo-Physical) check box is cleared (see Loopback Mode on page 132). From the Test menu, tap Setup, Test Configurator, and the Smart Loopback block.
  • Page 356 Test Setup - Test Configurator, Timer, and System Smart Loopback S-OAM Responder The S-OAM Responder check box when selected (default) allows responding to LBM, LTM, DMM, LMM, and SLM valid messages (test running or not). Traffic statistics are also monitored (refer to Responder on page 541).

  • Page 357: Streams - Global

    Test Setup - Test Configurator, Timer, and System Streams - Global Streams - Global From the Test menu, tap Setup, Test Configurator, the protocol block, and the Global tab. The following parameters are displayed and configurable per stream. Check boxes: ...
  • Page 358 Test Setup - Test Configurator, Timer, and System Streams - Global Batch button allows bulk configuration for stream addressing. Select the check box of each configuration parameter that needs to be copied and set its parameters. From Apply To, select all streams the copy applies to and tap on the Copy From to proceed.

  • Page 359: Streams - Profile

    Test Setup - Test Configurator, Timer, and System Streams - Profile Streams - Profile The Traffic Gen & Mon test application supports the configuration of up to 16 different streams individually. From the Test menu, tap Setup, Test Configurator, the protocol block, and the Profile tab.
  • Page 360 Test Setup - Test Configurator, Timer, and System Streams - Profile Profile Profile button allows the selection and configuration of either Voice,  Video, or Data (default) emulation profile. The selected profile icon and its Codec for Voice and Video are displayed next to the Profile button.
  • Page 361 Test Setup - Test Configurator, Timer, and System Streams - Profile Frame Size (Bytes) for Data profile is selectable: Fixed (default),  Random, or Sweep. The Frame Size is forced to Fixed for Voice and Video profiles. Only Fixed frame size is available when using Provider Encapsulation.
  • Page 362 Test Setup - Test Configurator, Timer, and System Streams - Profile For Sweep type, the first frame is generated starting with the  minimum number of bytes defined, then each subsequent frame is incremented by 1 byte until the maximum number of bytes is reached and start over with minimum.
  • Page 363 Test Setup - Test Configurator, Timer, and System Streams - Profile Shaping TX Mode allows the selection of the transmission mode for the  selected stream when Data profile is selected. The TX Mode is forced to Continuous for Voice and Video profiles and when using Provider Encapsulation.
  • Page 364 Test Setup - Test Configurator, Timer, and System Streams - Profile Customer Frame TX Rate, available when using Provider  Encapsulation, indicates the customer frame TX rate based on the TX Rate defined. Frame Count is only available with n-Frame Transmit Mode. Enter the ...
  • Page 365 Test Setup - Test Configurator, Timer, and System Streams - Profile Total TX Rate indicates the percentage of the total line utilization  which is the sum of all TX rate enabled streams. Note: The Individual stream can be enabled/disabled even when the test is started and running.
  • Page 366 Test Setup - Test Configurator, Timer, and System Streams - Profile Customer Frame Throughput. available when using Provider  Encapsulation, displays the calculated customer frame throughput minimum and maximum thresholds based on the throughput values. Frame Loss Count/Rate check box when selected enables the Frame ...
  • Page 367 Test Setup - Test Configurator, Timer, and System SyncE SyncE From the Test menu, tap Setup, Test Configurator, and the SyncE test block. ESMC Monitoring ESMC (Ethernet Synchronization Message Channel) is a live value  monitored even when the test is not started. An arrow next to the ESMC label indicates that ESMC valid information frames are received or not.
  • Page 368 Test Setup - Test Configurator, Timer, and System SyncE Pass/Fail Verdict check box when selected (default) enables the use  of the pass/fail verdict. The global pass/fail verdict is based on the following criteria: ESMC Rate Threshold (when enabled), QL Mismatch Monitoring (when enabled), ESMC Loss, or Link Down.
  • Page 369 Test Setup - Test Configurator, Timer, and System System - General System - General From the Test menu, tap Setup, and System. For 88260: From the Test menu, tap Setup, System, and General. Factory Default Restore Default button restores the factory default settings for all test ...
  • Page 370 Test Setup - Test Configurator, Timer, and System System - GNSS System - GNSS Configuration Constellation allows selecting one of the following constellation:  GPS, Galileo, BeiDou (Default) GPS, Galileo, GLONASS GPS, Galileo GPS, BeiDou GPS, GLONASS Galileo, BeiDou Galileo, GLONASS BeiDou, GLONASS Galileo BeiDou...
  • Page 371 Test Setup - Test Configurator, Timer, and System System - GNSS Variant allows selecting the UTC Variant depending on the  selected constellation(s): Auto (Default): Automatic selection USNO: Unites States Naval Observatory SU: Soviet Union NTSC: National Time Service Center Europe: European Laboratory Position Mode allows selecting how the position is acquired: ...
  • Page 372 Test Setup - Test Configurator, Timer, and System System - GNSS Statuses GNSS reports the GNSS global status as Ready when the GNSS status is  in Fixed Mode and the GNSS Time Lock status is Locked; otherwise Not Ready is reported. When the status is Ready, the 1PPS signal can be used as the clock synchronization for the test by selecting Internal GNSS as clock mode and 1PPS as reference (see Clock on page 166).
  • Page 373 Test Setup - Test Configurator, Timer, and System System - GNSS Jamming reports position and jamming/interference status.  OK: Position OK and no jamming/interference detected  Warning: Position OK and jamming/interference detected  Critical: No Position and jamming/interference detected  Unknown: Unknown (disabled/uninitialized or antenna ...
  • Page 374 Test Setup - Test Configurator, Timer, and System Transceiver System (TA) Transceiver System (TA) Gives the transceiver system insertion counter and information on the inserted transceiver system. Only available on 88260 modules. From the Test menu: For iOptics, tap Setup, Test Configurator, tap More... from the Device ...
  • Page 375 Test Setup - Test Configurator, Timer, and System Transceiver System (TA) indicates the status level of the battery: Good, Low, or Battery  Depleted. Optical Module Insertion Counter indicates the number of time  an optical transceiver has been inserted into this transceiver system port.
  • Page 376 Test Setup - Test Configurator, Timer, and System TCP Throughput TCP Throughput From the Test menu, tap Setup, Test Configurator, and tap on the test block. TCP Mode Since two units are required to perform a TCP Throughput test, one unit must be the source (Local) unit and the other one the destination (Remote).
  • Page 377 Test Setup - Test Configurator, Timer, and System TCP Throughput TCP Throughput Configuration Note: TCP Throughput Configuration is only available on the local unit. Initial Window Size is the window size that is used when the test is  started: 1024 Bytes to 65536 KBytes (default is 2 KBytes). The Initial Window Size value must be between the Minimum Window Size and the Maximum Window Size values.
  • Page 378 Test Setup - Test Configurator, Timer, and System Test Sequence (iOptics) Test Sequence (iOptics) From the Test menu, tap Setup, and Test Configurator. Power Threshold (W) indicates the power consumption threshold  based on the power level/class detected including uncertainty from the selected transceiver to declare the pass/fail verdict.
  • Page 379 Test Setup - Test Configurator, Timer, and System Timer Timer Allows starting and/or stopping automatically the test at a given time or for a specific duration. From the Test menu, tap Setup, and Timer. Timer Note: For RFC 2544 and RFC 6349, only Start Time and the ARM button are available.
  • Page 380 Test Setup - Test Configurator, Timer, and System Timer Stop Time selects the time the test will automatically stop. The Stop  Time check box has to be selected to be included in the test timer. Note: A valid stop time has to be subsequent to the current time or to the start time, when enabled.
  • Page 381 Test Setup - Test Configurator, Timer, and System Traces (OTN) Traces (OTN) From the Test menu tap Setup, Test Configurator, tap on the interface block, and on the Traces tab. OTUx, ODUx, and TCM Buttons Tap on either OTUx or ODUx button. For ODUx when TCM is enabled (see Modify TCM on page 338), tap on a TCMx button to select a TCM level.
  • Page 382 The expected SAPI message is available when the SAPI OTU/ODU-TIM check box is selected. TTI Traces Default Message EXFO OTU SAPI EXFO ODU SAPI EXFO TCMi SAPI The default message contains a NULL (all 0’s) character preceding it. NULL (all 0’s) characters are automatically appended to the message for bytes that are not defined.
  • Page 383 TTI Traces Default Message EXFO OTU OPERATOR SPECIFIC EXFO ODU OPERATOR SPECIFIC EXFO TCMi OPERATOR SPECIFIC NULL (all 0’s) characters are automatically appended to the message for bytes that are not defined.
  • Page 384 J0/J1/J2 EXFO SONET/SDH J0/J1/J2 EXFO SONET/SDH Analyzer Section/RS trace test message EXFO SONET/SDH Analyzer high order path trace test message J1 (STS/AU) EXFO SONET/SDH Analyzer low order path trace test message J1 (TU-3)/J2 Hexadecimal value. Refer to OH - SONET/SDH on page 595 to change this value.
  • Page 385 Test Setup - Test Configurator, Timer, and System Traces (SONET/SDH) Note: 16-bytes selection allows typing up to 15 bytes (a CRC-7 byte will be added in front for a total of 16 bytes). 64-bytes selection allows typing up to 62-bytes (<C >...
  • Page 386 Test Setup - Test Configurator, Timer, and System Wander Wander From the Test menu, tap Setup, Test Configurator, and the Wander test block. Test Sampling Rate is the time error measurement sampling rate:  30 samples/s (default), 20 samples/s, 10 samples/s, 5 samples/s, and 1 sample/s.
  • Page 387 Test Setup - Test Configurator, Timer, and System Wander Mask MTIE TDEV G.8261.1- PEC-Slave Frequency Case 3 G.8262- EEC Option 1- SyncE - Constant Temperature G.8262- EEC Option 1- SyncE - Variable Temperature G.8262- EEC Option 2- SyncE - Constant Temperature G.8263- PEC-Slave Frequency - Constant Temperature G.8263- PEC-Slave Frequency - Variable Temperature G.8271.1- Dynamic Time Error...
  • Page 388 Test Setup - Test Configurator, Timer, and System Wander Verdict The following pass/fail verdict are available and configurable when applicable. MAX Absolute TE (ns) check box when selected, allows selecting the  maximum absolute time error threshold value: 50 ns to 2000 ns (default is 1100 ns).
  • Page 389 Test Results The Test Results menu offers the following structure: Intelligent Apps test applications Test Application Page iOptics iSAM Logger Summary <--- Transport test applications Available with Page Alarms/Errors Alarms/Errors Logger FTFL/PT GFP-F/GFP-T ISDN Logger Labels Logger OTL-SDT Performance Monitoring Summary <--- Traces...
  • Page 390 Test Results Ethernet test applications Test Application Tab - Subtab Page Alarms/Errors FEC Statistics Graph Link OAM Logger S-OAM / MPLS-TP OAM Service Configuration - Burst Service Configuration - L2CP Service Configuration - Ramp Service Performance Streams - Customer Frame Throughput Streams - Frame Loss / Out-of-Sequence Streams - Jitter Streams - Latency...
  • Page 391 Test Results Sync test applications Test Application Page 1588 PTP SyncE Wander Alarms/Errors Analysis - MTIE/TDEV Analysis - Time Error Logger PTP Stats Quality Level (1588 PTP) Quality Level (SyncE) Summary <--- Traffic - Ethernet Fibre Channel test application Test Application Page Fibre Channel BERT Alarms/Errors...
  • Page 392 Test Results Alarms/Errors Overview Alarms/Errors Overview Current and history alarms/errors are displayed using different background colors as defined in the following table. Background Alarm/ Description color Error Gray Current No test result available. History Green Current No alarm/error has occurred in the last second. History No alarm/error has occurred during the test.
  • Page 393 Test Results Alarms/Errors Overview Pass/Fail Verdict Note: The verdict is not displayed when disabled or unavailable. The Pass/Fail verdict is represented by the following icons: Icon Verdict Description PASS Result value meet the configured threshold criterion. FAIL Result value does not meet the configured threshold criterion. Statistic Values Current indicates the average measurements in the last second.
  • Page 394 Test Results Alarms/Errors Overview Alarms/Errors From the Test menu, tap Results, and the Alarms/Errors tab. Depending on the test structure, the Alarms/Errors page may be split in different tabs such as OTN, GFP-T/GFP-F, and Ethernet; tap on the desired tab when required.
  • Page 395 Test Results Alarms/Errors Overview Layer Alarms/Errors TX/RX Page CPRI Alarms Link Down LOF (Loss Of Frame) TX/RX RAI (Remote Alarm Indication) TX/RX R-LOF (Remote - Loss Of Frame) TX/RX R-LOS (Remote - Loss Of Signal) TX/RX SDI (Service Access Point Defect Indication) TX/RX Errors FAS (Frame Alignment Signal)
  • Page 396 Test Results Alarms/Errors Overview Layer Alarms/Errors TX/RX Page Ethernet Alarms Hi-BER (High-Bit Error Ratio) Client Frequency Link Down TX/RX Local Fault Local Fault Det (Local Fault Detected) Local Fault Rcd (Local Fault Received) Remote Fault TX/RX Errors Alignment 66B Block TX/RX Block TX/RX...
  • Page 397 Test Results Alarms/Errors Overview Layer Alarms/Errors TX/RX Page FEC (OTN) Errors FEC-CORR-BIT (FEC Correctable Bit) TX/RX FEC-CORR-CW (FEC Correctable Codeword) TX/RX FEC-CORR-SYM (FEC Correctable Symbol) TX/RX FEC-STRESS TX/RX FEC-UNCORR-CW (FEC Uncorrectable Codeword) TX/RX FEC Lane Alarms FEC-LOAML (FEC-Loss Of Alignment Marker Lock) (see RS-FEC Errors Pre-FEC-SYMB (Pre-FEC Symbol)
  • Page 398 Test Results Alarms/Errors Overview Layer Alarms/Errors TX/RX Page GFP (Generic Alarms GFP-DCI (GFP - Defect Clear Indication) TX/RX Framing GFP-EXM (GFP - Extension Header Mismatch) Procedure) GFP-FDI (GFP - Forward Defect Indication) TX/RX GFP-LFD (GFP - Loss of Frame Delineation) TX/RX GFP-LOCCS (CSF-Loss of Client Character Synchronization) TX/RX...
  • Page 399 Test Results Alarms/Errors Overview Layer Alarms/Errors TX/RX Page Interface Alarms Frequency LOC Lane (Loss Of Clock Lane) LOS (Loss Of Signal) TX/RX Errors 66B Block TX/RX BPV (Bipolar Violation) TX/RX CV (Code Violation) TX/RX EXZ (Excessive Zeros) TX/RX K30.7 TX/RX Sync Header TX/RX IP/UDP/TCP...
  • Page 400 Test Results Alarms/Errors Overview Layer Alarms/Errors TX/RX Page ODUx Alarms AIS (Alarm Indication Signal) TX/RX (see ODUx) BDI (Backward Defect indication) TX/RX BSD (Backward Signal Degrade) TX/RX BSF (Backward Signal Fail) TX/RX FSD (Forward Signal Degrade) TX/RX FSF (Forward Signal Fail) TX/RX LCK (Lock) TX/RX...
  • Page 401 Test Results Alarms/Errors Overview Layer Alarms/Errors TX/RX Page OTUx Alarms AIS (Alarm Indication Signal) TX/RX BDI (Backward Defect Indication) TX/RX BIAE (Backward Incoming Alignment Error) TX/RX IAE (Incoming Alignment Error) TX/RX LOF (Loss of Frame) TX/RX LOM (Loss Of Multiframe) TX/RX OOF (Out-Of-Frame) TX/RX...
  • Page 402 Test Results Alarms/Errors Overview Layer Alarms/Errors TX/RX Page RS-FEC Alarms FEC-LOA (FEC-Loss Of Alignment) (Ethernet) FEC-LOAML (FEC-Loss Of Alignment Marker Lock) (for Fibre 50GE FEC Exc. Skew (Excessive Skew) Channel, see FEC Degraded SER page 792) Errors FEC Inv. Marker (FEC Invalid Marker) TX/RX 25GE FEC-COR-CW (FEC Correctable Codeword)
  • Page 403 Test Results Alarms/Errors Overview Layer Alarms/Errors TX/RX Page Section/Line / Alarms AIS-L / MS-AIS (Alarm Indication Signal) TX/RX RS/MS LOF-S / RS-LOF (Loss Of Frame) TX/RX RDI-L / MS-RDI (Remote Defect Indication) TX/RX SEF / RS-OOF (Severely Errored Framing / Out-Of-Frame) TX/RX TIM-S / RS-TIM (Trace Identifier Mismatch) Errors...
  • Page 404 Test Results Alarms/Errors Overview Layer Alarms/Errors TX/RX Page Alarms TC-IAIS-P / HPTC-IAIS (Incoming Alarm Indication Signal) TX/RX (SONET/SDH) TC-IAIS-V / LPTC-IAIS (Incoming Alarm Indication Signal) TX/RX TC-LTC-P / TC-LTC-V / HPTC-LTC / LPTC-LTC (Loss of Tandem TX/RX Connection) TC-ODI-P / TC-ODI-V / HPTC-ODI / LPTC-ODI (Outgoing Defect TX/RX Indication) TC-RDI-P / TC-RDI-V / HPTC-RDI / LPTC-RDI (Remote Defect...
  • Page 405 Test Results Alarms/Errors Overview Layer Alarms/Errors TX/RX Page VT/TU Alarms AIS-V / TU-AIS (Alarm Indication Signal) TX/RX ERDI-VCD (Enhanced Remote Defect Indication - Connectivity TX/RX Defect) ERDI-VPD / LP-ERDI-PD (Enhanced Remote Defect Indication - TX/RX Payload Defect) ERDI-VSD / LP-ERDI-SD (ERDI - Server Defect) TX/RX LOP-V / TU-LOP (Loss Of Pointer) TX/RX...
  • Page 406 Test Results Alarms/Errors Overview Inject Button Open/Close pop-up button Selected Alarm/Error and status Layer: Allows selecting on which layer is the alarm/error to be  generated. Choices depend on the test application and its interface. The port selection available with Dual Port topology, allows selecting the port used for alarm/error injection.
  • Page 407 Test Results Alarms/Errors Overview User-Defined UPI available with GFP layer, allows entering the Client  Management Frame UPI value when GFP-User-Defined CMF alarm is selected. Description for PTI = 100 0000 0000 and 1111 1111 Reserved 0000 0001 Client Signal Fail (Loss of Client Signal) 0000 0010 Client Signal Fail (Loss of Client Character Synchronization) 0000 0011 through 1111 1110 Reserved for future use...
  • Page 408 Test Results Alarms/Errors Overview Note: The RDI alarm is available when the CC Function is enabled and is using the parameters from the CC Function (refer to page 303). Inject button  For Manual mode: Manually generates the selected errors according to the defect and the amount selected.
  • Page 409 Test Results Analysis - MTIE/TDEV Analysis - MTIE/TDEV From the Test menu, tap Results, Analysis, and the MTIE/TDEV tab. Graph Graphically displays the MTIE/TDEV values in function of the observation interval. The MTIE and TDEV masks are also displayed when supported by the selected standard.
  • Page 410 Test Results Analysis - MTIE/TDEV Cursor The Cursor check box when selected (default), allows the selection of a specific observation interval value and returns the MTIE/TDEV values and the corresponding mask when enabled. Arrow buttons: Use the left and/or right arrow buttons to move the ...
  • Page 411 Test Results Analysis - Time Error / Time Interval Error Analysis - Time Error / Time Interval Error From the Test menu, tap Results, Analysis, and the Time Error / Time Interval Error tab. Graph Graphically displays the time error values as a function of time. Note: A refresh is required to update the graph (see Refresh below).
  • Page 412 Test Results Analysis - Time Error / Time Interval Error Save TE/TIE Data Saves the TE/TIE data into CSV file format. Folder Path allows the selection of the file destination drive and folder.  Use the Browse button to change the file location. The default file location is: Users\<User>\Documents\810-880-NetBlazer\Wander File Name allows the selection of the file name.
  • Page 413 Test Results FEC Statistics FEC Statistics Note: Only available with 50G/ interfaces. From the Test menu tap Results and the FEC Statistics tab. Symbol Error per Correctable Codeword Number of Symbols indicates the number of symbols corrected in a  codeword: 1 to 15.
  • Page 414 Test Results FTFL/PT FTFL/PT From the Test menu tap Results, and the FTFL/PT tab. ODUx Buttons Tap on an ODUx button to select the multiplexed level. FTFL Indicates the Forward and Backward ODU Fault Type Fault Location. Fault Indication and Code displays the FTFL fault indicator message ...
  • Page 415 Test Results FTFL/PT PT (Payload Type) Payload Type and Code  Received displays the received payload signal type and its code in hexadecimal format. Expected allows selecting the expected payload signal type either by selecting the payload from the list or by typing its hexadecimal code. Note: Refer to PT on page 213 for the list.
  • Page 416 Test Results GFP-F/GFP-T GFP-F/GFP-T Note: This tab is only available with OTN BERT test application with 1GbE, 10GbE, or Ethernet (flex/GFP-F) client. From the Test menu, tap Results, and the GFP-F/GFP-T tab. Transport Layer Bandwidth Usage (%) indicates the transmitted/received transport ...
  • Page 417 Test Results GFP-F/GFP-T Reserved PTI indicates the received client data and management  frames with a payload type identifier different of 000 and 100 without uncorrectable cHEC, tHEC, and eHEC, and pFCS errors. Possible rate units are Frames (default), or Bytes per second. Reserved PLI indicates the number of reserved control frames (PLI=1, ...
  • Page 418 Test Results GFP-F/GFP-T Superblock Note: Superblock is only available with GFP-T. Valid indicates the transmitted/received superblocks without any  uncorrectable error. Invalid indicates the transmitted/received superblocks with  uncorrectable error. Total indicates the total transmitted/received valid and invalid  superblocks. FTB-700/800/900 Series...
  • Page 419 Test Results Graph (RFC 2544) Graph (RFC 2544) Displays the graph showing the Throughput, Back-to-Back, Frame Loss, and Latency measurements. For Dual Test Set the graph shows results from Local to Remote and Remote to Local using distinctive colors. For Dual Port topology the graph shows results of both port directions.
  • Page 420 Test Results ISDN Logger ISDN Logger The ISDN Logger page displays color-coded ISDN messages and pass/fail verdict. From the Test menu, tap Results, and the ISDN Logger tab. Sort By selects the event sorting order: ID/Time (default), Message  Type, Dir., Call Ref., Ch#, or Call Type. Filter selects the filtering criterion: All (default), Layer 2, or Layer 3.
  • Page 421 Test Results ISDN Logger UI (Unnumbered Information) command is used to send  information. DISC (Disconnect) command is used to terminate the multiple  frame operation. DM (Disconnect Mode) response is used to report that the data link  layer is in a state such that multiple frame operation cannot be performed.
  • Page 422 Test Results ISDN Logger Layer 3 messages SETUP message is sent by the calling user to the network and by  the network to the called user to initiate call establishment. CALL PROCEEDING message is sent by the called user to the ...
  • Page 423 Test Results ISDN Logger SATUS ENQUIRY message is sent by the user or the network at any  time to solicit a STATUS message from the peer layer 3 entity. Sending a STATUS message in response to a STATUS ENQUIRY message is mandatory.
  • Page 424 Test Results ISDN Logger Cause Value reports the reason why a call has been terminated, or  a problem with a received message. (7 bits). Supported Cause Value range: 1 to 127. Cause Definition is associated with each Cause Value but the ...
  • Page 425 Test Results Labels Labels From the Test menu, tap Results, and Labels. Note: Selecting a Label byte to be generated will automatically update the corresponding OH byte. Refer to OH - SONET/SDH on page 595 for more information. Labels STS/AU Path (C2): The C2 byte is allocated to indicate the content of ...
  • Page 426 Test Results Link OAM Link OAM From the Test menu, tap Results, and the Link OAM tab. Remote MAC Address Indicates the remote OAM link partner MAC address. Remote OAM Information OAM Version indicates the protocol version supported by the DTE. ...
  • Page 427 Test Results Link OAM Vendor Specific Information reports the 32-bit Vendor Specific  Information field identifying the vendor’s product model and version. Unidirectional reports unidirectional support capability:  Supported indicates that the DTE is capable of sending OAMPDUs when the receive path is non-operational. Unsupported indicates that the DTE is not capable of sending OAMPDUs when the receive path is non-operational.
  • Page 428 Test Results Link OAM Remote Error Event Statistics Date Stamp indicates the date the last Event Notification OAMPDU  frame was received. Time Stamp indicates the time the last Event Notification OAMPDU  event was received by the test equipment. Window ...
  • Page 429 Test Results Link OAM Error Running Total  Symbol Period The number of symbol errors since the last reset Frame The number of frame event errors since the last reset Frame Period The number of frame period errors since the last reset Frame Seconds The number of frame seconds summary errors since the last reset Event Running Total...
  • Page 430 Test Results Logger and Alarms/Errors Logger Logger and Alarms/Errors Logger The Logger page displays color-coded events and pass/fail verdict. From the Test menu, tap Results, and the Logger or Alarms/Errors Logger tab. Sort By Select the sorting order of the event logger entries: ID (default) displays the event logger entries in numeric ascending ...
  • Page 431 Test Results Logger and Alarms/Errors Logger Save to CSV Allows saving the logger content to a CSV file format. Table The logger table provides the following event logger information. ID: Indicates the event identification number. The events are  sequentially numbered. Start Time: Indicates when the event has been started or detected.
  • Page 432 Test Results Logger and Alarms/Errors Logger The Event Logger information will be cleared when: the test is reset or started.  the unit is in suspended mode.  stopping the current test and navigating to other tests.  the unit is restarted. ...
  • Page 433 Test Results Messages Messages From the Test menu, tap Results, and the Messages tab. Note: For Dual Port topology select the port to be displayed. Message Type For OBSAI: The count of each OBSAI message type is reported. Message Type TX Count RX Count Control...
  • Page 434 Test Results Messages For eCPRI: The count of each eCPRI message type is reported. Message Type TX Count RX Count Loss Count OOS Count IQ Data Bit Sequence Real-Time Control Data Generic Data Transfer Remote Memory Access One-Way Delay Measurement Remote Reset Event Indication Reserved...
  • Page 435 Test Results MPLS MPLS For Traffic Gen and Mon, from the test menu, tap Results, Streams, and the MPLS tab. For Though Mode, from the test menu, tap Results, Traffic, and the MPLS tab. Note: For Dual Port topology select the port to be displayed. Label 1 and Label 2 The number of MPLS frames transmitted (TX) and received (RX) are displayed for both Label 1 and Label 2 for each Stream.
  • Page 436 Test Results OTL-SDT OTL-SDT Note: Only available for parallel interfaces when an OTL defect, at the exception of LOL, is selected for Service Disruption Time (refer to Service Disruption on page 151). From the Test menu, tap Results, and the OTL-SDT tab. Service Disruption Note: Service Disruption results are only available when Disruption Monitoring is enabled (refer to BERT and Unframed BERT on page 148).
  • Page 437 Test Results OTL-SDT Longest Disruption indicates the longest measured disruption time.  Lanes with Disruption indicates the number of lanes with service  disruption. Note: When a disruption event is equal to or longer than the test period which is fixed to 5 minutes, then the measured disruption time is equal to the test period.
  • Page 438 Test Results Performance Monitoring Performance Monitoring Note: This tab is only available with Transport test applications with Pattern client. Monitored performance parameters are reported, non-monitored values are left blank. The Performance Monitoring tab gives error performance events and parameters for the circuit under test. From the Test menu, tap Results, and the Performance Monitoring tab.
  • Page 439 Test Results Performance Monitoring Near-End EFS (Error Free Second) (G.821, G.826, G.828, and G.829): Gives the  number of seconds within which no error occurred. EC (Error Count) (G.821 only): Gives the number of bit errors.  EB (Errored Block) (G.826, G.828, and G.829): Gives the count of ...
  • Page 440 Test Results Performance Monitoring For M.2100 ISM: Gives the count of the seconds within which anomalies (frame bit errors, CRC block errors, etc.) are  Y or at least one defect occurred. Y depends on the type of DSn/PDH signal as described in the following table.
  • Page 441 Test Results Performance Monitoring UAS (Unavailable Second): Gives the count of the seconds  corresponding to the periods of unavailable time that begins at the onset of 10 consecutive SES events, including these 10 seconds. A period of available time shall begin at the onset of 10 consecutive non-SES events, including these 10 seconds.
  • Page 442 Test Results Performance Monitoring SEP (Severely Errored Period) (G.828 only): A sequence between  3 to 9 consecutive SES. The sequence is terminated by a second which is not a SES. SEPI (Severely Errored Period Intensity) (G.828 only): Gives the count ...
  • Page 443 Test Results Performance Monitoring For M.2100 ISM: Gives the count of the seconds within which anomalies (frame bit errors, CRC block errors, etc.) are  Y or at least one defect occurred. Y depends on the type of DSn/PDH signal as described in the following table.
  • Page 444 Test Results Performance Monitoring UAS (Unavailable Second): Gives the count of the seconds  corresponding to the period of unavailable time that begins at the onset of 10 consecutive SES events, including these 10 seconds. A period of available time shall begin at the onset of 10 consecutive non-SES events, including these 10 seconds.
  • Page 445 Test Results PTP Stats PTP Stats From the Test menu, tap Results, and the PTP Stats tab. TX/RX PTP Message Count/Rate Gives the transmitted/received count and average rate for each PTP message, and the total count for all messages. Signaling Announce Req Signaling Announce Grant Signaling Sync Req Signaling Sync Grant...
  • Page 446 Test Results PTP Stats IPDV Inter Packet Delay Variation (IPDV) is available for Sync and Delay Req messages and is measured for all valid in-sequence messages (see Delay Measurement on page 462). Current, Average, Minimum, Maximum, and Standard Deviation measurement values are displayed. The Standard Derivation is the measure of the dispersion of messages from its mean.
  • Page 447 Test Results Quality Level (1588 PTP) Quality Level (1588 PTP) The quality level characterizes the clock quality in terms of network synchronization. From the Test menu, tap Results, and the Quality Level tab. Last QL Received indicates the last Quality Level value received. The ...
  • Page 448 Test Results Quality Level (1588 PTP) Profile Quality PTP Clock Description Level value Class G.8265.1 QL-PRS (default) 80 Primary Reference Source Traceable (G.811) QL-STU/UNK Synchronized - Traceability Unknown QL-PRC Primary Reference Clock Traceable (G.811) QL-ST2 Traceable to Stratum 2 (G.812 Type II) QL-INV3 Quality Level Invalid 3 QL-SSU-A/TNC...
  • Page 449 Test Results Quality Level (SyncE) Quality Level (SyncE) The quality level characterizes the clock quality in terms of network synchronization. From the Test menu, tap Results, and the Quality Level tab. Generated QL indicates the Quality Level value that is generated. ...
  • Page 450 Test Results Quality Level (SyncE) Quality Level Description value QL-SSU-B Type VI slave clock (G.812) QL-INV9 Quality Level Invalid 9 QL-EEC2/ST3 Ethernet Equipment Clock Option 2 (default) Traceable to Stratum 3 (G.812 Type IV) QL-EEC1/SEC Ethernet Equipment Clock Option 1 Synchronous Equipment Clock (G.813 or G.8262, Option 1) QL-SMC Traceable to SONET Minimum Clock (G.813 or G.8262, Option 2)
  • Page 451 Test Results S-OAM and MPLS-TP OAM S-OAM and MPLS-TP OAM From the Test menu, tap Results, and the S-OAM or MPLS-TP OAM tab. Loopback Status displays the status of the test function (refer to page 515).  TX LBM indicates the count of transmitted LBM frames. ...
  • Page 452 Test Results S-OAM and MPLS-TP OAM Invalid Payload indicates the count of received LBR frames having  either a TLV type different than the one transmitted, Bit error or wrong data value detected in the data payload of a Data TLV, Bit error, Pattern Loss, or Pattern Type mismatch of a Test TLV.
  • Page 453 Test Results S-OAM and MPLS-TP OAM Frame Delay Status displays the status of the test function (refer to page 515).  TX DMM indicates the count of transmitted DMM frames.  RX DMR indicates the count of valid DMR frames received. A valid ...
  • Page 454 Test Results S-OAM and MPLS-TP OAM Frame Loss Status displays the status of the test function (refer to page 515).  TX LMM indicates the count of transmitted LMM frames.  RX LMR indicates the count of valid LMR frames received. A valid ...
  • Page 455 Test Results S-OAM and MPLS-TP OAM Synthetic Loss Note: Only available with Ethernet OAM. Status displays the status of the test function (refer to page 515).  TX SLM indicates the count of transmitted SLM frames.  RX SLR indicates the count of valid SLR frames received. A valid frame ...
  • Page 456 Test Results Service Configuration - Burst Service Configuration - Burst From the Test menu, tap Results, Service Configuration, and the Burst tab. Service Name and Selection Service Name indicates the name of the selected service. Select the service to be displayed by either using the left/right arrow or by tapping over the service numbers area then tapping on a specific service number.
  • Page 457 Test Results Service Configuration - L2CP Service Configuration - L2CP From the Test menu, tap Results, Service Configuration, and the L2CP tab. Service Name and Selection Service Name indicates the name of the selected service. Select the service to be displayed by either using the left/right arrow or by tapping over the service numbers area then tapping on a specific service number.
  • Page 458 Test Results Service Configuration - L2CP The L2CP frame verdict is as follows per direction: Verdict Description If the Expected L2CP Handling is Pass Through and the L2CP TX frames have PASS been received at destination with a maximum of 1 frame lost. If the Expected L2CP Handling is Peer/Discard and none of the transmitted L2CP frames have been received at destination.
  • Page 459 Test Results Service Configuration - Ramp Service Configuration - Ramp From the Test menu, tap Results, Service Configuration, and the Ramp tab. Service Name and Selection Service Name indicates the name of the selected service. Select the service to be displayed by either using the left/right arrow or by tapping over the service numbers area then tapping on a specific service number.
  • Page 460 Test Results Service Configuration - Ramp Informational parameters are for information purpose only, they are  not included in the test pass/fail verdict. See Summary (EtherSAM) on page 484 for more information on Frame Loss, Max Jitter, and Round-Trip Latency. Average RX Rate indicates the measured average utilization ...
  • Page 461 Test Results Service Performance Service Performance From the Test menu, tap Results, and the Service Performance tab. Service Name and Selection Service Name indicates the name of the selected service. Select the service to be displayed by either using the left/right arrow or by tapping over the service numbers area then tapping on a specific service number.
  • Page 462 Test Results Service Performance Note: For the Current value, Not measurable is displayed when no delay has been measured in the last second. Errors For Dual Test Set, errors “”are reported for both local (L) and remote (R) directions. For Dual Port topology, errors are reported for both port directions.
  • Page 463 Test Results Streams - Frame Loss / Out-of-Sequence Streams - Frame Loss / Out-of-Sequence From the Test menu, tap Results, Streams, and the Frame Loss / Out-Of-Sequence tab. Note: For Dual Port topology select the port to be displayed. Stream indicates the stream identification number. ...
  • Page 464 Test Results Streams - Latency Streams - Latency From the Test menu, tap Results, Streams, and the Latency tab. Note: For Dual Port topology select the port to be displayed. Stream: Indicates the stream identification number.  Latency is measured for each stream on all valid frames (valid Latency ...
  • Page 465 Test Results Streams - Throughput / Customer Frame Throughput Streams - Throughput / Customer Frame Throughput From the Test menu, tap Results, Streams, and the Throughput or the Customer Frame Throughput tab. Note: For Dual Port topology select the port to be displayed. Stream indicates the stream identification number.
  • Page 466 Test Results Summary (OTN/SONET/SDH/DSn/PDH) Summary (OTN/SONET/SDH/DSn/PDH) Note: Available with OTN BERT, SONET/SDH BERT, OTN-SONET/SDH BERT, DSn/PDH BERT, and SONET/SDH - DSn/PDH BERT. From the Test menu, tap Results, and the Summary tab. For Dual Port topology, depending on the application, results may be displayed either globally or for each port individually.
  • Page 467 Test Results Summary (OTN/SONET/SDH/DSn/PDH) BER and Multi-Pattern BER Note: See BER on page 779 for a description of each alarm/error. Note: For Multi-Pattern, alarms/errors are available for each pattern. An arrow in front of a specific pattern indicates the pattern that is currently generated/analyzed.
  • Page 468 Test Results Summary (OTN/SONET/SDH/DSn/PDH) Bit/Pattern Error Rate/Count graphically displays a meter  representing either the bit/pattern error rate or the bit/pattern error count depending on the Pass/Fail Verdict selection When the verdict is enabled , the values under the threshold are presented in green while the values above are in red.
  • Page 469 Test Results Summary (OTN/SONET/SDH/DSn/PDH) Disruption Time  Note: For OTL defects, at the exception of LOL, the disruption time is displayed for the lane having the longest disruption time. See OTL-SDT on page 424 for results per lanes. Longest indicates the longest measured disruption time. Shortest indicates the shortest measured disruption time.
  • Page 470 Test Results Summary (1588 PTP) Summary (1588 PTP) From the Test menu, tap Results, and the Summary tab. Test Status displays the current status of the 1588 PTP test. The global  test pass/fail verdict is displayed next to the Test Status field when enabled (see Pass/Fail Verdict on page 147).
  • Page 471 Test Results Summary (1588 PTP) Negotiation Status  The status of the PTP Negotiation is displayed while in Unicast negotiation (available with G.8265.1 profile). Negotiation Background Description Status Color Request Granted All the Signaling request types have been granted. Green [Message type] The Signaling grant message has not been granted.
  • Page 472 Test Results Summary (1588 PTP) GM Info  Note: Only available when Grand Master clock information is available. The Grand Master Information window displays the decoded clock information. For G.8265.1 only: Identity reports the 8-byte identification code of the Grand Master ...
  • Page 473 Test Results Summary (1588 PTP) For both G.8265.1 and G.8275.1: Clock Class reports the description and code of the Grand Master  Clock Class. Code Description 0-5, 8-12, 15-51, 53-57, 59-67, 123-132, 171-186, 188-192, 194-215, Reserved 233-247, 249-254 Sync to primary reference 7, 14 Holdover Sync to application-specific reference...
  • Page 474 Test Results Summary (1588 PTP) Delay Measurement Sync IPDV meter displays the average of the inter packet delay  variation of consecutive Sync messages in the last second. The value and the pass/fail verdict is also displayed when enabled. Delay Req IPDV meter displays the average of the inter packet delay ...
  • Page 475 Test Results Summary (Cable Test) Summary (Cable Test) From the Test menu, tap Results, and the Summary tab. Test Status Test Status indicates the progress of the cable test as follows: Idle (test has not started)  In Progress  Completed ...
  • Page 476 Test Results Summary (Cable Test) Delay Skew (ns) indicates the delay skew value for the pair having the  worst delay skew. The Pass/Fail verdict is also displayed when enabled. The Delay Skew result is only available for 1000 Base-T interface when the link is up.
  • Page 477 Test Results Summary (Cable Test) Wire Map Test Result gives the wire map test result for each pair.  When the link is up: The wire map result for each pair is given as seen by the module to get a link up. This means that the wire map result may not correspond to the type of cable tested depending on the cable(s) used and/or the configuration of the cable mode (MDI, MDIX, or auto-detection) on both the module and the far end equipment.
  • Page 478 Test Results Summary (Cable Test) When the link is down: Short Short-circuit between Tip and Ring wires of a pair or Tip or ring wire of a pair is connected with an alien wire grounded. Open No cable plugged in, remote end open, or either one or two wires of a pair are not connected.
  • Page 479 Test Results Summary (Cable Test) Note: Not available on 890, 890NGE (100G), and 88200NGE. Detection/Classification Power Presence indicates on which cable pairs (refer to Wiring  Standard on page 162) the power is received and the polarity of each pair. Result is presented as follows: Power Presence Description Pos: <pair>;...
  • Page 480 Test Results Summary (Cable Test) Operation Note: The following results are only reported when the classification succeeded. Unloaded Voltage (V) indicates the measured voltage when no load is  applied. A value less then 5 is reported as <5.0 and a value greater than 59 is reported as >59.0.
  • Page 481 Test Results Summary (CPRI/OBSAI BERT) Summary (CPRI/OBSAI BERT) From the Test menu, tap Results, and the Summary tab. For Dual Port topology results are displayed globally or for each port individually. In this case select the port to be displayed or Global for a brief test summary of both ports.
  • Page 482 Test Results Summary (CPRI/OBSAI BERT) Interface Note: Only available with CPRI/OBSAI Unframed. Alarms  LOS indicates that there is no input signal. Errors  CV (Code Violation) indicates that invalid 10B code word are received. BER and Multi-Pattern BER Note: See BER on page 779 for a description of each alarm/error. Receiving Live Traffic - RX Pattern Analysis Disabled when ...
  • Page 483 Test Results Summary (CPRI/OBSAI BERT) Service Disruption Note: Service Disruption results are only available when Disruption Monitoring is enabled (refer to EtherBERT and Unframed BERT on page 180). When Service Disruption is disabled, the message Service disruption monitoring disabled is displayed. Service Disruption is the time during which there is a disruption of service due to the detection of defects.
  • Page 484 Test Results Summary (CPRI/OBSAI BERT) CPRI Note: Available with CPRI Framed L2. Sequence indicates the last Sequence State parameter: Standby (A),  L1 Sync (B), Protocol (C), L2 C&M (D), Vendor (E), Operation (F), and Passive (G). The pass/fail verdict is also displayed when enabled. Frame Sync indicates that the startup sequence synchronization status ...
  • Page 485 Test Results Summary (CPRI/OBSAI BERT) OBSAI Note: Available with OBSAI Framed L2. Sync indicates the RX State Machine status: green for FRAME_SYNC,  red for other states, or gray for pending. The TX and RX State Machines are also displayed. The pass/fail verdict is displayed when enabled.
  • Page 486 Test Results Summary (eCRPI BERT) Summary (eCRPI BERT) From the Test menu, tap Results, and the Summary tab. For Dual Port topology results are displayed globally or for each port individually. In this case select the port to be displayed or Global for a brief test summary of both ports.
  • Page 487 Test Results Summary (eCRPI BERT) BER and Multi-Pattern BER Note: See BER on page 779 for a description of each alarm/error. Receiving Live Traffic - RX Pattern Analysis Disabled when  displayed, indicates that the No Pattern Analysis (Live) check box is selected and in this case no other information/statistics are available.
  • Page 488 Test Results Summary (eCRPI BERT) Service Disruption Note: Service Disruption results are only available when Disruption Monitoring is enabled (refer to EtherBERT and Unframed BERT on page 180). When Service Disruption is disabled, the message Service disruption monitoring disabled is displayed. Service Disruption is the time during which there is a disruption of service due to the absence of traffic.
  • Page 489 Test Results Summary (eCRPI BERT) QoS Metrics Note: QoS Metrics results are only available when at least one QoS Measurements criterion is enabled (refer to QoS Measurements on page 177), otherwise the QoS Metrics Monitoring Disabled message is displayed. Displays a summary of the QoS metrics and verdict when enabled. When there is no mention of Current or Maximum, the values reported are the current ones.
  • Page 490 Test Results Summary (eCRPI BERT) Jitter is the delay variation measured on all valid frames received.  Current, Average, Minimum, Maximum, and Estimate delay values are reported in µs per direction when applicable. Latency is measured on all valid frames received.
  • Page 491 Test Results Summary (eCRPI BERT) Frame Loss Rate check box when selected (default) enables the  Frame Loss pass/fail verdict and allows setting the frame loss rate for the port: 0.0E-00 to 5.0E-02 (default is 1.0E-07). However entering a value of 0.0E-00 or below 1.0E-14 is treated as a pass/fail verdict based on loss count instead of rate.

  • Page 492: Etherbert

    Test Results Summary (EtherBERT) Summary (EtherBERT) From the Test menu, tap Results, and the Summary tab. For Dual Port topology, depending on the application, results may be displayed either globally or for each port individually. In this case select the port to be displayed or Global for a brief test summary of both ports.
  • Page 493 Test Results Summary (EtherBERT) BER and Multi-Pattern BER Note: See BER on page 779 for a description of each alarm/error. Note: For Multi-Pattern, alarms/errors are available for each pattern. An arrow in front of a specific pattern indicates the pattern that is currently generated/analyzed.
  • Page 494 Test Results Summary (EtherBERT) Bit/Pattern Error, Amount/Rate, and Inject: The bit/pattern error  injection and settings are coupled with the Inject Button on page 394. For Transport test applications, not available in Through modes or with Multi-Pattern. Service Disruption Note: Service Disruption results are only available when Disruption Monitoring is enabled (refer to EtherBERT and Unframed BERT on page 180).
  • Page 495 Test Results Summary (EtherBERT) Latency Note: Latency results are only available when Latency is enabled (refer to Latency on page 184). When Latency is disabled, the message Latency Measurement Disabled is displayed. Note: Available with Framed Layer 2 and higher. Dual port topology is only available for rates up to 10G.
  • Page 496 Test Results Summary (EtherSAM) Summary (EtherSAM) From the Test menu, tap Results, and the Summary tab. Note: For Dual Test Set, only Start Time is displayed on the remote module. Service Configuration/Performance Test indicates the actual test  status as follows: Test Status Description “--”...
  • Page 497 Test Results Summary (EtherSAM) Remote unit in Dual Test Set Mode indicates that this module is set as  remote but the DTS Connection is not established. Service Configuration/Performance Test: Tap Service Configuration  Test or Service Performance Test button to view the result summary of the corresponding test.
  • Page 498 Test Results Summary (EtherSAM) Committed Frame Loss Rate indicates the rate of frames that are lost. The  reported value is the maximum rate of Frame Loss from all burst sequences and ramp steps excluding the CIR+EIR, EBS, and Traffic Policing steps. Frame Loss is displayed as a percentage value when the remote module does not support exponential notation.
  • Page 499 Test Results Summary (FC BERT) Summary (FC BERT) From the Test menu, tap Results, and the Summary tab. Test Status indicates the actual test status as follows:  “--”: The test is not running or results are not available.  In Progress: The test is running.
  • Page 500 Test Results Summary (FC BERT) Note: See BER on page 779 for a description of each alarm/error. BER Threshold is available when Pass/Fail Verdict is enabled (refer to  page 182). Bit Error Rate/Count graphically displays a meter representing either ...
  • Page 501 Test Results Summary (FC BERT) Round-Trip Latency Round Trip Latency (ms) is measured for each local and remote port.  Current, Average, Minimum, and Maximum indicates respectively the current, average, minimum, and the maximum round trip latency from the local to the remote port in the last one second. The pass/fail verdict is also displayed for the maximum round trip latency.
  • Page 502 Test Results Summary (iOptics) Summary (iOptics) From the Test menu, tap Results, and the Summary tab. Start Time indicates the date and time the test was started. The date and time reset every time the test is restarted. When necessary for power consumption monitoring the Calibrating progress message is displayed.
  • Page 503 Test Results Summary (iOptics) Optical TX Power Test (dBm) reports the minimum and maximum  optical TX power values; in-range values are displayed in green while out-of-range are in red. Not available with QSFP28 AOC. Optical RX Power Test (dBm) reports the minimum and maximum ...
  • Page 504 Test Results Summary (iSAM) Summary (iSAM) From the Test menu, tap Results, and the Summary tab. Start Time indicates the date and time the test was started. The date  and time is reset every time the test is restarted. Configuration/Performance Results and RFC 6349 Results buttons ...
  • Page 505 Test Results Summary (iSAM) For Dual Test Set the following values are reported for both local to remote (L->R) and remote to local (R->L). Service indicates the service’s number and name.  The pass/fail verdict icon is displayed next to the service name indicating if the service complies to the configured SLA parameters.
  • Page 506 Test Results Summary (iSAM) RFC 6349 Test Test Status indicates the actual test status as follows:  Test Status Description “--” Test has not started. In Progress The test is running. Completed, <Verdict> Test has completed and the test pass/fail verdict is displayed when enabled.
  • Page 507 Test Results Summary (iSAM) Window indicates the total Max Window (1 KiB = 1024 bytes)  followed by the number of connections and KiB per connection in parenthesis as follows: (n conn.@ n KiB). Ideal L4 indicates the ideal TCP throughput metric. ...
  • Page 508 Test Results Summary (ISDN PRI) Summary (ISDN PRI) From the Test menu, tap Results, and the Summary tab. Status indicates the actual test status as follows:  “--”: The test is not running or results are not available.  In Progress: The test is running. ...
  • Page 509 Test Results Summary (ISDN PRI) Channel Buttons The channel buttons allow the selection of a channel for which the information is displayed. The selected channel has its button highlighted with a blue border. The top left corner of each button indicates the channel number on a background color as follows.
  • Page 510 Test Results Summary (ISDN PRI) The Pass/Fail verdict icon is displayed on the top right corner of a channel button as follows: Verdict Call Description Pass Data BER result value meets the configured threshold criterion and the call establishment/termination succeeded. Speech or 3.1 kHz The call establishment/termination succeeded.
  • Page 511 Test Results Summary (ISDN PRI) Performance  EFS (Error Free Second) gives the number of seconds within which no error occurred. ES (Errored Second) gives the number of seconds in which one or more bits are in error. SES (Severely Errored Second) gives the number of seconds in which bit error ratio is ≥...
  • Page 512 Test Results Summary (ISDN PRI) Statistics Active Call column displays the quantity of active calls.  Active Call Description Data Number of active Data calls Speech Number of active Speech calls 3.1 kHz Number of active 3.1 kHz calls Total Total number of active calls Total Calls Count column displays statistics of Connected, Cleared, ...
  • Page 513 Test Results Summary (ISDN PRI) Frequency column displays the following information:  RX (MHz) indicates the monitored frequency of the input signal. The following table lists the supported frequency monitoring range: Interface Standard Rate Specification 1544000 ±140 ppm 2048000 ±100 ppm Offset (ppm) indicates the offset between the standard rate specification and the rate of the input signal.

  • Page 514: Link Oam

    Test Results Summary (Link OAM) Summary (Link OAM) From the Test menu, tap Results, and the Summary tab. Test Status displays the current status of the Link OAM test. The global  test pass/fail verdict is displayed next to the Test Status when enabled (see Pass/Fail Verdict on page 356).
  • Page 515 Test Results Summary (Link OAM) Dying Gasp: Indicates that the OAM link partner has sent an  unrecoverable local failure notification (bit 1 of the Flags field is set to 1). Link Fault: Indicates that the OAM link partner has sent a link fault ...
  • Page 516 Test Results Summary (NI/CSU Emulation) Summary (NI/CSU Emulation) From the Test menu, tap Results, and the Summary tab. Status Status indicates the progress of the test as follows: Idle (test has not started)  In Progress  Completed  The Pass/Fail verdict is displayed next to the Test Status field, when enabled, based on the following criteria: The worst pair’s Wire Map, Prop.
  • Page 517 Test Results Summary (RFC 2544) Summary (RFC 2544) From the Test menu, tap Results, and the Summary tab. Start Time indicates the date and time the test was started. The date  and time is reset every time the test is restarted or reset. For Dual Test Set, this is the only information available on the remote module.
  • Page 518 Test Results Summary (RFC 2544) Throughput, Back-to-Back, Frame Loss, and Latency Subtests Throughput, Back-to-Back, Frame Loss, and Latency  For each subtest, its status (-- (Idle), In Progress, Completed, or Aborted - (reason)) and duration are displayed. TX Frames and RX Frames display the transmitted and received ...
  • Page 519 Test Results Summary (RFC 2544) Unit: Select the subtest result unit:  For Throughput: Mbit/s, Gbit/s, frame/s, and %. For Back-to-Back: Mbit/s, Gbit/s, frame/burst, and %. Frame Loss: %. Latency: ms and µs. Layer: For Throughput and Back-to-Back subtests, select the ...

  • Page 520: Smart Loopback

    Test Results Summary (Smart Loopback) Summary (Smart Loopback) From the Test menu, tap Results, and the Summary tab. Test Status displays the current status of the test. The global test  pass/fail verdict is displayed next to the Test Status field when enabled.
  • Page 521 Test Results Summary (RFC 6349) Summary (RFC 6349) From the Test menu, tap Results, and the Summary tab. Status indicates the actual test status as follows:  Test Status Description “--” Test has not started. In Progress The test is running. Completed, <Verdict>...
  • Page 522 Test Results Summary (RFC 6349) , when displayed, indicates that the logger is full. Refer to Logger Full  Logger and Alarms/Errors Logger on page 418. Remote unit in use and locked for Dual Test Set indicates that this  module is used for Dual Test Set as the remote module.
  • Page 523 Test Results Summary (RFC 6349) Actual L4 indicates the average of actual TCP Throughput metric. The  pass/fail verdict icon is displayed next to the this metric when enabled. A value greater or equal to the defined threshold gives a pass verdict. TCP Efficiency (%) indicates the TCP Efficiency metric based on ...
  • Page 524 Test Results Summary (S-OAM and MPLS-TP OAM) Summary (S-OAM and MPLS-TP OAM) From the Test menu, tap Results, and the Summary tab. Test Status displays the current status of the S-OAM / MPLS-TP OAM  test. The global test pass/fail verdict is displayed next to the Test Status when enabled (see Pass/Fail Verdict on page 356).
  • Page 525 Test Results Summary (S-OAM and MPLS-TP OAM) Continuity Check (Peer MEP) Status displays the status of the continuity check with the peer MEP.  Status Description Loss Continuity Loss of Continuity alarm is active. Mismerge Mismerge alarm is active. Unexpected MEG Level Unexpected MEG Level alarm is active.
  • Page 526 Test Results Summary (S-OAM and MPLS-TP OAM) CCM indicates the content of the last received CCM frame including  MEG ID (Y.1731 and G.8113.1), Domain ID (802.1ag and MEF), MA Name (802.1ag and MEF), MEG Level (Y.1731, MEF, and G.8113.1), MD Level (802.1ag), MEP ID, and Period.
  • Page 527 Test Results Summary (S-OAM and MPLS-TP OAM) Loopback / Test / Frame Delay / Frame Loss / Synthetic Loss Note: Either Loopback, Test, Frame Delay, Frame Loss, or Synthetic Loss (available with Ethernet OAM) statistics are displayed according with the selected test function (refer to Test Function on page 305).
  • Page 528 Test Results Summary (S-OAM and MPLS-TP OAM) RX Line Utilization meter and value, available with Loopback  function, indicate the line rate utilization percentage (only LBR frames are considered) received in the last second. TST RX Rate meter and value, available with Test function, indicate the ...
  • Page 529 Test Results Summary (SyncE) Summary (SyncE) From the Test menu, tap Results, and the Summary tab. Test Status displays the current status of the SyncE test. The global test  pass/fail verdict is displayed next to the Test Status when enabled (see Pass/Fail Verdict on page 356).
  • Page 530 Test Results Summary (SyncE) ESMC Indicates the current (meter and value), average, minimum, and maximum ESMC frame rate (including information and event frames) received in frame/s. A fail verdict is also displayed beside the minimum and/or maximum values when the ESMC frame rate is outside the range while the Pass/Fail Verdict is enabled.
  • Page 531 Test Results Summary (SyncE) Last QL Message indicates the last Quality Level value received. The  pass/fail verdict is also displayed when both QL Mismatch Monitoring and Pass/Fail Verdict check boxes are selected. Last Change indicates the date and time of the Last QL Message has changed.
  • Page 532 Test Results Summary (TCP Throughput) Summary (TCP Throughput) From the Test menu, tap Results, and the Summary tab. Test Status indicates the actual test status as follows:  Test Status Description “--” The test is not running or results are not available. In Progress The test is running.
  • Page 533 Test Results Summary (TCP Throughput) TCP Throughput TCP Connection Status indicates the actual TCP connection status.  Test Status Description “--” The test is not running or results are not available. In Progress The TCP initialization algorithm is in progress. Waiting Indicates on the remote unit that the test is started but the TCP initialization algorithm is not initiated by the local unit.
  • Page 534 Test Results Summary (TCP Throughput) TCP Throughput displays respectively the last, minimum, maximum,  and average TCP Throughput measurement. Window Size displays respectively the last, minimum, and maximum  TCP window size. Round Trip Latency (ms) displays respectively the last, minimum, ...
  • Page 535 Test Results Summary (Through Mode) Summary (Through Mode) From the Test menu, tap Results, and the Summary tab. Test Status displays the current status of the test. The global test  pass/fail verdict is displayed next to the Test Status field when enabled.
  • Page 536 Test Results Summary (Through Mode) RX Frequency Note: RX Frequency is available on both portsfor rates up to 10G LAN. Not available for a port using an active copper SFP. Frequency (GHz) indicates the frequency of the input signal.  Offset (ppm) indicates the frequency offset between the standard rate ...
  • Page 537 Test Results Summary (Traffic Gen & Mon) Summary (Traffic Gen & Mon) From the Test menu, tap Results, and the Summary tab. Note: For Dual Port topology select the port to be displayed. Test Status indicates the actual test status as follows. The global test ...
  • Page 538 Test Results Summary (Traffic Gen & Mon) Out-of-Sequence: See Streams - Frame Loss / Out-of-Sequence on  page 451. Stream indicates the stream number and provides stream detailed  statistics when tapping on its button. Latency Unit allows selecting either ms (default) or µs as the reference unit for Latency and Jitter.
  • Page 539 Test Results Summary (Wander) Summary (Wander) From the Test menu, tap Results, and the Summary tab. Test Status displays the current status of the Wander test. The global  test pass/fail verdict is displayed next to the Test Status when enabled (see Pass/Fail Verdict on page 356).
  • Page 540 Test Results Summary (Wander) Time Error Statistics Note: The following statistics are collected using 0.1 Hz Low-Pass filtering. The following statistics are available with 1PPS signal. TE (ns) indicates the last time error value collected in the last second.  Max TE (ns) indicates the maximum time error value collected since ...
  • Page 541 Test Results Summary (Wander) Note: The following statistics are collected without any filtering. cTE (ns) indicates the constant time error which is an average value of  time error over the defined period as follows (refer to cTE Averaging Period on page 375): since the beginning of the test when the cTE Average Period is set ...
  • Page 542 Test Results Summary (Wander) Graph Dynamically displays the graph of either TE or TIE values as a function of time. The dynamic view is a sliding window displaying the last 27000 samples collected. Zooming the graph: Using the touch screen: Tap two points on the graph and drag them to ...
  • Page 543 Test Results Traces (OTN) Traces (OTN) From the Test menu, tap Results, Traces, and the OTN sub-tab. OTUx, ODUx, and TCM Buttons Tap on either an OTU or ODU button. For ODUx when TCM is enabled (see Modify TCM on page 338), tap on a TCMx button to select a TCM level. SM/PM TTI Traces Received Message SAPI indicates the received TTI (Trail Trace Identifier) Source Access...
  • Page 544 Test Results Traces (OTN) DAPI OTU/ODU-TIM check box, when selected (cleared by default),  allows editing the expected Destination Access Point Identifier (SAPI) and also enables the OTU/ODU/TCM-TIM alarm monitoring. Copy RX uses the received SAPI/DAPI message as the expected ...
  • Page 545 Test Results Traces (SONET/SDH) Traces (SONET/SDH) From the Test menu, tap Results, Traces, and the SONET/SDH sub-tab. Note: Selecting a Trace byte to be generated will automatically update the corresponding OH byte. Refer to OH - SONET/SDH on page 595 for more information.

  • Page 546: Traffic - Ethernet

    Test Results Traffic - Ethernet Traffic - Ethernet From the Test menu, tap Results, Traffic, and when applicable the Ethernet tab. Note: For Through Mode test application, the traffic statistics are displayed for both port directions. Note: For Dual Port topology select the port to be displayed. Traffic Line Utilization (%) indicates the current percentage of the ...
  • Page 547 Test Results Traffic - Ethernet Frame Type Displays the TX and RX count of the following frame types. Multicast indicates the number of multicast frames  transmitted/received without FCS errors. Broadcast frames are not counted as multicast frames. Broadcast indicates the number of broadcast frames ...
  • Page 548 Test Results Traffic - Ethernet 1024 - 1518/1534/1536:  1024 - 1518: frames from 1024 to 1518 (no VLAN), 1522 (1 VLAN  tag), 1526 (2 VLAN tags), or 1530 (3 VLAN tags) bytes. 1024 - 1534: for EoE, frames from 1024 to 1534; add 4 bytes to 1534 ...

  • Page 549: Traffic - Flow Control

    Test Results Traffic - Flow Control Traffic - Flow Control From the Test menu, tap Results, Traffic, and the Flow Control tab. Note: For Dual Port topology select the port to be displayed. Frame Count - RX Pause Frames indicates the number of received valid flow-control ...
  • Page 550 Test Results Traffic - Flow Control Pause Injection Note: Pause injection is only available for Traffic Gen & Mon test application. Packet Pause Time: Enter the pause time value to be transmitted in  Quanta or Microsecond (default is 100 Quanta). Range Interface Quanta...

  • Page 551: Traffic - Graph

    Test Results Traffic - Graph Traffic - Graph From the Test menu, tap Results, Traffic, and the Graph tab. Note: For Dual Port topology select the port to be displayed. The graph displays the received line utilization. The X axis shows the time in seconds while the Y axis shows the percentage utilization.
  • Page 552 Test Results Traffic - OAM, S-OAM, and MPLS-TP OAM Traffic - OAM, S-OAM, and MPLS-TP OAM From the Test menu, tap Results, Traffic, and the OAM, S-OAM, or MPLS-TP OAM tab. Traffic Monitoring Note: Only available with Carrier Ethernet OAM test application. In TX, reports counts of CCM, LBM, LTM, DMM, LMM, SLM, TST, AIS, ...
  • Page 553 Test Results Traffic - OAM, S-OAM, and MPLS-TP OAM Responder Note: Available when the S-OAM Responder or MPLS-TP OAM Responder check box is selected (refer to S-OAM and MPLS-TP OAM Responder on page 300). For Carrier Ethernet OAM test application: In TX, reports counts of LBR, LTR, DMR, LMR, and SLR total frames ...

  • Page 554: Window Sweep - X

    Test Results Window Sweep Window Sweep Displays the graph showing the Ideal L4 and Actual L TCP Throughput measured for each Window Sweep step. The number of connections and KiB per connection is also displayed in parenthesis as follows: (n conn.@ n KiB) From the Test menu, tap Results, and the Window Sweep tab.
  • Page 555 Test Results From the Test menu, tap Results, and the WIS tab. Traces/Label J0 Trace displays the J0 Trace value in 16-bytes format.  J1 Trace displays the J1 Trace value in 16-bytes format.  Path Signal Label (C2) displays the content of the STS SPE including ...
  • Page 557 10 Test Functions The Test Functions menu offers the following structure: Transport Test Applications Available with Page 40/100G Advanced - CFP4/QSFP Control 40/100G Advanced - Lanes Mapping & Skew Client Offset FDL - Bit-Oriented Message FDL - Performance Report Message FEAC OH BERT OH (GFP-F/GFP-T)

  • Page 558: Ethersam B. Rfc 6349 C. Rfc 2544

    Test Functions Ethernet Test Applications Test Application Tab - Sub Tab Page 40/100G Advanced - CFP4/QSFP Control 40/100G Advanced - Lanes Mapping & Skew BFD (Bidirectional Forwarding Detection) Filters Packet Capture Ping & Trace Route S-OAM Link Trace Traffic Scan EtherSAM RFC 6349 RFC 2544...
  • Page 559 Test Functions Sync Test Applications Test Application Page 1588 PTP SyncE Filters Packet Capture Ping & Trace Route Wireless Test Application Test Application Framing CPRI/OBSAI BERT Page eCPRI BERT CPRI OBSAI <rate> Advanced - QSFP28 Unframed Control Framed Layer 2/3/4 Filters Framed Layer 2/3/4 Packet Capture...
  • Page 560 Test Functions <rate> Advanced - <transceiver> Control <rate> Advanced - <transceiver> Control From the Test menu, tap Functions, 9.8/10/10.1/24.3/25/40/50/100 Advanced, and the CFP4/QSFP+/QSFP28 Control tab. CFP4 Reference Clock (MHz) Allows selecting the reference clock that will be used by the transceiver. 1/160 Host Lane Rate Interface/Rate 1/40 Host Lane Rate...
  • Page 561 Test Functions <rate> Advanced - <transceiver> Control CFP4/QSFP+/QSFP28 Control Pins Allows the following transceiver control pin settings. Refer to the CFP MSA standard for more information. Note: To apply any control, first select its check box then clear it; the control is applied only when the selected check box is cleared.
  • Page 562 Test Functions <rate> Advanced - <transceiver> Control CFP4/QSFP+/QSFP28 MDIO/I2C Access Interface MDIO/I2C - Bulk Read  Page Select, available for QSFP I2C, allows selecting the I2C  address page: 0x00 (default) to 0xFF. MDIO/I2C Start Address allows selecting the MDIO/I2C start ...
  • Page 563 Test Functions <rate> Advanced - <transceiver> Control MDIO/I2C - Read/Write  MDIO/I2C Address allows selecting the MDIO/I2C address:  0x0000 (default) to 0xFFFF (MDIO)/0x00FF (I2C). MDIO/I2C Data allows either selecting (write) or reading the  MDIO/I2C data: 0x0000 (default) to 0xFFFF (MDIO)/0x00FF (I2C). Read button reads the data of the specified MDIO/I2C Address.
  • Page 564 Test Functions <rate> Advanced - Lanes Mapping & Skew <rate> Advanced - Lanes Mapping & Skew Note: Only available with parallel interfaces. Not available when the RS-FEC check box is selected. From the Test menu, tap Functions, 40/100 Advanced, and the Lanes Mapping &...
  • Page 565 Test Functions <rate> Advanced - Lanes Mapping & Skew Skew (bits) indicates the delay in bit time between the earliest  PCS/Logical lane and the current lane for the one to zero transition of the alignment marker sync bits. The received skew accuracy is ±100 bits.
  • Page 566 Test Functions <rate> Advanced - Lanes Mapping & Skew Default/Random/Manual Mapping Allows changing the lane mapping that will be used for the test. Not available with 100 GbE client in OTU4. Default Mapping sets the TX mapping to the default numerical order ...
  • Page 567 Test Functions <rate> Advanced - Lanes Mapping & Skew Reset/Manual Skew Allows the selection of a relative delay in bit time that will be introduced for each PCS/Logical lane. Not available with 100 GbE client in OTU4. Reset Skew sets all TX skew (bit time) values to 0. ...
  • Page 568 Test Functions <rate> Advanced - Lanes Mapping & Skew Laser ON/OFF Allows activating the laser control per optical lane or for all lanes. Optical lane numbers are from 0 to 3. All Lanes check box, when selected, applies the change(s) to all ...

  • Page 569: Aps

    Test Functions From the Test menu, tap Functions, and the APS tab. TX/RX Switching Mode, available for both TX and RX, selects the switching  mode: Linear (default) or Ring.  Request: Bits 1 through 4 of the K1 byte. Request Bits 1 to 4...
  • Page 570 Test Functions Channel (Linear switching mode) or Destination Node ID (Ring switching mode): Bits 5 through 8 of the K1 byte. Bits Channel ID Destination Node ID Bits Channel ID Destination Node ID 5 to 8 (Linear mode) (Ring mode) 5 to 8 (Linear mode) (Ring mode)
  • Page 571 Test Functions Architecture (Linear switching mode) or Bridge Request (Ring switching mode): Bit 5 of the K2 byte. The default setting is 1+1 for Linear switching mode and Short Path Request for Ring switching mode. Architecture Bridge Request Bit 5 (Linear mode) (Ring mode) Short Path...
  • Page 572 Test Functions BFD (Bidirectional Forwarding Detection) BFD (Bidirectional Forwarding Detection) Note: Only available with IPv4 Network Layer (refer to IP on page 265) in single port topology. From the Test menu, tap Functions, and the BFD tab. Bidirectional Forwarding Detection Local IP Address displays the configured interface Source IP Address ...
  • Page 573 Test Functions BFD (Bidirectional Forwarding Detection) Neighbor Status Session State reports the remote session state: Admin Down, Down,  Init, or Up. Diagnostic reports the reason of the remote last session state change.  Desired Min TX Interval reports the remote desired minimum ...

  • Page 574: Client Offset

    Test Functions Client Offset Client Offset Note: Available with OTN BERT test application with 1GbE client and Pattern client with ODUflex multiplexing. From the Test menu, tap Functions, and the Client Offset tab. TX Frequency Note: TX Frequency is not available in Through / Through Intrusive topology. Frequency (GHz) indicates the frequency (nominal frequency + ...
  • Page 575 Test Functions Client Offset RX Frequency Frequency (GHz) indicates the frequency of the input signal.  Client Measurement range 1GbE 1250000000 ±120 ppm Pattern in ODUflex Expected Frequency ±120 ppm (see page 564) Offset (ppm) indicates the frequency offset between the standard rate ...
  • Page 576 Test Functions Client Offset Max. Positive Offset (ppm) indicates the maximum positive  frequency offset between the standard rate specification and the rate from the received signal. Note: The following parameters are only available with ODUflex mapped to pattern. Frequency Offset Analysis check box, when selected, enables the ...

  • Page 577: Fdl - Bit-Oriented Message

    Test Functions FDL - Bit-Oriented Message FDL - Bit-Oriented Message Allows setting and configuring the Bit-Oriented Messages (BOM) of the Extended Super-Frame (ESF). Note: FDL is only available for DS1 interface with ESF framing. For Dual RX test, FDL is only available for the DS1 TX/RX port 1. From the Test menu, tap Functions, FDL, and the Bit-Oriented Message tab.
  • Page 578 Test Functions FDL - Bit-Oriented Message Codeword Command/Response Command/Response Pattern Pattern Codeword Codeword Line Loopback Activate 00001110 11111111 Protection Switch Line 22 01101100 11111111 Line Loopback Deactivate 00111000 11111111 Protection Switch Line 23 01101110 11111111 Payload Loopback Activate 00010100 11111111 Protection Switch Line 24 01110000 11111111 Payload Loopback Deactivate 00110010 11111111...
  • Page 579 Test Functions FDL - Bit-Oriented Message Receive Messages Link Activity indicates the activity of the following parameters during  the last second of measurement. Idle indicates that only idle codes have been detected in the last  second. Priority indicates that at least one valid priority message has been ...
  • Page 580 Test Functions FDL - Bit-Oriented Message Command/Response  Current indicates the command/response message detected in the last second. If no priority message has been detected, “--” is displayed. Previous indicates the last command/response message detected excluding the current message. If no command/response message has been detected since the beginning of the test, “--”...

  • Page 581: Fdl - Performance Report Message

    Test Functions FDL - Performance Report Message FDL - Performance Report Message Note: FDL PRM is only available for DS1 interface with ESF framing. For Dual RX test, FDL is only available for the DS1 TX/RX port 1. For NI/CSU Emulation, only available in the RX direction.
  • Page 582 Test Functions FDL - Performance Report Message Received Messages Event Counts lists received PRM bit event counts.See PRM Bit Events  below. Report Content lists received performance information. See  Performance Information below. Circuit indicates the selected circuit type: CI to Network or ...
  • Page 583 Test Functions FDL - Performance Report Message Performance Information table, available when the Report Content  button is selected, reports the time t0, t0-1, t0-2, and t0-3 for each PRM. Time T0 represents the valid PRM message received in the last second of ...

  • Page 584: Feac

    Test Functions FEAC FEAC The Far-End Alarm and Control signal (FEAC) provides Communication Channel capability over a DS3 in a network applications using C-bit Parity configuration (see page 327). From the test menu, tap Functions, and the FEAC tab. Generated Messages Allows configuring and sending alarms/status information and control signals (loopback commands) to other network elements.
  • Page 585 Test Functions FEAC Amount is the amount of codeword to be generated: 1 to15  (default is 10). Inject generates error(s) according to the Codeword and mode  selected. Loopback Commands  Control  Codeword is the loopack control codeword to be generated: Line Loopback Activate (00001110) - (Default) or Line Loopback Deactivate (00111000).
  • Page 586 Test Functions FEAC Received Messages Displays current and previous alarms/status and loopback commands as well as the link activity for the received DS3 signal. Link Activity  None (All 1’s): An all ones pattern (11111111 11111111) has been  detected in the last second. Alarm/Status: An Alarm/Status codeword has been detected in the ...
  • Page 587 Test Functions FEAC Loopback Commands  Current displays the valid message received in the last second of  measurement. A valid message is detected only when receiving 10 consecutive occurrences of a specific Loopback Command immediately followed by 10 occurrences of a specific Channel Codeword.
  • Page 588 Test Functions Filters Filters Allows gathering statistics according to the programmed filters. Filters provide the capability to analyze a specific stream’s behavior in order to monitor a single protocol’s behavior, perform SLA verification, or precisely troubleshoot unwanted behavior. Up to 4 for FTB modules or for FTBx modules filters having up to four operands each can be defined and enabled.
  • Page 589 Test Functions Filters Assign to Capture Note: Only available when the ETH-CAPTURE software option is enabled. Refer to Software Option on page 36 for more information. Assigns the selected filter for packet capture. See Packet Capture on page 609. Filter Configuration Note: Multiple filter criteria is only available when the ADV-FILTERS option is enabled;...
  • Page 590 Test Functions Filters Filter specifies the filter to be used (None by default).  Category Filter Ethernet MAC Destination Address, MAC Source Address, EtherType , C-VLAN ID, S-VLAN ID, E-VLAN ID, C-VLAN Priority, S-VLAN Priority, E-VLAN Priority, Frame Format IPv4 IPv4 Destination Address, IPv4 Source Address, IPv4 TOS, IPv4 Precedence, IPv4 Protocol, IPv4 DiffServ IPv6...
  • Page 591 Test Functions Filters Mask allows masking the defined filter value. A bit mask of 1  indicates that the corresponding bit in the value is compared for the match. A bit mask of 0 indicates that the corresponding bit in the value is ignored.

  • Page 592: Gmp

    Test Functions Note: Available with Transport test applications with either payload type 21 (PT21) or one of the following clients: 1GbE, 40GbE, 100GbE, Ethernet (flex/GFP-F), or SONET/SDH (through ODU0). From the Test menu, tap Functions, and the GMP tab. Generic Mapping Procedure TX Cm indicates the minimum and maximum Cm value transmitted ...

  • Page 593: Oh Bert

    Test Functions OH BERT OH BERT The OH BERT validates the integrity of some overhead bytes on the top layer of an OTN test signal. The OH bytes are bundled as group for test purposes. From the Test menu, tap Functions, and the OH BERT tab. Note: Only supported with Coupled topology.
  • Page 594 Test Functions OH BERT OTUx and ODUx Overhead group check boxes: OH Bytes Coordinate Number of Layer Overhead Group Bytes Column GCC0 11,12 13,14 GCC1 1, 2 GCC2 3, 4 APS/PCC PM&TCM TCM ACT FTFL 13, 14 9-14 TCM1 7, 8, 9 TCM2 4, 5, 6 TCM3...
  • Page 595 Test Functions OH BERT The current and history status for enabled overhead group is as follows: Mode Status BERT SYNC Green No alarms/errors. Overhead group bytes are synchronized. Alarms/errors condition detected. Un-synchronized overhead group bytes condition detected. Gray Pending state BERT Overhead group selector: Allows selection of the overhead group on ...

  • Page 596: Oh (Gfp-F/Gfp-T)

    Test Functions OH - GFP-F/GFP-T OH - GFP-F/GFP-T Note: Available with OTN BERT test application with 1GbE (GFP-T), 10GbE (GFP-F), or Ethernet (flex/GFP-F) client. From the Test menu, tap Functions, OH tab, and GFP-F/GFP-T sub tab. Core Header  PLI and cHEC are not configurable. Type Header ...
  • Page 597 Test Functions OH - GFP-F/GFP-T EXI (Extension Header Identifier) allows overwriting the Extension  Header Identifier. Description 0000 Null Extension Header 0001 Linear Frame 0010 Ring Frame 0011 to 1111 Reserved UPI (User Payload Identifier) allows overwriting the User Payload ...
  • Page 598 Test Functions OH - GFP-F/GFP-T Description for Description for PTI = 000 PTI = 100 0001 0010 Framed DVD-ASI 0001 0011 Framed 64B/66B Ethernet 0001 0100 Framed 64B/66B Ethernet Ordered Set 0001 0101 Reserved for future standardization through 1110 1111 1111 0000 Reserved for proprietary use through...
  • Page 599 Test Functions OH - GFP-F/GFP-T Note: The following Core Header, Type Header, and Extension Header parameters are available for Client Data, Client Management, and Reserved PTI frames. The details of the selected OH field is displayed in the OH Details section on the bottom-right of the screen. Core Header ...
  • Page 600 Test Functions OH - GFP-F/GFP-T Extension Header: CID, Spare, and eHEC are only available when EXI  is set to Linear (refer to EXI on page 216). CID (Channel IDentifier) indicates the communication channel  used by the signal. Possible values are 00000000 through 11111111 (0 to 255).

  • Page 601: Oh (Otn)

    Test Functions OH - OTN OH - OTN For OTN BERT, from the Test menu, tap Functions, and the OH tab. For OTN-SONET/SDH BERT, from the Test menu, tap Functions, OH, and the OTN sub tab. TX and RX buttons Allows respectively modifying (TX button) the overhead information to be transmitted or viewing (RX button) the overhead information received.
  • Page 602 Test Functions OH - OTN The second SM byte (column 9) contains the BIP-8 byte that is automatically generated for each frame. This byte is not configurable. The third SM byte (column 10) contains the following sub-fields. This byte is configurable from 00 (default) to FF. Bit 1-4 Bit 5 Bit 6...
  • Page 603 Test Functions OH - OTN Row 2 RES, columns 1-2, ODU OH: The two Reserved (RES) bytes are  configurable from 00 (default for each byte) to FF. PM & TCM, column 3, ODU OH: The Path Monitoring and Tandem ...
  • Page 604 Test Functions OH - OTN JC2 or JC  JC2, column 16, OPU OH: Controlled by GMP function. This byte is not configurable. JC, column 16, OPU OH: Bits 1-6, Reserved (RES), are configurable from binary 000000 (default) to 111111. Bits 7-8, Justification Control (JC), are configurable from binary 00 (default) to 11.
  • Page 605 Test Functions OH - OTN JC6 or RES  JC6, column 15, OPU OH: Bits 1-3 set to all-0s, and bits 4-8 are controlled by GMP function. This byte is not configurable. RES, column 15, ODU OH: The Reserved (RES) bytes are configurable from 00 (default) to FF.
  • Page 606 Test Functions OH - OTN PSI, column 15, OPU/ODU OH: Tap the PSI field to configure (TX) or  display (RX) the Payload Structure Identifier. TX: Select any TX byte from the list and its content is displayed  below the list. Tap the Edit button to change its value. RX: Select any RX byte from the list and its content is displayed ...

  • Page 607: Oh (Sonet/Sdh)

    Test Functions OH - SONET/SDH OH - SONET/SDH The SONET/SDH OH page allows modifying (TX) the overhead information to be transmitted and viewing (RX) the overhead information received. For SONET/SDH BERT, from the Test menu, tap Functions, and the OH tab.
  • Page 608 Test Functions OH - SONET/SDH Transport OH - Section/RS A1 and A2: Framing. The value should be hexadecimal F6 for A1 and  28 for A2. They must appear in every STS-1/STM-1 frame of a composite signal. SONET: Provide frame alignment of each STS-1 frame within a composite signal (STS-1 to STS-n).
  • Page 609 Test Functions OH - SONET/SDH F1: User/User Channel. This byte is reserved for user purposes. This  byte is only defined for the first STS-1/STM-1 frame of a composite signal. D1, D2, and D3: Data Communications Channel (DCC). Provides a ...
  • Page 610 Test Functions OH - SONET/SDH B2: BIP-8  SONET: The BIP-8 (Bit-Interleaved Parity) byte provides line error monitoring. This byte is only defined for the first STS-1/STM-1 frame of a composite signal. The byte is calculated by performing a routine even-parity check over all bits of the LOH and the STS-1 frame capacity of the previous frame of a composite signal (STS-1 to STS-n).
  • Page 611 Test Functions OH - SONET/SDH M0 or M1/Z2 (SONET)  M0: REI-L: The M1 byte is used for line Remote Error Indication (REI-L) For STS-1e and OC-1: The M0 byte located in the STS-1 indicates  BIP violations. M0, bits Indicates 234 5678 000 0000...
  • Page 612 Test Functions OH - SONET/SDH For OC-12: The M1 byte located in the STS-1 #7 indicates BIP  violations. M1, bits 234 5678 Indicates 000 0000 0 BIP violation 000 0001 1 BIP violation 110 0000 96 BIP violations 110 0001 to 0 BIP violation 1111 1111 For OC-48: The M1 byte located in the STS-1 #7 indicates BIP...
  • Page 613 Test Functions OH - SONET/SDH For M0 and M1 computation method: Indicates Located in STS-1 #4 Located in STS-1 #7 0000 0000 0000 0000 0 BIP violation 0000 0000 0000 0001 1 BIP violation 0000 0110 0000 0000 1536 BIP violations 0000 0110 to 0000 0001 to 0 BIP violation...
  • Page 614 Test Functions OH - SONET/SDH STS/AU/TU-3 J1: Trace. Available when the Trace format is set to 1 Byte (refer to  Traces (SONET/SDH) on page 372). SONET: The J1 Trace byte provides a 16 or 64 byte fixed string to verify connection between path transmitting equipment and path receiving equipment.
  • Page 615 Test Functions OH - SONET/SDH C2: Signal Label. Entering a C2 byte value will automatically update the  Path Signal Label (C2) selection and vice versa. Refer to STS/AU Path (C2) on page 239 for more information. Description (Hex.) SONET Unequipped UNEQ or supervisory-UNEQ Equipped - Non-Specific...
  • Page 616 Test Functions OH - SONET/SDH G1: Path Status. The G1 byte provides a method to communicate the  far-end path status back to the path originating equipment. REI: Bits 1 to 4 of G1 Description 0000 No error 0001 1 error 0010 2 errors 1000...
  • Page 617 Test Functions OH - SONET/SDH Z3 and Z4:  SONET only: Growth.  SDH only: User Channel. The Path User Channel provides a channel for communication purposes between path elements and is payload dependent.  SDH only: Automatic Protection Switching (APS). Bits 1 to 4 of the K3 byte are used for APS signaling.
  • Page 618 Test Functions OH - SONET/SDH VT/TU V5 VT/TU Path Overhead  The V5 byte is allocated to indicate the content of the VT/TU path, including the status of the mapped payloads. It provides the same functions for VT/VC paths that the B3, C2, and G1 bytes provide for STS/STM paths.
  • Page 619 Test Functions OH - SONET/SDH If the signal label in V5 (bits 5, 6, and 7) is 101 the contents of the extended signal label is valid and contains in a 32 bit multiframe as shown below. See Z7/K4 Structure shown below. Z7/K4 Structure J2 Trace.
  • Page 620 Test Functions OH - SONET/SDH Z7 /K4 : Extended signal label  Description Bits Z7 (SONET) K4 (SDH) Extended signal label. Bits 12 to 19 of the 32 bit frame multiframe (see Z7/K4 Structure on page 607) contain the extended signal label. Virtual concatenation.
  • Page 621 Test Functions Packet Capture Packet Capture Capture is used to analyze all or filtered data traffic and save complete or truncated frames into a buffer. It allows observing network truncated data precisely, or understanding errors and unwanted behavior. Note: Not available with eCPRI dual port topology. From the Test menu, tap Functions, and the Packet Capture tab.
  • Page 622 Test Functions Packet Capture Frame Length Specifies the length of the frame that will be saved in the capture buffer. Complete captures the entire frames.  Truncated captures only the first specified number of bytes per frame.  Use either the Bytes field to manually enter the number of bytes per frame or tap on the Truncation Calculator button for automatic bytes per frame calculation.
  • Page 623 Test Functions Packet Capture Trigger Trigger Type defines the trigger source criterion that will be used to  automatically start/stop the capture when a received frame matches the filter and the trigger criteria. Manual automatically starts the frame capture when the Capture ...
  • Page 624 Test Functions Packet Capture Trigger Position selects the triggered frame position within the buffer.  Post-Trigger for a trigger frame located at the beginning of the  buffer. The buffer will contain the triggered frame with the following frames. Mid-Trigger for a trigger frame located at the middle of the buffer. ...
  • Page 625 Test Functions Packet Capture Triggered Frame - Details gives details on the triggered frame.  The triggered frame corresponds to the first received frame that matches the filter and the trigger settings. Frame Number indicates the triggered frame position in the buffer. The framing MAC/IP/UDP/TCP source and destination addresses are displayed in a table.
  • Page 626 Test Functions Packet Capture Export button, available when the test application is stopped, allows  exporting the data captured into a .pcap file format and viewing the file using Wireshark. Save In: Allows selecting the folder to save the capture file. ...
  • Page 627 Test Functions Ping & Trace Route Ping & Trace Route From the Test menu, tap Functions, and the Ping & Trace Route tab. Note: For Dual Port topology select the port to be displayed. Source IP Address Displays or allows the selection of either the interface source IP address or a stream IP address depending on the test and its configuration.
  • Page 628 Test Functions Ping & Trace Route Use Stream Use Stream, available with test application using stream/services, allows using the source and destination IP of the defined or selected stream/services. Ping Data Size (Bytes): Enter the data size that will be sent to the network ...
  • Page 629 Test Functions Ping & Trace Route Trace Route Max Hop Count: Enter the maximum network device the packet is  allowed to go through. Choices are 1 to 255; 128 by default. Timeout (ms): Enter the maximum time allowed between an ICMP ...
  • Page 630 Test Functions Ping & Trace Route Status: Indicates the status of the attempt as follows:  Status Description Successful Valid ICMP echo reply received. User Aborted When a user has manually stopped the ping/trace route function before the end of attempts.
  • Page 631 Test Functions Ping & Trace Route Replied Details  For ping, indicates the IP address of the replier, the buffer size of the ICMP echo response, the time of response in milliseconds, and the TTL of the ICMP echo response. For trace route, indicates the IP address of the replier, and the time of response in milliseconds.

  • Page 632: Pointer Adjustment

    Test Functions Pointer Adjustment Pointer Adjustment From the Test menu, tap Functions, and the Pointer Adjustment tab. TX Pointer Adjustment Note: Only available in Coupled topology. The pointer adjustment supports two modes of operation: Manual and Sequence. Both modes offer the generation of pointer events even when the test is not started.
  • Page 633 Test Functions Pointer Adjustment Jump New Pointer allows selecting a new pointer value:  For STS/AU: 0 (default) to 782 For VT/TU: Path Range VT1.5 0 to 103 0 to 139 TU-3 0 to 764 TU-11 0 to 103 TU-12 0 to 139 Inject button sends the new pointer value.
  • Page 634 Test Functions Pointer Adjustment TX Pointer Adjustment - Sequence Button Note: The pointer sequence is only supported on one test layer; either on VT/TU layer or on STS/AU when the test doesn’t contain VT/TU mapping. The field next to the Sequence operation mode button indicates the path level used for the sequence pointer adjustment.
  • Page 635 Test Functions Pointer Adjustment Initialization / Cool Down / Sequence  The following time line examples show the initialization, cool down, and the pointer sequence according to the selected sequence and parameters. Example 1: Periodic 87-3 with Cancel Example 2: Regular pointers plus one double pointer Legend: Description When located at the end (right) of the sequence, indicates a continuous repetition of the pointer...
  • Page 636 Test Functions Pointer Adjustment T1 to T6 are configurable duration parameters. The range of the  duration parameters as well as their availability versus pointer sequence are described in the following table. Pointer Sequence Pattern Parameter Duration range Single pointers of opposite polarity 10 to 30 s (default 10 s) Regular pointers plus one double pointer AU/TU-3: 7.5 ms to 30 s (default 0.333 s)
  • Page 637 Test Functions Pointer Adjustment T1 (s) represents the interval between two pointer events.  Example of Single pointer of opposite polarity sequence. T2 (s) represents the interval between successions of pointer  events. Example of Regular pointers with one missing pointer sequence.
  • Page 638 Test Functions Pointer Adjustment T4 (ms) represents the interval between back to back pointer  events in periodic pointer sequence. Example of Burst pointer adjustment sequence. T5 (s) represents the interval between successions of pointer  events in a Periodic pointer sequence. Example of Periodic 87-3 with Cancel sequence.
  • Page 639 Test Functions Pointer Adjustment Increment/Decrement allows determining if the pointer sequence will  increment (positive) or decrement (negative) the pointer values. Periodic check box when selected, generates the pointer sequence  continuously. The pointer sequence is generated only once when the Periodic check box is cleared.
  • Page 640 Test Functions Pointer Adjustment Sequence button when enabled, generates pointer events on a regular  basis. The initialization and cool down sequence are described below for each pointer sequence pattern. Pointer Sequence Pattern Initialization Cool down Single pointers of opposite polarity Basic sequence Basic sequence ...
  • Page 641 Test Functions Pointer Adjustment RX Pointer Adjustment Pointer Value  For STS/AU: Displays the value for the pointer, H1 and H2, indicating the offset in bytes between the pointer and the first byte of the STS-n (SONET) or AU-n (SDH). For VT/TU: Displays the value of the pointer, V1 and V2, indicating the offset in bytes between the pointer and the first byte of the VTn (SONET) or TU-n (SDH) of the high order path.

  • Page 642: Rtd

    Test Functions Note: Available with Pattern client. Not available in Decoupled, Through, or Through Intrusive mode. Round Trip Delay (RTD) measurements are needed to quantify the time it takes for a signal to cross the network and come back. Usually, transport delay is due to two factors: long configured paths and transit times through the network elements along the path.
  • Page 643 Test Functions Measure Delay Button Allows enabling the round trip delay measurement. For Single mode, the test is performed once and stops (the Measure Delay button turns off by itself). The Measure Delay button is only available when the test is running. For Continuous mode, the test is performed continuously until the RTD test or the test case itself is stopped.
  • Page 644 Test Functions Disabled: Indicates that the RTD feature is disabled. For example, this  condition occurs for DS0/E0 test case having all its timeslots set to Idle/Tone. --: Indicates that the RTD measurement is not ready.  Reset Resets the RTD results and measurement counts. Delay Indicates the time required for a bit to travel from the transmitter back to its receiver after crossing a far-end loopback.
  • Page 645 Test Functions RTD/RTT (CPRI/OBSAI Framed L2) RTD/RTT (CPRI/OBSAI Framed L2) Note: Only available with CPRI/OBSAI Framed L2 in Base Station emulation mode. Round Trip Delay (RTD for CPRI) and Round Trip Time (RTT for OBSAI) measurements are needed to quantify the time it takes for a signal to cross the remote radio head and come back.
  • Page 646 Test Functions RTD/RTT (CPRI/OBSAI Framed L2) Round Trip Delay (CPRI) Indicates the time required for a bit to travel from one point to another. Delay T14 indicates the round trip delay measurement from the Base  Station going through the Remote Radio Head (including Toffset) and back to the Base Station.
  • Page 647 Test Functions RTD/RTT (CPRI/OBSAI Framed L2) Round Trip Time (OBSAI) Indicates the time required for a bit to travel from one point to another. RTT indicates the round trip time measurement from the Base Station  going through the Remote Radio Head (including Delay 1,2) and back to the Base Station.
  • Page 648 Test Functions S-OAM Link Trace S-OAM Link Trace From the Test menu, tap Functions, and the S-OAM Link Trace tab. Link Trace Priority allows selecting the VLAN user priority: 0 (default) to 7. Refer  to VLAN ID and Priority on page 775 for more information. is set to No (no frames will be dropped when Drop Eligible ...
  • Page 649 Test Functions S-OAM Link Trace RX LTR indicates the count of received LTR frames having their  destination MAC address matching the unit port MAC address, and VLANs matching the unit port VLANs. LTR Timeout indicates the count of LTR Timeout event which occurs if ...

  • Page 650: Signaling Bits

    Test Functions Signaling Bits Signaling Bits Allows generation and monitoring of the signaling bits. Only available for DSn/PDH BERT framed test with DS0/E0 enabled. From the Test menu, tap Functions and the Signaling Bits tab. Note: Two signaling bits (AB) are available for SF or SLC-96 framing while four signaling bits (ABCD) are available for ESF.
  • Page 651 Test Functions Signaling Bits RX Signaling Channel/AB/ABCD table: The monitoring of signaling bits of either the 24 - DS0 channels or 30 - E0 channels is performed when the test is running. NetBlazer...

  • Page 652: Spare Bits

    Test Functions Spare Bits Spare Bits Note: Spare Bits are not available when the framing is set to Unframed. From the Test menu, tap Functions, tap the Spare Bits tab. Tap a spare bits field to set its value. Note: All spare bits are reserved for national use and should be set to 1 when not used.
  • Page 653 Test Functions Spare Bits  G.751 Bit 14, 15, 16 are reserved for national use.  G.751 Bit 12 is reserved for national use.  G.742 Bit 12 represents Bit 12 from Timeslot 1, 2, 3, and 4 respectively.  is located in the bit 1 of the frame containing the frame ...
  • Page 654 Test Functions Traffic Scan Traffic Scan The traffic scan tool provides the capability to discover and monitor VLAN traffic flows on the network. Note: Not available with dual port test and when Provider Encapsulation is used. Not available with 50GE. From the Test menu, tap Functions, and the Traffic Scan tab.
  • Page 655 Test Functions Traffic Scan Rate Layer Allows the selection of the rate unit used for Link Rate and Rate statistics. Line Utilization is used to express the real line rate including the  Preamble, SFD, and IFG. Ethernet BW (Bandwidth) is used to express the Ethernet bandwidth ...
  • Page 656 Test Functions Traffic Scan Monitored Frames Table Statistics are gathered for each different traffic flow matching the scan criteria. Each different monitored traffic flow creates a separate entry in the scan table. When the limit is reached, new traffic flows are not considered in the table but the existing traffic flows are still monitored.
  • Page 657 11 Test Control This chapter describes the test control buttons available on the right navigation bar of the application. Button For more information, see: Discover Remote Discover Remote Button on page 646 Headset DTMF Headset/DTMF Button on page 651 Inject Inject Button on page 652 Laser Laser Button on page 652...
  • Page 658 The remote unit is used to loop back the traffic; for an EXFO unit it could be via Smart Loopback or Dual Test Set (DTS) for simultaneous bidirectional RFC 2544, RFC 6349, or EtherSAM results.
  • Page 659 Test Control Discover Remote Button The discovered units are listed in the table with their IP Address, Remote ID, Capabilities, and Status information. Remote ID, Capabilities, and Status are only available for remote MAX-800 Series, FTB-700G/800 Series, FTB-800v2 Series, and 88000 Series units. Capabilities indicates the loopback capabilities of the remote unit ...
  • Page 660 Test Control Discover Remote Button Loop Up and Loop Down buttons (Not available with RFC 6349 test  application) Loop Up establishes the connection with the selected remote unit  and sets the remote unit into Smart Loopback test application. If a remote unit is in any busy status, a user confirmation is required to proceed with the Loop Up command.
  • Page 661 Test Control Discover Remote Button Remote Modules Discovery (3rd Party Loopback) Use Stream Destination from Test Application check box when  selected (default), it uses the stream destination configuration parameters from the test application to communicate with the third-party loopback unit. Only available with single-stream test applications.
  • Page 662 Test Control Discover Remote Button Loop UP/Down  Loop Up establishes the connection with the selected remote unit  and the loopback mode is set and initiated on the remote unit. The interface IP address is used as the source address for the test and the stream/service address has to be coupled with the interface (refer to Couple with Interface on page 248).
  • Page 663 Test Control Headset/DTMF Button Headset/DTMF Button Note: Only available with ISDN PRI test application. The Headset/DTMF allows connecting a B-Channel to the headset and DTMF tones can be generated using the keyboard. Channel Allows selecting the channel used to connect the Headset and DTMF; default is channel 1.
  • Page 664 Test Control Inject Button Inject Button Injects alarms/errors based on settings from the Inject Button on page 394. Laser Button The Laser button enables or disables the laser for optical interfaces. For Dual Port topology, enables or disables the laser for both optical interfaces (ports).
  • Page 665 Test Control Lpbk Tool Button (Loopback Tool) Lpbk Tool Button (Loopback Tool) The Loopback Tool provides the capability of looping back the Ethernet frames/packets that are received on the loopback tool port. Pressing the Lpbk Tool button opens the Loopback Tool pop-up and powers up the port unused by the main test application (it does not start looping back the frames yet).
  • Page 666 Test Control Lpbk Tool Button (Loopback Tool) Loopback Tool tab The Loopback Tool tab allows the configuration of the loopback parameters and displays the traffic statistics as well as the S-OAM Responder statistics. Press the Lpbk Tool button and select the Loopback Tool tab. Status: The status field displays the current status of the Loopback test.
  • Page 667 Test Control Lpbk Tool Button (Loopback Tool) Loopback Mode determines at which layer the address/port swapping  is limited. Ethernet swaps the MAC addresses of received packets having  their Destination MAC address matching the MAC address of the loopback port. Ethernet (All Unicast) swaps the MAC addresses of received ...
  • Page 668 Test Control Lpbk Tool Button (Loopback Tool) S-OAM Responder check box when selected (default) allows  responding to LBM, LTM, DMM, LMM, and SLM valid messages (Lpbk Tool must be started, see Loopback button below). Traffic statistics are also monitored (refer to Responder on page 541). Responds to...
  • Page 669 Test Control Lpbk Tool Button (Loopback Tool) Interface Tab Physical Interface Interface/Rate allows the selection of the loopback tool interface rate:  10/100/1000M Electrical (default), 100M Optical, 1GE Optical, or 10GE LAN. Connector displays the unused module’s port (on the same ...
  • Page 670 Test Control Lpbk Tool Button (Loopback Tool) RX Power (dBm) indicates the current received power level of the  optical laser in dBm. Green: Power level in range.  Yellow: Power level out-of-range. Red: Loss of signal or power level is close to damage. Gray: Invalid operational range value or not supported by the optical transceiver.
  • Page 671 Test Control Lpbk Tool Button (Loopback Tool) Flow Control choices are TX, RX, RX and TX, None (default), and  Auto . When the Flow Control is set to None, pause frames received are ignored. Cable Mode is available with 10/100/1000M Electrical interface. ...
  • Page 672 Test Control Phone Book Button Phone Book Button Note: Only available with ISDN PRI test application. The Phone Book is used to configure, save, load, import, and export phone numbers and phone books. Configure tab The Configure tab allows saving a phone number and associating a name to it.
  • Page 673 Test Control Phone Book Button Save/Load tab The save function stores the phone book. To save a phone book: 1. From the Save/Load tab, select the media where the file will be saved: or Removable Drives (USB media for example) if Internal Storage present.
  • Page 674 Test Control Phone Book Button To rename a phone book file: 1. From the Save/Load tab, select the media from where the file is located: Internal Storage or Removable Drives (USB media for example) if present. 2. Select the file from the list. 3.
  • Page 675 Test Control Phone Book Button Import/Export tab The import/export function allows copying multiple files from a Removable Drives to Internal Storage (Import) or from Internal Storage to Removable Drives (Export). To import/export phone book file(s): 1. From the Import/Export tab, select the media from where the files are located: Internal Storage or Removable Drives (USB media for example) if present.
  • Page 676 Test Control Report Button Report Button The report contains all information about the current test including its setup and results. Note: Nothing prevents the configuration and alarm/error injection setup while the test has been stopped; thus, the report should be saved/printed before changing any test parameters to avoid printing discrepancy between the configuration and results.
  • Page 677 ID, and Comment. Up to 30 characters are allowed for each parameter at the exception of Comment for which 256 characters are allowed. Note: When the EXFO Connect Server check box is selected in EXFO Connect Client, the Opeator Name is not editable but can be selected from the EXFO Connect operator list using the Change button.
  • Page 678 Test Control Report Button Save Report  Auto-Generate Report check box, when selected (cleared by  default), automatically generates the report once the test ends or is manually stopped. When enabled, the report is also automatically generated when controlling the unit remotely using SCPI commands but the module application (GUI) must be running on the platform in order to work.
  • Page 679 Test Control Report Button To select another logo, first add a new logo by either copying the  logo picture file to the following folder or by using the Import/Export (see page 668) then select the new logo from the list.
  • Page 680 Test Control Report Button Import/Export Tab Allows transferring and deleting report files from an external USB media. Also allows importing images that can used as the Logo for reports. Tap the Report button and select the Import/Export tab. To import/export a report or image: 1.
  • Page 681 Test Control Reset Button Reset Button Tap the Reset button to clear results, statistics, and logger content. The Reset button is only available when the test is running. Note: The Reset button is not available for EtherSAM, RFC 2544, RFC 6349, Cable Test, and Smart Loopback test applications.
  • Page 682 Test Control Save/Load Button Save/Load Button The Save/Load button allows saving, loading, importing, exporting, and deleting configuration file(s). Note: Save/Load is only possible when the test is stopped. File location My Documents offers two file locations: use Favorites for most ...
  • Page 683 Test Control Save/Load Button Save/Load Tab Tap the Save/Load button and the Save/Load tab. The save function stores the configuration of the module including all test settings to a file. To save a configuration: 1. Select the file location (see File location on page 670). 2.
  • Page 684 Test Control Save/Load Button To rename a configuration file: 1. Select the file location (see File location on page 670). 2. Select the file from the list. 3. Tap the Rename button. 4. Change the name of the configuration file. 5.
  • Page 685 Test Control Save/Load Button Import/Export Tab Configuration files can be transferred to and from an external USB media as well as deleted. Tap the Save/Load button and the Import/Export tab. To import/export a test configuration: 1. Select the source file location (see File location on page 670). 2.
  • Page 686 Test Control Start/Stop|TX Button Start/Stop|TX Button The Start/Stop|TX button allows starting or stopping manually any test as well as enabling traffic generation. To start the test: Tap the Start button to start the test. Start is available when the test is not running.
  • Page 687 12 Power Failure Recovery The automatic power failure recovery is used to select, configure, and restart the test that was running before the power failure; a test that was not running will be selected and configured but not started. To provide this level of protection, the configuration of the current test is automatically saved;...
  • Page 688 Power Failure Recovery Enabling Power Failure Recovery Enabling Power Failure Recovery To enable the automatic power failure recovery: 1. Enable launching the application when starting the FTB-1v2 Pro (refer to the FTB-1v2 Pro user guide for more information): From Mini ToolBox, tap on the System Settings button, the Startup Applications button, and select the module’s check box.
  • Page 689 Power Failure Recovery When Using the Test Timer When Using the Test Timer Refer to Timer on page 367 for more information on test timer. The test that was running will be re-created and started after a power failure if conditions described above are met in addition with the following test time conditions: The start time has not expired during the power failure.
  • Page 691 13 Maintenance To help ensure long, trouble-free operation: Always inspect fiber-optic connectors before using them and clean  them if necessary. Keep the unit free of dust.  Clean the unit casing and front panel with a cloth slightly dampened ...
  • Page 692 Battery Safety Information The TA-... transceiver systems contain a battery for the insertion counter. If the battery status is low, contact your nearest authorized EXFO service center for its replacement. ARNING Do not throw batteries into fire or water and do not short-circuit the batteries’...
  • Page 693 EXFO unit. Under normal use, the recommended interval for your module is: 2 years. For newly delivered units, EXFO has determined that the storage of this product for up to six months between calibration and shipment does not affect its performance (EXFO Policy PL-03).
  • Page 694 (2 years) To ensure that your unit conforms to the published specifications, calibration may be carried out at an EXFO service center or, depending on the product, at one of EXFO’s certified service centers. Calibrations at EXFO are performed using standards traceable to national metrology institutes.
  • Page 695 14 Troubleshooting Solving Common Problems Before calling EXFO’s technical support, please read the following common problems that can occur and their respective solution. Problem Possible Cause Solution Optical Laser LED is off and the The Laser On option is disabled.
  • Page 696 Contacting the Technical Support Group To obtain after-sales service or technical support for this product, contact EXFO at one of the following numbers. The Technical Support Group is available to take your calls from Monday to Friday, 8:00 a.m. to 7:00 p.m.
  • Page 697 15 Warranty General Information EXFO Inc. (EXFO) warrants this equipment against defects in material and workmanship for a period of one year from the date of original shipment. EXFO also warrants that this equipment will meet applicable specifications under normal use.
  • Page 698 Liability Liability EXFO shall not be liable for damages resulting from the use of the product, nor shall be responsible for any failure in the performance of other items to which the product is connected or the operation of any system of which the product may be a part.
  • Page 699 Warranty Exclusions Exclusions EXFO reserves the right to make changes in the design or construction of any of its products at any time without incurring obligation to make any changes whatsoever on units purchased. Accessories, including but not limited to fuses, pilot lamps, batteries and universal interfaces (EUI) used with EXFO products are not covered by this warranty.
  • Page 700 5. Return the equipment, prepaid, to the address given to you by support personnel. Be sure to write the RMA number on the shipping slip. EXFO will refuse and return any package that does not bear an RMA number.
  • Page 701 Fax: +86 (755) 2955 3101 Xintian Avenue, support.asia@exfo.com Fuhai, Bao’An District, Shenzhen, China, 518103 To view EXFO's network of partner-operated Certified Service Centers nearest you, please consult EXFO's corporate website for the complete list of service partners: http://www.exfo.com/support/services/instrument-services/ exfo-service-centers. NetBlazer...
  • Page 703 The following technical specifications can change without notice. The information presented in this section is provided as a reference only. To obtain this product’s most recent technical specifications, visit the EXFO Web site at www.exfo.com. AUTION The operation and storage temperatures, as well as the altitude, and humidity of some modules may differ from those specified for your FTB-1v2 Pro.
  • Page 704 Specifications General Specifications FTB Modules:  720G 730G Specification 870v2 880v2 890NGE 870Q 880Q Temperature Operating 0 °C to 50 °C 0 °C to 40 °C 0 °C to 50 °C (32 °F to 122 °F) (32 °F to 104 °F) (32 °F to 122 °F) up to 2000 m up to 2000 m...
  • Page 705 Specifications FTBx Modules:  Specification 8870 8880 88200NGE 88260 Temperature Operating 0 °C to 40 °C (32 °F to 104 °F) Storing -40 °C to 70 °C (-40 °F to 158 °F) Relative 0 % to 95 %, non-condensing humidity Maximum 5000 m (16000 ft) operation...
  • Page 707 Glossary Acronym List 10B_ERR 10B_Error Help Alternating Current Associated Channel Header Activity Alarm Indication Signal Alternate Mark Inversion Active Optical Cable Automatic Protection Switching Asynchronous Transfer Mode AU-n Administrative Unit-n Attachment Unit Interface B-VLAN Backbone Virtual Local Area Network B8ZS Bipolar with 8 Zero Substitution Buffer to Buffer Background Block Error...
  • Page 708 Glossary Acronym List BERT Bit Error Rate Test BIAE Backward Incoming Alignment Error Bit-Interleaved Parity bit/s Bit per second Backward Signal Degrade Backward Signal Fail Base Station (Base Transceiver Station) Current C-DCI Client - Defect Clear Indication C-FDI Client - Forward Defect Indication C-LOS Client - Loss Of Signal C-RDI...
  • Page 709 Glossary Acronym List Client Management Frames CORR Correctable Class Of Service CPRI Common Public Radio Interface Cyclic Redundancy Check CRC-x Cyclic Redundancy Check on x bits CRITIC Critical Client Signal Fail Comma Separated Value constant Time Error Code Violation Code Word Destination MAC Address DAPI Destination Access Point Identifier...
  • Page 710 Glossary Acronym List dynamic Time Error High Don’t Use for Synchronization Device Under Test E-VLAN Extended Virtual Local Area Network European standard for digital transmission-level 0 (64 Kbit/s). European standard for digital transmission-level 1 (2.048 Mbit/s). European standard for digital transmission-level 2 (8.448 Mbit/s). European standard for digital transmission-level 3 (34.368 Mbit/s).
  • Page 711 Glossary Acronym List EXFO Universal Interfaces Extension Header Identifier Extension Header Mismatch EXT CLK External Clock Frame Alignment Signal Fibre Channel Federal Communications Commission Frame Clock Burst Frame Check Sequence Frame Delay Forward Defect Indication Forward Error Correction FLOGI Fabric Login...
  • Page 712 Glossary Acronym List GFP-T GFP - Transparent Giga Hertz Grand Master Generic Mapping Procedure GMP OOS GMP Out of Synchronization GNSS Global Navigation Satellite System Global Positioning System Global IPv6 Address Graphical User Interface History HDB3 High Density Bipolar 3 Code HDLC HDMI High-level Data Link Control...
  • Page 713 Glossary Acronym List IFDV Inter-Frame Delay Variation Input Internet Protocol IPDV Inter Packet Delay Variation IPTV Internet Protocol Television Interframe Gap IPv4 Internet Protocol version 4 IPv6 Internet Protocol version 6 IQ Data ISDN In-Phase and Quadrature modulation data (digital baseband signal) Integrated Services Digital Network In-Service Monitoring Justification Control...
  • Page 714 Glossary Acronym List Logical Link Control Logical Lane Marker Loss Measurement Message Loss Measurement Reply Loss Of Alignment LOAML Loss of Alignment Marker Lock LOAML1027B Loss of Alignment Marker Lock 1027 Blocks LOBL Loss of Block Lock LOBL1027B Loss of Block Lock 1027 Blocks Loss Of Clock LOC Lane Loss Of Clock Lane...
  • Page 715 Glossary Acronym List Label Switching Router Loss of Sequence Synchronization Loss of Tandem Connection Link Trace Message Link Trace Reply Minute Meter milliampere Maintenance Association Media Access Control MAID Maintenance Association Identification Mbit/s Megabit per second Maintenance Domain Media Dependant Interface (straight through Ethernet cable) MDIO Management Data Input/Output MDIX...
  • Page 716 Glossary Acronym List Most-Significant Bit MSEQV Marker Sequence Violation msg/s Message per second MSIM Multiplex Structure Identifier Mismatch MTIE Maximum Time Interval Error Maximum Transfer Unit Network Address Translation NATO North Atlantic Treaty Organization nAUI CAUI, or XLAUI New Data Flag Network Element Network Interface Device Negative Justification Opportunity...
  • Page 717 Glossary Acronym List Out-of-Lane-Alignment OMFI OPU Multi-Frame Identifier OOMFI Out of OPU Multi-Frame Identifier Out-Of-Frame Out-Of-Multiframe Out-Of-Recovery Generic Mapping Procedure Out Of Synchronization Out-Of-Sequence OOSM Out-Of-Service Monitoring Optical Payload Unit Open Radio equipment Interface Optical channel Transport Lane Optical Transport Network Optical Transport Unit Organizationally Unique Identifier OUTput...
  • Page 718 Glossary Acronym List Payload Frame Check Sequence Identifier Physical Layer Device Payload Length Indicator Payload Label Mismatch PLOGI Port Login Performance Monitoring Provisionable by the Network Operator Power over Ethernet Position Field POSV Position Field Violation Path Payload Defect ppm or PPM parts per million PRBS Pseudo Random Bit Sequence...
  • Page 719 Glossary Acronym List R-LOF R-LOS Remote - Loss Of Frame Remote - Loss Of Signal Remote Alarm Indication Reverse Defect Indication Remote Defect Indication Radio Equipment Radio Equipment Control Remote Error Indicator Reserved Remote Failure Indication Return Merchandise Authorization Reference Point n Remote Radio Head Regenerator Section Round Trip Delay...
  • Page 720 Glossary Acronym List Severely Errored Second SESR Severely Errored Second Ratio Superframe System Frame Number Small Form Factor Pluggable International System Service Instance Identifier Service-Level Agreement Synthetic Loss Message Synthetic Loss Reply Section Monitoring Sub-Miniature A Connector SONET Minimum Clock Traceable SNAP Sub Network Access Point Start Of Frame...
  • Page 721 Glossary Acronym List Soviet Union SYMB Symbol Software Traffic Class Tandem Connection Monitoring Transport Control Protocol TDEV Time Deviation Time Error tHEC type Header Error Check Terahertz Time Interval Error Trace Identifier Mismatch Type, Length, and Value Transit Node Clock Traceable Type Of Service TPID Tag Protocol Identifier...
  • Page 722 Glossary Acronym List UNCORR Uncorrectable UNEQ Unequipped User Payload Identifier User Payload Mismatch µs microsecond United States of America USNO United States Naval Observatory Coordinated Universal Time Unshielded Twisted Pairs Volt Virtual Container VIOL Violation VLAN Virtual Local Area Network VoIP Voice over Internet Protocol Virtual Tributary...
  • Page 723 Glossary 10G Ethernet Client 10G Ethernet Client The OTN Overclocked technology provides the capability to transparently transport 10G base-R Ethernet signals into OPU2 as specified in ITU-T. Two optical rates are provided: 11.0957 Gbits/s, +/- 100 ppm, designated OTU2e  11.0491 Gbits/s, +/- 100 ppm, designated OTU1e ...
  • Page 724 Glossary 10G Ethernet Client The following figure presents a typical network application. FTB-700/800/900 Series...
  • Page 725 The following figure presents a typical test application. The Ethernet layer provides the equivalent functionality of the BERT Framed Layer 2 Test application supported on EXFO’s Datacom product family with the particularity that there is no Ethernet Physical port as such.
  • Page 726 Glossary 1588 PTP 1588 PTP The goal of the IEEE 1588 Precision Time Protocol (PTP) is to provide Network Synchronization using a packet based distribution mechanism. Depending on the system application the Network Synchronization may require phase and frequency synchronization. 1588 PTP has the capability to deliver both by allowing a Client clock to track a Master clock in phase (time of day) and in frequency.
  • Page 727 Glossary 1588 PTP Peer Delay mechanism uses message Pdelay Request, Pdelay  Response, and if required Pdelay Response Follow Up. This mechanism is restricted to topologies where each peer-to-peer port communicates PTP messages with, at most, one other such port. Peer Delay is not supported by the Telecom Profile.
  • Page 728 Glossary 1588 PTP The 1588 PTP supports the following Master/Client communication; however Unicast is used for the Telocom Profile. Multicast: A Master clock sends its Sync/Follow Up and Delay  Response in a multicast mode. A Client can collect information from many Master clocks and select the Master clock that is best suited for its application.
  • Page 729 Glossary 1588 PTP Telecom Profile G.8265.1 The Telecom Profile G.8265.1 is designed for frequency synchronization in Telecom network applications. The main attributes of this profile are: Unicast communication with the Grand Master  UDP/IPv4 or UDP/IPv6 network layer  With the Telecom Profile, the Client Clock initiates the communication to the Master Clock by making a request for service that consists of sending Signaling messages containing a REQUEST UNICAST TRANSMISSION TLV to the IP address of the Master Clock.
  • Page 730 Glossary 1588 PTP The following diagram shows the sequence of message exchange between a Client Clock and a Master Clock. First, the Client request Unicast Announce message service. When this is granted and the first Announce message is received, the Client can check the QL value conveyed in the clockClass field of the message.
  • Page 731 Glossary 1588 PTP Telecom Profile G.8275.1 The Telecom Profile G.8275.1 is designed for time/phase synchronization in telecom network applications. The main attribute of this profile are: Full timing support from the network, i.e. all network nodes are  boundary clocks Slave clocks synchronize with its respective upstream Boundary Clock ...
  • Page 732 Glossary CPRI CPRI Overview Traditional mobile installations are bulky (use thick coaxial cables) and require a lot of power to operate (there is a huge power loss in the coaxial cabling which often requires the use of Tower Mounted Amplifiers) as outlined in the following figure.
  • Page 733 Glossary CPRI This protocol called Common Public Radio Interface (CPRI) separates a traditional radio base station configuration into two separate elements: Radio Equipment Control (REC) and the Radio Equipment (RE). The REC processes the baseband radio digital information and performs the control of the Radio Equipment.
  • Page 734 Glossary CPRI Functional Description As mentioned earlier, CPRI remotely locates the RE from the REC. This means that the RE must be controlled, managed and synchronized from the REC in addition to transporting the User information (Voice and user application data) and all that on the same digital link. As such, CPRI is composed of 3 communication flows multiplexed into a single serial signal transmitted in the same optical fiber as illustrated in the following figure.
  • Page 735 Glossary CPRI CPRI Model The CPRI Model revolves around the 3 communication flows described above. CPRI defines only the Layer 1 and Layer 2 associated to these communication flows as outlined in the following figure. The User Data Plane contains mostly voice/data traffic in the form of IQ Data samples.
  • Page 736 Glossary CPRI Physical Interface CPRI offers 8 options in terms of interface rates. Rates below 10G uses 8B/10B line coding as per CPRI V6.0 while rates above 10G use 64B/66B coding. Depending on the rates used, scrambling is optional. Depending on the CPRI signal structure (Framed or Unframed) the scrambling is either manually configured or negotiated.
  • Page 737 Glossary Ethernet Cables Ethernet Cables Minimum Category 3 cable is required for 10Base-T connection while Category 5 cable is required for 100Base-TX and 1000Base-T connections. Maximum cable length (between two nodes) for 10Base-T, 100Base-TX, or 1000Base-T connection is 328 feet (100 meters). Straight Through Cable (10/100 Mbit/s) ...
  • Page 738 Glossary Ethernet Cables Straight Through Cable (1000 Mbit/s)  Crossover Cable (1000 Mbit/s)  FTB-700/800/900 Series...
  • Page 739 Glossary G.709 Optical Transport Network (OTN) G.709 Optical Transport Network (OTN) Overview The optical transport network (OTN) combines the benefits of SONET/SDH technology with the bandwidth expansion capabilities offered by dense wavelength-division multiplexing (DWDM) technology. The OTN consists of the following layers: Optical Transport Section (OTS) ...
  • Page 740 Glossary G.709 Optical Transport Network (OTN) Each of these layers and their functions are distributed along the network and activated when they reach their termination points, which are illustrated in the following figure. OTN Layer Termination Points The termination of the OTS, OMS and OCh layers is performed at the optical level of the OTN.
  • Page 741 Glossary G.709 Optical Transport Network (OTN) The OTU, ODU (including the ODU tandem connection) and OPU layers can all be analyzed and monitored. As per ITU G.709, current test solutions offer these possibilities using the following line rates: OTU1 (255/238 x 2.488 320 Gbit/s ≈ 2.666057143 Gbit/s) also referred to ...
  • Page 742 Glossary G.709 Optical Transport Network (OTN) In order to map client signals via ITU G.709, they are encapsulated using the structure illustrated in the following figure. Basic OTN Transport Structure FTB-700/800/900 Series...
  • Page 743 Glossary G.709 Optical Transport Network (OTN) As depicted above, to create an OTU frame, a client signal rate is first adapted at the OPU layer. The adaptation consists of adjusting the client signal rate to the OPU rate. Its overhead contains information to support the adaptation of the client signal.
  • Page 744 Glossary G.709 Optical Transport Network (OTN) OTU Frame Structure and Overhead As shown in the figure below, the OTU frame is broken down into the following components: Framing  OTL, OTU, ODU, OPU overhead  OTU FEC  OTU Frame Description FTB-700/800/900 Series...
  • Page 745 Glossary G.709 Optical Transport Network (OTN) Framing  The OTU framing is divided into two portions: FAS and MFAS. The frame alignment signal (FAS) uses the first six bytes and, similarly to SONET/SDH, it is used to provide framing for the entire signal. In order to provide enough 1/0 transitions for synchronization, scrambling is used over the entire OTU frame, except for the FAS bytes.
  • Page 746 Glossary G.709 Optical Transport Network (OTN) Optical Transport Unit (OTU)  The OTU overhead is comprised of the SM, GCC0 and RES bytes. The section monitoring (SM) bytes are used for the trail trace identifier (TTI), parity (BIP-8) and the backward error indicator (BEI), or backward incoming alignment error (BIAE), backward defect indicator (BDI), and incoming alignment error (IAE).
  • Page 747 Glossary G.709 Optical Transport Network (OTN) Optical Data Unit (ODU)  The ODU overhead is broken into several fields: RES, PM, TCMi, TCM ACT, FTFL, EXP, GCC1/GCC2 and APS/PCC. The reserved (RES) bytes are undefined and are set aside for future applications.
  • Page 748 Glossary G.709 Optical Transport Network (OTN) Optical Payload Unit (OPU)  The primary overhead field associated to the OPU is the Payload Structure Identifier (PSI). This is a 256 bytes multi-frame where its first byte is defined as the Payload Type (PT). The remaining 255 bytes are currently reserved.
  • Page 749 Glossary G.709 Optical Transport Network (OTN) Tandem Connection Monitoring (TCM) TCM enables the user and its signal carriers to monitor the quality of the traffic that is transported between segments or connections in the network. SONET/SDH allowed a single level of TCM to be configured, while ITU G.709 allows six levels of tandem connection monitoring to be configured.
  • Page 750 Glossary G.709 Optical Transport Network (OTN) Each of the six TCMi fields in the ODU overhead is assigned to a monitored connection. There can be from zero to six connections that can be configured for each connection. In the figure Tandem Connection Monitoring on page 737, there are three different connections that are actually monitored.
  • Page 751 Glossary G.709 Optical Transport Network (OTN) The FEC uses a Reed-Solomon RS (255/239) coding technique. This means that 239 bytes are required to compute a 16-byte parity check. The FEC can correct up to eight (bytes) errors per sub-row (codeword) or detect up to 16 byte errors without correcting any.
  • Page 752 Glossary G.709 Optical Transport Network (OTN) ODU Multiplexing The ODU multiplexer is a function that allows the multiplexing of ODU tributary signals into higher OTN signal rates. The G.709 standard supports 2 types of ODU multiplexer which can be classified as follows: Legacy architecture is based on multi-stage architecture to bring an ...
  • Page 753 Glossary G.709 Optical Transport Network (OTN) The main attributes of the ODU multiplexer functionality are as follows: The Asynchronous Mapping Procedure (AMP) is used for multiplexing  the tributary signals; this method uses a modified Justification Control mechanism which has 2 positive Justification Control bytes and one negative Justification Control byte.
  • Page 754 Glossary G.709 Optical Transport Network (OTN) ODUflex ODUflex provides the capability to carry client payload of variable size with a container size of 1.244 Gbit/s granularity. An ODUflex (L) signal can be transported once multiplexed in an ODUk (H) signal, the multiplexer in this case handles tributary slots of 1.244 Gbit/s and has a Payload Type 21.
  • Page 755 Glossary G.709 Optical Transport Network (OTN) OTN Signal Rates Rate Signal 2.666057143 Gbit/s OTU1 10.709225316 Gbit/s OTU2 11.0491 Gbit/s OTU1e 11.0957 Gbit/s OTU2e 11.2701 Gbit/s OTU1f 11.3176 Gbit/s OTU2f 43.018413559 Gbit/s OTU3 44.571 Gbit/s OTU3e1 44.583 Gbit/s OTU3e2 111.81 OTU4 NetBlazer...
  • Page 756 Glossary Generic Framing Procedure (GFP) Generic Framing Procedure (GFP) Generic framing procedure (GFP), defined in ITU recommendation G.7041/Y.1303, is a framing mechanism to transport packet-based client signals, such as Ethernet, Fibre Channel, ESCON, FICON, over fixed-data-rate optical channels. As such, GFP provides a single, flexible mechanism to map these client signals into SONET/SDH and OTN networks, as shown in figure below.
  • Page 757 Glossary Generic Framing Procedure (GFP) Other methods have focused on using point-to-point protocol (PPP). The IP traffic coming to an Ethernet port is encapsulated over a PPP link and multiple ports can be encapsulated over multilink PPP (ML-PPP) links. By using an HDLC framing, the PPP traffic is transported over the SONET/SDH payload.
  • Page 758 Glossary Generic Framing Procedure (GFP) GFP Mapping Two types of mapping are currently available for GFP: framed-mapped (GFP-F) and transparent-mapped (GFP-T), whose mappings keep the same basic frame structure, as will be shown in the next sections. The decision on which mode to use is dependent on the underlying service to be transported.
  • Page 759 Glossary Generic Framing Procedure (GFP) The figure GFP-T vs GFP-F Features below provides a functional comparison between GFP-F and GFP-T, while figure GFP-T vs. GFP-F Frames below provides a comparison of the GFP frames for both modes. GFP-T vs GFP-F Features GFP-T vs.
  • Page 760 Glossary Generic Framing Procedure (GFP) Functionally, GFP consists of both common and client-specific aspects. Common GFP aspects apply to all GFP-adapted traffic (i.e., both GFP-F and GFP-T) and cover functions such as packet data unit (PDU) delineation, data link synchronization and scrambling, client PDU multiplexing, and client-independent performance monitoring.
  • Page 761 Glossary Generic Framing Procedure (GFP) The GFP generic frame structure is presented in figure below. GFP Generic Frame Structure Each GFP frame type consists of three main components: the core header, the payload header, and the payload information field. The core and payload headers form the GFP header, whereas the payload information field represents the customer traffic carrying the data services.
  • Page 762 Glossary Generic Framing Procedure (GFP) Core Header  The GFP core header consists of a two-octet length field, specifying the length of the GFP frame's payload area in octets, and a two-octet field containing a CRC-16 error-check code. Payload Length Indicator (PLI): The PLI is a two-byte field ...
  • Page 763 Glossary Generic Framing Procedure (GFP) Payload FCS Indicator (PFI): A one-bit subfield indicating the  presence (1) or absence (0) of the payload FCS field. The following table lists the currently defined PFI values. Description FCS Absent FCS Present Extension Header Identifier (EXI): A four-bit subfield identifying ...
  • Page 764 Glossary Generic Framing Procedure (GFP) Client Data Client Management 0000 0010 Mapped PPP Frame Client Signal Fail (Loss of Character Synchronization) 0000 0011 Transparent Fibre Channel Client Defect Clear Indication (DCI) 0000 0100 Transparent FICON Client Forward Defect Indication (FDI) 0000 0101 Transparent ESCON Client Reverse Defect Indication (RDI)
  • Page 765 Glossary Generic Framing Procedure (GFP) Type HEC (tHEC) Field: A two-octet field that contains a CRC-16  sequence to protect the integrity of the type field. The tHEC sequence is computed over the core header bytes using standard CRC-16. As with the cHEC, CRC-16 enables both single-bit error correction and multibit error detection.
  • Page 766 Glossary Generic Framing Procedure (GFP) Payload Information Field  The payload area (also referred to as payload information field) contains the framed client signal. This variable-length field may include from 0 to 65,535 – X octets, where X is the size of the payload header (including the extension header, if present) and the payload FCS field (if present).
  • Page 767 Glossary Generic Framing Procedure (GFP) GFP Summary GFP has been standardized to better optimize the transport of Ethernet and other data services over SONET, taking into account both the pros and cons of ATM and PPP/HDLC framing mechanisms. As described in this section, GFP represents a robust mapping mechanism that allows for the mapping of multiple client-data types into SONET/SDH payload (SPEs).
  • Page 768 Glossary MPLS Labels MPLS Labels The MPLS labels are listed in the following table. Label Description IPv4 explicit null Router alert IPv6 explicit null Implicit null OAM alert 4 to 13, and 15 Unassigned 16 to 1048575 Label ID FTB-700/800/900 Series...
  • Page 769 Glossary OBSAI OBSAI Overview Traditional mobile installations are bulky (use thick coaxial cables) and require a lot of power to operate (there is a huge power loss in the coaxial cabling which often requires the use of Tower Mounted Amplifiers) as outlined in the following figure.
  • Page 770 Glossary OBSAI This protocol called Open Base Station Architecture Initiative (OBSAI) separates a traditional radio base station configuration into two separate elements: Base Transceiver Station (BTS) and Remote Radio Head (RRH). The BTS processes the digital baseband radio information and performs the control of the RRH.
  • Page 771 Glossary OBSAI OBSAI RP3-01 System Architecture OBSAI remotely locates the RRH from the BTS. This means that the RRH must be controlled, managed and synchronized from the BTS in addition to transporting the User information (Voice and user application data) and all that on the same digital link, the RP3-01.
  • Page 772 Glossary OBSAI OBSAI Protocol Stack The OBSAI RP3 Protocol Stack revolves around the 4 layers: Physical Layer, Data Link Layer, Transport Layer and Application Layer as outlined in the following diagram. FTB-700/800/900 Series...
  • Page 773 Glossary OBSAI Application Layer: Provides message sampling and mapping based on  payload type (ex: WCDMA/FDD, LTE, GSM/EDGE and 802.16 also known as Wi-Max). Transport Layer: End-to-End delivery message including routing based  on RP3 Address defined in the messages. Data Link Layer: ...
  • Page 774 Glossary SONET/DSn/SDH/PDH SONET/DSn/SDH/PDH SONET/DSn/SDH/PDH Nomenclature The GUI will used the International or European nomenclature based on the SONET and SDH software options installed on the module. Software option Nomenclature SONET only International SDH only European SONET and SDH International Signal Rates SDH/PDH Rate SONET/DSn...
  • Page 775 Glossary SONET/DSn/SDH/PDH SONET/SDH High and Low Order Path Nomenclature Path Type SONET High Order AU-3 STS-1 AU-4 STS-3c AU-4-4c STS-12c AU-4-16c STS-48c AU-4-64c STS-192c AU-4-256c STS-768c Low Order TUG-3 TUG-2 TU-11 VT1.5 TU-12 TU-3 NetBlazer...
  • Page 776 Glossary SONET/DSn/SDH/PDH SONET/SDH Alarms and Errors Nomenclature Layer SONET Physical BPV/CV Section / Regenerator Section LOF-S RS-LOF RS-OOF TIM-S RS-TIM FAS-S RS-FAS Line / Multiplex Section AIS-L MS-AIS RDI-L MS-RDI REI-L MS-REI High Order Path AIS-P AU-AIS LOP-P AU-LOP H4-LOM H4-LOM PDI-P RDI-P...
  • Page 777 Glossary SONET/DSn/SDH/PDH Layer SONET Low Order Path AIS-V TU-AIS LOP-V TU-LOP RDI-V LP-RDI ERDI-VCD ERDI-CD ERDI-VPD ERDI-PD ERDI-VSD ERDI-SD RFI-V LP-RFI UNEQ-V LP-UNEQ TIM-V LP-TIM PLM-V LP-PLM BIP-2 BIP-2 REI-V LP-REI NetBlazer...
  • Page 778 Glossary SONET/DSn/SDH/PDH SONET Numbering Convention The module supports the Timeslot (default) and hierarchical two-level numbering conventions as per GR-253. Hierarchical Notation: The module supports numbering SONET high order path STS-1s and STS-3c using the two-level “STS-3#,STS-1#”convention in an OC-N. For example: STS-1 [2,3].
  • Page 779 Glossary SONET/DSn/SDH/PDH The module supports numbering SONET low order path using the two-level “VTGroup#,VT#” convention for numbering VTs within an STS-1. For example: VT1.5 [1,3], VT2 [3,2], VT6 [6,1]. The module supports numbering SONET high order path STS-nc within an OC-N using the two-level “STS-3#,STS-1#”.
  • Page 780 Glossary SONET/DSn/SDH/PDH Naming is as follows for each of the following rates: [E,D,C,B,A] for STM-256  [D,C,B,A] for STM-64  [C,B,A] for STM-16  [B,A] for STM-4  [0] for AU-4 in STM-1  [A] for AU-3 in STM-1  [A] for the AU-3 in STM-0e, A=0.
  • Page 781 Glossary SONET/DSn/SDH/PDH The low order paths are defined using a 2 or 3 level convention K,L,M depending on the rate of the AU-4 or AU-3 used to multiplex the low order signals. K: the TUG-3 are numbered 1 to 3 ...
  • Page 782 Glossary SONET/DSn/SDH/PDH The GUI Grid indicates the TUG-2 [x] and TUG-3 [x] values. FTB-700/800/900 Series...
  • Page 783 Glossary SONET/DSn/SDH/PDH DSn/PDH Numbering Convention The DS1 numbering in DS3 shall be numbered with respect to the DS2 muxing [DS2,DS1]. For example a DS3 has 7 DS2 and a DS2 has 4 DS1, so an example would be for a DS1 number [3,2]. The DS3 shall have a single number to represent its position.
  • Page 784 Glossary SyncE SyncE Synchronous Ethernet or SyncE enables a traceable network timing reference frequency to be distributed node-by-node across a chain of Ethernet devices (SyncE compliant devices only). The network timing reference is typically hierarchically traceable to a Primary Reference Source/Clock (PRS/PRC) in a unidirectional flow.
  • Page 785 Glossary SyncE In order for an Ethernet interface to be considered Synchronous Ethernet compliant it needs to be upgraded as shown in the following diagram. In addition to supporting the ESMC channel, this upgrade consists in allowing the recovered clock from the CDR to be propagated to a function called the Ethernet Equipment Clock (EEC).
  • Page 786 Glossary Unicast/Multicast Addresses for Ethernet OAM Unicast/Multicast Addresses for Ethernet OAM Unicast or multicast address can be used for most of S-OAM functions. Unicast addresses a unique destination address of the MEP.  Multicast Class 1 addresses all MEPs in the MEG. The address value is ...
  • Page 787 Glossary VLAN ID and Priority VLAN ID and Priority Special VID values (IEEE Std 802.1Q-1998) Description The null VLAN ID. Indicates that the tag header contains only user priority information; no VLAN identifier is present in the frame. This VID value must not be configured as a PVID, configured in any Filtering Database entry, or used in any Management operation.
  • Page 789 Alarms/Errors Group of Alarms/Errors BER on page 779 Clock on page 780 CPRI on page 781 DS1 on page 782 DS3 on page 782 E1 on page 784 E2/E3/E4 on page 785 Ethernet on page 786 Ethernet - PCS on page 789 Ethernet - PCS Lanes on page 790 FEC (OTN) on page 792 Fibre Channel (including RS-FEC) on page 792...
  • Page 790 Alarms/Errors Group of Alarms/Errors S-OAM and MPLS-TP OAM on page 820 Section/Line / RS/MS on page 823 STS-x/AU-x on page 825 SyncE on page 827 TCM (SONET/SDH) on page 828 Transcoding on page 831 VT/TU on page 832 WIS on page 835 FTB-700/800/900 Series...
  • Page 791 Alarms/Errors Alarms No Traffic  RX (Ethernet): No pattern traffic has been received in the last second. Available with EtherBERT or OTN BERT with EoOTN client. RX (Fibre Channel): No traffic is being transmitted when Login Management fails; a pop up displays No Data is being transmitted on Port(s) <port number>.
  • Page 792 Alarms/Errors Clock Mismatch ‘0’  RX: There is a bit error on a binary ‘0’ (for example ones that should be zeros) found in the test pattern only. Available with EtherBERT and OTN BERT with EoOTN client; not available with 100GE - 4 Unframed CAUI-4 and OTU4 - 4 Unframed Physical Lanes on 890/890NGE/88200NGE.
  • Page 793 Alarms/Errors CPRI CPRI Note: CPRI alarms/errors are only available for Framed L2. Alarms Link Down  RX: Indicates that the start-up sequence is not in F (Operation) or G (Passive) link state. LOF (Loss Of Frame)  RX: The hyperframe alignment cannot be achieved or is lost. RAI (Remote Alarm Indication) ...
  • Page 794 Alarms/Errors Note: For Wander test application only AIS and OOF alarms are supported. Alarms AIS (Alarm Indication Signal)  RX: An unframed all-ones signal is received. OOF (Out-OF-Frame)  RX: Four consecutive frame bit errors are detected. RAI (Yellow) (Remote Alarm Indication) ...
  • Page 795 Alarms/Errors Idle (DS3 Idle)  RX: Subframe 3 of the M-frame contains zeros (0) for the three C-bits, ones (1) for X-bits, 1100... repeating sequence with the first two bits following each control bit set to 11 for the information bits. OOF (Out-OF-Frame) ...
  • Page 796 Alarms/Errors Note: For Wander test application only AIS and LOF alarms are supported. Alarms Note: Only AIS is available when the framing is set to Unframed. AIS (Alarm Indication Signal)  RX: Two or less ZEROs are received in each of two consecutive double frame periods (512 bits).
  • Page 797 Alarms/Errors E2/E3/E4 E-Bit (CRC-4 Error Signal)  RX: Bit 1 of sub-multiframe (SMF) II in frame 13 and/or 15 is set to 0 indicating a sub-multiframe error. Available with PCM30 CRC-4 or PCM31 CRC-4 framing. FAS (Frame Alignment Signal)  RX: Bits 2 to 8 of the frame containing the FAS differ from 0011011.
  • Page 798 Alarms/Errors Ethernet Ethernet Note: Available with EtherBERT, Wander, and OTN BERT with EoOTN client. For Wander test application only Link Down alarm is supported. Alarms Note: For LOA and Inv. Mapping alarms see Ethernet - PCS on page 789. Client Frequency ...
  • Page 799 Alarms/Errors Ethernet Local Fault Rcd (Local Fault Received)  RX: The received data path contains the Local Fault signal. Available with Ethernet 10/25/40/50/100 Gbit/s interface, Ethernet (flex/GFP-F) client, and EoOTN 10/40/100 GbE client. Remote Fault is also available with EoOTN 1GbE client. Remote Fault ...
  • Page 800 Alarms/Errors Ethernet False Carrier  RX: Data is being received with invalid start of frame. Available with Ethernet 100/1000 Mbit/s interface, and EoOTN 1GbE client. FCS (Frame Check Sequence)  RX: Frames with an invalid FCS are received. Idle  RX: An error is detected between the end of a frame and the beginning of the next frame.
  • Page 801 Alarms/Errors Ethernet - PCS Runt  RX: Frames smaller than 64 bytes with an invalid FCS; 80 bytes for EoE; 82 bytes for PBB-TE. Symbol  RX/TX: Invalid code-group is detected/generated in the code. Available with Ethernet 100/1000 Mbit/s interface, and EoOTN 1GbE client.
  • Page 802 Alarms/Errors Ethernet - PCS Lanes Ethernet - PCS Lanes Note: Available with parallel interfaces only: 40/100/200/400 Gbit/s Ethernet and OTN with 40/100 GbE Ethernet client. Available under the PCS sub tab for Through Mode test providing alarms/errors for both ports. Skew Alarm Threshold (bits), available with Ethernet test application, ...
  • Page 803 Alarms/Errors Ethernet - PCS Lanes LOBL (Loss of Block Lock)  RX: In lock mode, 65 invalid sync fields (00 or 11) within a 1024 sync window are received. A PCS Lane Lock alarm is cleared when receiving 64 consecutive valid 66b sync field (01 or 10) in a row. Available with 40/100G.
  • Page 804 Alarms/Errors FEC (OTN) FEC (OTN) Errors FEC-CORR-BIT (FEC Correctable Bit)  RX: FEC Bit that contains errors and were corrected. FEC-CORR-CW (FEC Correctable Codeword)  RX: FEC Codeword that contains errors and were corrected. FEC-CORR-SYM (FEC Correctable Symbol)  RX: FEC Symbol that contains errors and were corrected. FEC-UNCORR-CW (FEC Uncorrectable Codeword) ...
  • Page 805 Alarms/Errors Fibre Channel (including RS-FEC) LOCWS (Loss of CW Synchronization)  RX: FC 32X: Indicates that the codeword_sync is false. Remote Fault  RX: FC 10X: Indicates that a Remote Fault event is detected. Errors 66B Block  RX: FC 32X: The number of frames received with an errored block condition;...
  • Page 806 Alarms/Errors GFP (Generic Framing Procedure) Symbol  RX: FC 1X/2X/4X/8X: Invalid code-group is detected in the code. Undersize  RX: FL-2 frames smaller than 36 bytes with a valid FCS. GFP (Generic Framing Procedure) Note: Available from the GFP-F/GFP-T sub-tab. Alarms GFP-DCI (GFP - Defect Clear Indication) ...
  • Page 807 Alarms/Errors GFP (Generic Framing Procedure) GFP-LFD (GFP - Loss of Frame Delineation)  RX: Indicates that the GFP engine is out of synchronization. TX: Generates a sufficient number of cHEC uncorrectable errors to avoid synchronization. GFP-LOCCS (CSF-Loss of Client Character Synchronization) ...
  • Page 808 Alarms/Errors GFP (Generic Framing Procedure) GFP-UPM (GFP - User Payload Mismatch)  RX: The UPM alarm is declared when the UPI received is different from the expected Client Data UPI without uncorrectable cHEC, tHEC, eHEC, and no pFCS errors. The GFP-F/GFP-T on page 216 displays the expected UPI value based on the test structure.
  • Page 809 Alarms/Errors GFP (Generic Framing Procedure) TX (requires client data frame generation): Generates a “Walking 1” pattern to hit all applicable bits covered by the eHEC, CID and Spare. GFP-eHEC-UNCORR (GFP - extension Header Error Check -  Uncorrectable) Available with GFP-F when EXI is set to Linear. RX: Indicates that two or more bit errors have been detected in the Extension header (eHEC, CID and Spare).
  • Page 810 Alarms/Errors GFP (Generic Framing Procedure) GFP-SB-UNCORR (GFP - Superblock Uncorrectable)  Available with GFP-T. RX: Indicates that two or more bit errors have been detected in the CRC-16 word of the superblock. Note that if two errors are spaced by exactly 43 bits, they will not be reported as uncorrectable.
  • Page 811 Alarms/Errors Note: GMP is only available with EoOTN client (ODU0 with PT21) and is displayed under ODUx alarms/errors group. Alarms OOS (GMP - Out Of Synchronization).  RX: Indicates that the GMP RX cannot synchronize with the GMP TX. Errors Cm-CRC-8 ...
  • Page 812 Alarms/Errors Interface For parallel interfaces: Rate Optic Type Frequency 40GE 4x10G 10.3125 Gbit/s ± 100 ppm OTU3 4x10G 10.7546 Gbit/s ± 20 ppm OTU3e1 4x10G 11.1427 Gbit/s ± 20 ppm OTU3e2 4x10G 11.1458 Gbit/s ± 20 ppm 50GE 2x25G 26.5625 Gbit/s ± 100 ppm 100GE 4x25G 25.78125 Gbit/s ±...
  • Page 813 Alarms/Errors Interface LOS (Loss Of Signal)  RX: Absence of an input signal or an all-zeros pattern is received. Available for each Optical Lane for parallel interfaces. For CPRI Framed L2: Rates up to 9.8G: Absence of an input signal or at least 16 8B/10B code violations occur in one hyperframe.
  • Page 814 Alarms/Errors IP/UDP/TCP For DS1 with B8ZS Line Coding, more than 7 consecutive bit periods with no pulses have been received. For DS3, more than 2 consecutive bit periods with no pulses have been received. K30.7  RX: Indicates code word with Error_Propagation /V ordered_set received.
  • Page 815 Alarms/Errors OBSAI Errors D-Ch FCS (D-Channel FCS)  RX: D-Channel Frames have an invalid FCS. OBSAI Note: OBSAI alarms/errors are only available for Framed L2. Alarms Link Down  RX: Indicates that the RX state machine is not FRAME_SYNC. LOF (Loss Of Frame) ...
  • Page 816 Alarms/Errors ODUx ODUx Note: For OPUx alarms see page 809. For GMP alarms/errors see page 799. Alarms AIS (Alarm Indication Signal)  RX: The STAT information in the PM byte 3, bits 6 to 8 is “111” for at least 3 consecutive frames. TX: Generates an all "1"s pattern in the entire ODUk signal, excluding the frame alignment overhead (FA OH), OTUk overhead (OTUk OH) and ODUk FTFL.
  • Page 817 Alarms/Errors ODUx FSF (Forward Signal Fail)  RX: The FTFL byte 0 is “00000001”. TX: Generates a “00000001” pattern in the FTFL Byte 0 continuously. LCK (Lock)  RX: STAT information in the PM byte 3, bits 6 to 8 is “101” for at least 3 consecutive frames.
  • Page 818 Alarms/Errors ODUx RX: Interleaved block in error detected by the corresponding ODU path monitoring sink using the BIP-8 code. ODU BEI bits ODU BEI bits BIP violations BIP violations (1234) (1234) 0000 0101 0001 0110 0010 0111 0011 1000 0100 1001 to 1111 BIP-8 (Bit Interleave Parity-8) ...
  • Page 819 Alarms/Errors ODUx-TCM ODUx-TCM Alarms BDI (Backward Defect Indication)  RX: The BDI bit in the TCM overhead field Byte 3, bit 5 is “1” for at least 5 consecutive frames. TX: Generates a "1" in the BDI bit of the TCM overhead field (byte 3, bit 5) continuously.
  • Page 820 Alarms/Errors ODUx-TCM Errors BEI (Backward Error Indication)  RX: Interleaved block in error detected by the corresponding ODU tandem connection monitoring sink using the BIP-8 code. ODU TCM BEI ODU BEI bits BIP violations BIP violations bits (1234) (1234) 0000 0101 0001 0110...
  • Page 821 Alarms/Errors OPUx OPUx Note: OPUx is displayed under ODUx alarms/errors group. Alarms AIS (Alarm Indication Signal)  Available on the OPU client signal (designated as LO in the standard). RX: A PRBS11 pattern is received indicating a failure of the client signal.
  • Page 822 Alarms/Errors OPUx MSIM Monitoring check box when selected (default) monitors the  MSIM alarm. OOMFI (Out of OPU Multi-Frame Identifier)  RX: OPU Multi-frame Identifier number are in error for at least 5 consecutive OTU frames. Available for OPU4 of a mapped signal. PLM (Payload Mismatch) ...
  • Page 823 Alarms/Errors Alarms Exc. Skew (Excessive Skew)  RX: The skew exceeds the defined threshold (see Skew Alarm Threshold (bits) on page 556). LOF (Loss of Frame)  RX: OOF is present for at least 3 ms. LOL (Loss of Lane Alignment) ...
  • Page 824 Alarms/Errors OTUx OTUx Note: Available for OTU4, OTU3, OTU3e1, OTU3e2, OTU2, OTU2f, OTU1f, OTU2e, OTU1e, and OTU1. Alarms AIS (Alarm Indication Signal)  Available with serial interfaces only. RX: Polynomial number 11 (PN-11) is over all OTU frame bits including FAS and MFAS for at least 3 consecutive 8192 bit-interval.
  • Page 825 Alarms/Errors OTUx LOF (Loss of Frame)  RX: OOF is present for at least 3 ms. TX: Generates error in all FAS bits continuously. LOM (Loss Of Multiframe)  RX: OOM is present for at least 3 ms. TX: Generates error in MFAS bits continuously. OOF (Out-Of-Frame) ...
  • Page 826 Alarms/Errors OTUx Errors BEI (Backward Error Indication)  RX: SM BEI errors are received from the DUT (value 0 to 8). OTU BEI bits ODUk BEI bits BIP violations BIP violations (1234) (1234) 0000 0101 0001 0110 0010 0111 0011 1000 0100 1001 to 1111...
  • Page 827 Alarms/Errors FEC-CORR-SYM (FEC - Correctable - Symbol)  RX: Statistics on symbols (SYMB) corrected by the FEC. TX: Generates 1 symbol (byte) containing 8 bits in error. FEC-STRESS (Forward Error Correction - Stress)  TX: Generates correctable errors composed of a random number of symbol errors (less or equal to 8) containing a random number of bits distributed all over the OTU frame.
  • Page 828 Alarms/Errors Loss Sync  RX: The Slave Clock does not receive packet timing signal messages (Sync, Follow Up, Delay Resp) within their expected arrival time for a duration exceeding the configured Receipt Timeout (refer to Alarm Timeout/Threshold on page 146). QL Mismatch ...
  • Page 829 Alarms/Errors QoS Metrics QoS Metrics Note: Available with Traffic Gen & Mon and eCPRI BERT test applications. Errors Frame Loss  RX: A sequence number is missing in the received frames. Out-of-Seq. (Out-of-Sequence)  RX: The received frame sequence number is either smaller than the expected frame sequence number or is a duplicate number.
  • Page 830 Alarms/Errors RS-FEC (CPRI) RS-FEC (CPRI) Errors FEC-COR-CW (FEC Correctable Codeword)  RX: FEC Codeword that contains errors and were corrected. FEC-UNCOR-CW (FEC Uncorrectable Codeword)  RX: FEC Codeword that contains errors and were not corrected. Pre-FEC-SYMB (Pre-FEC Symbol)  RX: FEC symbol errors are corrected and counted once for each 10-bit symbol.
  • Page 831 Alarms/Errors RS-FEC (Ethernet) Skew Alarm Threshold (bits), available with 50GE, allows setting the  threshold value that will be used to declare a skew alarm: 0 to 10550 (default is 4781). Default restore the default skew alarm threshold value. Errors FEC-COR-CW (FEC Correctable Codeword) ...
  • Page 832 Alarms/Errors S-OAM and MPLS-TP OAM S-OAM and MPLS-TP OAM Alarms Note: The following alarms are available when the CC Function check box is selected (refer to page 303). Loss Continuity  RX: No CCM frames with same or lower MEG/MD Level were received from the peer MEP within an interval equal to 3.5 times the configured CCM transmission period.
  • Page 833 Alarms/Errors S-OAM and MPLS-TP OAM Unexp MEG/MD Lvl (Unexpected MEG/MD Level)  RX: A CCM frames was received from the peer MEP with lower MEG/MD Level. The alarm is cleared when no CCM frames with lower MEG/MD Level are received within an interval equal to 3.5 times the configured CCM transmission period.
  • Page 834 Alarms/Errors S-OAM and MPLS-TP OAM C-DCI (Client Signal Fail - Defect Clear Indication)  TX: Generates a CSF frame with CSF type equal to 011. C-FDI (Client Signal Fail - Forward Defect Indication)  RX: A CSF frame is received with CSF type equal to 001.The alarm is cleared when no CSF (C-FDI) frames are received during an interval equal to 3.5 times the CSF transmission period indicated in the last received CSF (C-FDI) frame, or when a CSF frame is received with...
  • Page 835 Alarms/Errors Section/Line / RS/MS LCK (Locked)  RX: An valid LCK frame is received. A valid frame has its destination MAC address matching either the unit port Unicast MAC address or a Multicast class 1 address (refer to page 774), VLANs matching the unit port VLANs, and MEG level matching the local MEG level.
  • Page 836 Alarms/Errors Section/Line / RS/MS SEF / RS-OOF (Severely Errored Framing / Out-Of-Frame)  RX: A minimum of four consecutive errored framing patterns are received. TX: Generates four consecutive errored framing patterns. TIM-S / RS-TIM (Trace Identifier Mismatch)  RX: The received J0 Trace doesn’t match the expected message value. Only available when Enable TIM-S/RS-TIM check box is selected (refer to Traces (SONET/SDH) on page 372).
  • Page 837 Alarms/Errors STS-x/AU-x STS-x/AU-x Alarms AIS-P / AU-AIS (Alarm Indication Signal)  RX: The H1 and H2 bytes contain an all-ones pattern in three consecutive frames or more. TX: Generates an all-ones pattern over H1, H2, H3, and SPE. ERDI-PCD / ERDI-CD (ERDI - Connectivity Defect) ...
  • Page 838 Alarms/Errors STS-x/AU-x LOP-P / AU-LOP (Loss Of Pointer)  RX: A valid pointer is not found in N consecutive frames (where 8  N  10), or that N consecutive NDFs (“1001” pattern) are detected (non-concatenated payloads). TX: Generates a non-valid pointer. PDI-P (Payload Defect Indication) ...
  • Page 839 Alarms/Errors SyncE UNEQ-P / HP-UNEQ (Unequipped)  RX: The C2 byte contains “00 H” in five consecutive frames. Only available when PLM-P/UNEQ-P / HP-PLM/HP-UNEQ is enabled (refer to Labels on page 239). TX: Generates an all-zeros pattern over POH and SPE. Errors B3 (BIP-8, Bit-Interleave Parity - 8 bits) ...
  • Page 840 Alarms/Errors TCM (SONET/SDH) TCM (SONET/SDH) Note: TCM is displayed for rates up to OC-192/STM-64 under the STS-x/AU-x or VT/TU alarms/errors group when TCM is enabled. Alarms TC-IAIS-P / HPTC-IAIS (Incoming Alarm Indication Signal)  RX/TX: Bits 1 through 4 of the N1 byte are set to “1110”. TC-IAIS-V / LPTC-IAIS (Incoming Alarm Indication Signal) ...
  • Page 841 Alarms/Errors TCM (SONET/SDH) TC-UNEQ-P / HPTC-UNEQ (Unequipped)  RX/TX: An all “0”s pattern is received/generated in the higher order path signal label byte (C2), the TCM byte (N1) and the path trace byte (J1), and a valid BIP-8 bytes (B3). TC-UNEQ-V / LPTC-UNEQ (Unequipped / LPTC - Unequipped) ...
  • Page 842 Alarms/Errors TCM (SONET/SDH) TC-OEI-P / TC-OEI-V / HPTC-OEI / LPTC-OEI (Outgoing Error  Indication) RX: Indicates errored blocks of the outgoing VTn/VC-n (bit 6 of the N1 or Z6/N2 byte). TX: Bit 6 of the N1 or Z6/N2 byte is set to 1. TC-REI-P / TC-REI-V / HPTC-REI / LPTC-REI (Remote Error Indication) ...
  • Page 843 Alarms/Errors Transcoding Transcoding Note: Only available with OTU3 BERT test application with 40 GbE client. Alarms Hi-BER1027B (High-Bit Error Ratio 1027 Blocks)  RX: The bit error ratio is > 10 on a fixed 250 µs time period. LOAML1027B (Loss of Alignment Marker Lock 1027 Blocks) ...
  • Page 844 Alarms/Errors VT/TU VT/TU Alarms AIS-V / TU-AIS (Alarm Indication Signal)  RX: V1 and V2 bytes for the VT/TU path contain an all-ones pattern in three (SONET) / five (SDH) consecutive superframes. TX: Generates an all-ones pattern for the V1 and V2 bytes of the VT/TU path and payload.
  • Page 845 Alarms/Errors VT/TU LOP-V / TU-LOP (Loss Of Pointer)  RX: A valid pointer is not found in N consecutive superframes (where 8  N  10), or if N consecutive NDFs (“1001” pattern). TX: Generates a non-valid pointer. PLM-V / LP-PLM (Payload Label Mismatch) ...
  • Page 846 Alarms/Errors VT/TU UNEQ-V / LP-UNEQ (Unequipped)  RX: Bit 5 through 7 of the V5 byte contain “000” for five consecutive superframes. Only available when the PLM-V/UNEQ-V / LP-PLM/LP-UNEQ check box is selected (refer to page Labels on page 239). TX: Generates samples of unequipped VT/LP signal label (bits 5 through 7 of V5 byte are set to “000”).
  • Page 847 Alarms/Errors Alarms AIS-L (Alarm Indication Signal - Line)  RX: Bits 6, 7 and 8 of the K2 byte contain the “111" pattern in five consecutive frames. AIS-P (Alarm Indication Signal - Path)  RX: The H1 and H2 bytes for a STS path contain an all-ones pattern in three consecutive frames or more.
  • Page 848 Alarms/Errors LOP-P (Loss Of Pointer - Path)  RX: For non-concatenated payloads, a valid pointer is not found in N consecutive frames (where 8 = N = 10), or N consecutive NDFs ("1001" pattern) are detected. PLM-P (Payload Label Mismatch - Path) ...
  • Page 849 Alarms/Errors Errors B1 (BIP-8, Bit-Interleave Parity - 8 bits)  RX: Indicates a Section parity error by performing a routine even-parity check over all Section bits of the previous frame of a composite signal (located in the first STS-1 of an STS-n signal). B2 (BIP-1536, Bit-Interleave Parity - 1536 bits) ...
  • Page 851 Index Index AIS-L ..........823, 835 AIS-P ..........825, 835 # of Sat used .......... 361 AIS-V ............832 Alarm Timeout/Threshold ......146 Alarm/Status ..........574 Alarms ............. 553 10B_ERR ..........796 Alarms background color ......380 1588 PTP ........81, 140, 374 Alarms/Errors Logger .......
  • Page 852 Index Auto-Negotiation ....219, 245, 658 Binary ..........238, 330 Auto-Reject ..........234 Binary/Hex ........141, 262 Auto-Response Loopback Status ..... 504 BIP-2 ............834 AU-x ............825 BIP-8 ........806, 808, 814 Available ..........311 Bit Error .. 151, 156, 159, 182, 204, 382, 488, Available BB_Credit .........
  • Page 853 Index c1 ............422 CFP4 Control ..........548 C2 ........... 239, 603 CFP4 Control Pins ........549 cable ............725 CFP4 MDIO/I2C Access Interface ....550 Cable Delay ........359, 634 CFP4 Power Class ........548 Cable Delay Compensation (ns) ....375 CFP4 Reference Clock .......
  • Page 854 Index CnD CRC-5 ..........799 CRC ............803 Code ............403 CRC-4 ............784 Code Word ..........472 CRC-6 ............782 Codeword ....... 401, 565, 572, 573 C-RDI ............822 Collision ..........787 Critical Event ........... 502 Command/Response ........ 568 CSF ..........
  • Page 855 Index Defaults ........... 202 Disruption Monitoring ..153, 157, 160, 183 Defect ......152, 394, 424, 457 Disruption Time ..424, 457, 471, 476, 482 Delay ....... 141, 262, 616, 632 Distance To Fault ........466 Delay (ms) ..........441 DM ..........
  • Page 856 ERDI-SD ........... 825 Excess Steps ..........447 ERDI-VCD ..........832 Excessive Skew Test ......... 491 ERDI-VPD ..........832 EXFO|Worx Interop ......... 296 ERDI-VSD ..........832 EXI ........216, 405, 585, 587 Error Count ........416, 579 Exit button ..........36 Error Running Total .........
  • Page 857 Index Field Match ..........611 Filter ..........408, 578 F1 ............597 Mask ..........579 F2 ............604 Operator ..........579 F3 ............605 Value ..........578 Fabric ............207 Filter Configuration ......... 577 Fabric Status ..........208 Filter x ............609 Factory Default ........
  • Page 858 Index Frame Sync ..........472 Generated Messages ....565, 569, 572 Frame Type ......273, 404, 535 Generated QL ......225, 356, 437 Framed ............ 117 Generic Framing Procedure ..... 744 Framed L2 ..........137 GFP ............744 Framed Layer 1 ........129 GFP frame structure .........
  • Page 859 Index Global Thresholds Type ......353 HPTC-UNEQ ........340, 829 Global Verdict ........... 34 HPTC-VIOL ..........830 GM Info ........... 144, 460 HP-TIM ........373, 533, 826 GM IP Address ......... 141 HP-UNEQ ..........827 GMP ............580 Hyperframe ..........472 GNSS ............
  • Page 860 Index Interface/Rate . 115, 127, 133, 135, 136, 244, J0 ............. 596 Internal ........166, 172, 657 J0 Trace ........... 226, 543 Internal 1/160 .......... 171 J1 ............. 602 Internal 1/40 ..........171 J1 Trace ........... 226, 543 Internal 1/8 ..........171 J2 .............
  • Page 861 Index label, identification ......... 684 Line ............823 Labels ..........239, 413 Line Coding ......169, 170, 322 Lane ............395 Line Utilization ..423, 489, 534, 579, 655 Lanes Mapping & Skew ......552 LINK ......... 180, 217, 243 Lanes with Disruption ......
  • Page 862 Index LOF-S ............823 LPTC-IAIS ..........828 Logger ............. 418 LPTC-LTC ..........828 Alarms/Errors Logger ......418 LPTC-ODI ..........828 ISDN ..........408 LPTC-OEI ..........830 Logger Full 454, 458, 469, 474, 480, 487, 496, LPTC-RDI ..........828 502, 505, 508, 510, 512, 517, 520, LPTC-TIM .........
  • Page 863 Index Max Jitter ..........319 Min Round Trip Time ....... 619 Max Latency ........319, 486 Min RX Power ........227, 321 Max Offset ..........501 Min TE (ns) ..........528 Max Rate ......... 394, 488 Min TIE (ns) ..........529 Max Round Trip Time ......
  • Page 864 Index MS-RDI ............ 823 Number of Burst Sequence ...... 189 MS-REI ............. 824 Number of Calls ....... 314, 348 MS-REI Computation Method ....340 Number of Channels ......314, 348 MTIE ............398 Number of samples ......... 530 MTIE/TDEV ..........397 Number of Symbols .........
  • Page 865 Index Operator Overwrite ......... 212, 213 Filter ..........579 Overwrite Fixed Stuff ....... 340 Operator Identifier ......213, 402 Operator Specific ..... 213, 371, 402, 531 Operator Sys Access ........ 234 Packet Capture ........609 Optical Lane ........227, 320 Packet Pause Time ........
  • Page 866 Index P-bit ............783 Pointer Value ........620, 629 PCS BIP-8 ..........791 Port #1 to Port #2 ........284 PCS BIP-8 Mask ........791 Port #2 to Port #1 ........284 PCS Lane ......... 552, 553 Port A ............20 PDI-P ............
  • Page 867 Index Prompt ............ 234 Ramp ............351 Prop. Delay ........463, 466 EtherSAM ........... 201 Prop. Delay Threshold ......163 Service Configuration ......447 Propagation Delay ........635 Ramp Cycle Count ........352 Protected Channel ........558 Ramp Duration ........201 Protocol ...........
  • Page 868 Index RELEASE COMPLETE ........ 410 Restore Default at Start-Up ...... 357 Reliability ......... 142, 263 Restore eCPRI BERT Defaults ....161 Re-Login ..........207 Restore EtherSAM Defaults ...... 194 Remote block .......... 109 Restore ISDN PRI Defaults ......238 Remote Control ........357 Restore OTN BERT Defaults ......
  • Page 869 Index RS-OOF ............ 824 Sa8 ..........640, 641 RS-TIM ........373, 533, 824 SABME ............. 408 RTD ..........630, 633 safety RtoL ............298 battery ..........680 RTT .......... 493, 633, 635 caution ........... 3 Running ..........631 conventions ........... 3 Runt ............
  • Page 870 Source IP Address ......258, 615 Shaping button ........352 Source IP Multiplicator ......261 Source MAC Address ....... 187, 254 shipping to EXFO ........688 Si0 ........... 640, 641 Source Node ID ........558 Si1 ........... 640, 641 Source Port ........263, 264 SID ............
  • Page 871 Index Static ....... 258, 260, 266, 268 Subchannel ..........222 Statistics ..........500 Subnet ............. 646 STATUS ............ 411 Subnet Mask ......247, 261, 266 Status 496, 504, 509, 513, 515, 618, 631, 654 Subtest Duration ......191, 193 Status Bar ..........30 Subtests ...........
  • Page 872 Index TC-TIM ............. 373 TC-TIM-P .......... 533, 828 T0 ............571 TC-TIM-V .......... 533, 828 T0-1 ............571 TC-UNEQ-P ........340, 829 T0-2 ............571 TC-UNEQ-V ........340, 829 T0-3 ............571 TC-VIOL-P ..........830 Target ............646 TC-VIOL-V ..........830 Target RP3 Address .........
  • Page 873 Index Test Status 454, 458, 463, 469, 474, 480, 487, TOS/DS ........141, 262, 297 494, 502, 508, 512, 517, 520, 523, TOS/DS Config ......... 141, 262 525, 527 Total ..........405, 406 Test Timer ..........35 Total Burst Test Time ....... 189 tHEC ............
  • Page 874 Index TS16 AIS ..........784 TX Rate ... 148, 176, 184, 205, 306, 345, 351, TS16 Frame 0 Bit 5, 7, 8 ....640, 641 447, 453, 478 TST ............540 TX Seed ........... 224 TST RX Rate ..........516 TX Signaling ........
  • Page 875 Index User Defined UPI ........395 VT Path (V5) ........240, 413 User Information ........357 VT Path (Z6) ........373, 533 user payload identifier ......751 User Performance ........276 User Stream Destination from Test Application Wander ............83 warranty UserDefined CMF ........
  • Page 876 Index Z5 ............605 Z6 ............607 Z7 ............608 Zero Code Suppression ......329 FTB-700/800/900 Series...
  • Page 879 · info@EXFO.com CORPORATE HEADQUARTERS 400 Godin Avenue Quebec (Quebec) G1M 2K2 CANADA Tel.: 1 418 683-0211 · Fax: 1 418 683-2170 TOLL-FREE (USA and Canada) 1 800 663-3936 © 2020 EXFO Inc. All rights reserved. Printed in Canada (2020-07) ...

This manual is also suitable for:

Ftb-800 seriesFtb-900 series

Table of Contents
