K-122
98666 00122
8

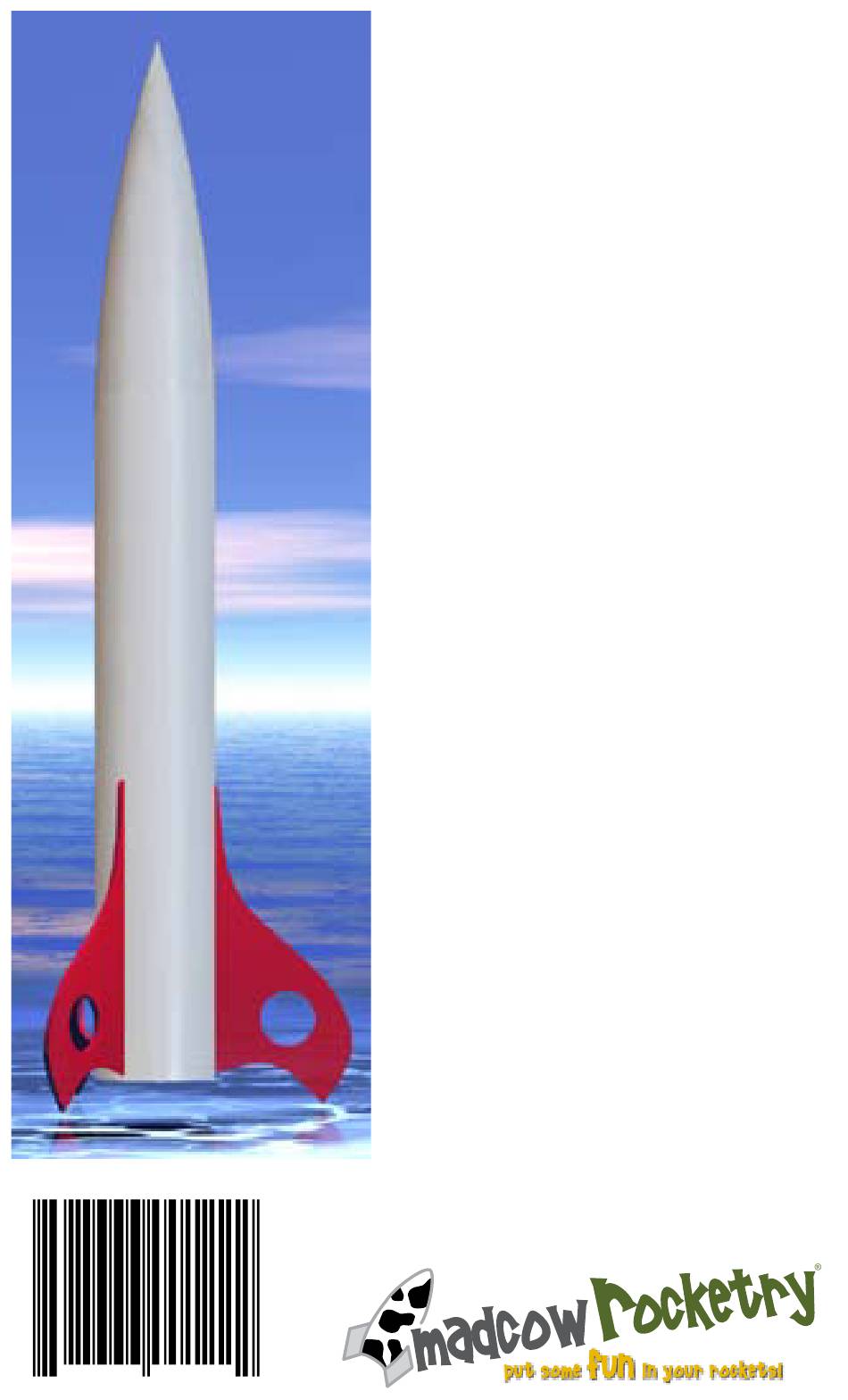

PiranHa
Specifications:
Parts List
Optional Recovery System
2
Length: 24.5"
Diameter 2.6"
Weight: 21oz
Recovery: 24" Nylon Chute
Motor Mount: 29mm
Fins: 3 - 1/16" G10
Estimated CP: 19" from nose tip
1.
(1) Plastic Nose Cone
3.
(1) Pre-slotted body tube
4.
(2) G10 centering rings
5.
(1) 29mm motor tube
6.
(3) G10 fins
7.
(1) Eyebolt (2) nuts
8.
(1) Nylon shock cord
9.
(2) Rail Buttons and Screws
1.
(1) 9"x9" flameproof chute protector
2.
(1) 24" Nylon chute
™
Advertisement
Related Manuals for Madcow Rocketry PIRANHA
Summary of Contents for Madcow Rocketry PIRANHA
- Page 1 PiranHa ™ Specifications: Length: 24.5” Diameter 2.6” Weight: 21oz Recovery: 24” Nylon Chute Motor Mount: 29mm Fins: 3 - 1/16” G10 Estimated CP: 19” from nose tip Parts List (1) Plastic Nose Cone (1) Pre-slotted body tube (2) G10 centering rings...
- Page 2 Continue sliding the assembly inside the body tube ejection motor gasses will melt the nylon chute. until the aft end of the motor tube is even with the aft end of the body tube. It’s a good ©2012 MadCow Rocketry™ Piranha™ Assembly Piranha™ Assembly...
- Page 3 IMPORTANT: In no event shall Madcow Rocketry be liable for any direct, indirect, punitive, incidental, special consequential damages whatsoever arising out of or connected with the use or misuse of it’s products.
