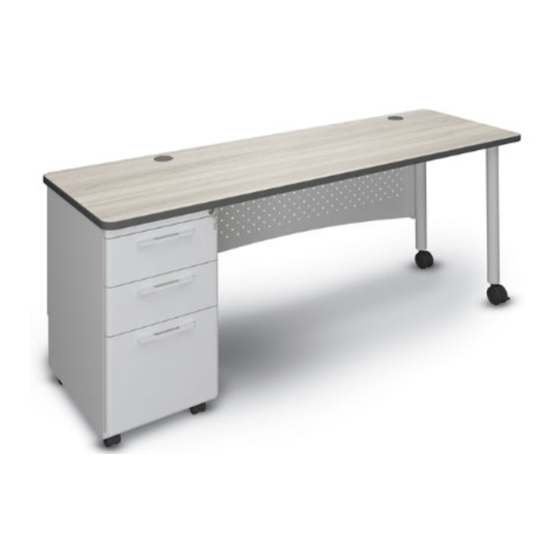

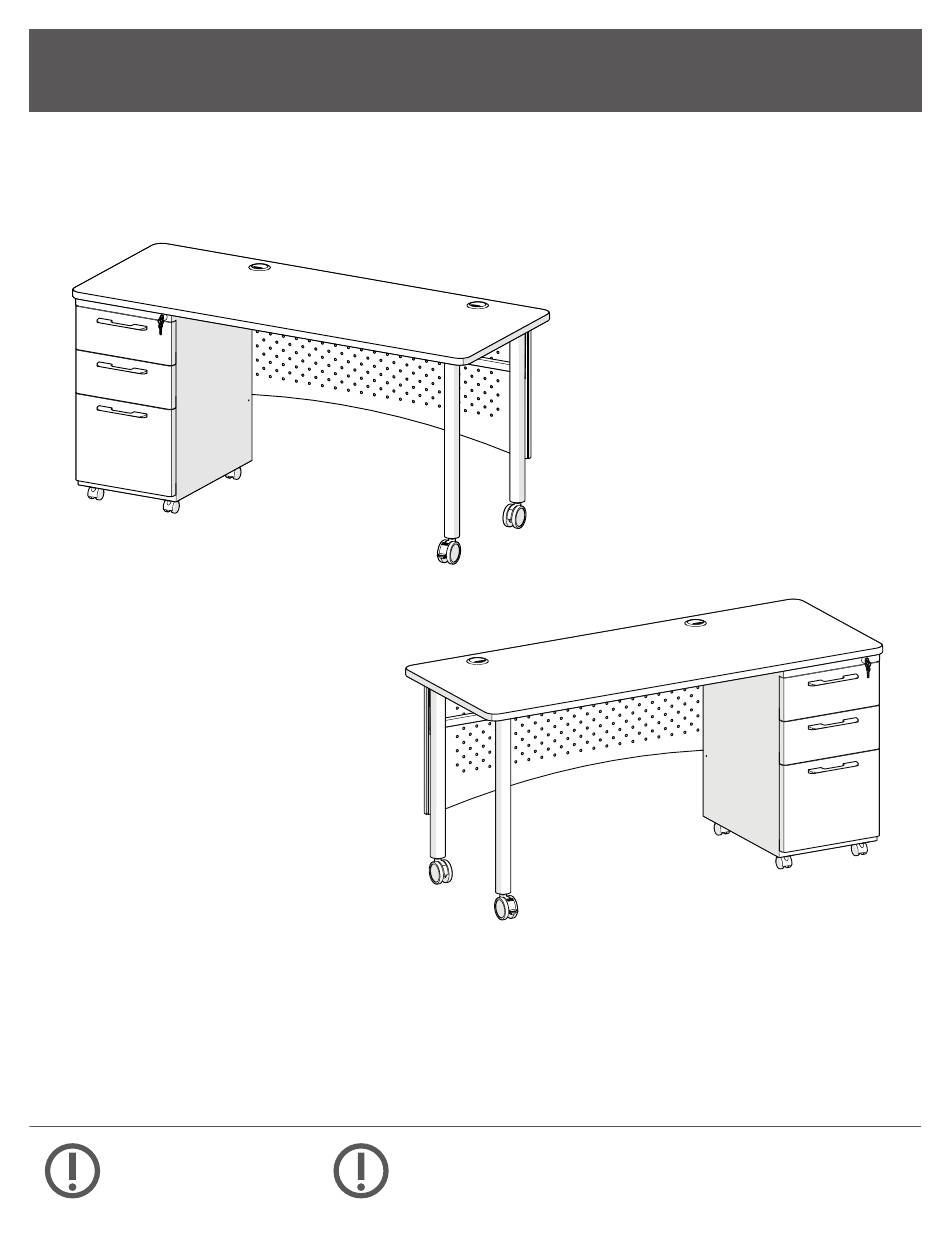

- Page 1 Single Pedestal Teacher’s Desk 91774, 91775, 91776, 91777-XXXX-XX LEFT HANDED RIGHT HANDED ASSEMBLY INSTRUCTIONS INSTRUCCIONES DE ENSEMBLAJE INSTRUCTIONS DE MONTAGE DO NOT THROW AWAY! NO LA TIRE NE PAS JETER UPDATED AS OF: 05/07/2021 1 of 8...
- Page 2 Parts Hardware P1 - Table Top A - Leg Panel Screw (M6 x 75mm) B - Ped. Panel Screw P2 - Modesty Panel (M6 x 12mm) C - Ped. Wood Screw (#12 x 1”) P3 - Front Leg D - Leg Wood Screw (#10 x 1”) P4 - Back Leg E - Pedestal Casters...
- Page 3 WARNINGS AND DISCLAIMERS ADVERTENCIAS Y RENUNCIAS AVERTISSEMENTS Review full assembly instructions and Previo a comenzar el proceso de Avant de commencer l’ assamblage check that all parts are present before ensamblaje favor revisar veuillez consulter instructions beginning assembly. Heavy or large instrucciones y asegurarse que cuenta con complètes et vérifier si vous avez toutes furniture may require multiple persons in...
- Page 4 STEP 1 Open shelves and remove handle screws. Swap handles to front of shelves and insert handle screws from inside of shelves to secure handles in place. STEP 2 Remove shelves by first extending shelf to furthest setting until catch engages. To slide shelf off of rails, rotate visible catch levers on both sides of shelf either up or down while gently pulling shelf.
- Page 5 STEP 3 Set pedestal (with shelves removed) upside down on top. Secure to top with wood screws inserted through holes in pedestal top brackets. (Left handed desk depicted, pre-drilled holes for pedestal will be on opposite end of top for right handed desks). STEP 4 Set Back Leg on Top and using pre-drilled holes as a guide for placement, screw to top with six wood screws.
- Page 6 STEP 5 Install Modesty Panel using two screws through Back Leg and two screws within pedestal. STEP 6 Screw Front Leg to Top using eight wood screws. UPDATED AS OF: 05/07/2021 6 of 8...
- Page 7 STEP 7 Install Casters to bottom of pedestal. Use Locking Casters in front of pedestal and Install Casters to bottom of pedestal. Use Locking Casters in front of pedestal and Non-Locking Casters in the back. Secure casters with screws. Non-Locking Casters in the back. Secure casters with screws. STEP 8 STEP 8 Screw casters with Lock Washers into legs.
- Page 8 STEP 9 With at least two people, carefully flip desk upright. Push in Plastic Caps into inserts on either side of pedestal. STEP 10 Insert shelves back into pedestal box and place accessories as desired within shelves. THIS COMPLETES ASSEMBLY INSTRUCTION UPDATED AS OF: 05/07/2021 8 of 8...
