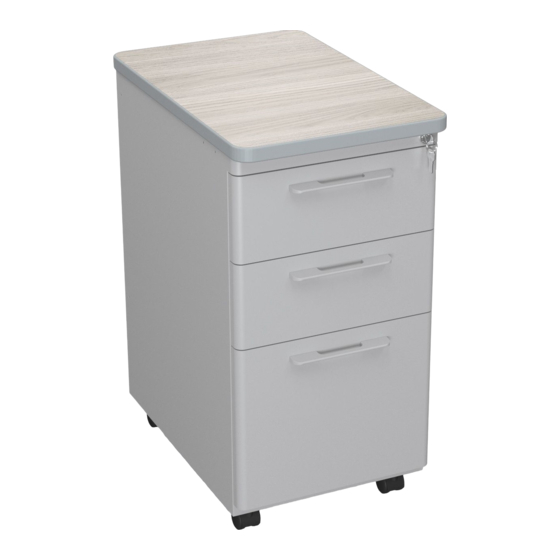

- Page 1 Single Pedestal with Laminate Top **DISCARD THIS INSTRUCTION IF USING WITH DESK** ASSEMBLY INSTRUCTIONS INSTRUCCIONES DE ENSEMBLAJE INSTRUCTIONS DE MONTAGE DO NOT THROW AWAY! NO LA TIRE NE PAS JETER UPDATED AS OF: 05/07/2021 1 of 6...
- Page 2 Parts Hardware P1 - Top A - Pedestal Caster Locking B - Pedestal Caster P2 - Pedestal Box Non - Locking C - Caster Screw P3 - Handle D - Wood Screw P4 - Divider Panel E - Plastic Side Cap P5 - Divder Bar F - Plastic Back Cap P6 - Pencil Tray...
- Page 3 WARNINGS AND DISCLAIMERS ADVERTENCIAS Y RENUNCIAS AVERTISSEMENTS Review full assembly instructions and Previo a comenzar el proceso de Avant de commencer l’ assamblage check that all parts are present before ensamblaje favor revisar veuillez consulter instructions beginning assembly. Heavy or large instrucciones y asegurarse que cuenta con complètes et vérifier si vous avez toutes furniture may require multiple persons in...
- Page 4 STEP 1 Open shelves and remove handle screws. Swap handles to front of shelves and insert handle screws from inside of shelves to secure handles in place. STEP 2 Remove shelves by first extending shelf to furthest setting until catch engages. To slide shelf off of rails, rotate visible catch levers on both sides of shelf either up or down while gently pulling shelf.
- Page 5 STEP 3 Set pedestal (with shelves removed) upside down on top. Secure to top with wood screws inserted through holes in pedestal top brackets. STEP 4 Install Casters to bottom of pedestal. Use Locking Casters in front of pedestal and Non-Locking Casters in the back.
- Page 6 STEP 5 Insert shelves back in pedestal. Place file accessories in desired location within shelves. (Optional: Push plastic caps into threaded inserts on either side of pedestal). STEP 6 Optionally customer may choose to plug side and back holes with Plastic Side Caps (E) and Back Caps (F).
