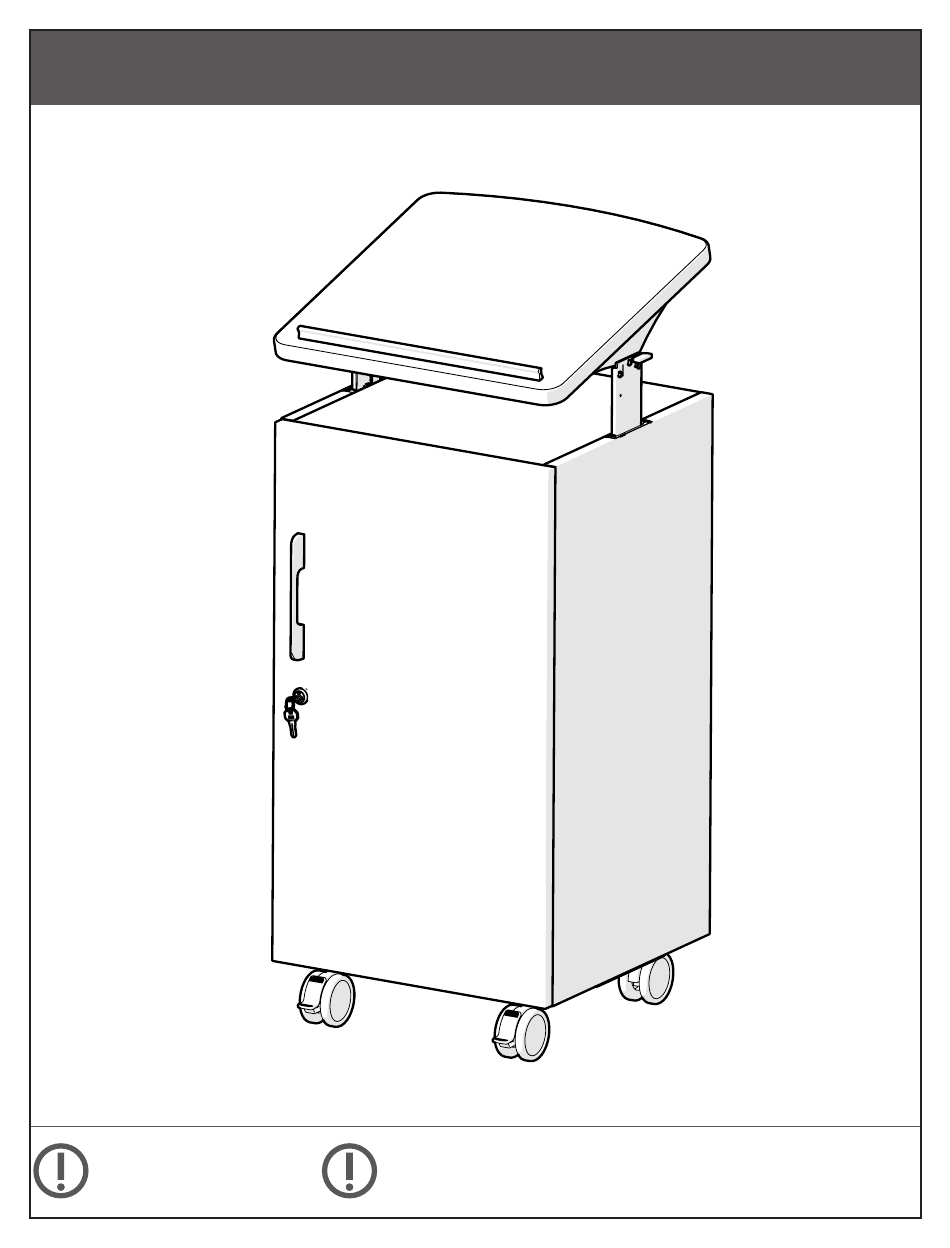

- Page 1 Avid Podium Part Number: 91198 ASSEMBLY INSTRUCTIONS INSTRUCCIONES DE ENSEMBLAJE INSTRUCTIONS DE MONTAGE DO NOT THROW AWAY! NO LA TIRE NE PAS JETER UPDATED AS OF: 2/05/18 1 of 10...
- Page 2 Parts Hardware A- (4x) 4x16mm Wood Screws B- (30x) M6x12mm C- (8x) M4x10mm D- (2x) M4x12mm E- (2x) M4x30mm ASSEMBLY INSTRUCTIONS DO NOT THROW AWAY! INSTRUCCIONES DE ENSEMBLAJE NO LA TIRE INSTRUCTIONS DE MONTAGE NE PAS JETER UPDATED AS OF: 2/05/18 2 of 10...
-
Page 3: Warranty
WARNINGS AND DISCLAIMERS SPANISH TRANSLATION FRENCH TRANSLATION Review full assembly instructions and Previo a comenzar el proceso de Avant de commencer l’ assamblage check that all parts are present before ensamblaje favor revisar veuillez consulter instructions beginning assembly. Heavy or large instrucciones y asegurarse que cuenta con complètes et vérifier si vous avez toutes furniture may require multiple persons in... - Page 4 STEP 1 Install the 4 casters (P9 and P10) to the base (P6) with 16 “B” screws. Locate the locking casters opposite the side with the grommet. STEP 2 Secure the first side panel (P1) to the base assembly using 2 “B” screws. UPDATED AS OF: 2/05/18 4 of 10...
- Page 5 STEP 3 Secure the second side panel (P2) to the base assembly using 2 “B” screws. STEP 4 Install the back panel (P3) using 6 “B” screws. UPDATED AS OF: 2/05/18 5 of 10...
- Page 6 STEP 5 Install the top panel (P8) using 4 “B” screws. STEP 6 Loosen the set screw on the crossbar so it can be shortened, then install in the square slots on both sides of the podium cabinet. Tighten screw to lock in place.
- Page 7 STEP 7 Screw both hinges into place using 2 “C” screws on each (4 total). STEP 8 Attach the door (P4) to the hinges using 4 “C” screws. UPDATED AS OF: 2/05/18 7 of 10...
- Page 8 STEP 9 Screw the handle (P11) to the door using 2 “D” screws. STEP 10 Install the lock assembly (P12) to the door. UPDATED AS OF: 2/05/18 8 of 10...
- Page 9 STEP 11 Place 8 shelf tabs (P14) at the desired height inside the podium. Carefully align them horizontally to ensure the shelves sit flat. STEP 12 Slide the shelves (P7) on top of the tabs with the grommet positioned to the back of the cabinet.
- Page 10 STEP 13 Screw the laminate top (P5) to the adjustable brackets using 4 “A” screws. STEP 14 Install the book stop (P13) to the top using 2 “E” screws. UPDATED AS OF: 2/05/18 10 of 10...
