Need Help - Rekluse EXP Assembly Inspection

Step 8: Reassemble the EXP bases

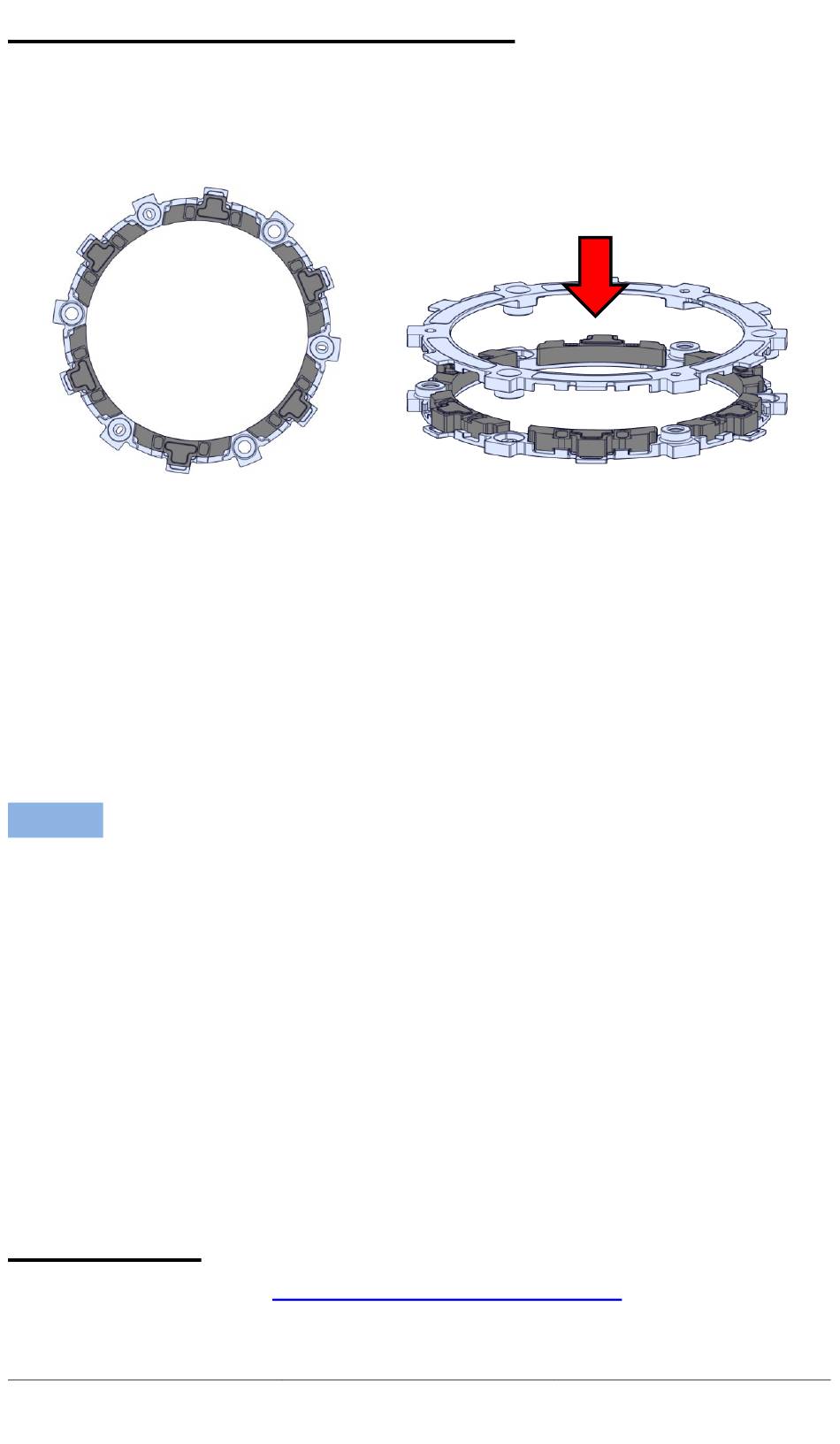

a. Place all of the wedges onto one of the EXP bases, then
place the second base on top of the wedges. Make sure
the wedges have all their Teflon pads in place.
b. Reinstall 3 of the EXP springs, then reinstall the quarter
turn pins. If you have two different color springs, only
install one color of spring on each side.
c. Flip the EXP over and reinstall the remaining springs
and quarter turn pins.
d. Once assembled, push each pair of wedges out from the
inside of the EXP to make sure the wedges move freely.
NOTE: The EXP assembly might have a small gap down the
center line once reassembled. The gap may not be even or
symmetrical. This gap will close during the break-in
procedure.
e. Reassemble the clutch pack and then break-in the new
EXP bases, wedges, and/or Teflon. Break-in directions
can be found in your installation manual or on our
website.
f. Re-check Free Play Gain before riding.
