Rekluse EXP Assembly Inspection page 7

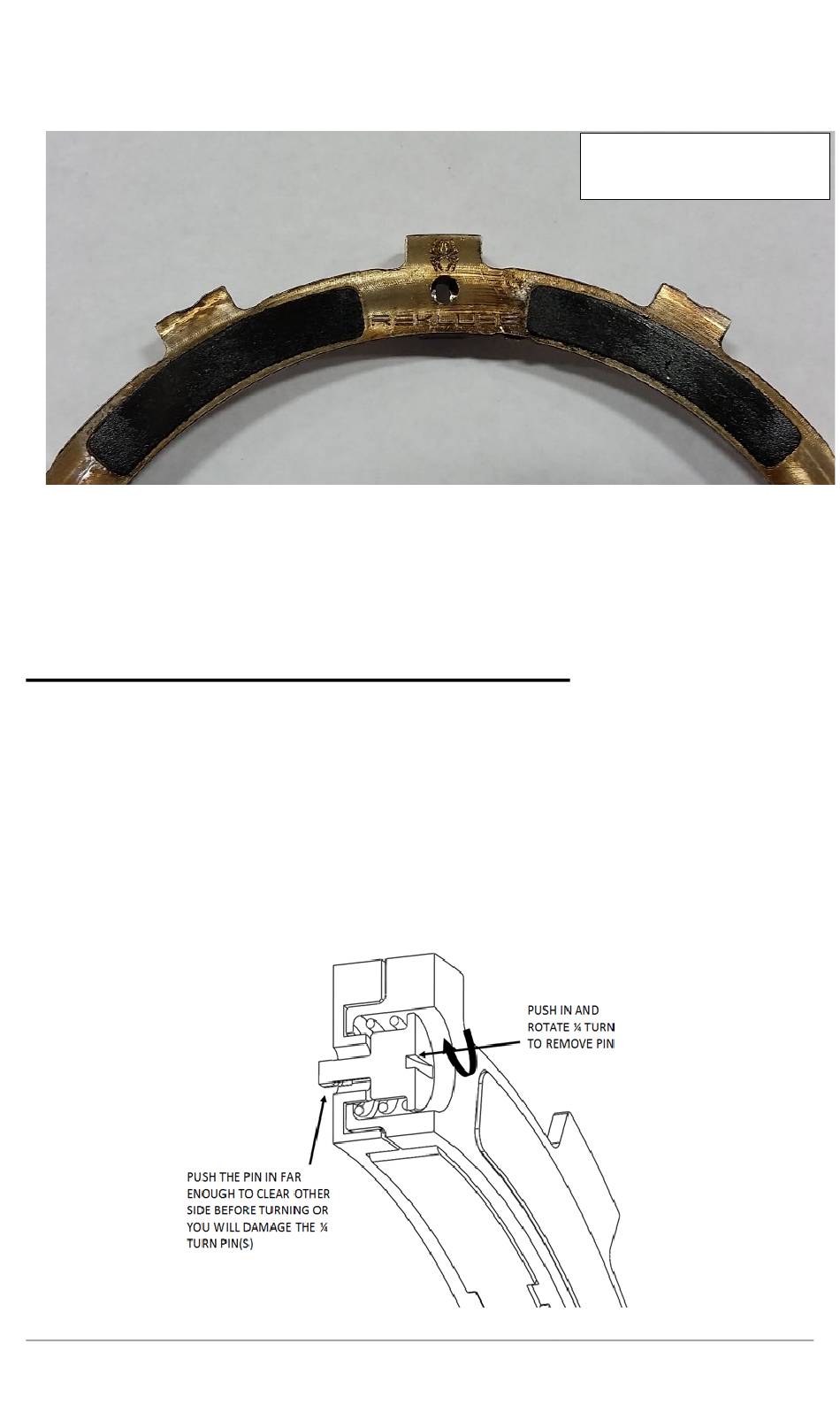

• Heavy staining may indicate high heat from the clutch,
and the bases and wedges may need to be replaced.
g. Once the visual inspection is complete, continue with the
next step.
Step 5: Disassemble the EXP assembly
a. Using a flat-blade screwdriver, push the ¼ turn pin in far
enough to clear the opposite side of the EXP to unlock
the pin.
b. With the pin still pushed past the base, turn ¼ of a turn
to remove the pin and spring. Remove all the remaining
pins and springs the same way.
Doc ID: 193-300A
Revision: 121718
7
Heavy staining
