Rekluse EXP Assembly Inspection page 3

Step 3: Test the wedges

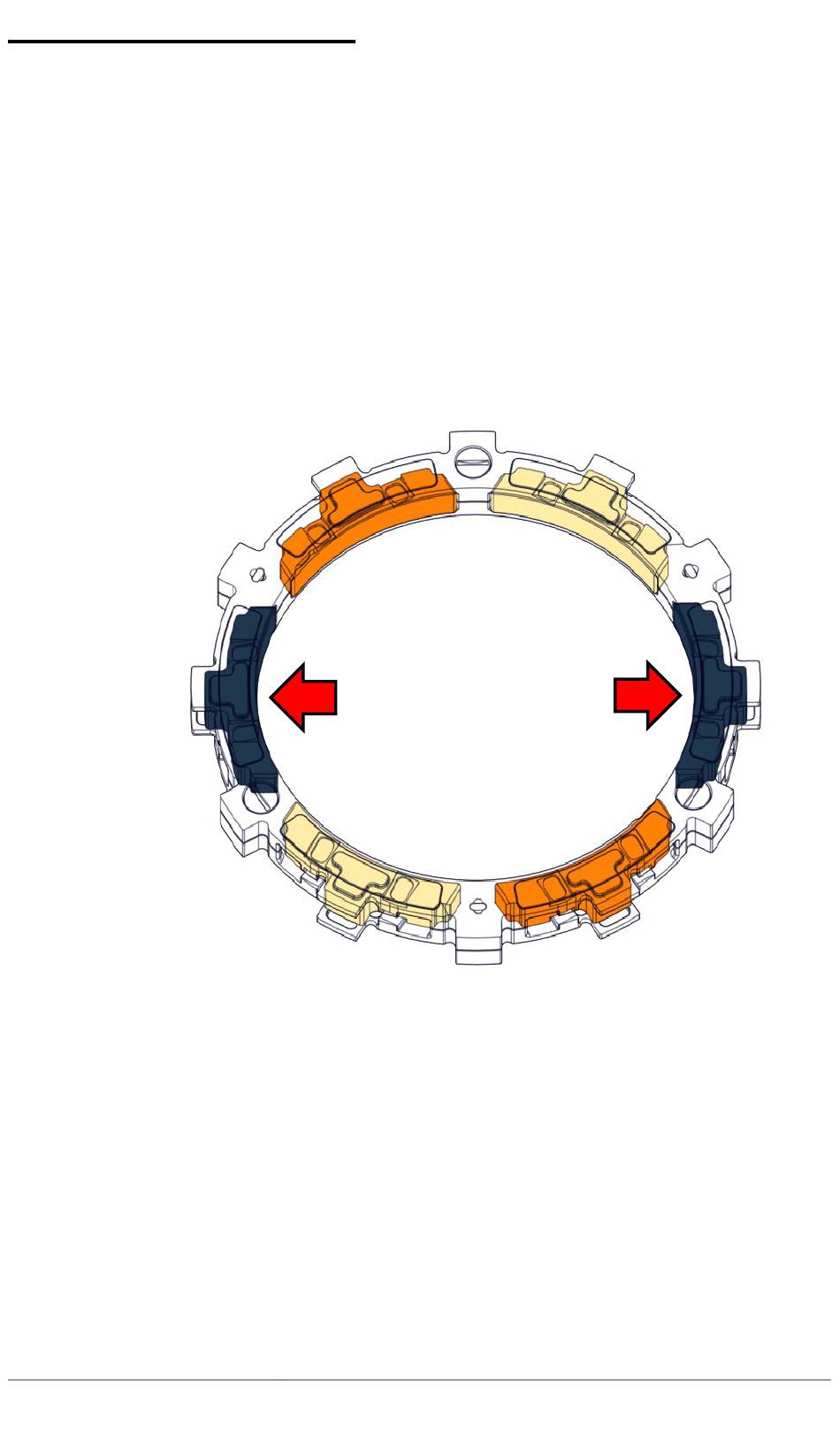

a. Push a pair of wedges (opposite from each other) from
the inside of the EXP assembly toward the outside of the
assembly.
b. Release the wedges once they have reached the outside
edge of the assembly. The wedges should move easily
and spring back in place without catching once released.
Push and release
wedge pairs
• If all the wedges in the EXP assembly spring back,
continue with the next step.
• If one or more of the wedges stick, the EXP bases and
Teflon pads may need to be replaced. Continue with
the next step for further inspection.
Doc ID: 193-300A
Revision: 121718
