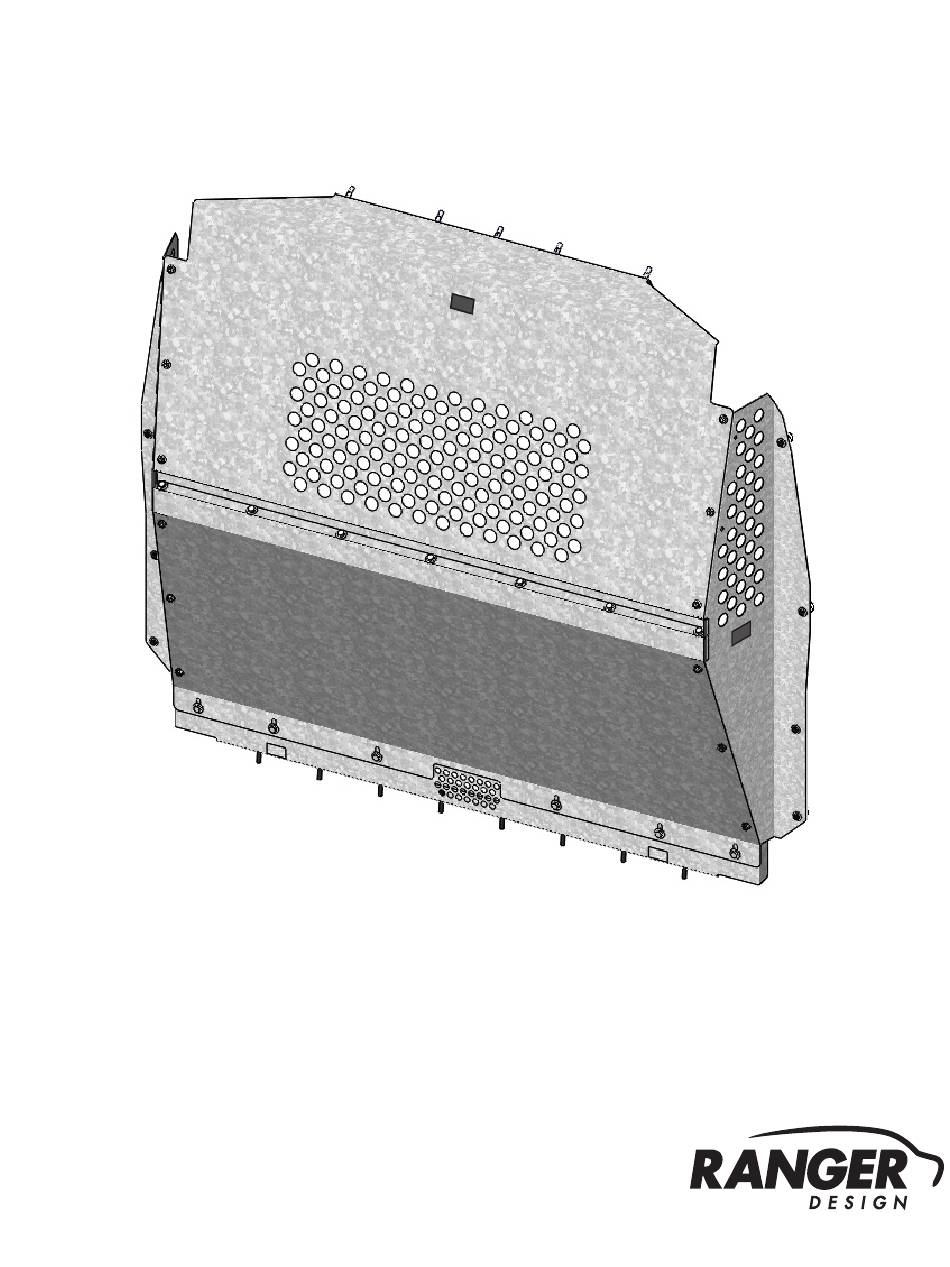

- Page 1 INSTALLATION GUIDE C10-PC CONTOURED PARTITION Promaster City ( Perforated Window, Steel )
-
Page 2: Table Of Contents
7/16" Socket q 10mm Socket q 13mm Socket q T30 Torque Bit q T40 Torque Bit q 9/16" Wrench PERSONS q 1" Holesaw C10-PC Installation Guide | REV. D1 | Page 2 For technical support, contact us at 1-800-565-5321... -
Page 3: Phase 1 - Assembly
Floor Bracket 30-065 Upper Panel 30-500 Edge Trim ( QTY in Inches ) 79-907 Warning Label 94-3010 Assembly Fastener Bag 96-3012 Installation Fastener Bag C10-PC Installation Guide | REV. D1 | Page 3 For technical support, contact us at 1-800-565-5321... -
Page 4: Q 1.1.3 Identify The Assembly And Installation Fastener Bags
24× # 98-157 0.375" ID, × 1.0" OD × 0.25" L #98-158 Retaining Washer NYLON Retaining Washer 8× # 98-158 M16 ( 1/4") NYLON C10-PC Installation Guide | REV. D1 | Page 4 For technical support, contact us at 1-800-565-5321... -
Page 5: Q 1.2 Partition Assembly
1.2.1 Remove all the PVC from all the parts, then attach the upper panel to the lower panel. TOOLS q Cordless Impact q 1/2" Socket HARDWARE USED 7× #90-200 Hex Bolt 5/16" × 1/2" #98-116 Flat Washer #94-116 Serrated Nut C10-PC Installation Guide | REV. D1 | Page 5 For technical support, contact us at 1-800-565-5321... -
Page 6: Q 1.2.2 Attach The Edge Trims On These Locations
1.2.3 Attach both wings to the upper and lower panels. TOOLS q Cordless Impact q 1/2" Socket HARDWARE USED 12× #90-200 Hex Bolt 5/16" × 1/2" #98-116 Flat Washer #94-116 Serrated Nut C10-PC Installation Guide | REV. D1 | Page 6 For technical support, contact us at 1-800-565-5321... -
Page 7: Phase 2 - Installation
7/16" socket until the plusnut locks, then remove the bolt by turning the impact in reverse. FORWARD REVERSE C10-PC Installation Guide | REV. D1 | Page 7 For technical support, contact us at 1-800-565-5321... -
Page 8: Q 2.2 Vehicle Preparation
Tape or roll the cable. NOTE: Pulling the cable unlocked the door. C10-PC Installation Guide | REV. D1 | Page 8 For technical support, contact us at 1-800-565-5321... -
Page 9: Q 2.2.2 Removing Overhead Plastic
NOTE: Do these on both sides of the van. TOOLS q Cordless Impact or Ratchet q Philips Screw Driver q 7/16" Socket C10-PC Installation Guide | REV. D1 | Page 9 For technical support, contact us at 1-800-565-5321... -
Page 10: Q 2.2.3 Driver And Passenger Sides Preparation
1" holesaw. TOOLS q Cordless Drill q Knife q 1" Holesaw C10-PC Installation Guide | REV. D1 | Page 10 For technical support, contact us at 1-800-565-5321... -
Page 11: Q 2.2.4 Ceiling And Floor Preparation
Remove plastic caps and the two D-rings from vehicle floor, then verify if the threads are in good condition. TOOLS q Cordless Impact q T40 Torque Bit C10-PC Installation Guide | REV. D1 | Page 11 For technical support, contact us at 1-800-565-5321... -
Page 12: Q 2.3 Contoured Partition Installation
2.3.1 Attach the floor bracket in the van. TOOLS q Cordless Impact q 13mm Socket HARDWARE USED 8× #90-668 Hex Bolt M8 × 40 #98-122 Lock Washer #98-116 Flat Washer C10-PC Installation Guide | REV. D1 | Page 12 For technical support, contact us at 1-800-565-5321... -
Page 13: Q 2.3.2 Lift The Assembled Partition In The Van, Then Bolt Both Sides Of The Partition In The Van
HARDWARE USED 8× #90-836 Hex Bolt M6 " × 40 #98-118 Lock Washer #98-112 Flat Washer #98-157 Spacers ( 3 ) #98-158 Retaining Washer C10-PC Installation Guide | REV. D1 | Page 13 For technical support, contact us at 1-800-565-5321... -
Page 14: Q 2.3.3 Attach The Upper Panel In The Van, Then Attach The Lower Panel To The Floor Bracket
#90-118 Hex Bolt 1/4" × 1-1/4" #90-200 Hex Bolt 5/16" × 1/2" #98-116 Flat Washer #98-118 Lock Washer #94-116 Serrated Nut #98-112 Flat Washer C10-PC Installation Guide | REV. D1 | Page 14 For technical support, contact us at 1-800-565-5321... -
Page 15: Q 2.3.4 Apply The Warning Label On The Upper Panel
2.3.4 Apply the warning label on the upper panel. NOTE: Put the warning label in a place where it’s easy to see. C10-PC Installation Guide | REV. D1 | Page 15 For technical support, contact us at 1-800-565-5321... - Page 16 “Congratulations, you have successfully installed your Contoured Partition! Thank you for doing business with us.” C10-PC Installation Guide | REV. D1 | Page 16 For technical support, contact us at 1-800-565-5321...
