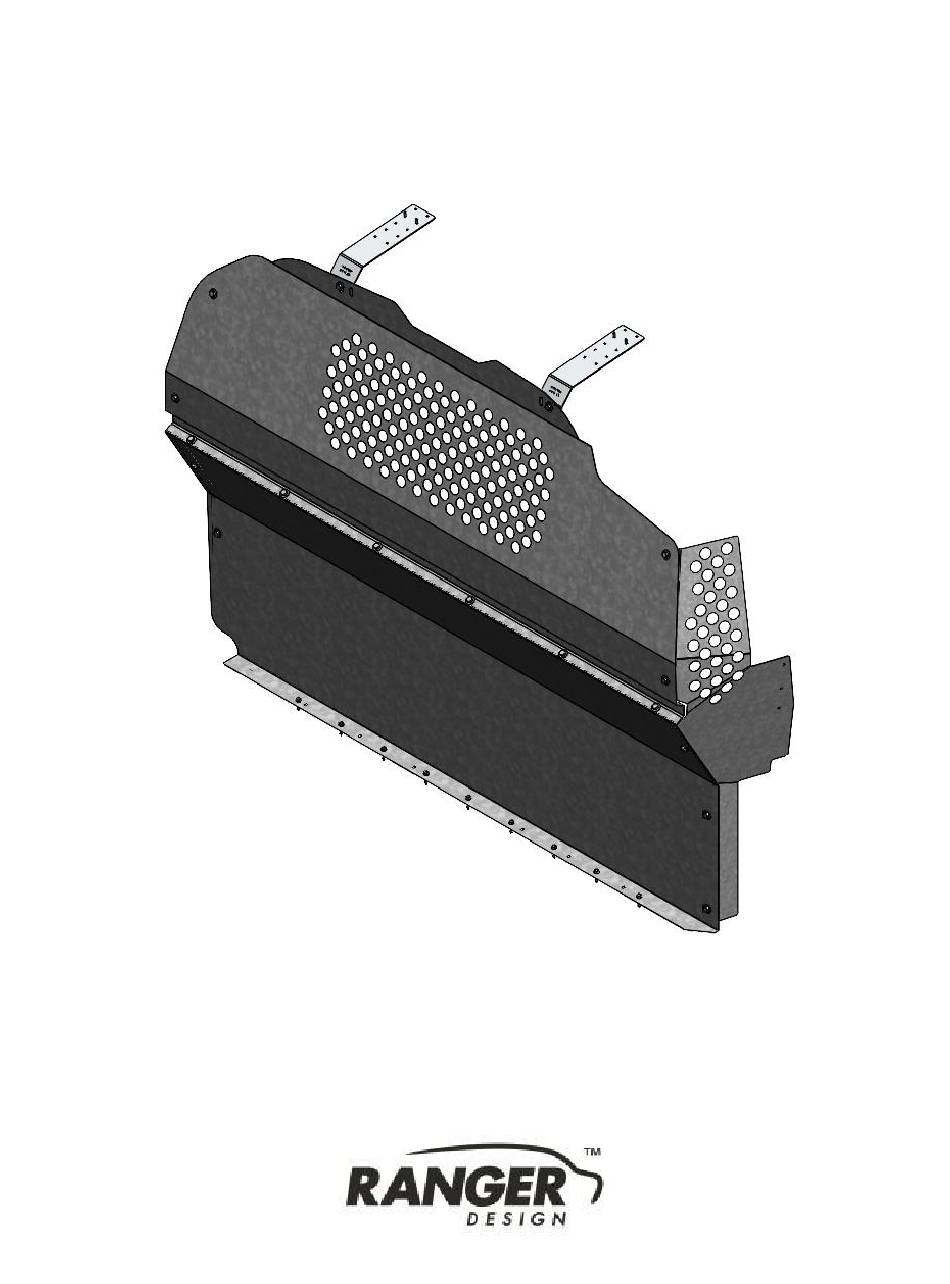

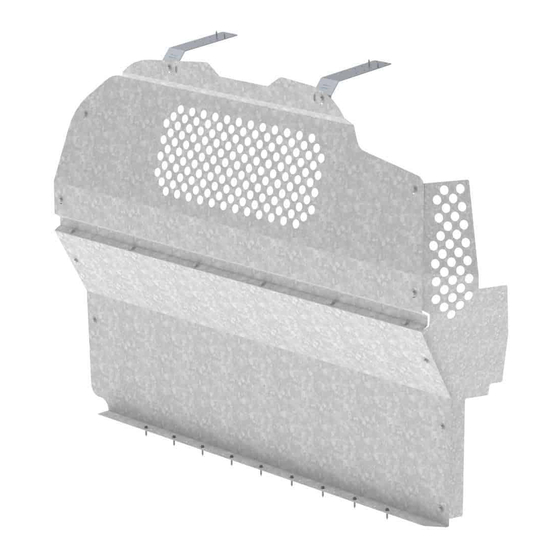

- Page 1 INSTALLATION GUIDE C10-B Partition, Contoured, E-Series...
- Page 2 Before screwing into the vehicle, use caution to avoid wiring harnesses, fuel tanks and battery modules. PREPARATION Tools Needed ½” Wrench ½” Socket Impact ” Socket Square Bit For technical support, contact us at 1-800-565-5321 C10-B Installation Guide | REV.1...
- Page 3 Wing, driver side, E-Series 30-400 Ceiling bracket 30-500x174 Edge Trim, 5/8" x 174" Long 79-932 Warning label - Bilingual, partition 90-3077 Fastener kit for C10-B,C12-B Hardware Kit 90-3077 Item No. Description Qty. 90-204 Bolt hx-hd gr5 5/16"-18x3/4" zinc 92-104 Screw HWH tpAB #14x1-1/4" zinc 92-174 Screw pn-hd sq-dr tpA #10x3/4"...
- Page 4 5/16"-18x3/4" Flat 30-127 Washer5/16 Srr-flg nut 5/16-18 STEP 3 Tools: • Impact • ½” socket Torque to 17ftlbs ½” Socket Hex-hd 5/16"-18x3/4" Flat Washer 5/16 Srr-flg nut 5/16-18 For technical support, contact us at 1-800-565-5321 C10-B Installation Guide | REV.1...
- Page 5 Square driver Pn-Hd sr-dr Square Bit #10x3/4 “You have successfully installed your C10-B, thank you for doing business with us.” For any feedback or suggestions, you may have, please contact: cs@rangerdesign.com For technical support, contact us at 1-800-565-5321 C10-B Installation Guide |...
