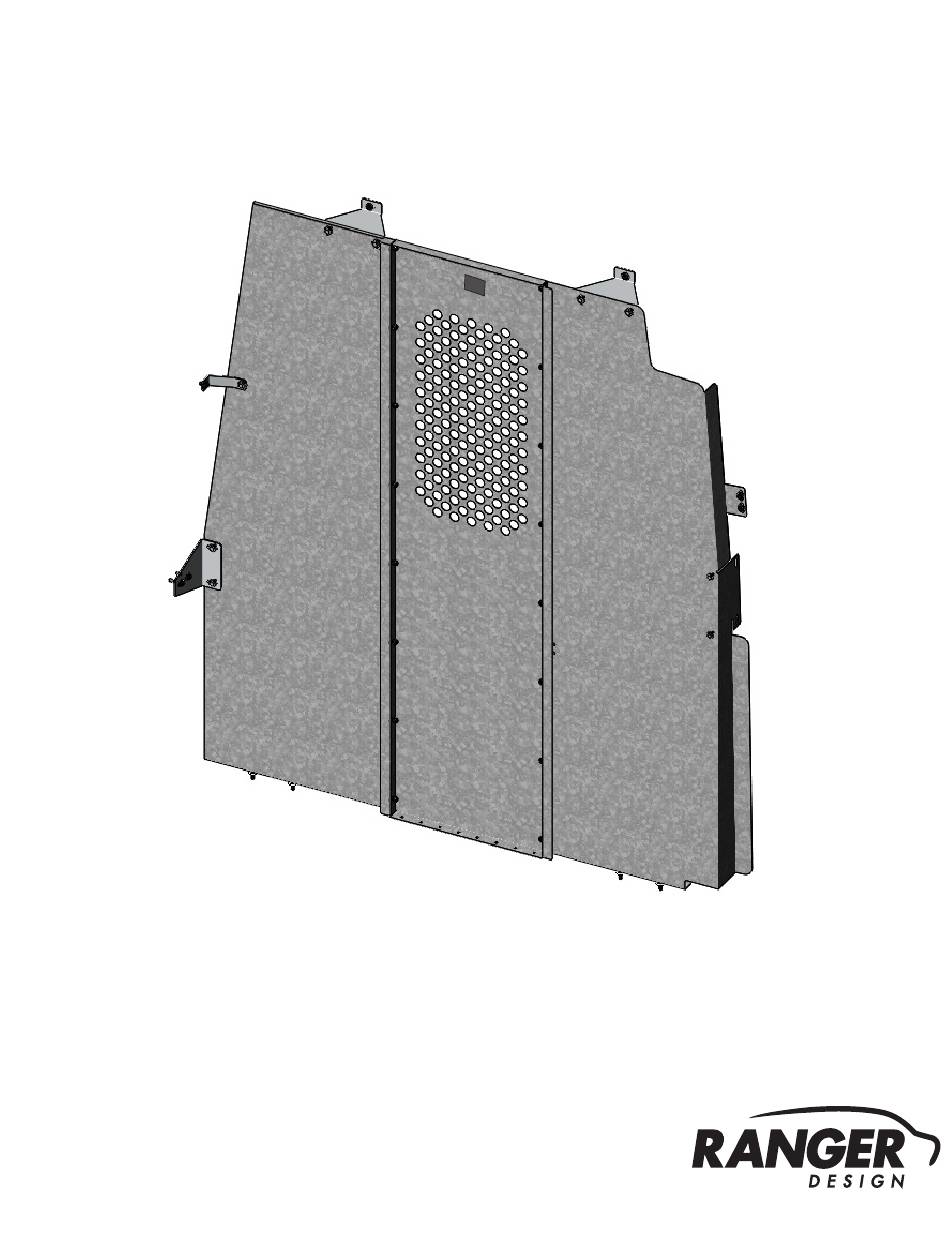

- Page 1 INSTALLATION GUIDE C20-T STRAIGHT PARTITION Nissan NV ( Perforated Window, No Access, Steel )
-
Page 2: Table Of Contents
Marker q Plusnut Tool q Tape Measure q 3/8" Drill Bit q 7/16" Socket q 1/2" Socket q 9/16" Wrench q 13mm Socket PERSONS C20-T Installation Guide | REV. C1 | Page 2 For technical support, contact us at 1-800-565-5321... -
Page 3: Phase 1 - Assembly
Edge Trim ( QTY in Inches ) 30-707 Perforated Panel 30-750 Driver Side Panel 30-751 Passenger Side Panel 79-907 Warning Label 94-3041 Assembly Fastener Bag 96-3025 Installation Fastener Bag C20-T Installation Guide | REV. C1 | Page 3 For technical support, contact us at 1-800-565-5321... -
Page 4: Q 1.1.3 Identify The Assembly And Installation Fastener Bags
Regular 5/6" #98-116 Flat Washer ZINC #98-157 Spacers ( 2 ) Spacer 8× # 98-157 0.375" ID, × 1.0" OD × 0.25" L NYLON C20-T Installation Guide | REV. C1 | Page 4 For technical support, contact us at 1-800-565-5321... -
Page 5: Q 1.2 Partition Assembly
#94-116 Serrated Nut TOOLS q Cordless Impact q 1/2" Socket HARDWARE USED 1× #90-204 Hex Bolt 5/16" × 3/4" #98-116 Flat Washer #94-116 Serrated Nut C20-T Installation Guide | REV. C1 | Page 5 For technical support, contact us at 1-800-565-5321... -
Page 6: Q 1.2.2 Attach Edge Trim In These Locations
1.2.2 Attach edge trim in these locations. TOOLS TOOLS q Mallet q Mallet q Cutter q Cutter C20-T Installation Guide | REV. C1 | Page 6 For technical support, contact us at 1-800-565-5321... -
Page 7: Phase 2 - Installation
7/16" socket until the plusnut locks, then remove the bolt by turning the impact in reverse. FORWARD REVERSE C20-T Installation Guide | REV. C1 | Page 7 For technical support, contact us at 1-800-565-5321... -
Page 8: Q 2.2 Vehicle Preparation
NOTE: Keep the grab handle and the hardware for re-use. TOOLS TOOLS q Cordless Impact q Cordless Impact q 13mm Socket q 13mm Socket TOOLS q Cordless Impact q 13mm Socket C20-T Installation Guide | REV. C1 | Page 8 For technical support, contact us at 1-800-565-5321... -
Page 9: Q 2.3 Straight Partition Installation
2.3.1 Attach the 2 ceiling brackets in the van. TOOLS HARDWARE USED q Cordless Impact 2× q 13mm Socket #90-666 Hex Bolt M8 × 20 #98-122 Lock Washer #98-116 Flat Washer C20-T Installation Guide | REV. C1 | Page 9 For technical support, contact us at 1-800-565-5321... -
Page 10: Q 2.3.2 Lift The Assembled Partition Into The Van, Then Attach Plusnut
3/8" Drill Bit or Step Drill Attach plusnuts in the 2 holes. TOOLS HARDWARE USED q Plusnut Tool 2× # 94-130 Plusnut .250 C20-T Installation Guide | REV. C1 | Page 10 For technical support, contact us at 1-800-565-5321... -
Page 11: Q 2.3.3 Attach The Driver Side Wing In The Van
#90-666 Hex Bolt M8 × 20 #90-114 Hex Bolt 1/4" × 1" #98-122 Lock Washer #98-118 Lock Washer #98-116 Flat Washer #98-112 Flat Washer C20-T Installation Guide | REV. C1 | Page 11 For technical support, contact us at 1-800-565-5321... -
Page 12: Q 2.3.4 Attach The Driver And Pasenger Side Panels To The Ceiling Brackets
2.3.4 Attach the driver and pasenger side panels to the ceiling brackets. TOOLS q Cordless Impact q 1/2" Socket HARDWARE USED 4× #90-204 Hex Bolt 5/16" × 3/4" #98-116 Flat Washer #94-116 Serrated Nut C20-T Installation Guide | REV. C1 | Page 12 For technical support, contact us at 1-800-565-5321... -
Page 13: Q 2.3.5 Attach The Passenger Side Panel In The Van
HARDWARE USED HARDWARE USED 2× 2× #90-666 Hex Bolt M8 × 20 Use the hardware from the grab handle. #98-122 Lock Washer #98-116 Flat Washer C20-T Installation Guide | REV. C1 | Page 13 For technical support, contact us at 1-800-565-5321... -
Page 14: Q 2.3.6 Bolt The Driver And Passenger Side Panels To The Floor Of The Van
Cordless Impact q 13mm Socket HARDWARE USED 4× #90-668 Hex Bolt M8 × 40 #98-122 Lock Washer #98-116 Flat Washer #98-157 Spacers ( 2 ) C20-T Installation Guide | REV. C1 | Page 14 For technical support, contact us at 1-800-565-5321... -
Page 15: And Re-Install The Grab Handle On The Upper Panel Of The Partition
TOOLS q Cordless Impact q 1/2" Socket HARDWARE USED 2× #90-110 Hex Bolt 1/4" × 3/4" #98-112 Flat Washer #94-112 Serrated Nut C20-T Installation Guide | REV. C1 | Page 15 For technical support, contact us at 1-800-565-5321... - Page 16 “Congratulations, you have successfully installed your Straight Partition! Thank you for doing business with us.” C20-T Installation Guide | REV. C1 | Page 16 For technical support, contact us at 1-800-565-5321...
