SMART-AVI HDX-XT Quick Start Manual

TECHNICAL SPECIFICATION

VIDEO
Format HDMI 2.0
Video Resolution Up to 3840 x 2160 @ 30 Hz
Video Bandwidth 275 MHz
Input Interface (TX) (2) HDMI (19-pin female)
Output Interface (RX) (2) HDMI (19-pin female)
DDC via AUX
Equalization Automatic
Input Cable Length Up to 15 ft.
Output Cable Length Up to 15 ft.
AUDIO
Format Stereo
Frequency 30KHz to 80KHz
Input Interface (TX) (1) 3.5mm (Female)
Output Interface (RX) (1) 3.5mm (Female)
USB
Signal Type USB 1.1 and USB 2.0
Input Interface (TX) (1) USB Type B (Female)
Output Interface (RX) (4) USB Type A (Female)
OTHER
External 100-240 VAC/5VDC3A
Power
@ 15 W
Dimensions 11.9" W x 1.7" H x 2.9" D
Weight 1.75 lb (per unit)
Operating Temp. 0-55 °C (32-131°F)
Storage Temp. -20-85 °C (-4-185 °F)
Humidity Up to 95%
WHAT'S IN THE BOX
PART NO. Q-TY DESCRIPTION
Single Head HDMI, USB and
HDX-XT-TX 1 Audio CAT5/5e/6
Transmitter
Single Head HDMI, USB and
HDX-XT-RX 1
Audio CAT5/5e/6 Receiver
PS5VD3A-WMT 2 PS5VD3A Power Supply
Quick Start Guide 1
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
800.AVI.2131, 702.800.0005
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
SmartAVI.com

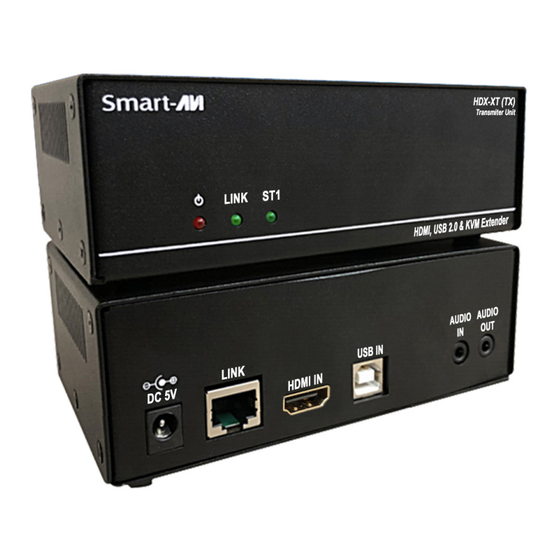

HDX-XT
Single Head HDMI,
USB 2.0 and Audio
KVM CAT5/6 Extender
EXTEND DIGITAL VIDEO
(SINGLE HEAD HDMI 4K20HZ),
USB 2.0, USB 1.1 KEYBOARD/
MOUSE AND AUDIO
UP TO 330 FT (100 M) OVER
A SINGLE CAT5E/6/6A
UNCOMPRESSED
Quick Start Guide
