1. Description.
The WSD15TIIDR is a datalogger with 3 input channels to acquire, Biaxial inclination, and Outdoor temperature, with storage
functionality of samples acquired.
2. Configuration.
Printed on the external label, the correspondence between the measured axes and the number of recorded measure channels is
reported, by means of the three icons below:
X
X
CAPETTI ELETTRONICA s.r.l. - Strada Stratta 57
10090 CASTIGLIONE TORINESE - TORINO - ITALY
VAT 04837130014 - Phone 011.981.98.11 - Fax 011.981.98.210
e-mail info@capetti.it - web www.capetti.it

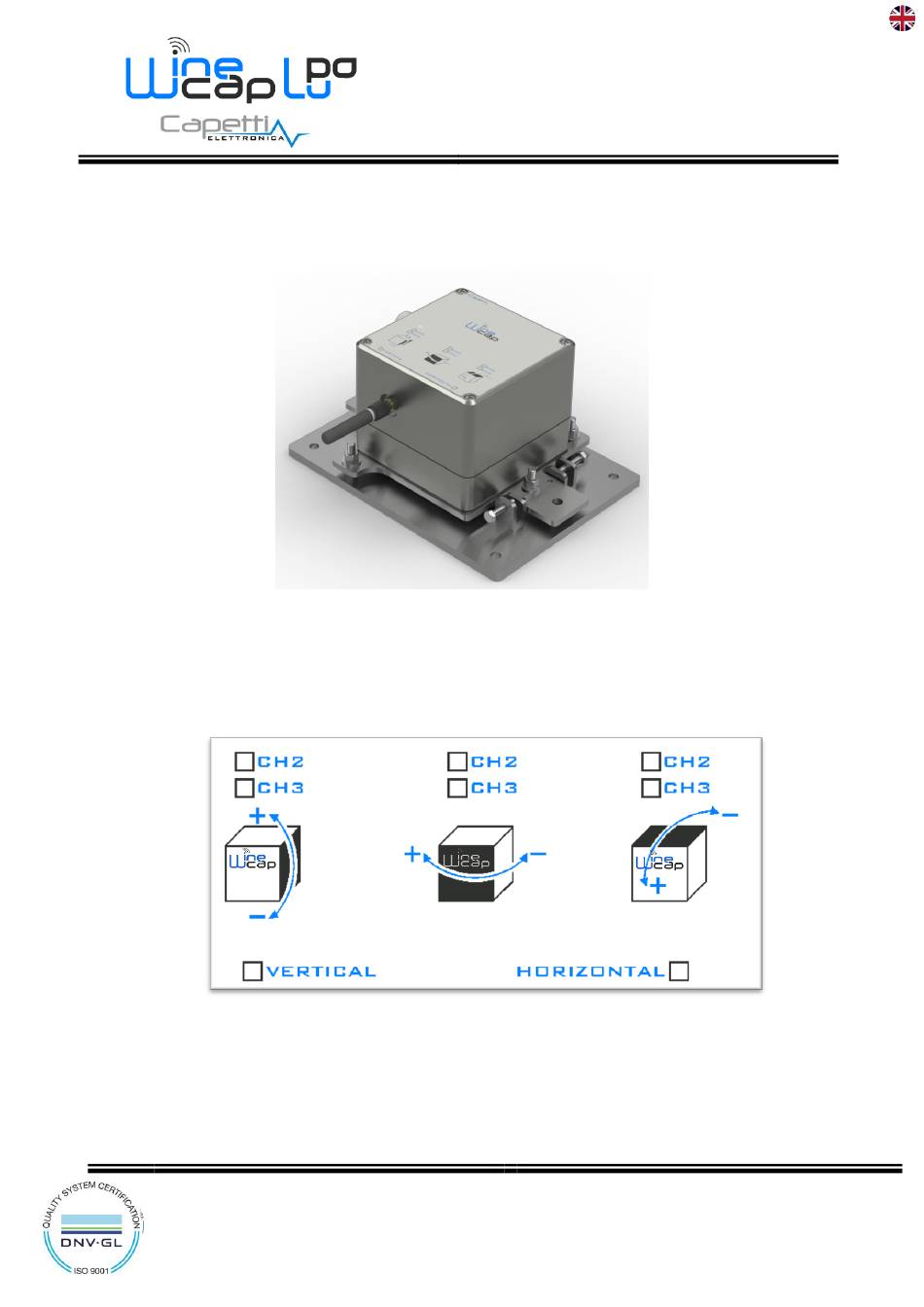

Picture 1 - Product Image
Picture 2 - WSD15TIIDR - Channels/axes correspondence
WSD15TIIDR
User Manual
X
WA0140E_WSD15TIIDR User Manual_R11
V4.7
1/11
