1. Description.
The WSD12T-IIDR is a datalogger provided with vertical mounting transducers with 3 input channels to acquire inclination an
temperature, with storage functionality of samples acquired.
External transducers measures the horizontal axis inclination.
CAPETTI ELETTRONICA s.r.l. - Strada Stratta 57
10090 CASTIGLIONE TORINESE - TORINO - ITALY
VAT 04837130014 - Phone 011.981.98.11 - Fax 011.981.98.210
e-mail info@capetti.it - web www.capetti.it

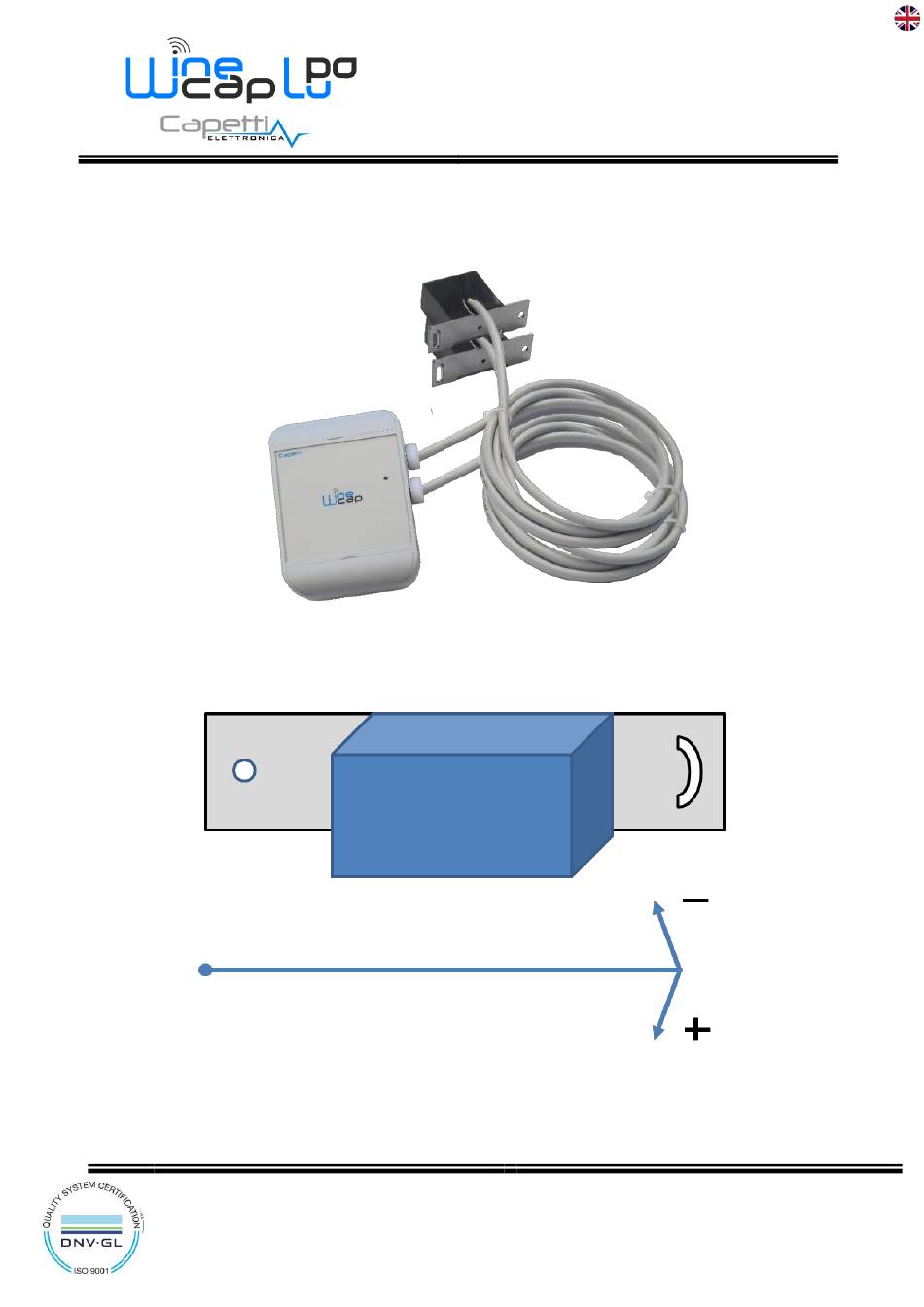

Picture 1 - Product Image
