- Page 1 WSD12PS-4AI User Manual...
-
Page 2: Channel Description

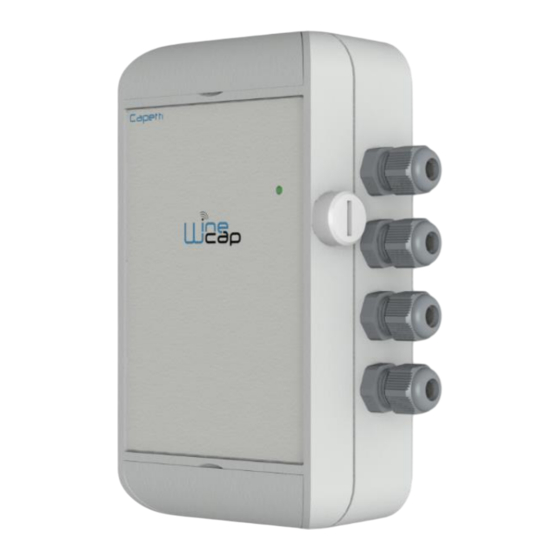

WSD12PS-4AI User Manual 1. Description WSD12PS-4AI is a four analog inputs datalogger designed for voltage measurement ( ) or current ( 0÷5Vdc, 0÷10Vdc, 0÷25Vdc 0÷25mA selectable using jumpers, capable of powering external transducers with a 12Vdc or 24Vdc power supply ( up to 100mA distributed on 4 analog ). - Page 3 WSD12PS-4AI User Manual 3. Selecting the generated power supply The device supplies for a specified time ( programmable warm-up time using – from 1 [default] to 32 seconds ) a DC voltage on PS+ pin WineCapManager of the terminal block. The value of the DC voltage can be selected using J12 ( Errore.
-
Page 4: Warm-Up Time
WSD12PS-4AI User Manual 6. Warm-Up time The device can be interfaced with different types of transducers and furnish proper power supply and guarantee the measure sample. The transducer needs a warm-up time before physically performing a measure. The WSD12PS-4AI can be programmed using... - Page 5 WSD12PS-4AI User Manual • InfoReq Click on “ ” button Calibration Select the card “ ” • Modify the “ Zero [%] ” field with the desired warm-up value ( ). The inserted value is expressed in seconds and default=1 – maximum=32...
- Page 6 WSD12PS-4AI User Manual The following table shows different behaviours with different warm-up values: Warm-Up value Effetto The device doesn’t generate any voltage but, in any case, carries out the measurements. >=1 The device generates a voltage for a period in seconds equal to the value inserted +450ms <=32...
- Page 7 WSD12PS-4AI User Manual 8. Wireless device user interface. The user interface consists of a “virtual” button that can be activated using the and of a two-colours led. WineCapKey To give a command, user must approach the to the device’s sensible area and keep it in that position.; the following picture (...
-
Page 8: Device Enrolment
WSD12PS-4AI User Manual 9. Device enrolment. Not necessary if performed in factory before delivery. Enrol the device to the network referring to the . In case the device is already enrolled but in STANDBY status, a “WineCap System - User Manual R30”... - Page 9 WSD12PS-4AI User Manual STAND-ALONE DEVICE - STATUS TABLE Table FLASH COUNT –STAND ALONE MODE STATUS 1 green flash 2 seconds long ACTIVE 2 red flashes 2 seconds long STANDBY FACTORY RESET Sequence of red flashes: short, INVALID datalogger clock! 2 seconds long, short PC connection required.
-
Page 10: Product Versions
WSD12PS-4AI User Manual 14. Product versions The device can be supplied in various versions, by the application. The following table shows different features and identify the related ordering code. Warm-Up Cable Valve gland Default Range Goretex From 1 to 32... -
Page 11: Mechanical Dimensions
WSD12PS-4AI User Manual 16. Mechanical dimensions. Picture 12 - Mechanical dimensions 17. Warnings. • In case of batteries substitution, DO NOT disconnect the flat cable which connect the electronic boards without removing batteries before • ALWAYS substitute all the batteries, also in case of one single battery exhausted •... -
Page 12: Reference Standards
WSD12PS-4AI User Manual 18. Reference standards. EN 61010 -1 For electromagnetic compatibility EN 61000 - 3 - 2 EN 61000 - 3 - 3 EN 300 220 -2 EN 301 489 - 03 EN 61000 - 6 -1 This symbol indicates that this product is compliant with the European Directive 2011/65/CE that restricts the use of substances in the manufacturing of electronic devices.
