Capetti Elettronica WineCap Lupo WSD12-TT10K User Manual

1. Description.
The WSD12-TT10K is a datalogger with 2 NTC10KΩ BETA 3435 input channels, with storage functionality of samples acquired.
2. Device pre-set and use mode.
a. Wireless Mode:
No setup operation is needed. Typically, the system is configured from factory, so the device is already associated to the system
basestation. The device is in STANDBY mode (
with the TEST command (
refer to
Otherwise, in case the device is in FACTORY RESET mode (
for connecting to an existing system, in order to associate it, make reference to the
software manual. Is necessary to use the "WineCapManager" software on the PC connected to the basestation that will be
coupled with the device.
b. USB Logger Mode:
For this operation mode, stand-alone with data downloads through USB, the connection with the PC and the "WineCapManager"
running on it is necessary in order to modify the device 's operation mode. The sampling interval must be set with the device in
"STAND-ALONE" (
refer to 6 - Stand-alone USB datalogger installation.
PC's clock, in order to assure the temporal reference of the sample.
Sampling operations start may be selected disconnecting the USB cable or giving the proper command with the magnetic key.
(
refer to Stand-alone USB datalogger installation.
available on the WineCap System - User Manual R30
c. On field transition from USB to Wireless datalogger:
This transition is practicable in field, during the sampling period, using the wireless network association command. When the
association is done, the datalogger becomes a wireless datalogger and, besides sending new measures to the basestation, starts
a download process towards the same basestation of the measures acquired during the stand-alone period (
).
Stand-alone datalogger status
CAPETTI ELETTRONICA s.r.l. - Strada Stratta, 57
10090 CASTIGLIONE TORINESE - TORINO - ITALY
VAT 04837130014 - Phone 011.981.98.11 - Fax 011.981.98.210
e-mail info@capetti.it

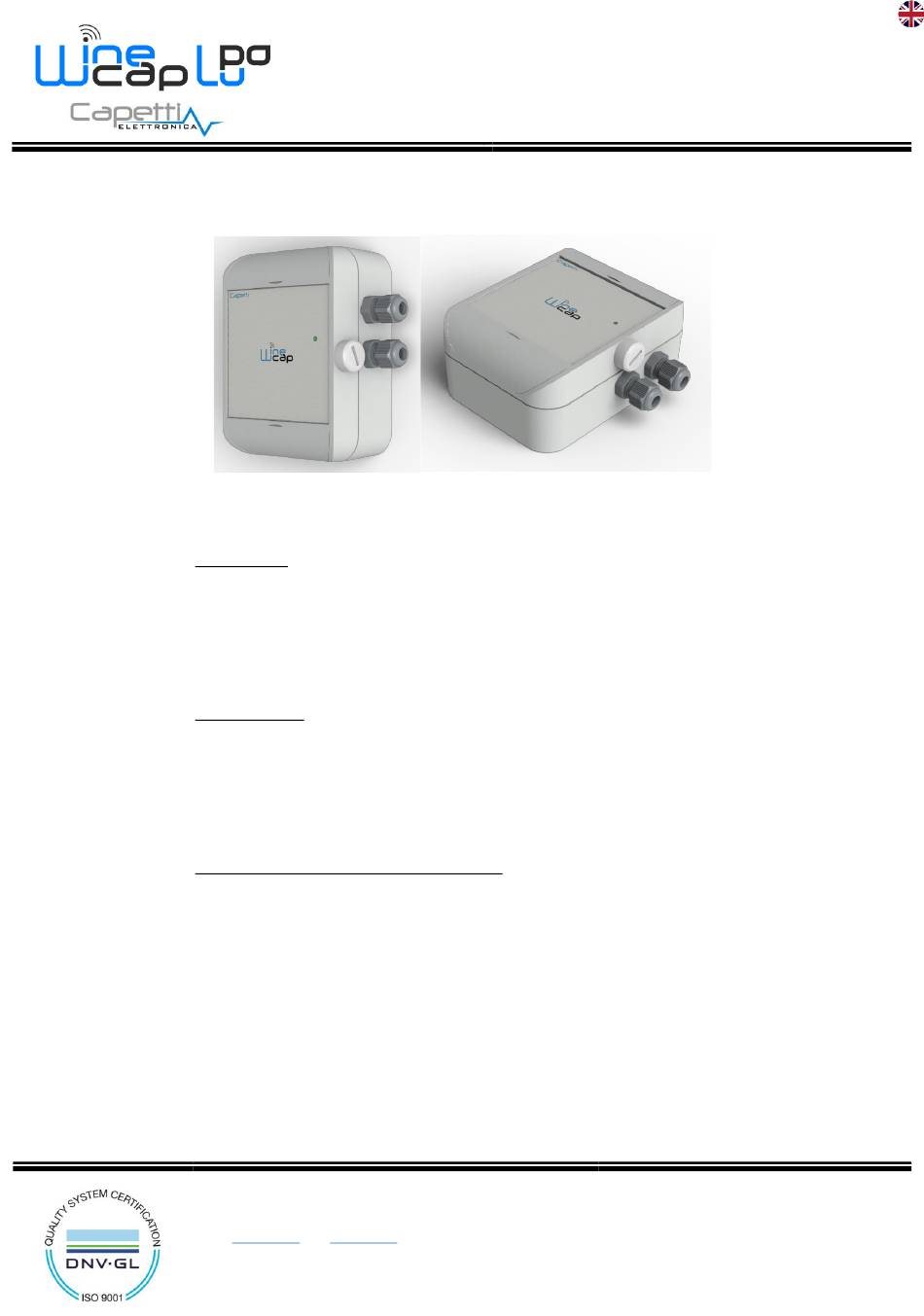

Picture 1 - Product Image
