Capetti Elettronica WineCap WSD15TIDR User Manual

1. Description.
The WSD15TIDR is a vertical installation datalogger with 2 input channels to acquire inclination and temperature, with storage
functionality of samples acquired.
The WSD15TIDR measures rotation degrees around the horizontal axis, parallel to the support face (
The WSD15TIDRA measures rotation degrees around the orthogonal axis of the support face. (
2. Configuration.
Printed on the external label, the correspondence between the measured axes and the number of recorded measure channels is
reported, by means of the three icons below:
X
CAPETTI ELETTRONICA s.r.l. - Strada Stratta 57
10090 CASTIGLIONE TORINESE - TORINO - ITALY
VAT 04837130014 - Phone 011.981.98.11 - Fax 011.981.98.210
e-mail info@capetti.it - web www.capetti.it

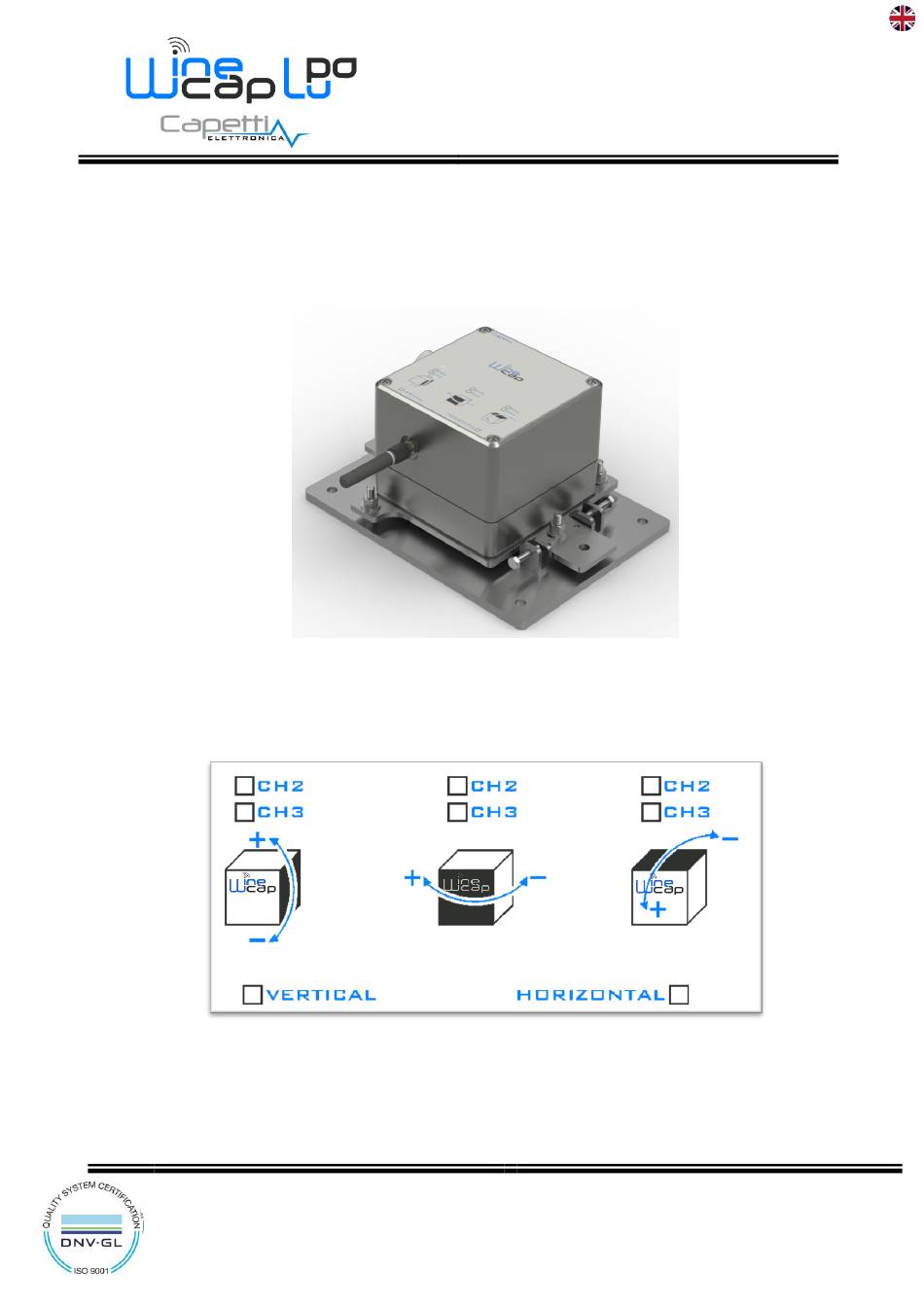

Picture 1 - Product Image
Picture 2 - WSD15TIDR - Channels/axes correspondence
WSD15TIDR
User Manual
).
ex. walls inclination
).
ex. clinometric bars
X
WA0139E_WSD15TIDR_User Manual_R09
