1. Description.
The WSD12T-DD is a datalogger with 3 input channels to acquire linear deformation and outdoor temperature, with storage
functionality of samples acquired.
2. Configuration.
The linear potentiometric sensor full-scale setup must be verified working on DIP switches located on internal PCB. Refer to
the following table to setup the correct range.
WARNING: after DIP switches setup, the enrolling operation must be repeated, so the datalogger must be reset (Factory
Reset) and enrolled again (Enroll).
1.1. Potentiometer full-scale setup.
ON
1
ON
1
CAPETTI ELETTRONICA s.r.l. - Strada Stratta 57
10090 CASTIGLIONE TORINESE - TORINO - ITALY
VAT 04837130014 - Phone 011.981.98.11 - Fax 011.981.98.210
e-mail info@capetti.it - web www.capetti.it

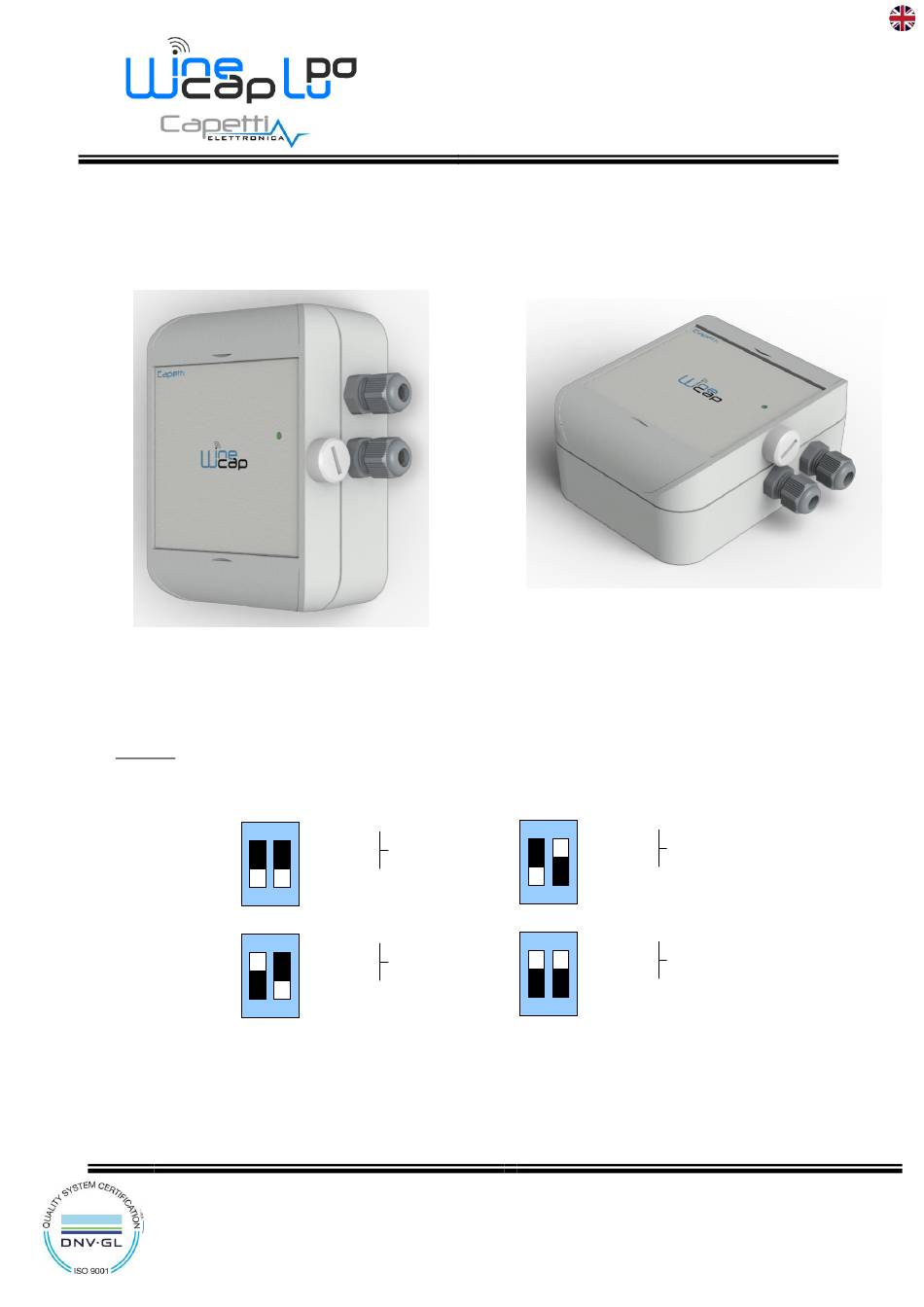

Picture 1 - Product Image
SW1: OFF
25mm
SW2: OFF
Factory DEFAULT
2
SW1: ON
50mm
SW2: OFF
2
Picture 2 - DIP switches setup
WSD12T-DD
User Manual
ON SW1: OFF
100mm
SW2: ON
1 2
ON SW1: ON
400mm
SW2: ON
1 2
