Capetti Elettronica Winecap WSD12-4D User Manual

1. Description.
The WSD12-4D is a datalogger with 4 input channels to acquire, linear deformation values coming from 1 to 4 resistive
potentiometers and temperature, with storage functionality of samples acquired.
2. Configuration.
Using WineCapManager software, for each channel, the measure acquired can be selected as showed in the following table:
Channel 1
Temperature
Proportional
Potentiometric
Where:
•
Temperature: datalogger reports the case internal temperature or the temperature acquired by an external transducer
( ). The transducer selection (
NTC10K-FR
•
Proportional: datalogger reports a proportional value (
indipendently by the stroke.
•
Potentiometric: datalogger reports the mechanical stroke of the installed potentiometer expressed in mm. Full-scale is
configurable for each channel using
To properly configure the device:
•
Connect the datalogger to PC using the provided USB cable. Datalogger's led will flash RED/GREEN.
•
Execute WineCapManager
automatic connection.
CAPETTI ELETTRONICA s.r.l. - Strada Stratta 57
10090 CASTIGLIONE TORINESE - TORINO - ITALY
VAT 04837130014 - Phone 011.981.98.11 - Fax 011.981.98.210
e-mail info@capetti.it - web www.capetti.it

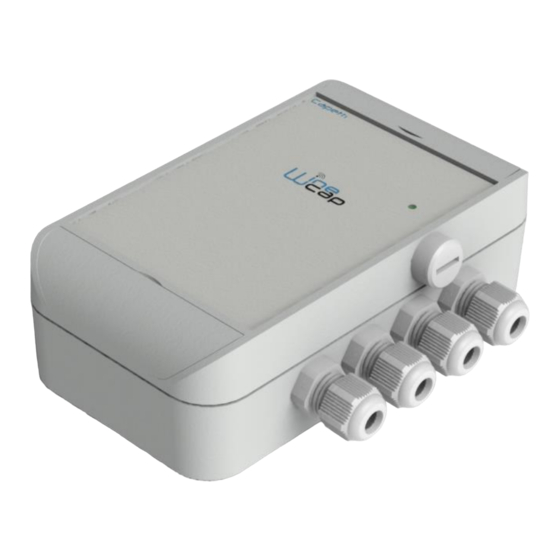

Picture 1 - Product Image
Channel 2
Proportional
Potentiometric
-
Picture 2 - Possible configurations
) is performed using jumpers.
internal/external
from 0% to 100%
WineCapManager software.
software, create a new database, open it and wait for datalogger acknowledgement and
WSD12-4D
User Manual
Channel 3
Proportional
Potentiometric
-
) related to full-scale of potentiometer installed,
Channel 4
Proportional
Potentiometric
-
WA0389E_WSD12-4D_User Manual_R10
1/11
V4.7
