Capetti Elettronica WineCap WSD12-VW User Manual

1. Description.
The WSD12-VW is a datalogger with 4 input channels to acquire frequency and temperature on vibrating wires, with storage
functionality of samples acquired.
2. Datalogger preset and use mode.

Wireless Mode:
No setup operation is needed. Typically the system is configured from factory so the datalogger is already associated to the
system basestation. The datalogger is in STANDBY mode for which is necessary to start it with the TEST command (
chapter 3 - Wireless Installation
Otherwise, in case the datalogger is in FACTORY RESET mode, that means it's ready for connecting to an existing system, in
order to associate it, make reference to the "WineCapManager" software manual. Is necessary to use the "WineCapManager"
software on the PC connected to the basestation that will be coupled with the datalogger.

USB Datalogger Mode:
For this operation mode, stand-alone with data downloads through USB, the connection with the PC and the
"WineCapManager" running on it is necessary in order to modify the datalogger's operation mode. The sampling interval must
be set with the datalogger in "STAND-ALONE" mode and automatically, the datalogger's clock is aligned with the PC's clock, in
order to assure the temporal reference of the sample.
Sampling operations start may be selected disconnecting the USB cable or giving the proper command with the magnetic key.
(
see chapter 4 - USB Logger Installation
available on the manual.

On field transition from USB to Wireless datalogger:
This transition is practicable in field, during the sampling period, using the wireless network association command. When the
association is done, the datalogger becomes a wireless datalogger and, besides sending new measures to the basestation,
starts a download process towards the same basestation of the measures acquired during the stand alone period.
CAPETTI ELETTRONICA s.r.l. - Strada Stratta 57
10090 CASTIGLIONE TORINESE - TORINO - ITALY
VAT 04837130014 - Phone 011.981.98.11 - Fax 011.981.98.210
e-mail info@capetti.it - web www.capetti.it

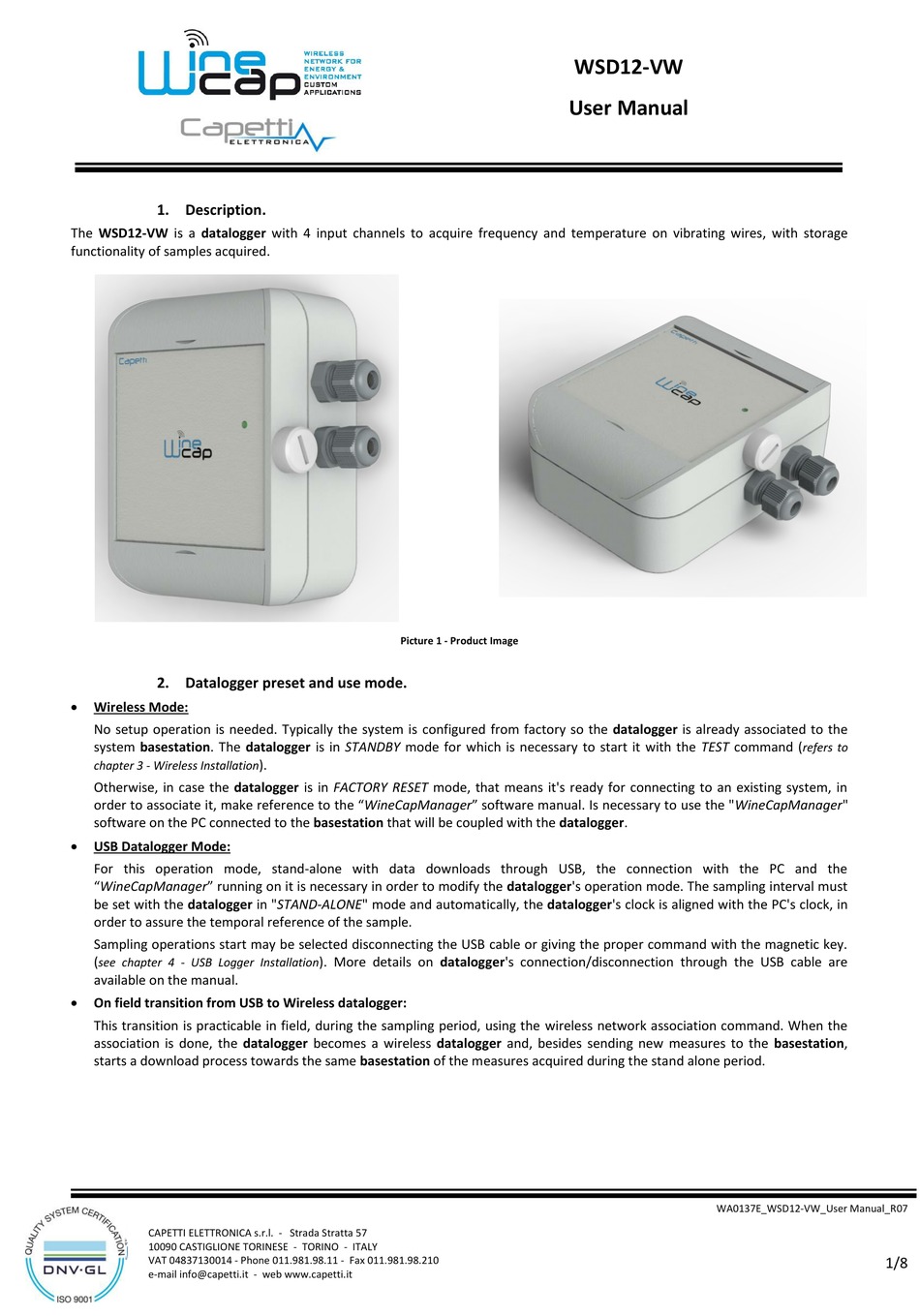

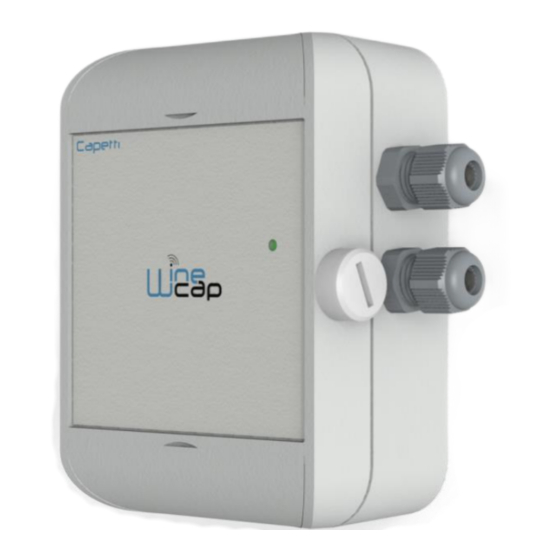

Picture 1 - Product Image
).
