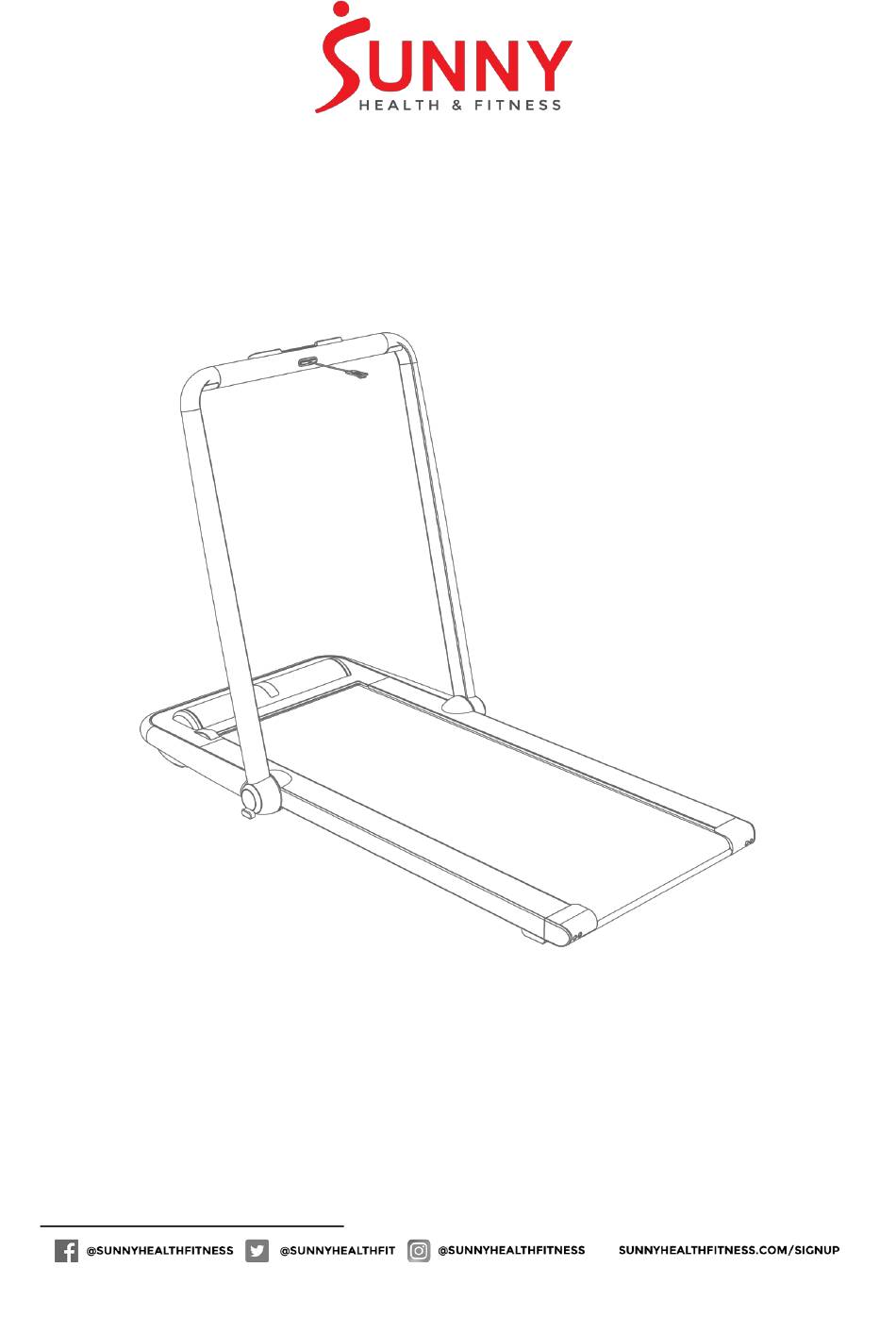

- Page 1 SUNNY TreadPad USER MANUAL SF- T7970 IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
-
Page 2: Important Safety Information
To ensure safety, the equipment should have at least 8 feet (240 CM) of free space behind it and 2 feet (60 CM) on each side. Do not place the SUNNY TreadPad on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the SUNNY TreadPad. - Page 3 13. Minors must be accompanied by an adult. 14. Running or walking sideways or backwards on the Sunny TreadPad is prohibited. 15. Please do not use the Sunny TreadPad if you are not within the age recommendations or if you are pregnant.
- Page 5 Serial number Name Specification Quantity Column Welde d element Handrail assembly Welde d element Wheel support Welde d element Side trim cover retainer Welde d element Connector spacer Welde d element Foot pad support Welde d element Motor gasket Welde d element Type knob shaft Welde d element Φ...
- Page 6 Side strip Plastic part Phone holder Plastic part Display PC film PC film Rear foot pad Rubber Front foot pad Rubber Motor cushion supply Rubber Rubber cover for power Rubber Rubber hole plug Rubber part Rubber cushion of front trim cover Rubber part Motor left cushion Rubber part...
- Page 7 Lower control board Brushless controller Hexagon socket cylindrical head bolt M8x1.25P*42 Full tooth Three-piece bolt M6x1.0P*15 Full tooth Flat cushion Ø8.5*Ø16*1.5 Cross recessed countersunk head bolt M6*12 Full tooth Cross recessed pan head bolt M4*10 Full tooth Cross recessed pan head bolt M4*16 Full tooth Cross recessed pan tapping screw ST4.2*15...
-
Page 8: Exploded Diagram
EXPLODED DIAGRAM... -
Page 9: Parts List
PARTS LIST Main Product Remote Control User Manual Wrench Knob Silicone Oil Power Cable Safety Key Battery Ordering Replacement Parts (U.S. and Canadian Customers only) Please provide the following information in order for us to accurately identify the part(s) needed: ✓... - Page 10 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907- 8669). STEP 1: Place the Sunny TreadPad on a flat surface. It is not recommended to place the Sunny TreadPad on a soft or uneven surface.
- Page 11 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877- 907-8669). STEP 4: Connect the power supply STEP 5: Scan the QR barcode to directly locate SUNNY HEALTH &...
-
Page 12: Battery Installation And Replacement
BATTERY INSTALLATION & REPLACEMENT BATTERY INSTALLATION: 1. Remove the battery cover. 2. Install the battery (AAA) into the battery holder by the right side . 3. Put the battery cover back. BATTERY REPLACEMENT: 1. Remove the battery cover. 2. Take out the 2pcs battery (AAA) that is included inside the remote control box. 3. - Page 13 • Power on the Sunny TreadPad. • Allow the SUNNY TreadPad to operate at 2.5 mi/h for 10 to 20 seconds. • Do not add more than 5 ml - 10 ml of lubricant. The running belt will slip if it has too much lubricant.
-
Page 14: Display Console
In this mode, the SUNNY TreadPad stops responding to prevent non-users from triggering the SUNNY TreadPad. SUNNY TreadPad will automatically stand by and lock when it is not in use for more than 10 minutes.When the SUNNY TreadPad is stopped, it can also be locked manually by pressing the Mode button for more than 2 seconds . - Page 15 This mode is an advanced mode with higher level, and can be completely separated from remote control after starting. It is recommended for users with better coordination or experienced in use of SUNNY TreadPad. When the handrail is upward, the maximum speed is 5mi/h which is suitable for running. The saf- ety key must be plugged in to start.
- Page 16 Running area In the auto mode, when running on the belt, the SUNNY TreadPad will accelerate step by step until the speed is consistent with the pace frequency. When the stride length slows down, the SUNNY TreadPad speed will gradually slow down until the speed is consistent with the stride frequency.
-
Page 17: Specifications
Constant Speed Mode/Automatic Mode IMPORTANT NOTE: REMOTE CONTROL NOTICE If the remote control has no response or you replace to a new one, the remote control and SUNNY TreadPad device need to be paired. REMOTE CONTROL PAIRING METHOD: Restart the Sunny TreadPad. Press and hold down the mode switch button on the remote control immediately for about 2 seconds. - Page 18 FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
