Quick Start Guide
Document Version 1.2
Document Part No. 9152111I1135
Please read these instructions carefully before using this product, and save this manual for future use.

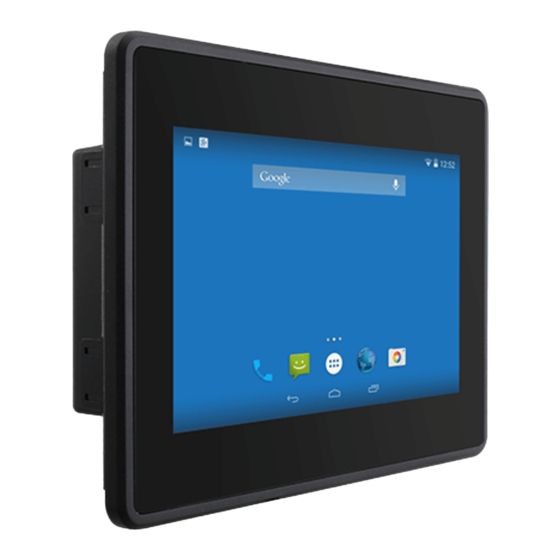

EL-Series HMI
Freescale® Cortex® A9 i.MX6 Dual Core, 1 GHz
Android 6.0
Model No. W04FA3S-ELT1
W05FA3S-ELT1
W07FA3S-ELT1
W10FA3S-ELH2
W15FA3S-ELA4
Advertisement
Table of Contents
Related Manuals for Winmate W05FA3S-ELT1
Summary of Contents for Winmate W05FA3S-ELT1
- Page 1 EL-Series HMI Freescale® Cortex® A9 i.MX6 Dual Core, 1 GHz Android 6.0 Model No. W04FA3S-ELT1 W05FA3S-ELT1 W07FA3S-ELT1 W10FA3S-ELH2 W15FA3S-ELA4 Quick Start Guide Document Version 1.2 Document Part No. 9152111I1135 Please read these instructions carefully before using this product, and save this manual for future use.
-
Page 2: Table Of Contents
4.4 Ethernet ........................26 4.4.1 Configuring Ethernet ................... 27 4.4.2 Checking Ethernet Settings ................. 28 4.5 Winmate® Home Manager (WHM) ................29 4.5.1 How to Lock Applications ..................29 4.5.2 How to Unlock Applications ................. 32 4.5.3 How to Change Password ................... 33 Appendix A: Product Specifications ................... -
Page 3: Preface
Preface Preface Copyright Notice No part of this document may be reproduced, copied, translated, or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the prior written permission of the original manufacturer. Trademark Acknowledgement Brand and product names are trademarks or registered trademarks of their respective owners. - Page 4 EL-Series HMI Quick Start Guide Advisory Conventions Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury. These are Notes, Important, Cautions, and Warnings.
- Page 5 Preface Safety Information Warning!/ Avertissement! Always completely disconnect the power cord from your chassis whenever you work with the hardware. Do not make connections while the power is on. Sensitive electronic components can be damaged by sudden power surges. Only experienced electronics personnel should open the PC chassis.
- Page 6 EL-Series HMI Quick Start Guide *Let service personnel to check the equipment in case any of the following problems appear: o The power cord or plug is damaged. o Liquid has penetrated into the equipment. o The equipment has been exposed to moisture. o The equipment does not work well or you cannot get it to work according to the user manual.
- Page 7 Preface Important Information Federal Communications Commission Radio Frequency Interface Statement This device complies with part 15 FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference. ⚫ This device must accept any interference received including ⚫...
-
Page 8: Chapter 1: Introduction
EL-Series HMI Quick Start Guide Chapter 1: Introduction This chapter gives you product overview, describes features and hardware specification. You will find all accessories that come with the HMI in the packing list. Mechanical dimensions and drawings included in this chapter. -
Page 9: Introduction
Chapter 1: Introduction 1.1 Introduction Congratulations on purchasing Winmate® EL-Series HMI. Winmate continues developing new generation of Human Machine Interfaces for Industry 4.0 and Internet of Things (IoT). Our EL-Series HMI runs on Android 6.0 operating system that allows installing the latest applications (APPs). There is one USB 2.0 onboard to connect mouse or keyboard, Micro USB OTG for system updates. -
Page 10: Description Of Parts
EL-Series HMI Quick Start Guide 1.4 Description of Parts This section describes appearance, connectors’ layout and mechanical dimensions of EL-Series HMI. Notice that this is a simplified drawing and some components are not marked in detail. Please contact our sales representative if you need further product information. EL-Series HMI 4.3”... - Page 11 Chapter 1: Introduction EL-Series HMI 5.6” Unit: mm Dimensions : 158.7 x 116.3 x 51 № № Description Description ❶ ❺ USB 2.0 USB OTG ❷ ❻ RS485 Power Terminal Block ❸ ❼ Reset Button LED Indicator ❹ RJ45/ LAN...
- Page 12 EL-Series HMI Quick Start Guide EL-Series HMI 7” Unit: mm Dimensions : 184.94 x 127.7 x 44.9 № № Description Description ❶ ❺ USB 2.0 Power Terminal Block ❷ ❻ RS485 LED Indicator ❸ ❼ RJ45/ LAN Reset Button ❹ USB OTG...
- Page 13 Chapter 1: Introduction EL-Series HMI 10.1” Unit: mm Dimensions : 267.42 x 182.14 x 57.6 № № Description Description ❶ ❺ USB 2.0 Power Terminal Block ❷ ❻ RS485 LED Indicator ❸ ❼ RJ45/ LAN Reset Button ❹ USB OTG...
- Page 14 EL-Series HMI Quick Start Guide EL-Series HMI 15.6” Unit: mm Dimensions : 387.6 x 257.7 x 52.5 № № Description Description ❶ ❺ USB 2.0 Power Terminal Block ❷ ❻ RS485 LED Indicator ❸ ❼ RJ45/ LAN Reset Button ❹ USB OTG...
-
Page 15: Chapter 2: Getting Started
Chapter 2: Getting Started Chapter 2: Getting Started This chapter tells you important information on power supply, adapter and precautions tips. Pay attention to power considerations. -
Page 16: Powering On While Using The Ac Adapter Always
EL-Series HMI Quick Start Guide 2.1 Powering On While using the AC adapter always: • Plug-in the power cord to easy accessible AC outlet • Plug-in the AC adapter to a grounded outlet Alternating Current/ Mise à le terre ! This product must be grounded. -
Page 17: Connector Description And Pin Assignments
Chapter 2: Getting Started 2.2 Connector Description and Pin Assignments 2.2.1 Power Input Connector The DC power source input of the panel PC is a 2 pin terminal block connector that supports 12-24V DC power input, maximum current 3.3A. Pin assignment and connector description of terminal block connector Minimum Voltage 9V Maximum Voltage 24V Maximum Current 3.3A... -
Page 18: Chapter 3: Mounting
EL-Series HMI Quick Start Guide Chapter 3: Mounting This chapter provides mounting guide for all available mounting options. EL-series HMI devices support VESA and panel mount. Refer to sub-sections below for more details. Pay attention to cautions and warning to avoid any damages. -
Page 19: Panel Mount
Chapter 3: Mounting 3.1 Panel Mount Panel mount solution is suitable for many applications where HMI should be embedded in the machine. With this mounting solution flat surface leave no bezel in the front. In addition to elegant design, rear mount solution is making the HMI unit easy to clean and maintain. -
Page 20: Vesa Mount
EL-Series HMI Quick Start Guide 3.2 VESA Mount VESA mount is a widely used mounting solution suitable for all kinds of industrial applications. Notice that only 7”, 10.1”, 15.6” HMI devices support VESA mounting. Size VESA Dimensions Screw Hole Diameter 7”, 10.1”, 15.6”... -
Page 21: Ram Mount
Chapter 3: Mounting 3.3 RAM Mount RAM mount is a mounting solution suitable for in-vehicle device installation. Notice that only 4.3” and 5.6”HMI devices support RAM mounting. The pictures in this section are for demonstration purposes only. RAM mount accessories are not supplied with the HMI device. RAM Base Dimensions: 38.1 x 30 mm Screw: 4 x M5-0.8x10 mm Phillips screws RAM Mount parts may be ordered individually through RAM Mount (www.rammount.com) - Page 22 EL-Series HMI Quick Start Guide Drill Solution...
-
Page 23: Chapter 4: Operating The Device
Chapter 4: Operating the Device Chapter 4: Operating the Device In this chapter you will find instructions on how to operate the HMI device. -
Page 24: Set Up The Device
EL-Series HMI Quick Start Guide 4.1 Set up the Device When you first turn on your HMI device, you’ll see a Welcome screen. Choose the language you want and touch Start or the Start icon. When prompted, you can sign in with your Google Account or create one at that time. -
Page 25: Quick Settings
Chapter 4: Operating the Device Some apps hide these buttons temporarily, or fade them to small dots in the same position. To bring them back, touch the dots, touch the screen in the middle, or swipe up from the bottom. Many screens in apps and Settings include a menu icon at the top right of the screen. -
Page 26: Ethernet
EL-Series HMI Quick Start Guide Open the main Settings menu by touching Settings at the top right. 4.4 Ethernet 1. Connect Ethernet Cable to the HMI. 2. Touch All APPS icon, and the open Ethernet application. 3. Ethernet APP main menu appears... -
Page 27: Configuring Ethernet
Chapter 4: Operating the Device 4.4.1 Configuring Ethernet Go to All Apps > Ethernet > Configure Ethernet *Ethernet OFF is set by default. Swipe Ethernet ON to activate Ethernet connection. Connection Type Setting Description DHCP The device automatically capture IP-address from the router Static IP Allows to manually set up IP-address, DNS, Network and Gateway... -
Page 28: Checking Ethernet Settings
EL-Series HMI Quick Start Guide 4.4.2 Checking Ethernet Settings To check Ethernet settings: Go to All Apps > Ethernet > Check Ethernet Ethernet settings menu appears on the top right side of the desktop. -
Page 29: Winmate® Home Manager (Whm)
Chapter 4: Operating the Device 4.5 Winmate® Home Manager (WHM) Winmate® EL-Series HMI comes with preinstalled APP called Winmate® Home Manager (WHM) which let the device manager to lock the launcher then the user can only use one application assigned by the device manager. - Page 30 EL-Series HMI Quick Start Guide Menu Description Home Manager Set which app you want to run up automatically after booting Set the WHM password (Default password is “0000”). Password Manager About Displays information about Home Manager 2. Go to “Application Selector”, and choose the app which you want to run up automatically after booting.
- Page 31 Chapter 4: Operating the Device 3. Go back to “Home Selector” and press “Clear and Reset Default Home”. 4. Select “Restrict Home” and “Always”, and then restart the computer to enable these settings. The system will automatically start the application which you selected and lock it. Any time user presses home key or back key;...
-
Page 32: How To Unlock Applications
EL-Series HMI Quick Start Guide 4.5.2 How to Unlock Applications Follow the instruction below to reset Home Manager. 1. If you want to reset the home manager, pull down the left side to open the status bar and open HomeManager. 2. -
Page 33: How To Change Password
Chapter 4: Operating the Device Restart the system and you will go back to the normal Launcher. 4.5.3 How to Change Password To change the password: 1. Go to Password Manager and set your own password for this APP. 2. The default password is “0000”. Enter a new password in New Password field, and then tap Change Password. -
Page 34: Appendix A: Product Specifications
EL-Series HMI Quick Start Guide Appendix A: Product Specifications Hardware Specifications Model Name W04FA3S-ELT1 W05FA3S-ELT1 W07FA3S-ELT1 W10FA3S-ELH2 W15FA3S-ELA4 Display 4.3” TFT 5.6” TFT 7” TFT 10.1” TFT 15.6” TFT Size/ Type Resolution 480 x 272 1024 x 600 1024 x 600... - Page 35 Appendix A: Product Specifications Notes ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________...
- Page 36 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C www.winmate.com Copyright © Winmate Inc. All rights reserved.
