Electrical

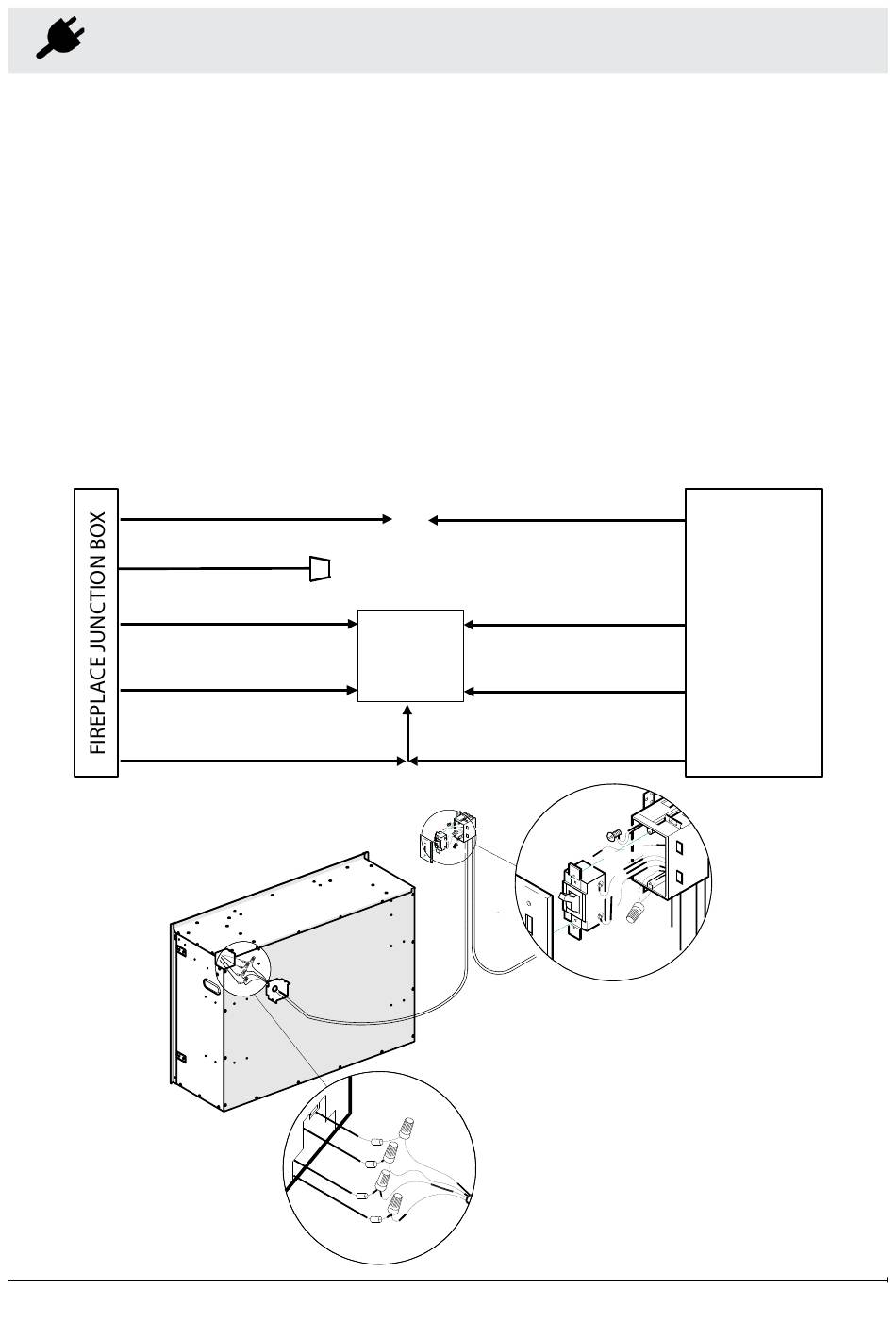

Wall Switch (240 V)
! !
NOTE: Use a double pole, single
throw (On/Off) wall switch that is rated
for a minimum of 15 A.
WHITE - N
BLUE - NH
RED - L2
BLACK - L1
GROUND - G
14
Before installing the wall switch:
• Connect a 3-conductor wire with
ground (4 wires total) from the
power supply panel to the main
switch wall box.
• Connect a 3-conductor wire with
ground (4 wires total) from the main
switch wall box to the junction box
on the built-in electric firebox.
WHITE - N
RED - L2
WALL
SWITCH
BLACK - L1
GROUND - G
N
L2
L1
G
240 V
POWER
SUPPLY
BREAKER
PANEL
