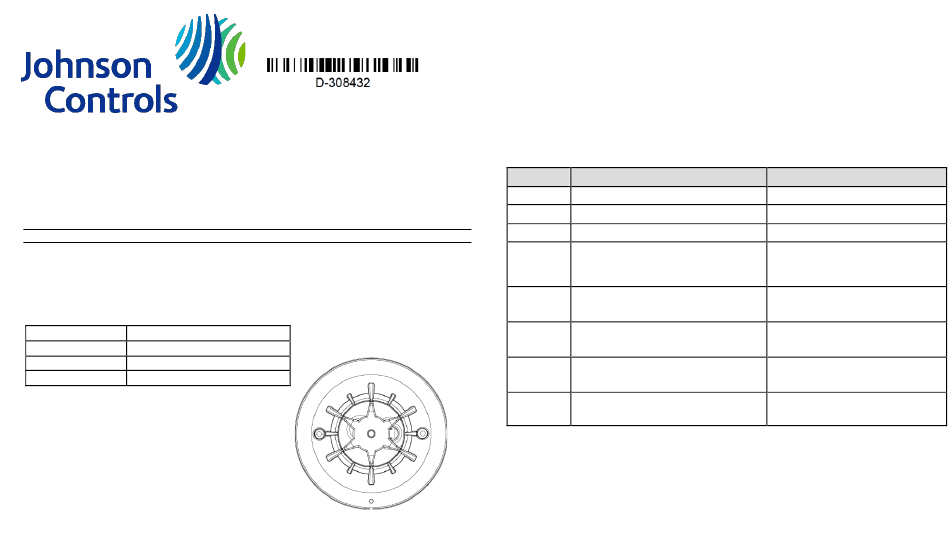

HTD-432 PG2 (915-0:025)/HTD-432 PG2
(868-0:025) /HTD-432 ME PG2 (868-
0:025) wireless heat detector
Installation and operating instructions
Read this instruction sheet thoroughly before installation and use of the HTD-432/HTD-432 ME PG2
Note: The reference to HTD-432 PG2 throughout this manual is also applicable to the other
models unless stated differently.
Introduction

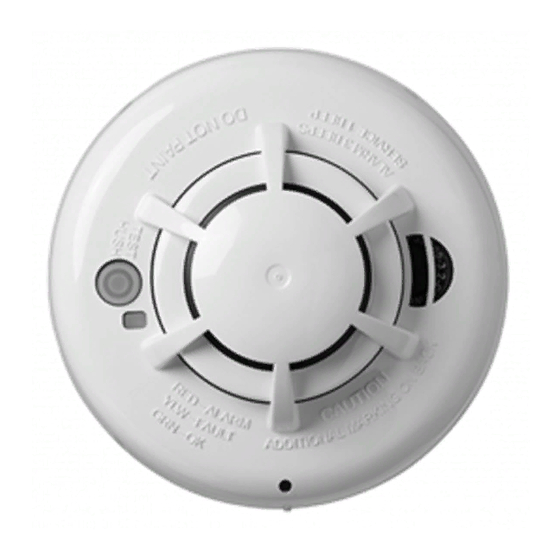

The HTD-432 PG2 is a wireless heat detector with a fixed temperature, a rate of rise heat
sensor, and an internal piezoelectric alarm. The following versions are available:
Frequency (MHz)
Version
915
HTD-432 PG2 (915-0:025)
868
HTD-432 PG2 (868-0:025)
868
HTD-432 ME PG2 (868-0:025)
Compatible devices
This detector is compatible with UL/ULC Listed DSC
Control Panels and Qolsys IQ Panel 2+. For UL/ULC
installations use this device only in conjunction with
compatible IQ2 wireless receivers and PowerG
receivers. Transmissions occur at approximately 915
MHz (912 MHz to 919 MHz).
Operation
During normal operation, the green LED flashes every 12 seconds.
The detector goes into alarm when the heat level exceeds 135 ºF / 57.5 ºC and automatically
restores when the heat level falls below the threshold. The detector also goes into alarm
when the temperature rapidly increases over a short period of time. During an alarm, the
LED flashes once per second and the sounder emits the evacuation temporal pattern.
Detector trouble
If the detector has a general fault, the yellow LED blinks once every four seconds and
emits a chirp every 48 seconds. After four hours, the panel displays a fire trouble message.
Table: Detector and Status Indication
Status
LEDs
Normal
Green flash every 12 seconds
Heat Alarm Red flash every 1 second
Heat Test
Red flash every 1 second
Test Alarm
Red flash every 1 second
(button
press)
Detector
Yellow flash every 4 seconds
Trouble
Low Battery Yellow flash every 12 seconds
Power-up
Red, yellow, green, flash sequence
Red, yellow, green flash sequence every
Tamper
12 seconds
Sounder
Off
ANSI S3.41 temporal 3
ANSI S3.41 temporal 3
ANSI S3.41 temporal 3
One chirp every 48 seconds
One chirp every 48 seconds
(press button to hush for 12 hours)
One chirp at the end of the power-up
sequence
Off
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Johnson Controls HTD-432 PG2
Summary of Contents for Johnson Controls HTD-432 PG2
- Page 1 Introduction Detector The HTD-432 PG2 is a wireless heat detector with a fixed temperature, a rate of rise heat Yellow flash every 4 seconds One chirp every 48 seconds Trouble sensor, and an internal piezoelectric alarm. The following versions are available:...
-
Page 2: Wireless Transmissions
Wireless transmissions Battery Installation and replacement A supervisory message is transmitted at 128-second intervals. If the signal is not received, the CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of used control panel determines that the detector is missing. battery according to the manufacturer's instructions. -
Page 3: Installation Instructions
2. From the installation menu, enter the device enrollment option and select the option to The HTD-432 PG2 (915-0:025)/HTD-432 PG2 (868-0:025) add a new device. /HTD-432 ME PG2 (868-0:025) wireless heat detector 3. -
Page 4: Specifications
In test mode, the detector tests heat and battery functions. Specifications If the detector is in diagnostic mode, the detector performs the diagnostic test as described • below. Regulatory Listings: UL521 for HTD-432 ME PG2. CE for HTD-432 PG2. • Diameter: 5 in (125 mm) Diagnostic test •... -
Page 5: Warranty
• Humidity: 5 % - 93 % RH, non-condensing INABILITY TO USE THE PRODUCT, OR FOR LOSS OR DESTRUCTION OF OTHER PROPERTY OR FROM ANY OTHER CAUSE, EVEN IF MANUFACTURER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. THE •... -
Page 6: End User License Agreement
transfer that software component to any other medi a or device without Tyco's express prior written END-USER LICENSE AGREEMENT authorization. IMPORTANT - READ THIS END-USER LICENSE AGREEMENT ("EULA") CAREFULLY BEFORE OPENING THE DISK Backup Copy. You may make a back-up copy of the Software (other than embedded software) solely PACKAGE, DOWNLOADING THE SOFTWARE OR INSTALLING, COPYINGOR OTHERWISE USING THE SOFTWARE. - Page 7 Trademarks. This EULA does not grant you any rights in connection with any trademarks or service (c)(1)(ii) of the Rights in Technical Data and Computer Software clause at DFAR 255.227 -7013 et. seq. or marks of Tyco, its affiliates or its suppliers. 252.211-7015, or subparagraphs (a) through (d) of the Commerci a l Computer Software Restricted Rights at FAR 52.227-19, as appli c abl e , or similar clauses in the NASA FAR Supplement.
-
Page 8: Regulatory Information
Regulatory Information fonctionnement. The device HTD-432 PG2 has a recommended service life of 10 years under normal conditions of use. FCC CLASS B DIGITAL DEVICE NOTICE -This equipment has been tested and found to Please refer to the label applied to the device indicating the recommended replacement year. -
Page 9: Product Documentation
Product documentation HTD-432 PG2 (915-0:025)/HTD-432 PG2 (868-0:025)/HTD-432 ME PG2 (868-0:025) wireless heat detector To download the full manual for this product, go to https://www.visonic.com/download-center or scan the QR code. FCC COMPLIANCE STATEMENT This device complies with Part 15 of the FCC Rules and with ISED license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 10 *In case of a conflict, contradiction or interpretation between the English version of the warranty and other versions, the English version shall prevail. © 2021 Johnson Controls. All rights reserved. JOHNSON CONTROLS is a registered trademark. Unauthorized use is strictly prohibited.
