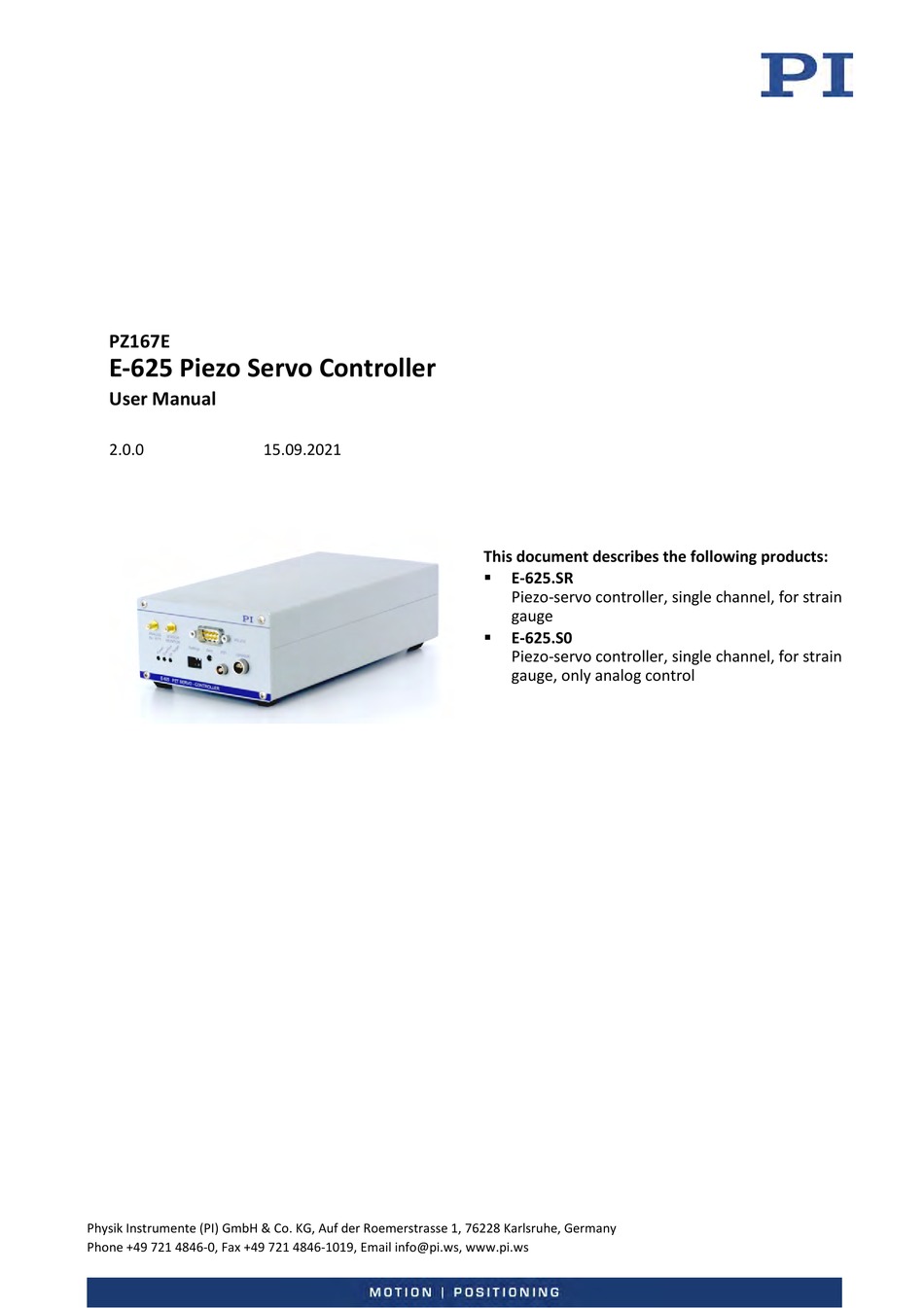

PZ167E
E-625 Piezo Servo Controller
User Manual
2.0.0
Physik Instrumente (PI) GmbH & Co. KG, Auf der Roemerstrasse 1, 76228 Karlsruhe, Germany
Phone +49 721 4846-0, Fax +49 721 4846-1019, Email info@pi.ws, www.pi.ws
15.09.2021
This document describes the following products:
E-625.SR
Piezo-servo controller, single channel, for strain
gauge
E-625.S0
Piezo-servo controller, single channel, for strain
gauge, only analog control
