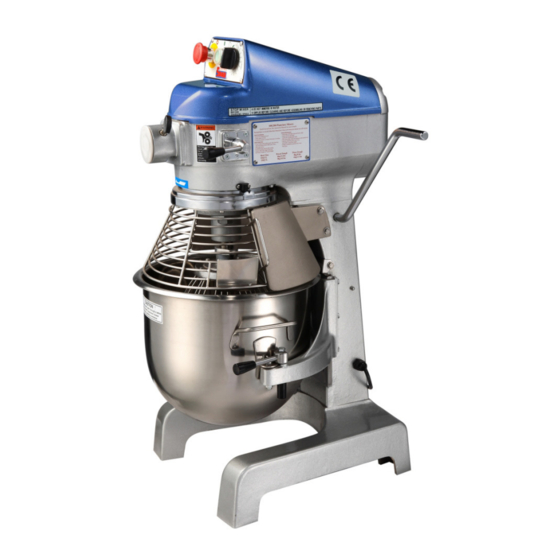

Metos SP-100A Installation And Operation Manual

Metos SP-100A Installation And Operation Manual

Hide thumbs Also See for SP-100A:

Advertisement

Quick Links

MIXER
SP-100A, SP-200A, SP-30HA, SP-40HA, SP-60HA, SP-A80HI, SP-B80HI
Installation and Operation Manual
5.7 .2019
4025016, 4025025, 4025036, 4025041, 4025047 , 4025050

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP-100A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Metos SP-100A

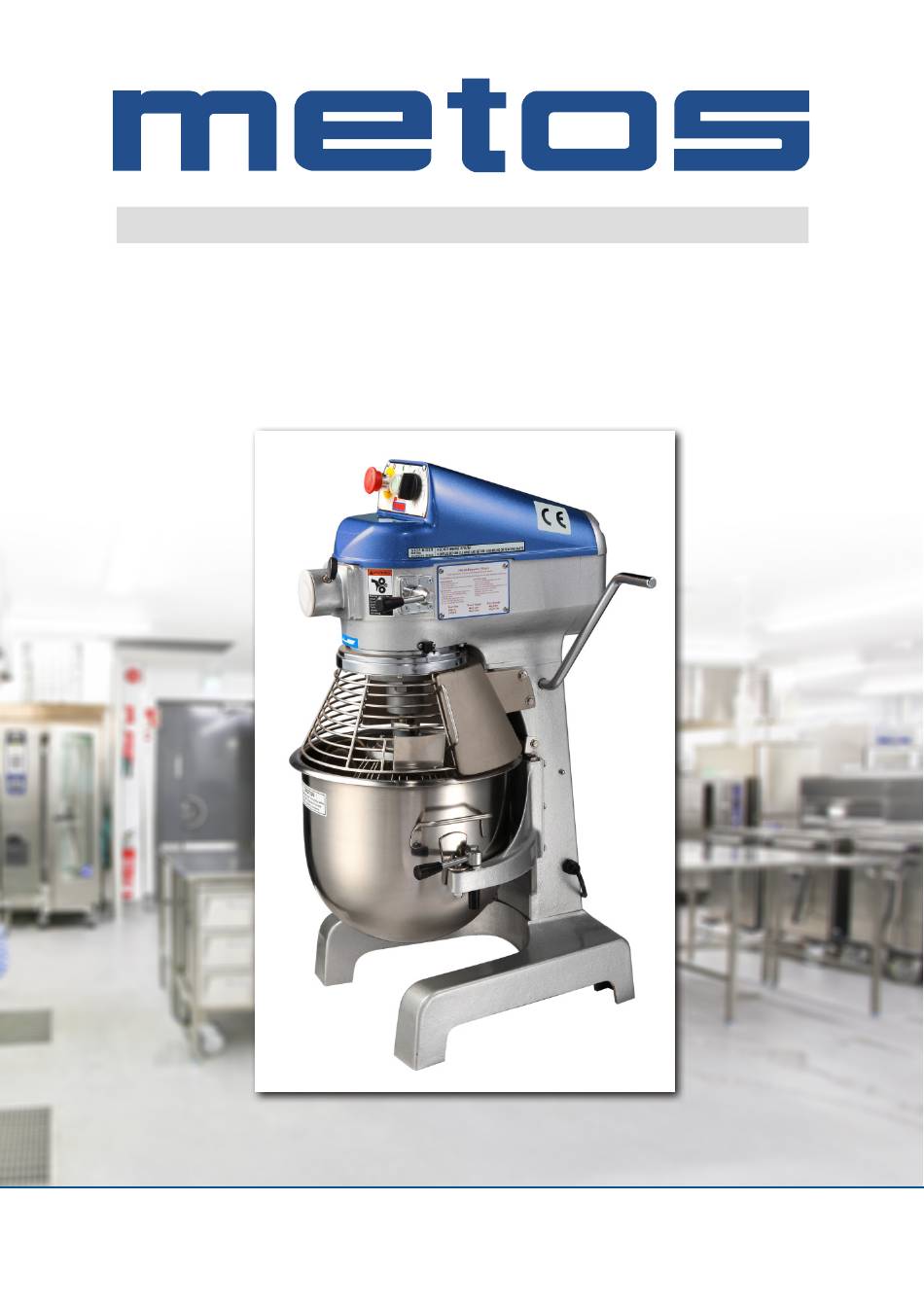

  • Page 1 MIXER SP-100A, SP-200A, SP-30HA, SP-40HA, SP-60HA, SP-A80HI, SP-B80HI Installation and Operation Manual 5.7 .2019 4025016, 4025025, 4025036, 4025041, 4025047 , 4025050...
  • Page 2: Table Of Contents

    CONTENTS OVERALL VIEW OF THE MIXER ..........................5 INSTALLATION INSTRUCTIONS ..........................6 OPERATING INSTRUCTIONS ..........................7 CLEANING INSTRUCTIONS ..........................14 MAINTENANCE ..............................15 LIMITED WARRANTY ............................15 TROUBLESHOOTING ............................16 CAPACITY CHART TABLE ............................17 MIXER AGITATOR/APPLICATION .........................18 WIRING SCHEMATICS ............................19 DECLARATION OF CONFORMITY ........................33...
  • Page 3 CAUTIO Read before you operate the machine It is important to read this manual and following the instructions before operate the machines. This mixer is designed as a safe and efficient food processing product as long as the machine is used in accordance with the instructions in this manual and is properly maintained.
  • Page 4: Overall View Of The Mixer

    NOTE: Attachment Hub is optional. Control Panel A) Emergency Stop B) Start C) Timer** NOTE: Timer is optional on Model SP-100A, SP-100A/nh, SP-200A and SP-200A/nh. D) Bowl Raise Button E) Bowl Lower Button (Available for SP-A80HI and SP-A80I Only) NOTE: Oil Meter Indicator is only available for SP-A80HI, SP-A80I,...
  • Page 5 INSTALLATION The machine is supplied factory lubricated and ready to run. It should be positioned on any solid, level and non-skid work surface that is nonflammable. Install in work area with adequate light and space. For Smaller Capacity Model, you may place the mixer on bench which is capable of supporting a load of mixer’s weight.
  • Page 6: Installation Instructions

    Installation Instructions The minimum requirement for all electrical equipment is correct operation between air temperature of +5℃ and +40℃. Electrical equipment is capable of operating correctly when the relative humidity does not exceeding 95% at a maximum temperature of +40℃. Electrical equipment is capable of operating correctly at altitude up to 1000m.
  • Page 7: Operating Instructions

    Operating Instructions TOOL SELECTION Beater: Firm mixes such as light The beater, whisk and spiral dough hook are tools for pastry, cakes biscuits, icings the work implied by their names. Do not use the beater fillings and mashed vegetables. for dough making or the whisk for anything other than whisking, aerating or mixing light mixtures.
  • Page 8 Operating Instructions THE REMOVABLE BOWL GUARD The interlocking bowl guard now is available to remove for cleaning purpose. With separated handles, it can easy take out the bowl guard and cleaning in a sink or dishwasher. Open / Closing the Bowl Guard: To open the bowl guard, holding the separated handle, and rotating clockwise.
  • Page 9 If you wish to manually control a mix, select the untimed mode by moving the Timer Knob anti-clockwise to the green mark until it stops. NOTE: Timer is optional on Model SP-100A, SP-100A/nh, SP-200A and SP-200A/nh. POWER BOWL LIFT NOTE: Power Bowl Lift is only available for Model SP-A80HI and SP-A80I.
  • Page 10 NOTE: Overloading or not following the chart will damage the mixer and void the warranty. NOISE TEST REPORT The average A-weighted sound pressure level is listed as below table. “Uncertainty, K in decibels: 4.0 dB (A) according to EN ISO 4871” SP-A80HI, SP-100A SP-200A SP-30HA SP-40HA SP-60HA...
  • Page 11 Operating Instructions BOWL SCRAPER NOTE: Bowl Scraper is an optional accessory. Please consult the local dealer for ordering. The Bowl Scraper is used in conjunction with the Beater or Wire Whip agitator. The Bowl Scraper is easily attached to the mounted bracket when needed. While the agitator is mixing the product, the scraper is continuously scraping the entire inside of the mixing bowl.
  • Page 12 Operating Instructions ATTACHMENTS NOTE: Attachment Hub is optional. The ranges of attachments that can be operated from the Attachment Hub are listed below. When using an attachment, lubricate the Drive Stud (D) using a food quality grease or oil. To fix to the mixer refer to Figure 4. Release the Thumbscrew (G) and slide the shaft of the attachment into the hub ensuring that the Drive Stud (D) engages in the socket within the hub.
  • Page 13: Cleaning Instructions

    Cleaning Instructions CARE OF YOUR MIXER CAUTION: ALWAYS DISCONNECT OR UNPLUG THE ELECTRICAL POWER FROM THE MIXER BEFORE CLEANING. The mixer is designed for simple maintenance carried out by operators. It may be necessary from time to time to apply a little Vaseline and oil to the rods on which the bowl cradle slides. If so, use a little food quality lubricant, ensuring that there is no excess oil that could contaminate the food mix.
  • Page 14: Maintenance

    SPAR appointed distributor. GEARBOX LUBRICANT In terms of the rest model from SP-100A to SP-60HA, please refill the lubricant inside the gearbox every 5 years. We recommended that this servicing or maintenance work must be carried out by trained technicians from a SPAR appointed distributor.
  • Page 15: Troubleshooting

    Troubleshooting FAULT FINDING FAULT CHECK POSSIBLE REASON AND ACTION REQUIRED No power to mixer Check plug socket Mixer not plugged into a live socket or not switched on Check wiring in plug Plug incorrectly wired – rewire correctly Check fuse in plug Possible faulty fuse –...
  • Page 16: Capacity Chart Table

    Capacity Chart Table Agitator / SP-A80HI & Product SP-100A SP-200A SP-30HA SP-40HA SP-60HA Speed SP-B80HI Bowl Capacity Bowl 10 LITER 20 LITER 30 LITER 40 LITER 60 LITER 80 LITER Waffle or Hot Cake Batter Beater 4.7L 7.6L 11.4L 15.1L 22.7L...
  • Page 17: Mixer Agitator/Application

    MIXER AGITATOR/APPLICATION ATTACHMENT APPLICATION FOOD PRODUCTS RECOMMENDATIONS ⚫ Multi purpose agitator ⚫ Mashing potatoes ⚫ Use 1 FLAT BEATER speed for starting ⚫ Mixing cakes ⚫ Medium speed for finishing ⚫ Icings ⚫ Maximum blending of air ⚫ Whipping cream ⚫...
  • Page 35: Declaration Of Conformity

    Vakuuttaa, etta seuraava tuote / Forsakrar att foljande produkt / Declare that the following product Nimi, tyyppi tai malli Namn, typ eller model!/ Name, type or model Mixer, Model: SP-800A, SP-100A, SP-200A, SP-30HA, SP-40HA, SP-60HA, SP-880HI, SP-A80HI on seuraavien direktiivien asiaankuuluvien saannosten mukainen overensstammer med tillampliga bestammelser i foljande direktiv / is in conformity with the relevant provisions of the following directives Electromagnetic Compatibility Directives 2014/30/EU.
  • Page 36 Metos Oy Ab www.metos.com...
