Summary of Contents for Metos Kodiak 30 VL-1C

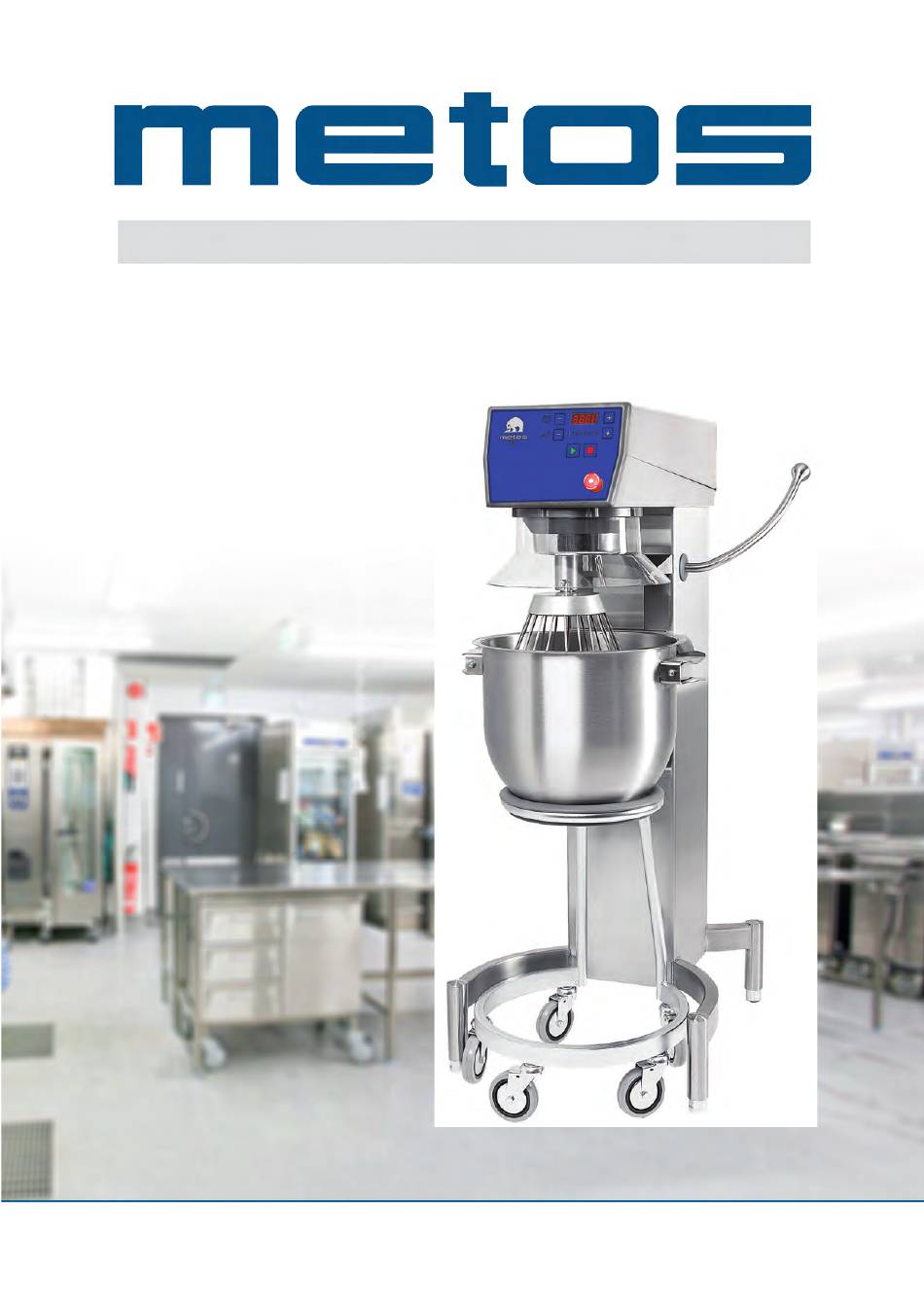

- Page 1 OPERATING INSTRUCTIONS MIXER Kodiak 30 VL-1C User manual ORDER NO.: 00520 VL-1C EN 10.2017 MG4143101, MG4143103 Translation of the original user manual...
-
Page 2: Table Of Contents
ontents ..................................2 eneral : ..................................2 npackinG : ..................................3 ransport : ..............................3 nstallation and fixinG : .................................. 4 ommissioninG : ............................. 4 ecommended Use of the machine : ................................4 echnical data : ............................4 capacity of the machine : ............................. -
Page 3: Npacking Ransport
ransport Lifting equipment should always be used to move the machine. Allowance should be made for the fact that the machine is ‘top-heavy’. The machine must not be pulled or lifted by the bowl lift handle. When the machine is moved, it should be in a vertical position at all times. nstallation and fixinG The ambient temperature around the machine must not exceed 45 When the mixer is delivered, the adjustable feet will be turned right to the... -
Page 4: Ommissioning
ommissioninG Bowl, tools and safety guard should be cleaned before use – see section on Cleaning, page 9. The bowl arms should be at the correct height above the floor before the machine is taken into use – see Adjustments, page 6. ecommended Use of the machine The machine is designed for the manufacture of products that do not trigger any reactions or release sub- stances that may be harmful to the user when in use. -
Page 5: Omponents Of The Machine
omponents of the machine Mixer head Lifting handle Control panel Control panel with attachment drive Socket on the back of the machine; contains 10A fuse, see page 11. Safety guard With loop to hold plug. Mixer tool Bowl Bowl truck Bowl arms;... -
Page 6: Afety
afety The machine is designed for the manufacture of products that do not trigger any reactions or release sub- stances that may be harmful to the user when in use. Users must be over 14 years of age and trained in the use of the machine according to these instructions. User safety is assured as follows: •... -
Page 7: Friendliness
kodiak User friendliness KODIAK has designed in partnership with kitchen and bakery staff, which has resulted in a number of user benefits: The machine itself Can be connected to the mains by the user Is made of stainless steel Has height-adjustable feet to ensure that the high bowl trolley works properly Is easy to clean, with large surfaces and a removable safety guard which can be machine-washed Power cable held with a loop so it cannot be shaken loose from the machine The inclined control panel combined with the large bowl diameter provides a good view of the contents of the bowl. -
Page 8: Perating The Mixer
peratinG the mixer Timer (timer field) Increase time Decrease time Increase speed Decrease speed Speed indi- cator Start Emergency stop Stop Before starting the machine: Place the bowl in the bowl trolley. The running time will not be reset if is pressed once;... -
Page 9: Verloading
verloadinG orrect Use of tools Recommended uses of tool: The mixer must not be overloaded. Whip Beater Hook Possible overload situations: Cream Cake mix Bread dough • Working with excessively tough and heavy dough Egg whites Buttercream Rye bread • Waffle mix Mixer tool exceeding the recommended speed Mayonnaise... -
Page 10: Ystematic Maintenance
ystematic maintenance Action Frequency Part Note Safety guard Check the safety of the safety Regularly If the tool does not immediately guard: Does the tool stop ro- stop rotating on tilting/removal tating when the guard is tilted/ of the guard, the machine must removed? not be used. -
Page 11: E Rror Codes And Possible Solutions
rror codes and possible solUtions For some errors, the control system will show an error code in the display: User pressed without raising the bowl to working height. Solution: Raise bowl to working height. without fitting the safety guard. User pressed Solution: Fit the safety guard. The Thermal sensor in the motor has overheated. -
Page 12: Ircuit Diagram
ircUit diaGram... -
Page 13: Xample Electrical Connections
xample electrical connections Local 50/60 Hz supply. Name plate Power supply: With Earth Voltage Phas- Notes phases x voltage neutral neutral earth 1 x 220-240V Neutral 230V Note that the machine must not be con- nected without an earth, as this may com- 2 or 3 x 220-240V 230V promise the action of the EMC filter by... - Page 14 Indhold af Overensstemmelseserklæring, (Maskindirektivet, 2006/42/EC, Bilag II, del A) Contents of the Declaration of conformity for machinery, (Machinery Directive 2006/42/EC, Annex II., sub. A) Inhalt der Konformitätserklärung für Maschinen, (Richtlinie 2006/42/EG, Anhang II, sub A) Contenu de la Déclaration de conformité d’une machine, (Directive Machine 2006/42/CE, Annexe II.A) Inhoud van de verklaring van overeenstemming voor machines, (Richtlijn 2006/42/EC, Bijlage II, onder A) Contenido de la declaración de conformidad sobre máquinas, (Directiva 2006/42/EC, Anexo II, sub A) Fabrikant;...
- Page 15 Innehåll i örsäkran om maskinens överensstämmelse, (Maskindirektivet 2006/42/EG, bilaga 2, A) Contenuto della dichiarazione di conformità per macchine, (Direttiva 2006/42/CE, Allegato II, parte A) Sisukord masina vastavusdeklaratsioon , (Masinadirektiiv 2006/42/EÜ, lisa II, punkt A) Treść Deklaracja zgodności dla maszyn (Dyrektywa maszynowa 2006/42/WE, Załącznik II, pkt A) Sisältö...
