System Control Mounting - Carrier Infinity SYSTXCCITC01-C Installation Instructions Manual

only a small hole in the wall allowing a four wire connection to pass

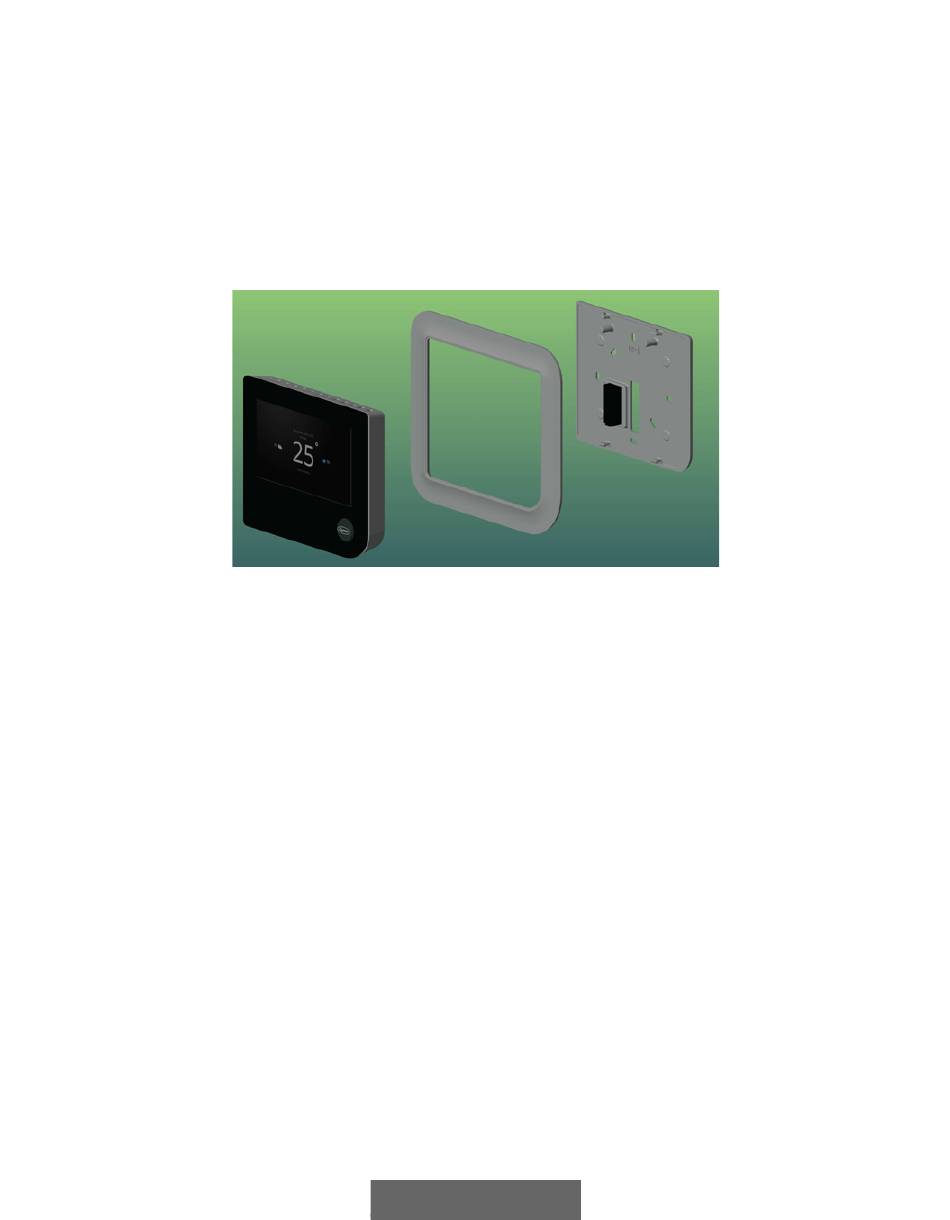

through. Mount the front assembly to the standard backplate. The figure
below shows the optional decorative trim plate, described in the
Decorative Trim Plate Section, installed with the standard backplate. The
decorative trim plate is captured between the backplate and the system
control. Align the decorative trim plate around the backplate, and snap on
the system control.

4.5.2. System Control Mounting

• Turn off all power to equipment.
• If an existing Infinity Control or other control is being replaced:
– Remove existing control from wall.
– Disconnect wires from existing control.
– Discard or recycle old control.
NOTE: Mercury is a hazardous waste, if existing control contains any
mercury, it MUST be disposed of properly. The Infinity Control does not
contain mercury.
• Select the
configuration. Use the standard backplate (mounting plate) provided
with the wall control, or add the decorative trim plate in addition to the
standard backplate if desired. See the Decorative Trim Plate Section
for more detail.
appropriate Infinity System
18
A170245C
Control mounting
