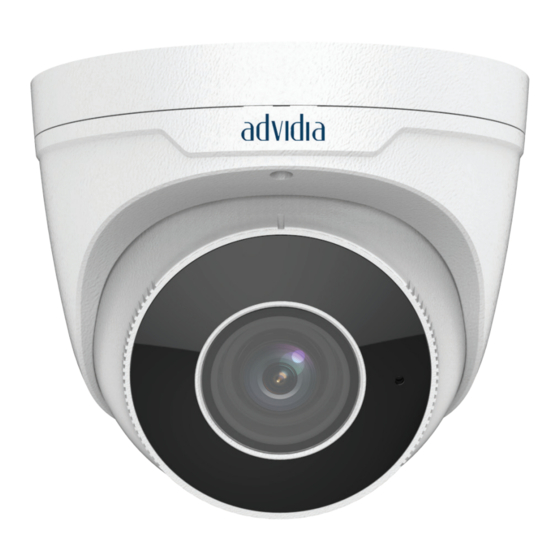

- Page 1 M-44-V-T Network Eyeball Cameras Quick Guide V1.00...
- Page 2 Waterproof Requirements Please waterproof cables in accordance with the following instructions. User shall assume all responsibility for device damage caused by water due to improper waterproof measures. NOTE! Before you start, connect all the needed cables and cut off the copper wires for the cables that you don't use.
- Page 3 Tighten Tighten Tighten Waterproof tape Wrap the unused cables together into a bundle 3. Install the supplied waterproof components to the network cable in sequence. CAUTION! You need to mount the rubber ring onto the network cable interface first. 4. If your camera has a DC cable and you will not use it, insert the plug into the interface.
-
Page 4: Packing List
Packing List Contact your local dealer if the package is damaged or incomplete. The attachments may vary with models, please see the actual model for details. Name Unit Camera Waterproof components （1） Screw components （2） Mount accessory （3） User manual Remarks: * means optional and supplied with certain models only. - Page 5 Do not overbend the cables during the installation, otherwise, poor cable contact may cause malfunction. When connecting to an external interface, use an existing connection terminal, and ensure that the cable terminal (latch or clamp) is in good condition and properly fastened.
- Page 6 129mm 5.1" Type B 129mm 5.1'' Cable Connection The appearance and tail cable may vary with device model. Type A...
- Page 7 Network Type B Network 1. Bottom ring 2. Housing 3. Mic 4. Lens 5. Power interface(12 VDC) 6. Ethernet interface...
-
Page 8: Mount Your Camera
NOTE! Use a pin to press and hold the Reset button for about 15 seconds to restore factory default settings. Perform this operation within 10 minutes after the device is powered on or the reset will fail otherwise. Mount Your Camera You can adopt ceiling mount or wall mount and purchase hardware accessories by yourself. - Page 9 Loosen the fixing screw, then remove the housing. Loosen the fixing screw, then turn the housing to the position shown in figure Πto remove it. Connect the cable and then secure the bottom ring. Connect cable and protect it with waterproof tape (Optional) insert a micro SD card...
- Page 10 Adjust the housing to the position shown in figure above.Align the screw hole on the housing with the tail cable outlet on the base, attach the housing gently and then rotate clock/counterclockwise at least 8 degrees to lock.To ensure proper image display and illumination effects, make sure the mark (see figure above) is aligned with the screw hole when installation is complete.
-
Page 11: Access Your Camera
Access Your Camera Open your Web browser, enter the camera's IP address in the address bar, and then press Enter. The default IP is 192.168.1.13. In the login page, enter the default username and password (admin/123456), then click Login. NOTE! DHCP is enabled by default. - Page 12 Disclaimer and Safety Warnings Copyright Statement No part of this manual may be copied, reproduced, translated or distributed in any form by any means without prior content in writing from our company (referred to as us hereafter). The product described in this manual may contain proprietary software owned by our company and its possible licensors.
