3 - Mechanical Integration
3.2

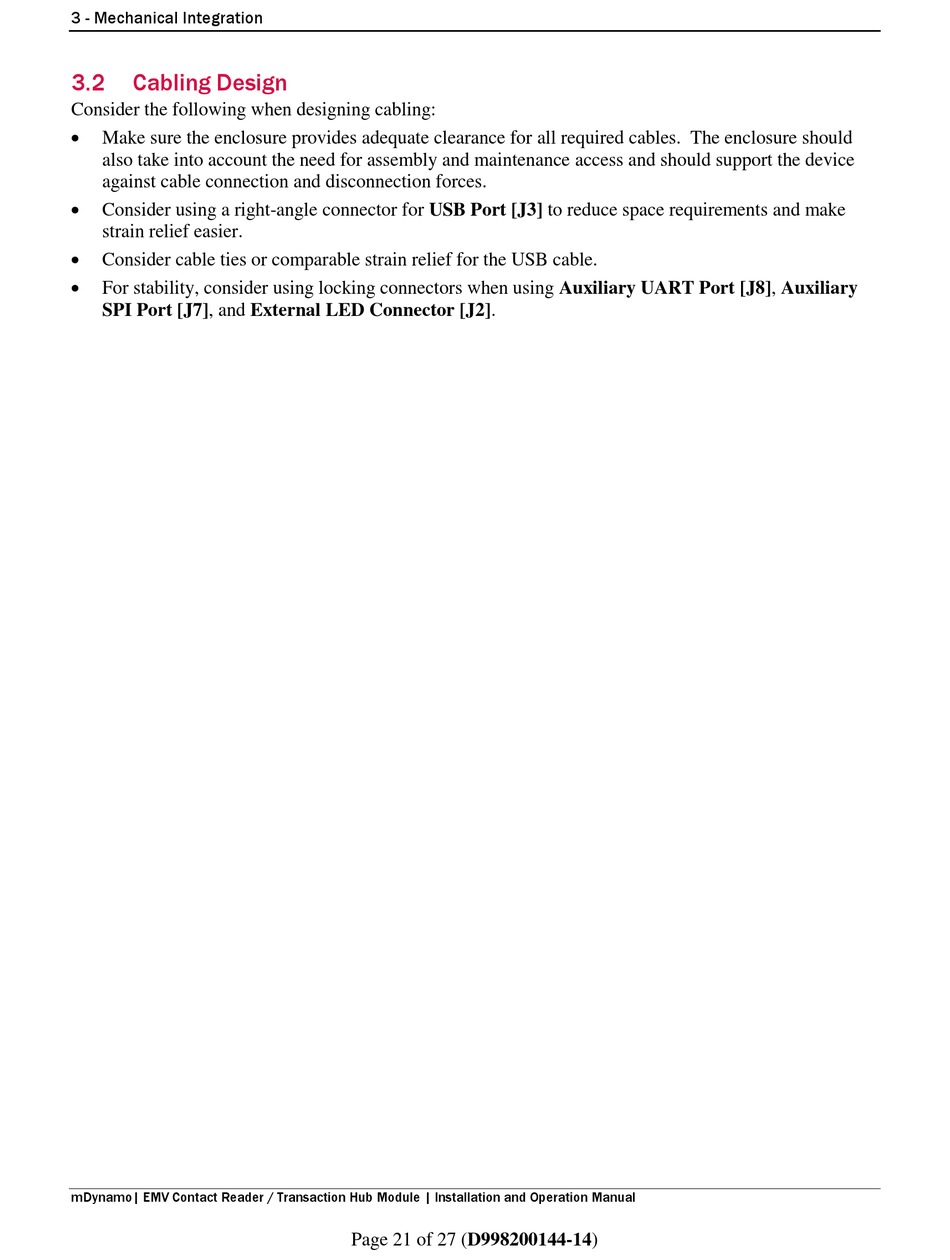

Cabling Design

Consider the following when designing cabling:

Make sure the enclosure provides adequate clearance for all required cables. The enclosure should
also take into account the need for assembly and maintenance access and should support the device
against cable connection and disconnection forces.

Consider using a right-angle connector for USB Port [J3] to reduce space requirements and make
strain relief easier.

Consider cable ties or comparable strain relief for the USB cable.

For stability, consider using locking connectors when using Auxiliary UART Port [J8], Auxiliary
SPI Port [J7], and External LED Connector [J2].
