3 - Mechanical Integration

If the solution will use External LED Connector [J2], allow space to run the cable and to mount the
LED(s) to be visible to cardholders during use. For details, see section 2.7 External LED
Connector [J2] and section 4.2 About the General Status LED.

If the solution will use Auxiliary SPI Port [J7] or Auxiliary UART Port [J8] to connect mDynamo
to external UART or SPI modules, allow space to for the connectors and cables, and consider how the
external devices will be mounted relative to the contact chip card insertion slot.

The device operates on low power, so no special cooling should be necessary.

mDynamo is not a PCI certified device; solutions that integrate it should consider how cardholder
data will be secured and which certifications the solution will need to pass.

MagTek strongly recommends testing solution designs before deployment, to make sure they meet all
requirements (e.g., functional, legal, security, certification, safety).
mDynamo| EMV Contact Reader / Transaction Hub Module | Installation and Operation Manual

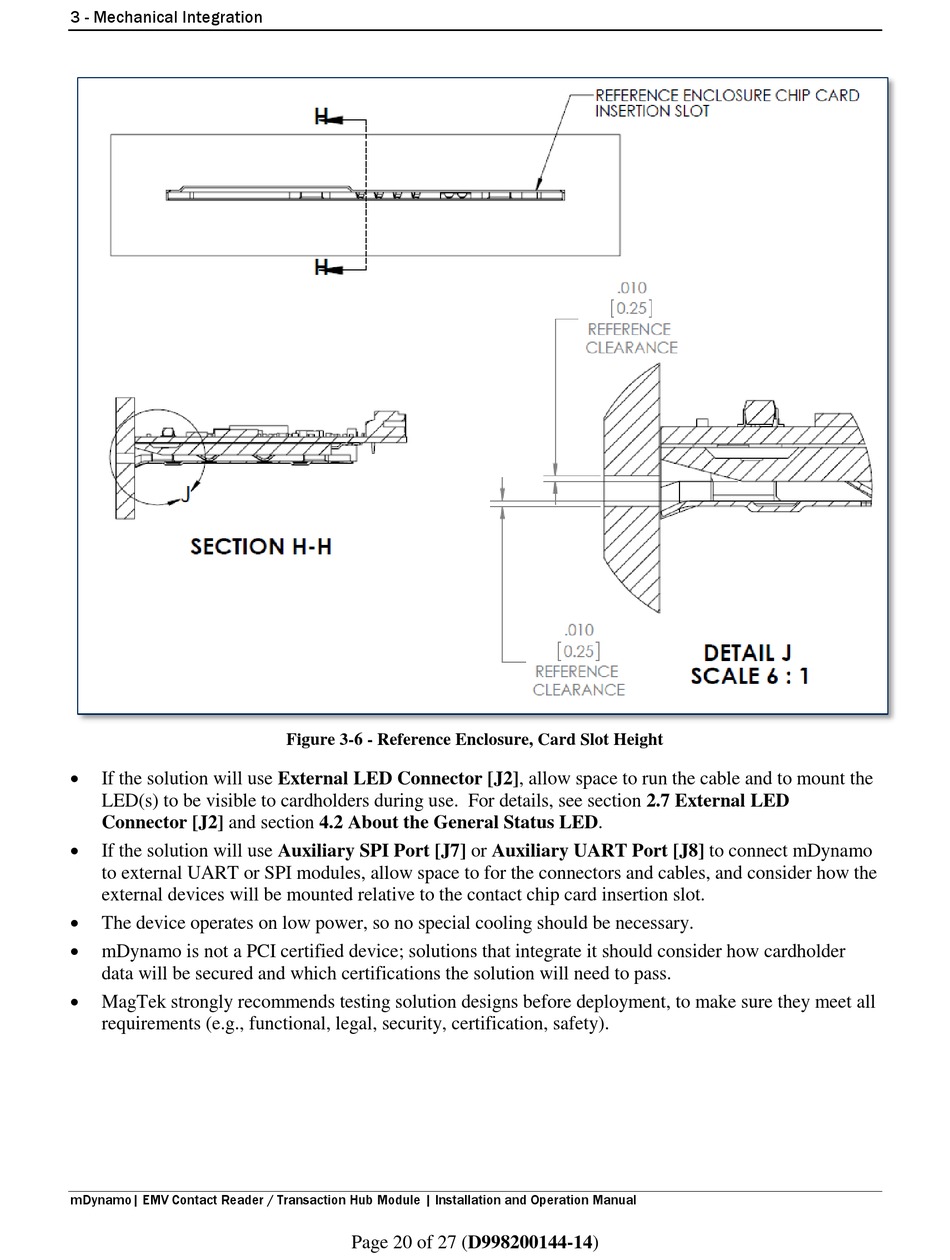

Figure 3-6 - Reference Enclosure, Card Slot Height
Page 20 of 27 (D998200144-14)
