Auxiliary SPI Port [J7]

The Auxiliary SPI port, labeled
optional external SPI Encrypting IntelliHead with MagneSafe V5. It is a 10-pin 1.25mm pitch Molex
PicoBlade header designed to mate with Molex PicoBlade connector 51021-1000. The dot on the printed
circuit board indicates pin 1. Pinouts are shown in Figure 2-4.
Depending on usage, the auxiliary SPI port can provide up to 100mA @ 3.3V to power an external SPI
device.
For details about connecting to an SPI Encrypting IntelliHead with MagneSafe V5, see the Installation
and Operation Manual or Technical Reference Manual for the module you plan to connect. Wiring
specifications for SPI heads are shown in Table 2-1. Programmers should see section 5 Developing
Custom Software for cross-references to programming tools and documentation for communicating
through the port.
Table 2-1 - Connector Pin Specifications for SPI Device Cable
SPI Signal
SCL BLUE
SDO YELLOW
SDI RED
DAV BROWN
CS GREEN
VIN WHITE
GND BLACK
CASE VIOLET
mDynamo| EMV Contact Reader / Transaction Hub Module | Installation and Operation Manual
J7 and SPI on the printed circuit board, can be used for connecting to an

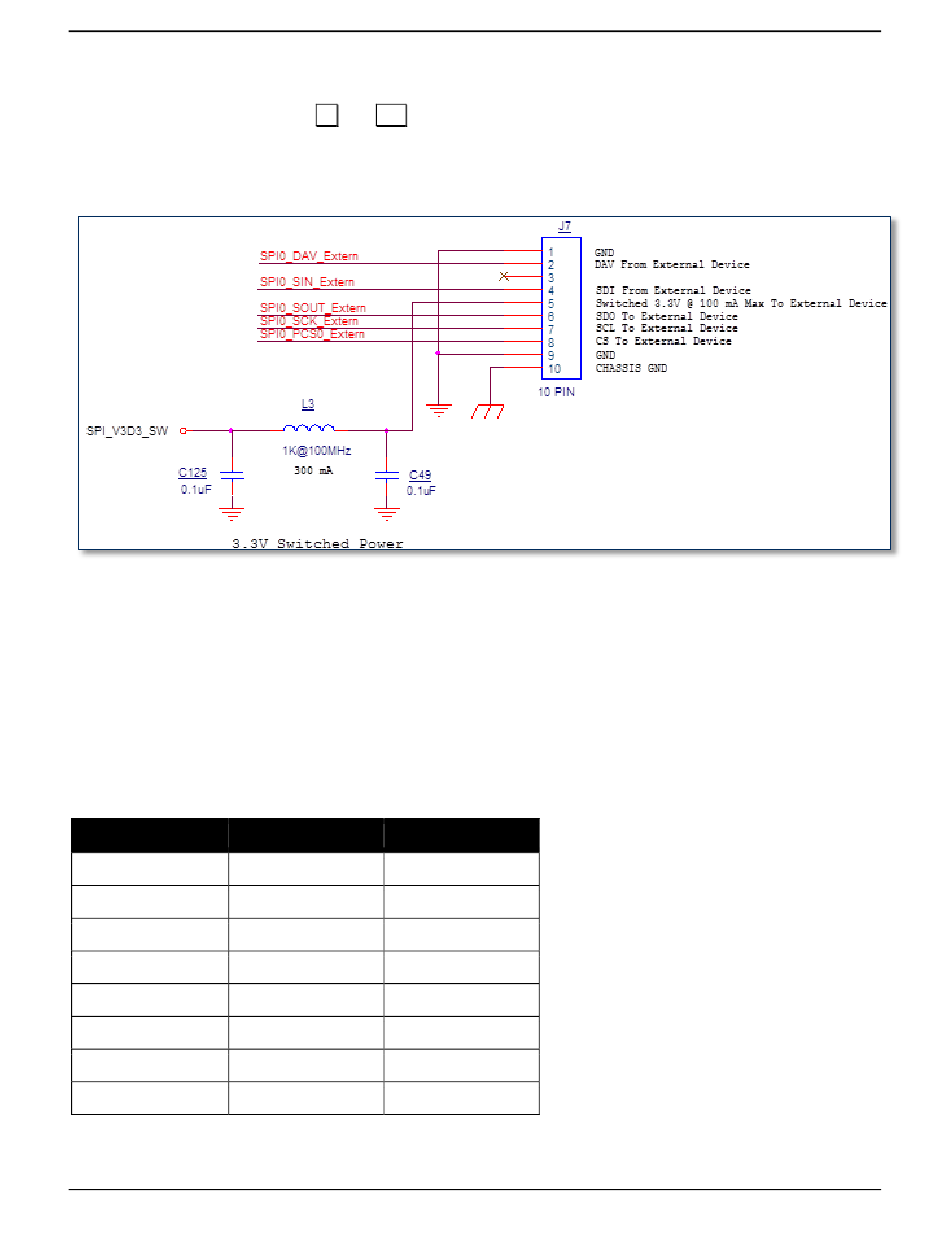

Figure 2-4 - Pinouts for mDynamo Auxiliary SPI Port J7
Color Connector Pin
1
2
3
4
5
6
7
8
