4.4 Installing/Removing Power Modules
4.4

Installing/Removing Power Modules

The RUGGEDCOM RX1500 supports dual redundant power supply modules.
1
2

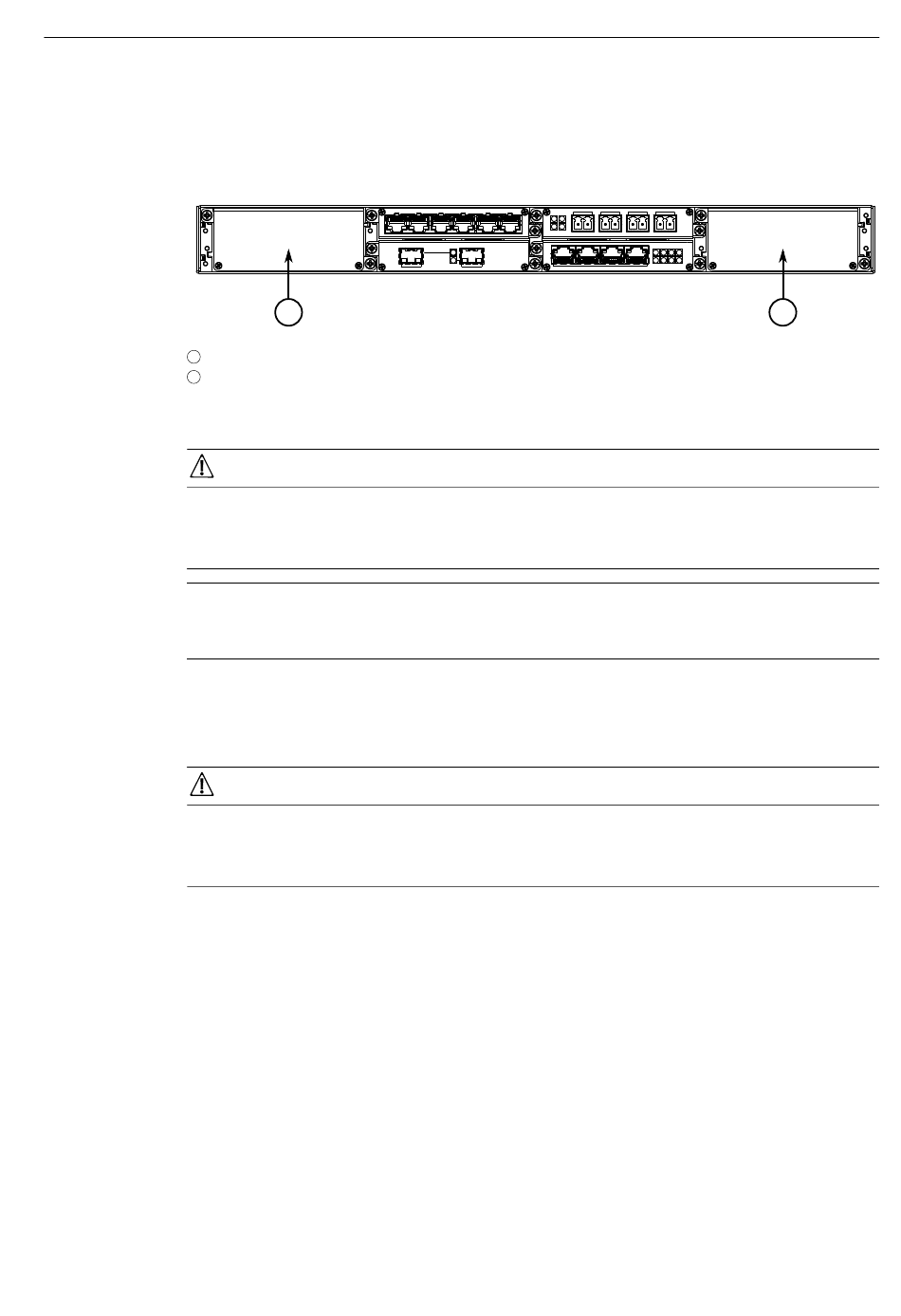

Figure 4.4
Contamination hazard – risk of equipment damage
Prevent the ingress of water, dirts and other debris that may lead to premature
equipment failure. Always make sure slots are not left empty.
Note
Power modules are hot swappable. When installing/removing a power module, it is
not necessary to turn off power to the redundant power module.
Removing a Power Module
To remove a power module, do the following:
Electrocution hazard – risk of serious personal injury or death
Make sure power to the module is turned off before servicing the power supply
terminal.
1.
30
1
Slot PS1
Slot PS2
Power Modules
NOTICE
DANGER
Turn off power to the module.
2
