Modules
4.4 Installing/Removing Power Modules
4.
5.
6.
32
Insert the module into the empty slot.
1
2
3
Chassis
1
Power Module
2
Screws
3

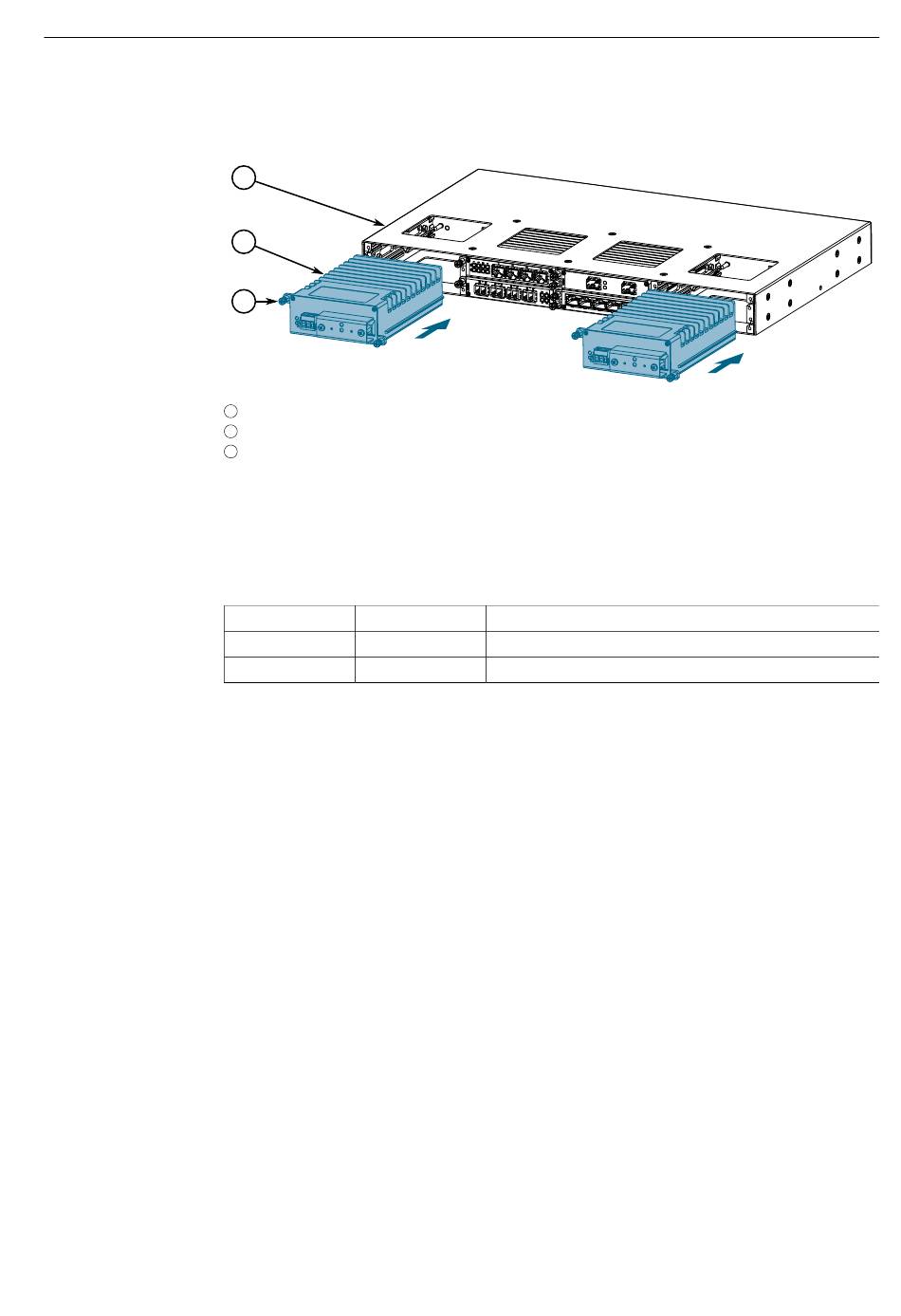

Figure 4.6 Installing a Power Module
Hand-tighten the screws to secure the power module to the chassis.
Turn on power to the device and confirm the module is receiving and supplying
power. This is indicated by the LEDs on the module.
LED
O
I
State
Green The module is supplying power
Green The module is receiving power
Description
